Solar installations in coastal regions face a persistent adversary: corrosion. The combination of salt spray and high humidity creates an aggressive environment that can significantly shorten the lifespan of metal components, particularly the racking that forms the backbone of a solar array. This accelerated degradation, driven by a process called galvanic corrosion, threatens not only the structural integrity of the installation but also its energy output and financial viability. A straightforward component, the isolation pad, offers a powerful defense, preserving the longevity and performance of coastal PV racking.
The Aggressive Nature of Coastal Environments
Operating a solar asset near the coast introduces unique environmental challenges not present in inland locations. The very air carries corrosive agents that relentlessly attack metal structures, making material science and preventative design critical for long-term success.
Salt Spray and Its Corrosive Effects
Sea spray contains chloride ions, which act as a catalyst for corrosion. When these particles settle on metal surfaces, they create a highly conductive electrolyte, dramatically speeding up the electrochemical reactions that cause rust and degradation. Studies have shown that the effects are not minor; a solar installation on the Florida coast experienced a 5% drop in efficiency in just one year due to corrosion from salt, a stark contrast to the less than 1% seen in inland systems. This constant assault affects everything from frames and fasteners to electrical connections, compromising the entire system.
The Science of Galvanic Corrosion
Galvanic corrosion is an electrochemical process that occurs when two different metals are in electrical contact in the presence of an electrolyte, like saltwater. One metal becomes the anode and corrodes at an accelerated rate, while the other becomes the cathode. In a typical solar installation, this might involve aluminum module frames (anode) in contact with stainless steel fasteners or a galvanized steel racking structure (cathode). This interaction can lead to severe structural failures in racking components, jeopardizing the 25-year expected lifespan of the PV system.
Galvanic Isolation: A Proactive Defense
Instead of merely reacting to corrosion, a proactive approach involves preventing the electrochemical circuit from forming in the first place. This is the core principle of galvanic isolation, a simple yet highly effective strategy for PV racking protection in harsh environments.
What Are Isolation Pads?

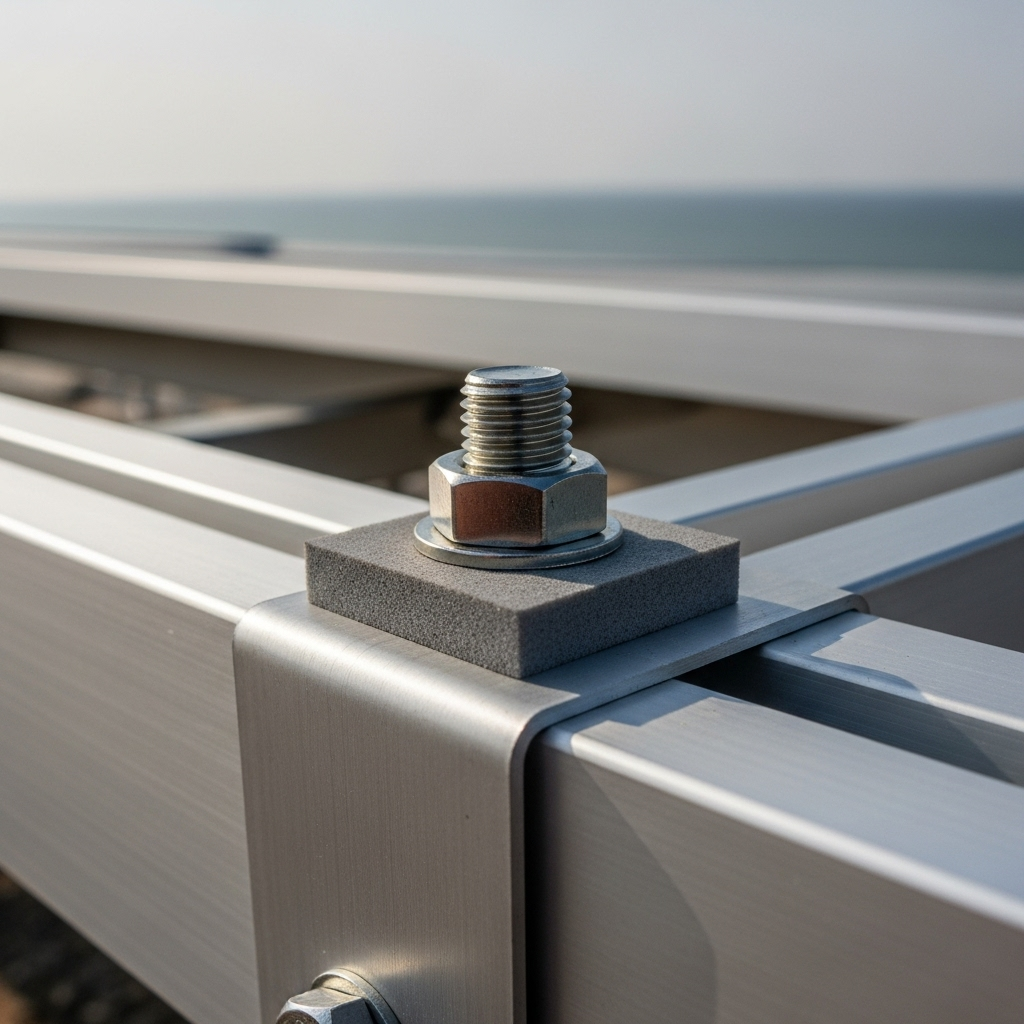

Isolation pads are thin, durable components made from non-conductive materials such as EPDM rubber, neoprene, or specialized polymers. They are designed to be placed between dissimilar metal surfaces, such as between a module frame and a mounting clamp, or between a fastener and the racking itself. Their function is to create a physical and, most importantly, an electrical barrier that stops the flow of electrons between the two metals.
How Isolation Prevents Catastrophic Failure
By breaking the electrical circuit, isolation pads halt the galvanic corrosion process before it can begin. The anode metal is protected from accelerated degradation, preserving the strength and integrity of critical connection points. In one coastal installation showing premature signs of fastener corrosion, the system's structural integrity was at risk. Rust streaks and pitting were evident where stainless steel bolts connected aluminum components. Retrofitting the system with isolation pads effectively stopped the corrosive action, safeguarding the entire array from potential failure and extending its operational life.
Case Study in Focus: A Coastal Installation's Turnaround
A multi-megawatt solar farm located just a few hundred meters from the ocean began experiencing significant maintenance issues within five years of commissioning. An inspection revealed widespread corrosion at the connection points between the galvanized steel racking and the aluminum module frames, held together by stainless steel fasteners.
Initial Assessment: Identifying the Corrosion Hotspots
The primary issue was identified as aggressive galvanic corrosion. The constant salt spray provided the perfect electrolyte, and the direct contact between galvanized steel, aluminum, and stainless steel created numerous galvanic cells across the array. The corrosion was most severe at the fastening points, weakening the clamps and bolts that secured the panels. This not only posed a risk of panels becoming loose but also created safety hazards and threatened the long-term energy production of the facility.
The Solution: Retrofitting with Isolation Pads
A comprehensive retrofitting plan was developed. Maintenance teams systematically worked through the array, loosening each connection point, inserting a high-dielectric strength polymer isolation pad between the dissimilar metals, and re-torquing the fasteners to specification. This process effectively isolated the aluminum frames from the steel structure, breaking the corrosive electrochemical circuit. While labor-intensive, this one-time intervention was deemed more cost-effective than ongoing component replacement.
Results and Long-Term Benefits
Follow-up inspections 18 months after the retrofit showed a complete halt to the accelerated corrosion at the connection points. The structural integrity of the racking was secured, and the need for frequent fastener replacement was eliminated. This intervention is projected to extend the racking's useful life by over 15 years, aligning it with the expected lifespan of the solar modules.
| Metric | Without Isolation Pads (Projected) | With Isolation Pads (Actual & Projected) |
|---|---|---|
| Annual Maintenance & Repair Costs | $15,000 per MW | <$2,000 per MW |
| Projected Racking Lifespan | 7-10 Years | 25+ Years |
| System Downtime for Repairs | Significant annual downtime | Minimal downtime post-retrofit |
| Return on Investment | Compromised | Secured and Optimized |
Best Practices for Coastal PV Racking Protection
Achieving a 25-year lifespan for coastal solar installations requires a design philosophy centered on corrosion prevention from day one. Integrating robust materials and isolation strategies is key to ensuring durability and financial success.
Material Selection and Compatibility
Choosing the right materials is the first line of defense. Using metals that are close together in the galvanic series, such as anodized aluminum for both frames and racking, can reduce the potential for corrosion. When dissimilar metals are necessary, protective coatings and treatments can enhance durability. Research into infrastructure for harsh marine environments, such as offshore wind farms, consistently emphasizes the critical need for advanced corrosion protection to ensure the viability and safety of these structures. As noted in the Offshore wind energy: Patent insight report, solutions like specialized coatings and cathodic protection are vital for increasing lifespan and reducing maintenance costs.
Integrating Isolation into the System Design
Galvanic isolation should not be an afterthought or solely a remedial measure. Specifying isolation pads or washers in the initial bill of materials is a low-cost, high-impact design choice for any coastal or otherwise corrosive environment. This proactive measure ensures that from the moment of installation, the PV racking is protected against its most predictable failure mode.
The Role of System Performance Monitoring
The physical health of the racking is directly linked to the electrical performance of the system. A corroded, failing structure can lead to misaligned panels, damaged wiring, and safety issues that cause system shutdowns. Ensuring the foundation is secure is fundamental to maintaining peak output. For a comprehensive overview of monitoring and optimizing your system's electrical health, you can consult this ultimate reference for solar storage performance, which details key metrics for maintaining a productive solar and storage system.
A Resilient Foundation for Solar Energy
The structural foundation of a solar array is just as important as the high-tech panels it supports. In coastal environments, the silent threat of galvanic corrosion can undermine the entire investment. Through the simple, strategic use of isolation pads, installers and asset owners can neutralize this threat, ensuring their coastal PV racking remains stable and secure for decades. This case study demonstrates that a small, inexpensive component can make the difference between premature failure and long-term, reliable clean energy production.
Frequently Asked Questions
Are isolation pads necessary for all solar installations?
They are not strictly necessary for all installations but are highly recommended for any project in a corrosive environment. This includes coastal areas with salt spray, industrial zones with chemical pollutants, or locations with high humidity and acid rain.
What materials are typically used for isolation pads?
Common materials include durable, non-conductive polymers and rubbers that can withstand UV exposure and compression. EPDM (ethylene propylene diene monomer) rubber, neoprene, and various high-density plastics are frequently used due to their excellent insulating properties and longevity.
Can I retrofit my existing PV racking with isolation pads?
Yes, retrofitting is a common and effective strategy to halt existing galvanic corrosion and prevent future damage. The process involves safely de-torquing fasteners, inserting the isolation pad, and re-tightening to the manufacturer's specifications.
How do isolation pads affect the grounding of the solar array?
Isolation pads are designed to prevent galvanic currents between specific components, not to interfere with the system's overall safety grounding. The array's grounding and bonding system, which is critical for fault protection, must still be installed correctly according to electrical codes. The pads isolate the dissimilar metals without compromising the path to ground.
