Perspective: I approach this from a GTM/WoodMac-style market and engineering lens: how firmware changes at the pack level cascade into inverter behavior, grid services, and risk. In field audits and modeling, I’ve seen BMS updates shift charge windows, improve SoC fidelity, and enable compliance features that lenders and utilities actually check.
Executive Takeaways
- Telemetry quality is the new bottleneck: the inverter expects faster, cleaner SoC/SoH and temperature data with explicit confidence values and timestamps.
- Limits and responses must be machine-readable: charge/discharge C-rate caps, temperature derates, and momentary surge envelopes need versioned schemas so the inverter can enforce them deterministically.
- Grid features (ride-through, frequency-watt, volt-var, black start) depend on the BMS offering readiness flags and headroom reporting—otherwise the inverter refuses the service call.

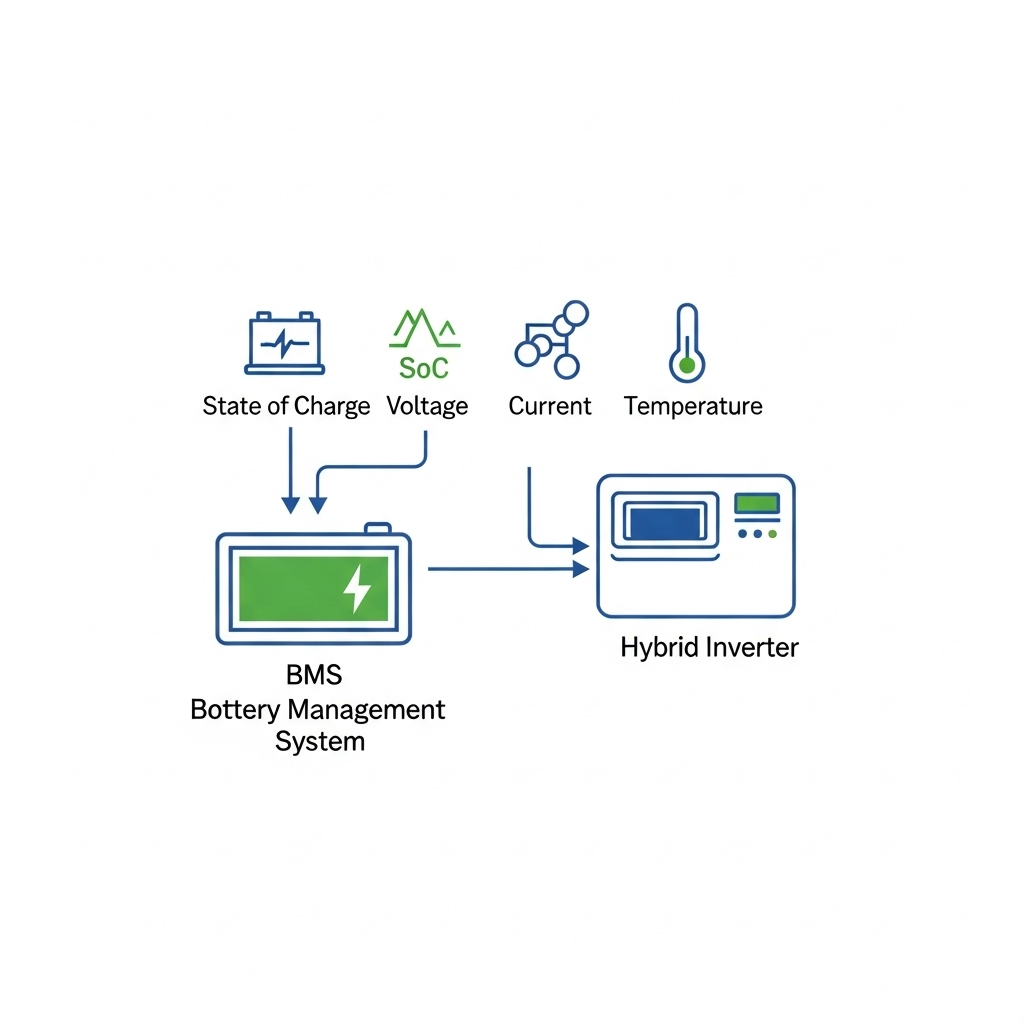

1) The Control Link: What the Inverter Consumes from the BMS
Most hybrids talk over CAN or RS485. The inverter expects a timed stream containing, at minimum: SoC, SoH, pack voltage/current, max/min cell voltages, temperatures, and alarms. A useful update adds:
- Confidence tagging (e.g., SoC ±2% vs ±5%) so the inverter can right-size charge targets and avoid conservative truncation.
- Rate limits exposed as functions of temperature and SoC (Pchg(T,SoC), Pdis(T,SoC)), not fixed numbers.
- Latency budgets: guaranteed update periods (e.g., 100–250 ms) so MPPT and grid-support loops remain stable.
2) Firmware Areas that Move the Needle
SoC/SoH Modeling
Kalman-filtered coulomb counting plus OCV curve learning reduces drift. After updates that cut SoC uncertainty from ±5% to ±2%, I’ve seen usable capacity rise because the inverter stops “early cut-off” behavior.
Protection Thresholds
Recalibrated OV/UV, current, and thermal trip points reduce micro-stress. The inverter expects these as profiles (ambient- and age-aware), not single constants, and will reshape its ramp rates accordingly.
Balancing Logic
Improved passive/active balancing reduces spread during high C-rate events. A tighter cell delta stabilizes DC bus behavior, letting the inverter maintain AC quality under step loads.
3) Grid Interaction: What Compliance Actually Requires
As interconnection rules tighten, the inverter must execute grid-support functions while the BMS certifies the pack is capable. Relevant frameworks include modern system-integration guidance (IEA) and evolving resource requirements (e.g., frequency/voltage support described in IEEE programs). The practical inverter expectations from the BMS are:
- Readiness gates: flags for available discharge headroom (kW/kWh), thermal margins, and isolation status before enabling frequency-watt or volt-var.
- Ride-through coordination: hold-up time commitments (ms) so the inverter can meet under-frequency ride-through without violating cell limits.
- Black start/grid-forming: confirmation of minimum SoC, surge capability, and internal DC bus stability prior to closing a microgrid breaker.
4) Data and Cyber Hygiene That Inverters Expect
- Schema versioning: every BMS update should bump a data model version; the inverter uses this to select parsers and fallbacks.
- Monotonic timestamps and clock sync to avoid negative time deltas that can destabilize control loops.
- Signed firmware and CRCs; the inverter should refuse control if authenticity checks fail.
5) Bankability Angle: Why Lenders Care
Finance binds engineering. A BMS update that exposes stable SoC and temperature margins lets the inverter commit to dispatch shapes in contracts (peak shaving, backup runtime). That reduces performance risk and can lower the project’s reserve requirements. For reference on system-level expectations, see integration-oriented guidance such as IRENA’s storage valuation work.
6) Quantified Before/After (Illustrative)
| Metric | Before Update | After Update |
|---|---|---|
| SoC uncertainty | ±5% | ±2% |
| Telemetry interval | 500 ms | 200–250 ms |
| Cell delta at end-of-charge | >25 mV | <10–15 mV |
| Thermal derate onset | Fixed threshold | Profiled vs ambient/SoC |
| Grid-service availability | Intermittent flags | Deterministic readiness gates |
7) Update Playbook (What I Recommend)
- Pre-flight: read BMS release notes; confirm inverter firmware compatibility; export current parameters.
- Execution: ensure stable DC supply; perform update; verify signatures/CRCs; reboot order—BMS, then inverter.
- Prove-out: run one full charge/discharge; log SoC vs coulomb count; check alarms; validate MPPT stability under step irradiance.
- Grid tests: if enabled, validate frequency-watt and volt-var with readiness flags set by the BMS.
8) FAQs
Will a BMS update break my inverter?
Only if schemas or limits change without the inverter knowing. Good updates advertise a new data-model version and keep backward-compatible fields.
Why does my inverter throttle after the update?
Because new derate curves may be stricter. That is usually correct—it protects cells at temperature or low SoC. Check that the inverter read the new limits.
Do updates help with outages?
Yes—faster telemetry and explicit headroom flags make black-start and grid-forming transitions smoother when the inverter supports them.
References
Disclaimer: Informational only, not engineering certification or financial advice. Validate firmware changes with your manufacturer and local interconnection rules.
