Case Study: MLPE vs String on Complex Roof - Yield and O&M

Choosing the right inverter is crucial for maximizing your solar system's output. While a simple, south-facing roof presents a straightforward choice, many homes have complex rooflines with multiple angles, dormers, or intermittent shading. In these scenarios, the technology decision between a traditional string inverter and Module-Level Power Electronics (MLPE) becomes a critical factor in the system's lifetime value. This case study examines a real-world scenario to compare energy yield and long-term operational costs, providing a clear picture of how each technology performs under challenging conditions.

Understanding the Technologies: A Quick Refresher

Before analyzing the case study, it’s helpful to understand the fundamental difference between these two inverter architectures. The choice directly impacts energy production, monitoring capabilities, and maintenance.

The Centralized Approach: String Inverters

A string inverter works by connecting several solar panels in a series, creating a 'string'. The combined DC electricity from this string flows to a single, centralized inverter that converts it into usable AC power for your home. This design is highly efficient and cost-effective for large, unshaded roofs where all panels perform uniformly. However, its performance is dictated by the lowest-performing panel in the string. If one panel is shaded or soiled, the output of the entire string is reduced to match it.

The Distributed Solution: MLPE (Microinverters & Power Optimizers)

MLPE technology takes a decentralized approach. Devices are installed on each individual solar panel to manage its power output independently. This category includes two primary types: microinverters and power optimizers. Microinverters convert DC to AC right at the panel, while power optimizers condition the DC voltage of each panel before sending the power to a central inverter. Both solutions isolate each panel's performance, ensuring that a shaded or underperforming panel does not affect the output of others in the array.

The Case Study: A Real-World Scenario

To illustrate the performance differences, we'll model an 8kW residential solar installation on a roof with common complexities. This provides a practical basis for comparing energy yield and operational factors.

Profile of the Installation Site

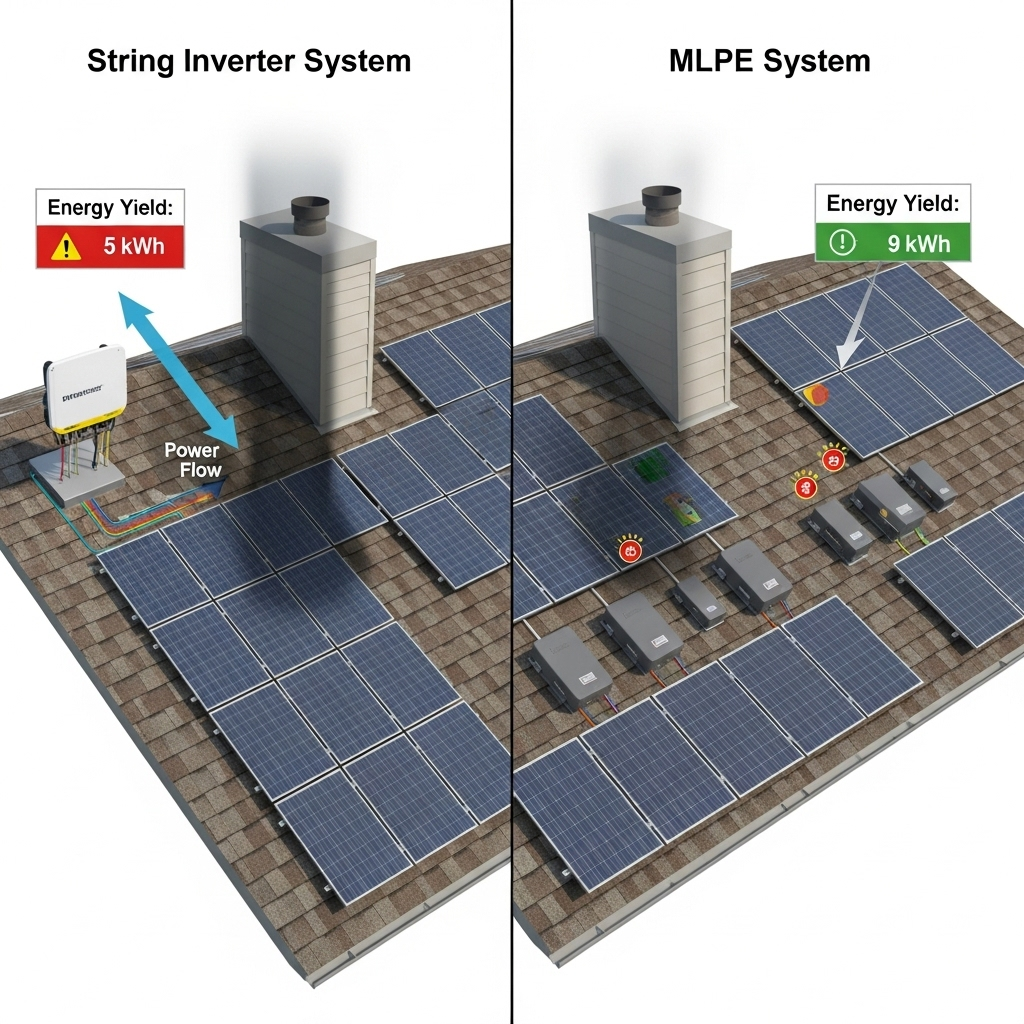

The subject is a two-story home with a roof that has both east- and west-facing sections. This means panels receive peak sunlight at different times of the day. Additionally, a chimney casts a moving shadow across several of the west-facing panels during the afternoon, a critical time for energy production. These conditions create a challenging environment for a traditional string inverter system.

System Designs and Performance Data

Two identical 8kW systems were modeled on this roof. Both use the same high-efficiency solar panels.

• System A: String Inverter - A single string inverter with two strings, one for the east-facing panels and one for the west-facing panels.
• System B: MLPE with Power Optimizers - Each panel is equipped with a power optimizer, which feeds into a compatible central inverter.

The following table shows the simulated annual energy yield for both systems, accounting for orientation and shading losses.

The MLPE system generated over 8% more energy annually. This gain comes directly from mitigating the production losses caused by the chimney's shadow and the mismatch from different roof orientations. For a deeper look into how different components influence output, the Ultimate Reference for Solar & Storage Performance offers valuable data on achieving system efficiency.

A Deeper Look at Operations and Maintenance (O&M)

Energy yield is only part of the equation. The ease and cost of maintaining the system over its 25+ year lifespan also significantly impact its overall value.

Fault Detection and Diagnostics

MLPE systems offer a distinct advantage in monitoring. Because each panel's performance is tracked individually, you can pinpoint the exact location of any issue—be it a failing panel, a loose connection, or a debris-related problem—from a computer or smartphone. With a string inverter, you may only know that a string's performance has dropped, requiring a technician to perform manual, on-site testing to find the source of the problem. This granular monitoring reduces troubleshooting time and costs.

Long-Term Maintenance and Reliability

The O&M trade-off involves component location and points of failure. A string inverter is a single point of failure; if it goes down, the entire system stops producing power until it's repaired or replaced. However, it is typically located in an accessible area like a garage. MLPE systems have more electronic components located on the roof. While the failure of a single optimizer or microinverter only impacts one panel, replacing it requires work on the roof, which can be more complex. Warranties often reflect this, with string inverters typically carrying 10-12 year warranties and MLPE components often carrying 25-year warranties.

Financial Implications: Beyond the Initial Price Tag

While an MLPE system has a higher upfront equipment cost, its superior performance on complex roofs can lead to a better long-term financial outcome.

Calculating the Levelized Cost of Energy (LCOE)

The LCOE is a measure of the average net present cost of electricity generation for a generating plant over its lifetime. In this case study, the 8.4% increase in energy yield from the MLPE system directly lowers its LCOE. Over 25 years, this additional energy production creates significant value that can easily offset the higher initial investment. The choice of technology can also have broader system-level implications. As research from the IEA highlights, the selection of project sites and technology can influence overall system costs, including grid connection expenses. For more information, see the Next Generation Wind and Solar Power report.

Return on Investment (ROI) Projections

The increased energy production from the MLPE system accelerates the return on investment. More generated electricity means greater savings on utility bills and, in some areas, higher income from selling surplus power back to the grid. For this case study, the payback period for the MLPE system was projected to be nearly a year shorter than the string inverter system, despite its higher initial cost.

Making the Right Choice for Your Project

The results of this case study are clear. For roofs with multiple orientations, shading, or other complexities, MLPE technology like power optimizers or microinverters offers a superior return through increased energy yield and advanced monitoring. The ability to harvest the maximum power from every panel under all conditions provides a measurable performance advantage. However, for a simple, unshaded roof, a string inverter remains a highly reliable and cost-effective solution. The key is to assess your specific site conditions and weigh the upfront cost against the long-term energy production and maintenance benefits. Ultimately, ensuring that VRE plants operate effectively without negatively impacting the grid is paramount, a point emphasized in the IEA's analysis on System Integration of Renewables.

Frequently Asked Questions (FAQ)

What is the main difference between a microinverter and a power optimizer?

Both are MLPE devices that operate at the panel level. A microinverter converts DC electricity to AC electricity for each panel. A power optimizer is also attached to each panel, but it conditions the DC power before sending it to a centralized string inverter for conversion. Both mitigate shading and mismatch issues effectively.

Is a string inverter a bad choice?

Not at all. For large, uniform roofs with minimal or no shading, a string inverter is an excellent and highly cost-effective solution. The technology is mature, reliable, and provides great value when installed in the right environment.

How much more energy can I expect from MLPE on a shaded roof?

This varies greatly depending on the severity, duration, and type of shading. In this case study, the gain was over 8%. In other scenarios with more significant shading, performance gains can range from 5% to over 25% compared to a traditional string inverter.

Does MLPE improve system safety?

Yes. Many MLPE systems include a rapid shutdown feature that automatically de-energizes the DC conductors on the roof to a safe voltage level when the system is shut down. This provides an important safety measure for firefighters and maintenance personnel.
