The structural integrity of a ground-mounted solar array is the foundation of its long-term performance and profitability. While modules and inverters often get the spotlight, the racking system quietly bears the load, withstands the elements, and ensures decades of reliable operation. A poorly specified galvanized racking system can lead to premature corrosion, structural failures, and significant financial losses. This procurement blueprint provides a clear framework for defining your requirements, ensuring you acquire a robust and durable foundation for your ground mounts, piles, and trackers.
Understanding Galvanization: More Than Just a Coating
Effective procurement begins with a solid understanding of the material itself. Galvanization is a process of applying a protective zinc coating to steel to prevent rusting. For the demanding environment of a solar farm, the method of application is critical.

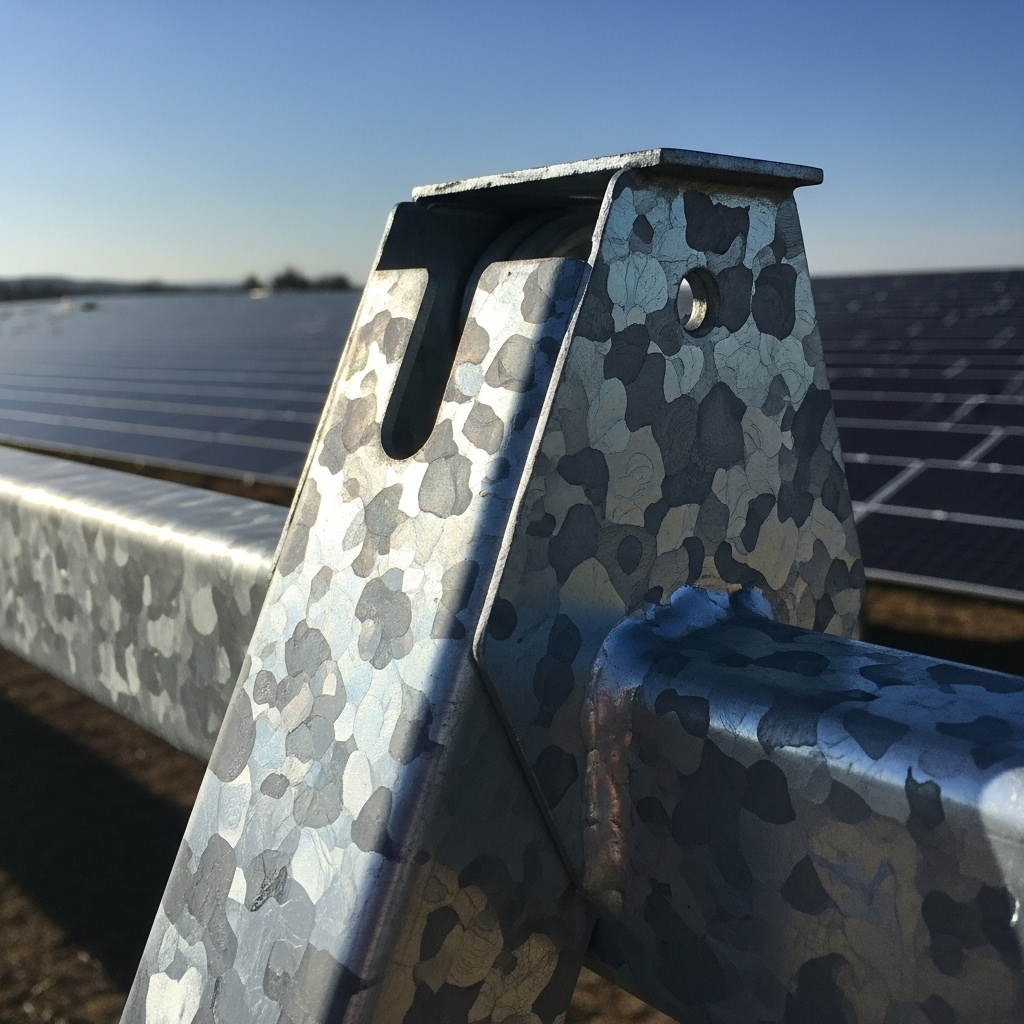

The Hot-Dip Galvanizing (HDG) Process Explained
Hot-dip galvanizing (HDG) creates a superior bond between the zinc and the base steel. The process involves immersing fabricated steel components in a kettle of molten zinc at a temperature of around 450°C (840°F). This creates a metallurgical reaction, forming a series of zinc-iron alloy layers with a final layer of pure zinc. This bonded coating is not just a layer on top of the steel; it becomes an integral part of it, providing exceptional abrasion resistance and corrosion protection. The process generally follows key standards like ASTM A123/A123M, which governs the requirements for zinc coatings on iron and steel products.
Key Galvanization Classes and Coating Thickness
The service life of galvanized racking is directly linked to the thickness of its zinc coating and the corrosivity of its environment. The environment is often classified using ISO 9223 categories, from C1 (very low corrosivity, e.g., dry indoor) to C5 (very high corrosivity, e.g., coastal and industrial areas). Your specification must demand a coating thickness appropriate for your project's specific location.
| Corrosivity Category (ISO 9223) | Environment Example | Recommended Minimum Average Coating Thickness (microns) | Estimated Time to First Maintenance |
|---|---|---|---|
| C2 | Temperate, low-pollution, rural | 70 µm | 30-60 years |
| C3 | Urban, industrial, moderate SO2 pollution | 85 µm | 20-40 years |
| C4 | Industrial areas, coastal with moderate salinity | 100 µm | 10-20 years |
| C5 | Coastal and offshore, high salinity | 120 µm+ | 5-15 years |
Matching the coating thickness to the site conditions is a critical step in a successful Galvanized Racking procurement specification. As noted in the IEA's Solar PV Global Supply Chains report, zinc is a key material for galvanized steel in mounting structures, highlighting its importance in the durability of solar infrastructure.
Core Specifications for Your Procurement Documents
A detailed Request for Quotation (RFQ) or technical specification document is your primary tool for controlling quality. Vague requirements lead to inconsistent bids and subpar materials.
Material Grade and Steel Chemistry
The performance of the galvanized coating starts with the base metal. Your specifications should clearly define the required steel grade, such as ASTM A36 or a specific high-strength low-alloy (HSLA) steel, depending on structural requirements. The chemistry of the steel itself also influences the galvanizing outcome. Certain levels of silicon and phosphorus can accelerate the coating's growth, potentially leading to a thicker but more brittle layer. Requiring suppliers to provide Material Test Reports (MTRs) for the steel coils or sheets used is a standard quality control measure.
Coating Adherence and Finish Requirements
A thick coating is useless if it doesn't adhere properly to the steel. Your procurement documents should specify adherence testing methods, such as the 'stout knife' test described in ASTM standards, to ensure the coating cannot be peeled away. The finish should be continuous, smooth, and free from defects like bare spots, blisters, flux inclusions, or excessive roughness (dross). These imperfections are not just cosmetic; they can become initiation points for corrosion.
Structural and Geotechnical Considerations
Racking specifications cannot exist in a vacuum. They must be informed by site-specific engineering and geotechnical analysis. The structural design must account for maximum wind and snow loads. Furthermore, a geotechnical report detailing soil composition, moisture content, and corrosivity is essential. Highly acidic or alkaline soils can aggressively attack both the steel and its zinc coating, potentially requiring thicker coatings or alternative foundation designs for piles and trackers.
Quality Assurance and Verification: From Factory to Field
Trust, but verify. A robust quality assurance plan ensures that what you specified is what you receive.
Factory Acceptance Testing (FAT) Protocols
Before any materials ship, a clear Factory Acceptance Test protocol should be in place. This plan should include:
- Visual inspection of a statistically significant sample size from the production batch.
- Coating thickness measurements using calibrated magnetic thickness gauges.
- Adherence tests on selected samples.
- Verification of all dimensions against approved engineering drawings.
On-Site Inspection and Handling Best Practices
The quality control process continues upon delivery. Inspect shipments for damage incurred during transit, such as scratches or gouges that penetrate the zinc coating. Proper handling on site is equally important. Avoid dragging components across abrasive surfaces. Use appropriate lifting straps instead of chains. Should minor damage occur, specify an approved repair procedure using a zinc-rich paint that conforms to ASTM A780, 'Standard Practice for Repair of Damaged and Uncoated Areas of Hot-Dip Galvanized Coatings'.
Integrating Racking with Overall System Performance
The racking system is a critical component that enables the entire solar asset to perform optimally for its intended service life.
Compatibility with Modules and Trackers
Ensure the racking design is fully compatible with the selected solar modules, including clamp locations and load distribution. If using single-axis trackers, the torque tubes, bearings, and drive systems must integrate seamlessly with the galvanized support piles and structures. All components must also have provisions for proper equipment grounding and wire management to ensure electrical safety and operational reliability.
Long-Term Performance and Energy Storage
A robust racking system ensures your solar array consistently generates power for decades. This reliability is crucial for maximizing the return on investment, especially when paired with an integrated energy storage system. The long-term performance of your complete solar and storage setup depends on every component working flawlessly, from the foundation to the battery management system. You can explore more on how these systems perform together in this ultimate reference on solar storage performance.
A Forward-Looking Perspective
Developing a detailed procurement blueprint for galvanized racking is a proactive measure to mitigate risk and safeguard the long-term value of your solar asset. It transforms procurement from a simple cost-based decision into a strategic quality-focused process. By clearly defining material standards, coating requirements, and quality assurance protocols, you establish a strong foundation—literally and financially—for successful, high-performing solar projects that contribute to a reliable renewable energy future.
Frequently Asked Questions
What is the typical lifespan of galvanized steel racking?
The lifespan of galvanized steel racking is highly dependent on the thickness of the zinc coating and the corrosivity of the local environment. In a mild, rural environment (C2), a standard coating can last over 50 years. In a more corrosive coastal or industrial area (C4/C5), a thicker coating may be required to achieve a service life of 20-25 years without maintenance.
Can galvanized steel be used in coastal or highly corrosive environments?
Yes, but it requires careful specification. For coastal (C4) or heavy industrial (C5) environments, a significantly thicker zinc coating (e.g., 100-120 microns or more) is necessary. In extreme cases, duplex systems (galvanizing plus an additional paint or powder coating) or alternative materials like aluminum or stainless steel might be considered, though often at a higher cost.
How does the cost of galvanized racking compare to aluminum?
Generally, galvanized steel offers a lower upfront material cost and a higher strength-to-weight ratio compared to aluminum. This makes it a very cost-effective solution for large-scale ground-mounted projects. Aluminum's primary advantages are its lighter weight, which can reduce shipping costs and simplify installation, and its inherent corrosion resistance without needing a coating, making it suitable for certain corrosive environments.
