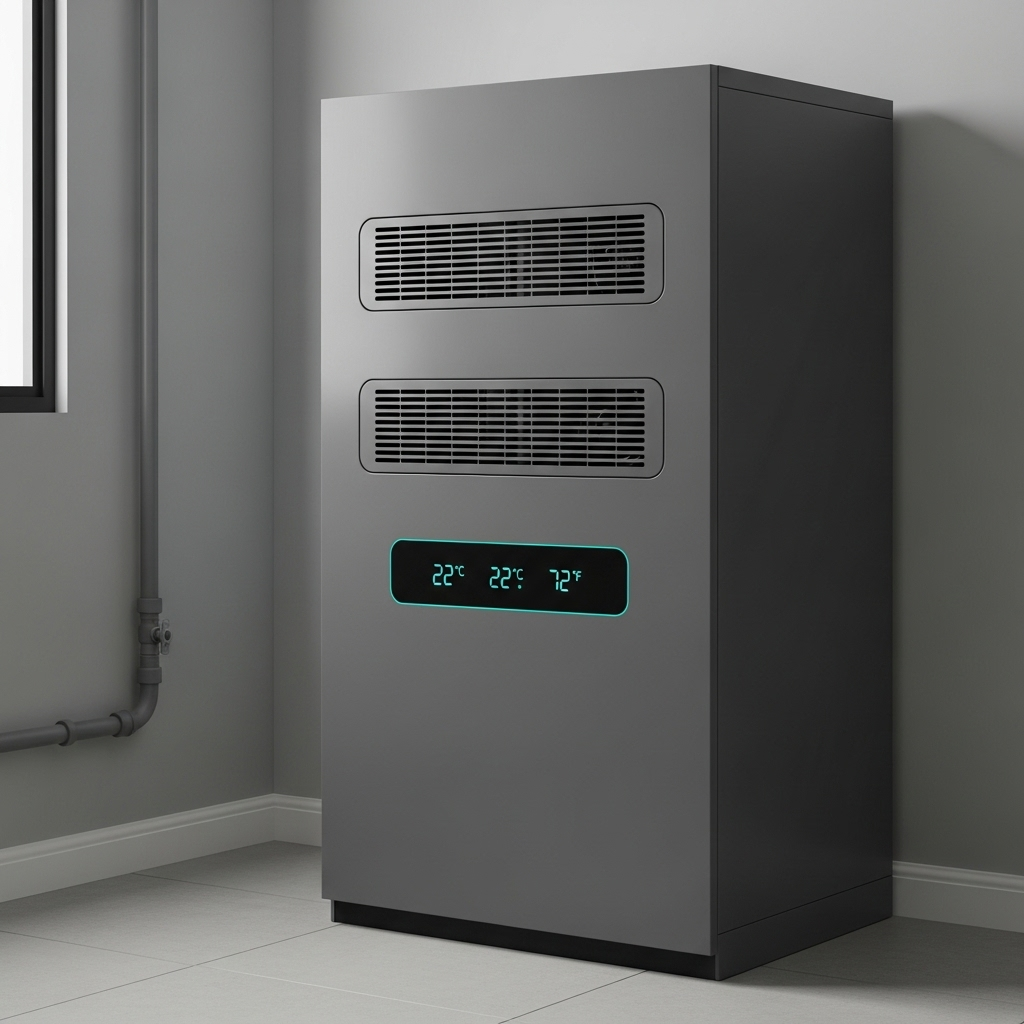

Case Study: Quiet Cooling Retrofits for Indoor ESS

Indoor energy storage systems (ESS) are a cornerstone of modern energy independence. They store solar power for when you need it most. Yet, they come with a challenge that is often overlooked: noise. The constant hum of cooling fans can disrupt the peace of your home or office. This article presents a case study on quiet cooling retrofits for indoor ESS, offering practical solutions for effective and silent thermal management.

The Overlooked Problem: Noise in Indoor ESS Cooling

Effective thermal management is non-negotiable for the safety and longevity of an energy storage system. However, the acoustic footprint of cooling solutions is frequently a secondary thought in system design, leading to unexpected noise pollution in living and working spaces.

Why Standard Cooling Systems Are Loud

Most standard ESS units rely on active air cooling, which uses fans to dissipate heat. The noise originates from several factors. The motor of the fan itself produces a hum. The movement of the fan blades through the air creates turbulence, resulting in a whirring sound. Higher fan speeds, measured in revolutions per minute (RPM), move more air but also generate significantly more noise. The type of bearings used in the fan also plays a role, with traditional sleeve bearings often being louder than modern fluid dynamic bearings.

The Impact of Noise on Residential and Commercial Spaces

In a home, an ESS might be installed in a garage, basement, or utility room. If this space is adjacent to a living area, home office, or bedroom, the persistent noise can become a source of irritation. It can disrupt concentration, interfere with sleep, and generally lower the quality of the home environment. In commercial settings like small offices or studios, where quiet is essential for productivity, a noisy ESS is simply not feasible. Addressing the acoustic performance of an ESS is key to user satisfaction.

Retrofit Strategies for Silent and Efficient Cooling

A retrofit offers a targeted way to solve the noise issue without replacing the entire system. By focusing on specific components and strategies, you can achieve a dramatic reduction in operational noise while maintaining optimal battery temperatures.

Upgrading to Low-Noise Fans and Components

The most direct approach is to replace stock fans with ultra-quiet models. These fans are engineered for silent operation, featuring advanced fluid dynamic bearings, aerodynamically optimized blade designs, and anti-vibration mounts. While they may have a higher initial cost, the benefit of a peaceful environment is substantial. When selecting a fan, you must balance noise level (measured in decibels, dBA) with airflow (measured in cubic feet per minute, CFM) to ensure the cooling performance meets your system's needs.

Implementing Passive Cooling Enhancements

Passive cooling methods can supplement or sometimes even replace active fans, reducing the system's reliance on noisy components. One effective strategy is to add or enlarge heatsinks on critical components like the inverter. Another advanced technique involves using Phase Change Materials (PCMs). According to a report from the International Renewable Energy Agency (IRENA) on thermal energy storage, PCMs absorb and release thermal energy as they change state (e.g., from solid to liquid). By integrating PCMs, an ESS can absorb excess heat during peak operation and dissipate it slowly over time, reducing the need for fans to run at high speeds.

Smart Thermal Management Systems

Instead of having fans run at a constant speed, a smart thermal management system uses sensors to monitor temperatures in real-time. An intelligent controller then adjusts fan speeds based on the actual thermal load. During periods of low activity, the fans might turn off completely. When the system is working hard, the fans ramp up just enough to maintain safe operating temperatures. This not only cuts noise but also reduces energy consumption and can extend the life of the cooling components. Proper thermal control is crucial, as maintaining an optimal temperature range is a key factor in maximizing battery performance and lifespan.

Case Study: A Residential Indoor ESS Retrofit

To illustrate these strategies, consider a common residential scenario. A homeowner installed an indoor ESS in their utility closet, which shares a wall with their home office. The constant hum was a major distraction.

The Initial Setup and the Noise Problem

The original system used two standard 120mm fans that ran continuously. A sound meter app measured the noise level at 52 dBA next to the unit—comparable to a loud refrigerator. The homeowner needed a solution that would preserve the system's warranty and, most importantly, its cooling efficiency, while drastically reducing the noise.

The Retrofit Process and Component Selection

A technician recommended a multi-pronged approach. First, the two stock fans were replaced with premium ultra-quiet models known for their low noise profile and adequate static pressure. Second, the interior walls of the ESS enclosure were lined with a thin layer of high-density acoustic damping foam to absorb internal vibrations and noise. Finally, a simple PWM fan controller with a temperature probe was installed. The probe was placed near the battery module, and the controller was set to keep fans off until the temperature exceeded a specific threshold.

Results and Performance Analysis

The results were immediate and impressive. The noise level during standby and light use dropped to an almost inaudible 24 dBA. During heavy charging or discharging, the fans would spin up slowly, reaching a maximum noise level of just 33 dBA. Temperature logs showed that the battery pack consistently operated within its ideal temperature range. The homeowner regained a quiet workspace, and the ESS continued to perform safely and efficiently.

Broader Applications and Future Trends in ESS Cooling

The principles of quiet cooling retrofits are not limited to residential applications. They are equally important in commercial settings where noise control is a priority.

Beyond Residential: Commercial and Industrial Retrofits

In offices, recording studios, or medical facilities, any ambient noise can be disruptive. Larger-scale ESS in these environments can be retrofitted using the same principles: upgrading to quieter, more efficient fans, improving enclosure acoustics, and deploying intelligent, load-based thermal management. The focus remains on moving air effectively, but with components designed for minimal acoustic impact.

The Rise of Integrated and Advanced Cooling

The industry is moving towards more sophisticated cooling solutions. A Technology Roadmap from the IEA highlights the importance of developing integrated systems to optimize performance and reduce costs. This includes exploring technologies like liquid cooling and solid-state thermoelectric cooling, which can offer silent operation and superior thermal performance. As these technologies become more accessible, they will likely become standard in premium indoor energy storage systems.

Final Thoughts on Optimizing Your System

An indoor energy storage system is a significant investment in your energy future. Its performance should enhance your life, not detract from it with unwanted noise. A quiet cooling retrofit is a practical and effective way to ensure your system operates silently in the background. By carefully selecting components and implementing smart controls, you can create a peaceful indoor environment while safeguarding the health and longevity of your battery system. Prioritizing quiet thermal management ensures your path to energy independence is a tranquil one.

Frequently Asked Questions

How much does a quiet cooling retrofit for an ESS typically cost?

The cost can vary widely depending on the scale of the system and the components chosen. A simple fan swap might cost under one hundred dollars for parts, while a more comprehensive solution with smart controllers and acoustic materials could range from two to five hundred dollars. Consider it an investment in your comfort and your system's long-term health. This is not financial advice.

Can I perform a cooling retrofit myself?

While replacing a fan may seem straightforward, working with any electrical system involves risks. Modifying your ESS could also void its warranty. For safety and to ensure proper installation, it is highly recommended to consult with a qualified technician or the system's manufacturer before undertaking any modifications.

Will a quieter fan provide enough cooling for my battery?

Not all quiet fans are created equal. It is critical to select a fan that not only operates quietly but also provides the required airflow (CFM) and static pressure to effectively cool your specific system. Always check the technical specifications of your ESS and choose a fan that meets or exceeds the manufacturer's cooling requirements. A lower noise level should not come at the cost of inadequate thermal protection.
