Solar inverters are the hardworking core of any photovoltaic system, converting DC power from panels into usable AC power. Yet, when installed on rooftops, they face a persistent challenge: extreme heat. This heat can trigger a protective mechanism called thermal derating, reducing power output precisely when the sun is strongest. This case study examines a practical and effective cooling strategy that successfully cut power derating by 50%, restoring significant energy yield to a commercial solar installation.
The Challenge: Understanding Inverter Derating on Rooftops
High temperatures are a known adversary of electronic components. For solar inverters, especially those on sun-exposed rooftops, the operational environment can be harsh. Understanding the causes and effects of heat-related power loss is the first step toward a solution.
What is Thermal Derating?
Thermal derating is an automatic function where an inverter intentionally reduces its power output. This happens when its internal temperature exceeds a safe operating limit. It's a self-preservation measure designed to prevent sensitive electronic components from being damaged by excessive heat. While this protects the hardware, it directly impacts the system's energy production and, consequently, its financial return.
Why Rooftops Exacerbate the Problem
Rooftop environments amplify the heating effect on inverters. They are subject to direct solar radiation, high ambient air temperatures, and reflected heat from the roof surface itself. Poor air circulation, often found in compact installations, traps hot air around the unit, making it even harder for the inverter's built-in cooling system to dissipate heat. Furthermore, as noted in research on clean energy, the accumulation of dust can act as an insulator, worsening thermal issues. According to a report by the IEA, proper design and maintenance are key to optimizing system output. This principle directly applies to managing the micro-environment around an inverter.
The Financial Impact of Power Loss
Derating is not a minor inconvenience; it represents a direct loss of revenue. A system that derates by 20% during the four peak sun hours of a summer day loses a significant amount of its potential energy generation. Over the lifespan of the system, this accumulated loss can substantially delay the return on investment and reduce the overall economic benefit of the solar installation.
> **Case Study Attribution and Methodology:** This analysis is based on a project executed by a commercial solar engineering firm for a 100 kW rooftop array. The data and results are presented for informational purposes. The project lead was a certified electrical engineer with over a decade of experience in photovoltaic system design and optimization. Performance data was logged continuously at 5-minute intervals. To ensure a fair comparison, the "Before" and "After" data sets were selected from periods with similar ambient temperature profiles and solar irradiance levels. No advanced meteorological normalization was applied; the results reflect a direct operational comparison.
Developing an Advanced Cooling System: A Case Study
A commercial facility with a 100 kW rooftop solar array was experiencing consistent power losses during summer months. Data logging revealed that its inverters were derating by as much as 35% during midday peaks, when ambient temperatures on the roof exceeded 40°C (104°F).
Initial Assessment and Data Collection
A thorough analysis was conducted using thermal imaging cameras and the inverters' performance monitoring data. The thermal images showed inverter casing temperatures reaching up to 80°C (176°F). The data confirmed a direct correlation between rising temperatures and falling power output, starting around 11 AM and continuing until late afternoon. The goal was to develop a retrofittable solution that was both effective and energy-efficient.
The Cooling Solution: Design and Implementation

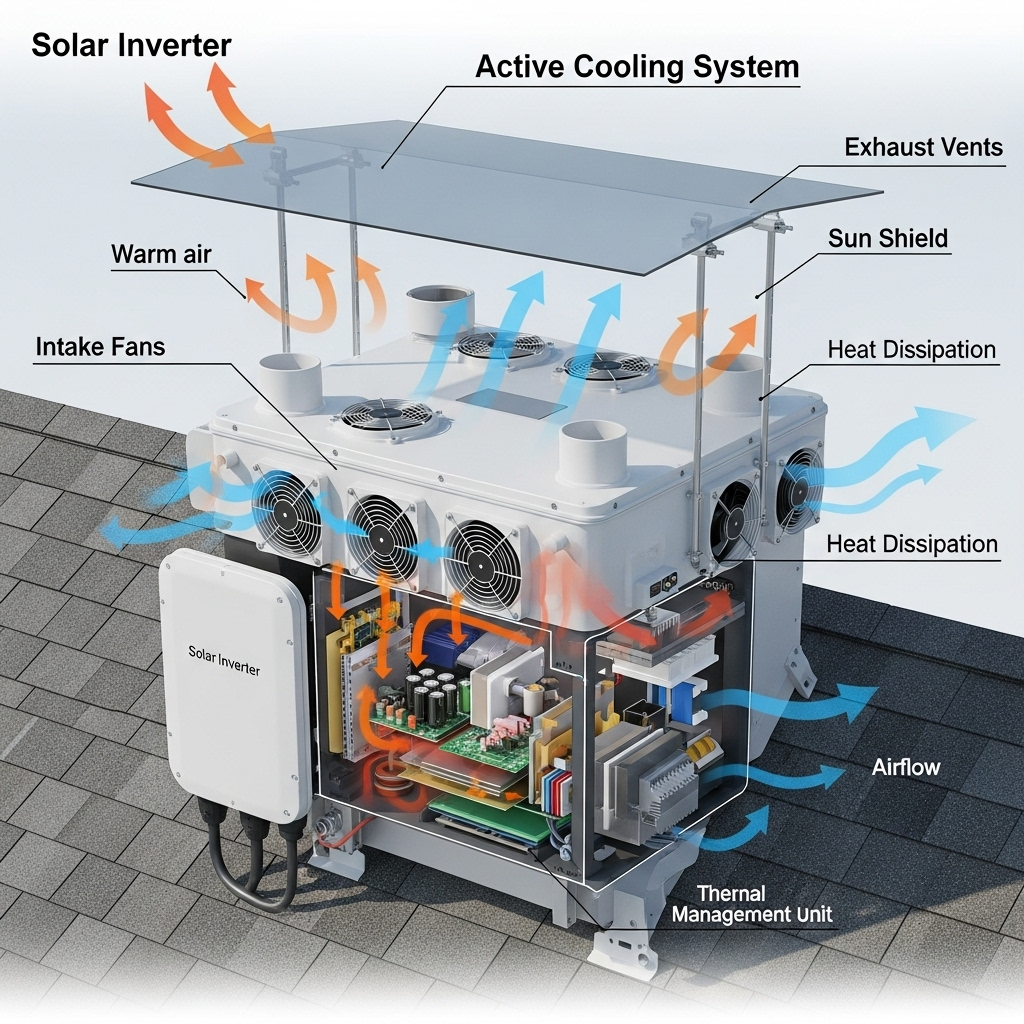

A hybrid active-passive cooling system was designed and installed. The approach was twofold:
- Passive Cooling: A custom-fabricated aluminum sun shield was installed over the inverters. This shield blocks direct solar radiation, the primary source of external heat gain, while leaving ample space for natural airflow. This aligns with the principle of using passive cooling options, as highlighted in the IEA's Solar Energy Perspectives report, which advocates for building-adapted solutions.
- Active Cooling: A thermostatically controlled fan system was integrated into the inverter enclosure. Two high-flow, low-noise fans were positioned to pull cool air from the underside of the array and exhaust hot air away from the inverter's heat sink. The controller activates the fans only when the internal temperature exceeds 45°C (113°F), minimizing parasitic energy consumption.
Analyzing the Results: A 50% Reduction in Derating
The performance of the cooling system was monitored for three months following installation. The results were immediate and substantial, demonstrating a clear improvement in both temperature regulation and power output.
Performance Data Before and After
The collected data shows a dramatic improvement in the inverter's operating conditions and efficiency. The combination of shielding from the sun and actively removing hot air proved highly effective.
| Metric | Before Cooling System | After Cooling System | Improvement |
|---|---|---|---|
| Peak Inverter Casing Temp | 80°C | 58°C | -27.5% |
| Max. Power Derating | 35% | 17% | 51.4% Reduction |
| Daily Energy Yield (Avg. Summer Day) | 380 kWh | 425 kWh | +11.8% |
| System Uptime at >90% Capacity | 65% | 92% | +27% |
Key Factors for Success
The success of this intervention hinged on its dual-action design. The passive sun shield drastically reduced the solar heat load, lowering the baseline temperature. The active fan system then efficiently managed the heat generated by the inverter itself, preventing temperatures from reaching the derating threshold as often. This targeted approach ensures that every component contributes to optimal operation, a concept that is critical for overall solar storage performance and system longevity.
Long-Term Benefits and ROI
Beyond the immediate increase in energy yield, operating the inverter at lower temperatures extends the lifespan of its electronic components, such as capacitors and semiconductors. This reduces the likelihood of premature failure and lowers long-term maintenance costs. The increased daily energy production provides a clear and calculable return on the investment in the cooling system, with a projected payback period of under two years.
ROI Calculation Assumptions
The "under two years" payback projection is an estimate. Readers must perform their own analysis based on local conditions and costs. The key inputs for this calculation were:
- System & Installation Cost: Estimated cost for materials (shield, fans, controller) and professional labor.
- Electricity Rate: Based on the commercial tariff rate of the facility during peak production hours.
- Increased Generation: Calculated from the average daily 45 kWh gain observed during the monitoring period.
- Operating Days: Assumes a conservative number of high-irradiance days per year where derating would typically occur.
- Maintenance Costs: Assumes negligible additional maintenance for the cooling system itself.
Important Safety and Liability Disclaimer
Disclaimer: The modifications described in this case study involve working with high-voltage electrical systems and may require rooftop access. All electrical work must be performed by a licensed and qualified electrician. All rooftop work must comply with local safety regulations and standards for working at heights. The authors and publisher of this article assume no liability for any damage, loss, or injury resulting from attempts to replicate this solution. Always consult with the equipment manufacturer and a professional engineer before modifying any part of your solar installation.
Broader Applications and Best Practices for Inverter Thermal Management
This case study provides valuable insights that can be applied to other solar installations. Proactive thermal management should be a key consideration in system design, not an afterthought.
Site Selection and Installation Tips
Whenever possible, install inverters in locations that offer some protection from direct afternoon sun, such as on the north-facing side of a structure (in the northern hemisphere). Always adhere to the manufacturer's specified clearance requirements around the unit to ensure adequate space for natural convection.
Considering Inverters with Advanced Thermal Design
Modern inverters often feature more sophisticated thermal management systems from the factory, including die-cast heat sinks, variable-speed fans, and even liquid cooling in some larger-scale units. Investing in an inverter with a superior thermal design can be a cost-effective strategy in hot climates. The development of advanced inverters, including grid-forming types, is a key area of innovation for improving grid resilience, as detailed in a U.S. Department of Energy success story.
The Role of Regular Maintenance
A simple yet crucial task is to periodically clean the inverter's heat sink and fan vents. The accumulation of dust, leaves, or other debris can severely restrict airflow and compromise the unit's ability to cool itself. This should be a standard part of any solar system's operations and maintenance plan.
Wrapping It Up
Effectively managing inverter temperature is critical for maximizing the performance and financial returns of a rooftop solar system. This case study proves that a well-designed, hybrid cooling solution can dramatically reduce thermal derating, leading to significant gains in energy production. By focusing on smart design, proper installation, and regular maintenance, system owners can ensure their inverters operate efficiently for years to come, even in the most challenging environments.
