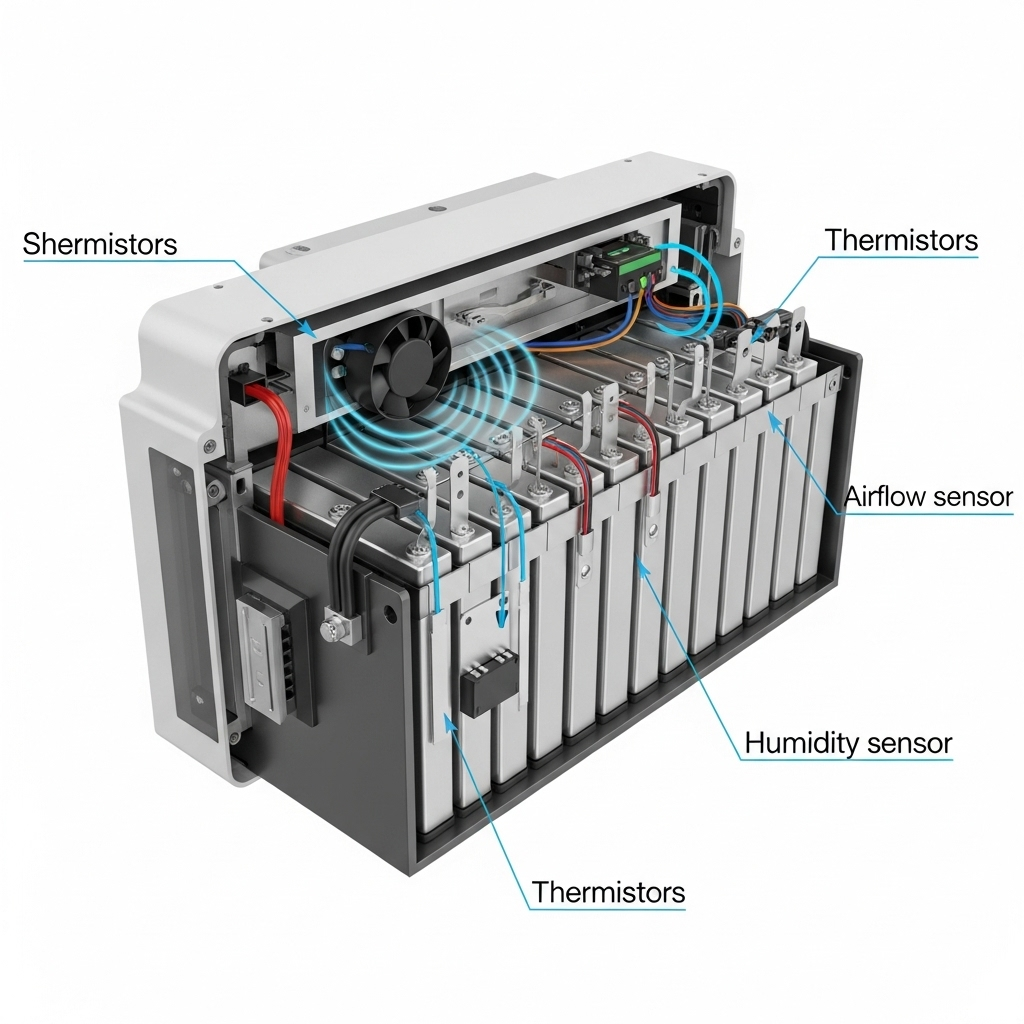

7 Sensors to Monitor Battery Temperature and Airflow

The performance and longevity of a battery energy storage system depend heavily on its operating conditions. Among the most critical factors are temperature and airflow. Proper thermal management is not just a recommendation; it is essential for safety, efficiency, and maximizing the return on your investment. Monitoring these conditions requires a network of precise sensors that act as the system's nervous system, providing vital data to the Battery Management System (BMS).

The Critical Role of Thermal Management in Battery Systems

A battery is a chemical device, and its reactions are sensitive to temperature. Operating outside the ideal range can lead to irreversible damage and significant safety risks. Effective thermal management, enabled by accurate sensors, is the first line of defense.

Impact of Temperature on Battery Health

Both high and low temperatures negatively affect battery health. Excessively high temperatures accelerate the degradation of internal components, leading to a permanent loss of capacity and a shorter lifespan. In extreme cases, it can trigger thermal runaway, a dangerous condition where the battery's temperature rises uncontrollably. Conversely, operating at low temperatures can reduce a battery's ability to deliver power and may cause damage during charging cycles. Maintaining an optimal temperature range is key to achieving the thousands of cycles that modern batteries, such as LiFePO4 models, are designed for. Understanding these effects is crucial for anyone looking to optimize their system, as detailed in guides on solar storage performance.

Why Airflow and Ventilation Matter

Proper airflow is the mechanism that removes excess heat. A well-designed ventilation system ensures that cool air circulates around the battery modules, preventing hot spots from forming. Without adequate airflow, heat generated during charging and discharging becomes trapped, causing temperatures to rise unevenly across the pack. This temperature imbalance can cause cells to age at different rates, reducing the overall performance and life of the battery. Furthermore, ventilation helps dissipate any gases that might be released during a fault condition, adding another layer of safety.

Essential Temperature Monitoring Sensors

Several types of sensors are used to measure temperature in a battery system, each with its own set of characteristics. The choice depends on the required accuracy, cost, and operating environment.

Thermistors (NTC and PTC)

Thermistors are thermally sensitive resistors. Their resistance changes significantly with temperature. Negative Temperature Coefficient (NTC) thermistors are most common in battery systems; their resistance decreases as temperature increases. They are small, cost-effective, and respond quickly to temperature changes, making them ideal for mounting directly onto battery cells or busbars to provide real-time feedback to the BMS.

Resistance Temperature Detectors (RTDs)

RTDs operate on the principle that the electrical resistance of a metal (typically platinum) changes predictably with temperature. They are more accurate and stable over a wider temperature range than thermistors. While they have a slower response time and are more expensive, their high precision makes them suitable for monitoring ambient air temperature or the temperature of the cooling medium, where stability is more important than rapid response.

Thermocouples

Thermocouples consist of two different electrical conductors forming an electrical junction. A temperature-dependent voltage is produced as a result of the thermoelectric effect, which can be interpreted to measure temperature. They are very durable and can operate over an extremely wide range of temperatures. In battery systems, their robustness makes them useful for monitoring potentially high-temperature components like connections and power electronics.

Infrared (IR) Sensors

Infrared sensors offer a non-contact method for measuring temperature. They detect the thermal radiation emitted by an object to determine its surface temperature. This is particularly useful for scanning the surface of multiple battery cells or modules without the need for complex wiring. They can quickly identify hot spots that may indicate an internal cell fault, providing an early warning before a more serious issue develops.

Key Sensors for Airflow and Ventilation Monitoring

Ensuring the thermal management system's cooling components are functioning correctly is just as important as monitoring the battery's temperature. Airflow sensors confirm that the ventilation system is performing as designed.

Anemometers

Anemometers measure air speed. In a battery enclosure, a hot-wire or vane anemometer can be placed in the ventilation path to confirm that fans are operating at the correct speed and delivering the required volume of air. If the airflow drops below a set threshold, it could indicate a fan failure or a blockage, prompting the BMS to issue an alert.

Differential Pressure Sensors

These sensors measure the difference in pressure between two points. A common application is monitoring the status of air filters. As a filter becomes clogged with dust and debris, the pressure drop across it increases. A differential pressure sensor can detect this change and signal that the filter needs to be cleaned or replaced, ensuring that airflow is not restricted.

Humidity Sensors

Humidity control is a subtle but important aspect of thermal management. High humidity can lead to condensation on cool surfaces, especially in systems that use active cooling. This moisture can cause corrosion of electrical contacts and circuit boards. A humidity sensor alerts the BMS to conditions that might lead to condensation, allowing it to adjust the cooling strategy to mitigate the risk.

Integrating Sensors into a Battery Management System (BMS)

Sensors are the eyes and ears of the BMS. Without accurate and reliable data from this sensor network, the BMS cannot protect the battery or optimize its performance.

The Central Role of the BMS

The BMS continuously processes input from all temperature, airflow, pressure, and humidity sensors. Based on this data, it controls the thermal management system. For example, if cell temperatures rise, it will increase fan speed. If a critical temperature is reached, it may reduce the charge or discharge current or, in an emergency, disconnect the battery entirely. This intelligent control is fundamental to modern power system flexibility. As noted by the International Energy Agency in its report, Empowering Variable Renewables: Options for Flexible Electricity Systems, real-time monitoring is a key technology for improving system operation and getting the most out of assets.

Data for Proactive Maintenance

Sensor data is not just for real-time control; it is also invaluable for long-term health monitoring. By logging data over time, the BMS can identify trends that may indicate a developing problem. For instance, a gradual increase in average operating temperature could suggest a degrading fan or a blocked vent. This allows for proactive maintenance, addressing small issues before they become major failures. This approach aligns with the broader trend of using data to enhance grid reliability, similar to how dynamic line temperature monitoring has been used to identify greater capacity in existing power lines, as highlighted in another IEA publication, Getting Wind and Solar onto the Grid.

A Forward Look at Battery Health Monitoring

Investing in a comprehensive sensor suite for your battery energy storage system is an investment in its safety, longevity, and performance. The data provided by these seven types of sensors allows the BMS to protect the battery from damage, optimize its efficiency, and provide early warnings of potential issues. As energy storage technology advances, the role of intelligent monitoring will only grow. The insights from organizations like IRENA on innovations in thermal energy storage show a clear trend towards more sophisticated control systems. By ensuring your system is equipped with the right sensors, you are building a foundation for a reliable and resilient energy future.

Frequently Asked Questions

What is the ideal operating temperature for LiFePO4 batteries?

Most LiFePO4 batteries perform best between 20°C and 25°C (68°F and 77°F). While they can operate in a wider range, consistently running them at high temperatures will shorten their lifespan. Always consult the manufacturer's specifications for the specific operating limits.

How often should I check my battery's temperature and airflow sensors?

The sensors themselves are monitored continuously by the Battery Management System (BMS). For physical checks, it is good practice to visually inspect the ventilation system, including fans and filters, during routine maintenance every 6 to 12 months to ensure there are no obstructions.

Can I add more sensors to my existing battery system?

This depends on the design of your BMS and overall system. Some systems are expandable and allow for the integration of additional sensors. It is best to consult with the system manufacturer or a qualified installer to determine if your system can be upgraded and to ensure compatibility.
