Effective thermal management is fundamental to the safety, performance, and longevity of a Lithium Iron Phosphate (LiFePO4) Energy Storage System (ESS). Unlike traditional battery chemistries, LiFePO4 is known for its stability, but its efficiency is still closely tied to its operating temperature. Proper battery thermal control protects your energy investment and ensures it delivers reliable power for years. This guide provides a detailed look at the principles and practices of managing heat in your ESS.
Why Temperature Is Critical for LiFePO4 Batteries
The operational temperature of a LiFePO4 battery directly influences its health and efficiency. Operating the system within its ideal temperature range is the most important factor for maximizing its service life.
The Optimal Operating Temperature Range
Most LiFePO4 batteries perform best between 15°C and 35°C (59°F and 95°F). Within this window, the electrochemical reactions inside the cells are most efficient, allowing the battery to deliver its rated capacity and power. Straying outside this range forces the system to work harder, leading to diminished performance and accelerated aging.
The Dangers of Overheating
Excessive heat is a primary enemy of battery health. When temperatures rise above the optimal range, several negative effects occur. Cell degradation accelerates, permanently reducing the battery's total capacity. High temperatures can also increase internal resistance, leading to further heat generation in a damaging cycle. Effective ESS overheating solutions are not just recommended; they are essential for system integrity.
The Impact of Cold Temperatures
Cold temperatures present their own set of challenges. Below 0°C (32°F), charging a LiFePO4 battery can cause lithium plating, a condition that permanently damages the cell and reduces its capacity. The Battery Management System (BMS) in quality systems will prevent charging in freezing conditions. Performance also dips in the cold, with available capacity and power output temporarily reduced.
Core Principles of ESS Thermal Management
A successful thermal management strategy accounts for where heat comes from and how it moves. By understanding these principles, you can design a system that effectively dissipates heat and maintains a stable internal environment.
Sources of Heat Generation
Heat in an ESS originates from two primary sources. First is internal heat generated by the battery cells during charging and discharging cycles due to their internal resistance. High-power activities create more heat. Second are external sources, such as ambient air temperature and heat radiated from nearby equipment like solar inverters. An inverter can be a significant heat source and should be considered in any thermal plan.
Heat Transfer Mechanisms
Thermal management relies on three fundamental heat transfer mechanisms. Conduction is the movement of heat through solid materials. Convection is the transfer of heat through the movement of fluids, like air. Radiation is the emission of heat as electromagnetic waves. An effective LiFePO4 battery cooling plan uses these principles to move heat away from the battery cells and out of the enclosure.
Practical Thermal Control Strategies
Thermal control solutions can be broadly categorized as passive or active. Often, the most effective approach combines elements of both to create a robust and reliable system.
Passive Cooling Solutions

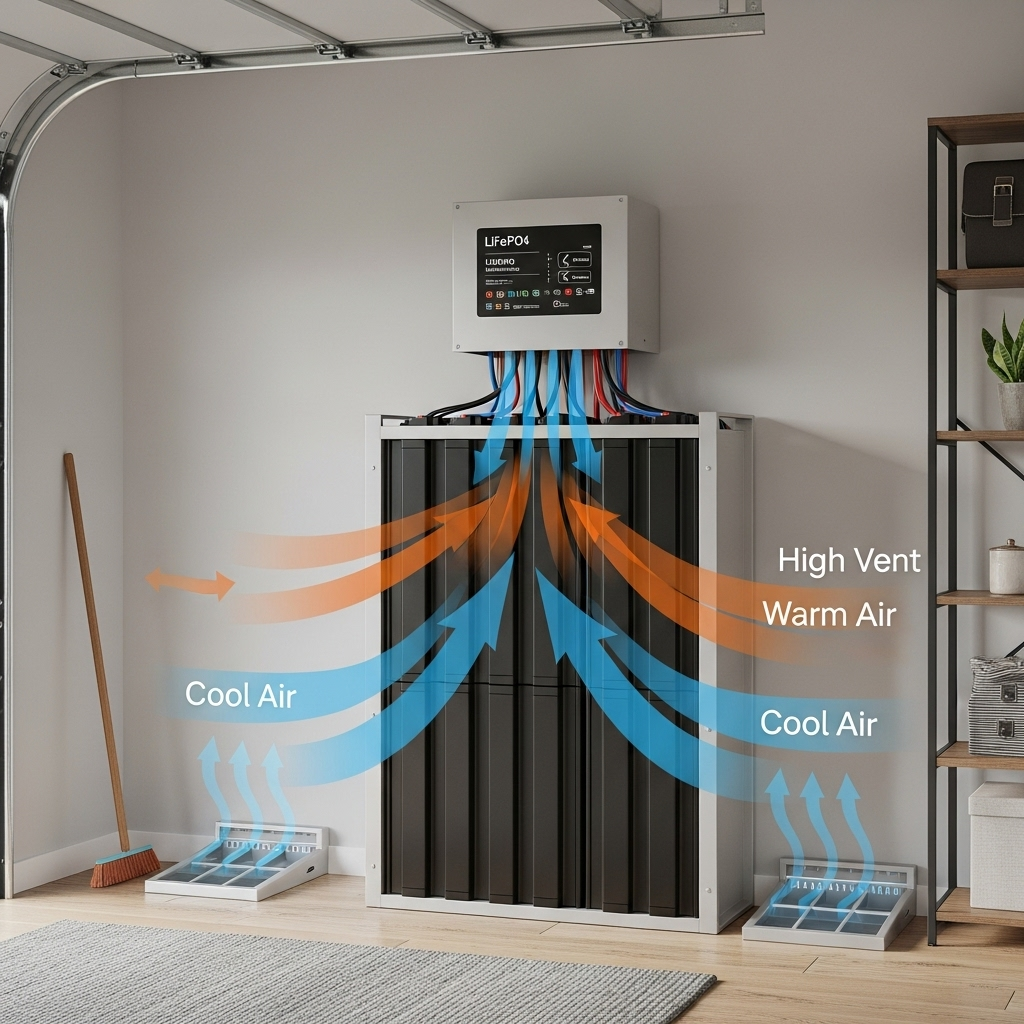

Passive methods use no additional energy to function. They are the first line of defense in battery thermal control. Examples include strategic system placement away from direct sunlight and heat sources, ensuring adequate clearance around the unit for natural air circulation, and using enclosures made from materials with high thermal conductivity. Advanced passive techniques may involve phase change materials (PCMs), which absorb and release thermal energy as they change state. According to a report by the International Renewable Energy Agency (IRENA), innovations in thermal storage, including PCMs, are key to improving system efficiency. As detailed in the Innovation outlook: Thermal energy storage, these materials can help stabilize temperatures without active power consumption.
Active Cooling Systems
Active systems use energy to move heat, typically with fans or liquid pumps. Air cooling uses fans to force cool air into an enclosure and exhaust hot air. Liquid cooling circulates a coolant through pipes or plates that contact the battery modules, transferring heat to a radiator. While more complex, liquid cooling is highly effective for high-power or high-temperature applications. As noted in a comprehensive guide on solar storage performance, maintaining stable temperatures through active cooling is directly linked to achieving the expected cycle life and efficiency from your investment.
| Cooling Method | Advantages | Disadvantages | Best For |
|---|---|---|---|
| Passive (Air Vents, Heat Sinks) | No energy consumption, silent, low maintenance | Less effective in high ambient temperatures, dependent on placement | Residential systems in moderate climates |
| Active Air (Fans) | Effective heat removal, relatively low cost, simple design | Consumes power, produces noise, requires maintenance | Systems in warmer climates or enclosed spaces |
| Active Liquid | Superior cooling performance, compact | Higher cost, complex design, potential for leaks | High-power commercial systems or extreme environments |
System Design and Integration
Proper thermal management begins at the design stage. Integrating thermal considerations into the initial setup ensures the system operates reliably from day one.
The Role of the Battery Management System (BMS)
The BMS is the brain of the ESS. It continuously monitors cell temperatures and other critical parameters. If temperatures exceed safe limits, the BMS can take protective action, such as reducing the charge or discharge rate (derating) or shutting the system down entirely to prevent damage. This intelligent oversight is crucial for both safety and battery longevity.
Integrating with the Environment
The installation environment heavily influences thermal management needs. An ESS in a cool basement requires a different strategy than one in a hot garage. The International Energy Agency (IEA) emphasizes the importance of deploying renewable energy systems in a 'system-friendly' way. This concept, from their report Getting Wind and Solar onto the Grid, extends to ensuring the local environment can support the hardware. For hot climates, this means prioritizing ventilation and even active cooling. In cold climates, the focus may shift to insulation or low-power heating elements to keep the battery within its optimal operating range during winter.
Disclaimer
This guide provides general information. Always consult with a qualified professional for system design and installation. Follow all local building and electrical codes to ensure a safe and compliant setup.
A Final Perspective
Managing the thermal environment of your LiFePO4 ESS is not an afterthought—it is central to its function. By understanding the impact of temperature and implementing a thoughtful combination of passive and active cooling strategies, you safeguard your system against premature degradation. A well-designed thermal management plan ensures your energy storage system performs efficiently and safely, delivering clean power for its entire expected lifespan.
Frequently Asked Questions
Do LiFePO4 batteries need ventilation for off-gassing?
No. Under normal operating conditions, LiFePO4 batteries are sealed and do not produce or release gases. Ventilation for a LiFePO4 ESS is designed exclusively for thermal management to dissipate heat, not to vent gases.
What is the ideal ambient temperature for a LiFePO4 ESS?
The ideal ambient temperature is one that helps keep the battery cells within their optimal operating range of 15°C to 35°C (59°F to 95°F). A climate-controlled room is ideal, but a well-ventilated space away from direct heat sources is also effective.
Can I install my ESS in a sealed cabinet?
Installing an ESS in a completely sealed cabinet is generally not recommended unless it is specifically designed with an integrated active cooling system. Without airflow, heat generated during operation will accumulate, quickly raising temperatures and leading to reduced performance and lifespan.
