5.5KW Hybrid Inverter Built-in MPPT Controller-Anern

5.5KW Hybrid Inverter Built-in MPPT Controller

by Anern

Description:

·High efficiency pure sine wave inverter (PF=1).

·Wide PV input range(120Vdc--500Vdc)

· Enables utility and solar input prioritization

· Wide utility input range(90Vac--280Vac)

Package Content:

1 x The Unit,1 x User Manual,1 x DC Fuse,1 x Ring Terminal,1 x Strain Relief Plate,1 x PV Wire Cover,4 x Screws

The shipping cost and product prices are for reference only, pls leave your demands and contact information, we will send you the quotation soon.

For wholesale business or project, pls email: Cooperation@anern.com

Sold out
$353.00 - $378.83
$378.83
$353.00 - $378.83
$378.83
AN-SCI02-PLUS-5500W: With WiFi module

Video of 5.5KW Hybrid Inverter Built-in MPPT Controller

Specification of 5.5KW Hybrid Inverter Built-in MPPT Controller

Model

SCI02-PLUS-5500

RATED POWER

5500W

INPUT

Voltage

230 VAC

Selectable Voltage Range

170-280 VAC (For Personal Computers)

90-280 VAC (For Home Appliances)

Frequency Range

50 Hz/60 Hz (Auto sensing)

OUTPUT

AC Voltage Regulation (Batt. Mode)

230VAC ± 5%

Surge Power

11000VA

Efficiency (Peak) PV to INV.

97%

Efficiency (Peak) Battery to INV.

94%

Transfer Time

10 ms (For Personal Computers) ; 20 ms (For Home Appliances)

Waveform

Pure sine wave

BATTERY & AC CHARGER

Battery Voltage

48 VDC

Floating Charge Voltage

54 VDC

Overcharge Protection

63 VDC

SOLAR CHARGER

Maximum PV Array Power

6000 W

MPPT Range @ Operating Voltage

120 ~ 500 VDC

Maximum PV Array Open Circuit Voltage

500 VDC

Maximum Charging Current

100A

Maximum Efficiency

98%

PHYSICAL

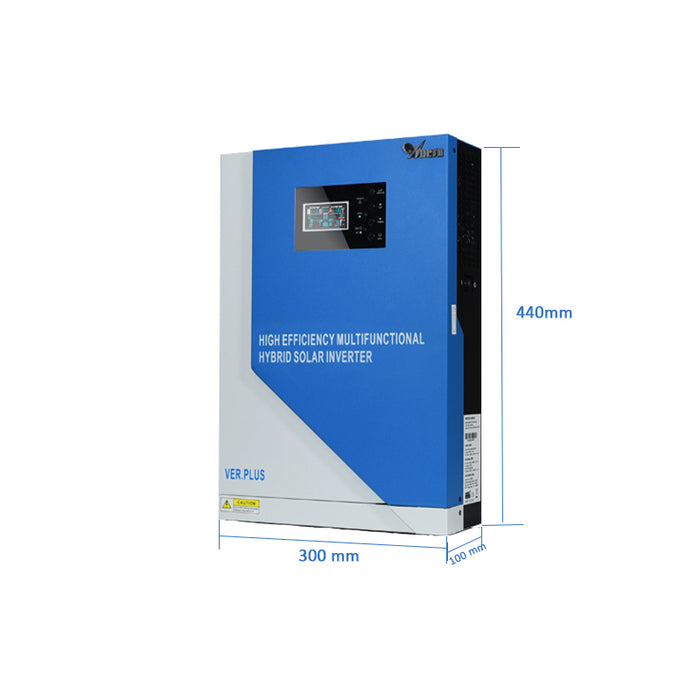

Dimension 100 x 300 x 440mm
Net Weight (kgs) 10
Communication interface RS232/WIFI

Package Dimension

Gross Weight

62*42*25cm

12.3kg

Key Features of 5.5KW Hybrid Inverter Built-in MPPT Controller

  • High efficiency pure sine wave inverter (PF=1).
  • Wide PV input range(120Vdc--500Vdc)100A MPPT SCC.
  • Intelligent 3 stage 80A AC battery charger.
  • Surges to 2X continuous power for 5 seconds for motor loads.

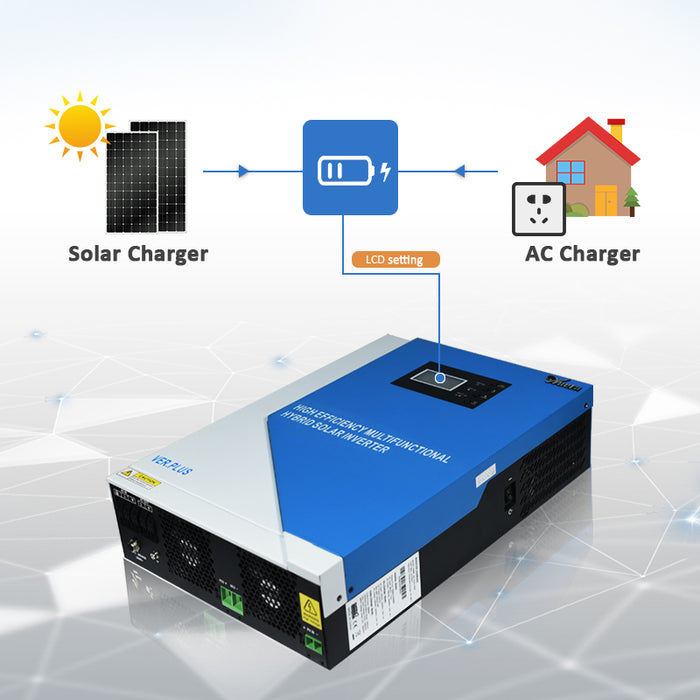

  • Intelligent functionality enables utility and solar input prioritization.
  • Wide utility input range(90Vac--280Vac)for unreliable grid even in the most challenging environments.

Application of 5.5KW Hybrid Inverter Built-in MPPT Controller

A solar inverter is one of the most crucial elements of any solar energy system. Anern solar inverter allows the conversion of direct current (DC) into alternating current (AC), thus making the energy usable for a wide variety of residential, commercial as well as industrial applications such as powering various instruments ranging from commercial and regular home appliances like refrigerators, TVs and microwaves to huge industrial equipment.

★★★★★
★★★★★
★★★★★
★★★★★
