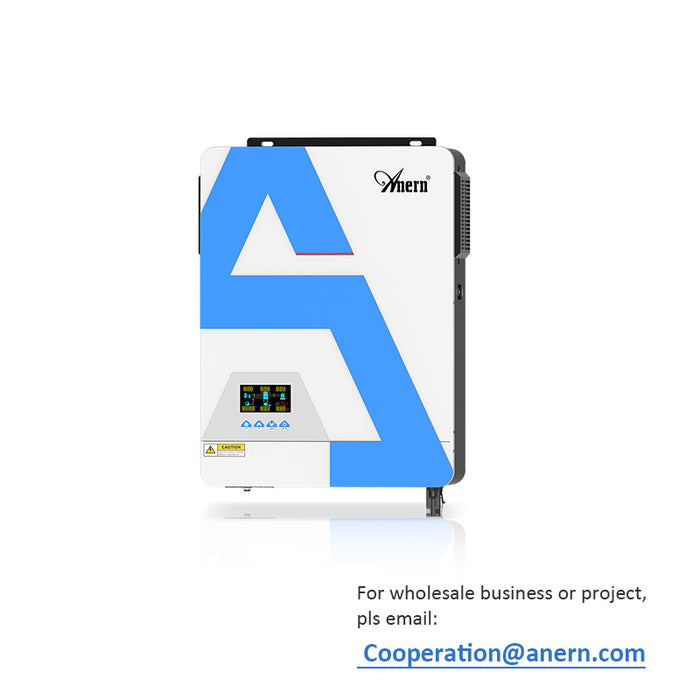

6.2KW On/Off Grid Hybrid Solar Inverter

by Anern

Description:

The AN-SCI02-PRO 6.2KW hybrid solar inverter can be used for both on grid and off grid PV systems. This is a flexible and intelligent energy storage hybrid solar inverter with a wide range of MPPT Voltage up to 120V, it can realize self-consumption and feed-in to the grid from solar energy with best solution according to your setting. This series hybrid solar inverter can backup power for all kinds of appliances in home or small business, and can also be used in power stations.(WIFI Monitoring Module is optional)

Package Content:

1 x The Unit,1 x User Manual,1 x DC Fuse,1 x Ring Terminal,1 x Strain Relief Plate,1 x PV Wire Cover,4 x Screws

The shipping cost and product prices are for reference only, pls leave your demands and contact information, we will send you the quotation soon.

For wholesale business or project, pls email: Cooperation@anern.com

Save $48.00 Save $48.00
Original price $382.00
Original price $382.00 - Original price $382.00
Original price $382.00
Current price $334.00
$334.00 - $334.00
Current price $334.00

Video of 6.2KW On/Off Grid Hybrid Solar Inverter

Key Features of 6.2KW On/Off Grid Hybrid Solar Inverter

  • Pure Sine Wave Inverter
  • Self-consumption and feed-in to the grid.
  • Configurable input voltage range for home appliances and personal computers via LCD setting
  • Configurable AC Solar Charger priority via LCD setting
  • Compatible to mains voltage or generator power
  • Auto restart while AC is recovering
  • Overload/ Over temperature/ short circuit protection
  • Smart battery charger design for optimized battery performance
  • Communicate with WIFI(WIFI Monitoring Module is optional)
  • Configurable AC/PV Output usage timer and prioritization
  • System configures quickly into compact, wall-mounted system.

Specification of 6.2KW On/Off Grid Hybrid Solar Inverter

Model

SCI02-Pro-6200

RATED POWER

6200W

INPUT

Voltage

230 VAC

Selectable Voltage Range

 170-280 VAC (For Personal Computers)

90-280 VAC (For Home Appliances)

Frequency Range

50 Hz/60 Hz (Auto sensing)

OUTPUT

AC Voltage Regulation (Batt. Mode)

230VAC ± 5%

Surge Power

12400VA

Efficiency (Peak) PV to INV.

97%

Efficiency (Peak) Battery to INV.

94%

Transfer Time

10 ms (For Personal Computers) ; 20 ms (For Home Appliances)

Waveform

Pure sine wave

BATTERY & AC CHARGER

Battery Voltage

48 VDC

Floating Charge Voltage

54 VDC

Overcharge Protection

63 VDC

SOLAR CHARGER

Maximum PV Array Power

6500 W

MPPT Range @ Operating Voltage

90 ~ 450 VDC

Maximum PV Array Open Circuit Voltage

500 VDC

Maximum Charging Current

120A

Maximum Efficiency

98%

Grid-Tie Operation

Inverter Mode

6200W

Nominal Output Voltage

220/230/240VAC

Feed-in Grid Voltage Range

195-253VAC

Feed-in Grid Frequency Range

49-51±1Hz

Nominal Output Current

26.1A

Power Factor Range

>0.99

PHYSICAL

Dimension, D x W x H (mm)

100 x 300 x 444

Net Weight (kgs)

11

Communication interface

WIFI

OPERATING ENVIRONMENT

Humidity

5% to 95% Relative Humidity(Non-condensing)

Operating Temperature

0°C - 55°C

Storage Temperature

–15°C - 60°C



Application of 6.2KW On/Off Grid Hybrid Solar Inverter

This inverter can power all kinds of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioner.
