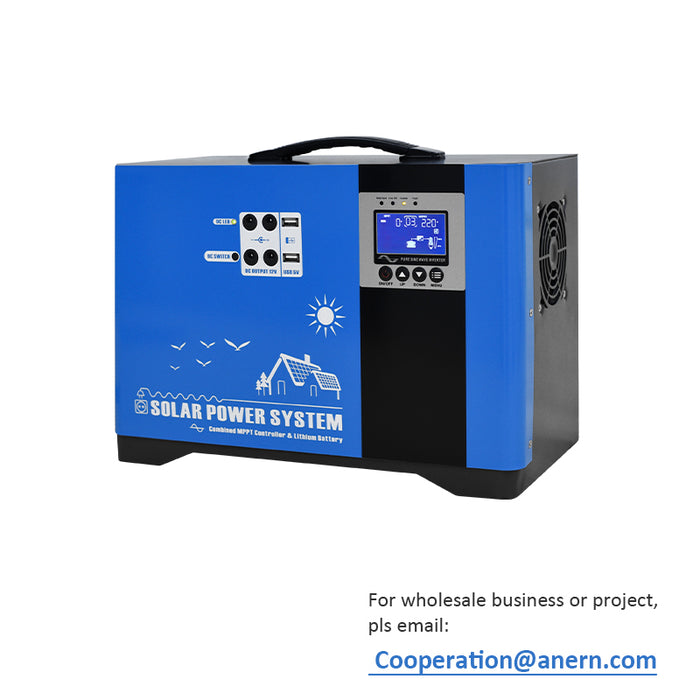

500W 1000w Portable Solar Storage Box (AN-MPSG-N)

500W 1000w Portable Solar Storage Box (AN-MPSG-N)

by Anern

Description:

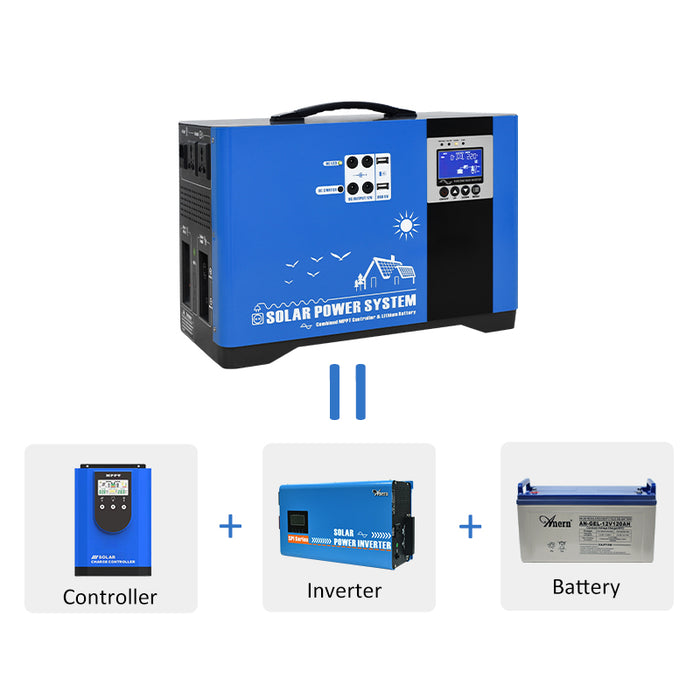

AN-MPSG-N 1000W movable solar storage cabinet, a portable and mobile solar power bank, multi-functional integrated structure design, built-in controller, inverter and battery. As long as the solar panel is connected, it becomes a small photovoltaic power generation system, especially suitable to use in non-electric areas and places, such as edge mountainous areas, islands, border posts, outdoor, disaster areas, and various fishing boats.

This product cannot be shipped by air due to its battery.

Package Content:

1 x 1000w Unit,1 x Power Adapter,1 x User Manual

The shipping cost and product prices are for reference only, pls leave your demands and contact information, we will send you the quotation soon.

For wholesale business or project, pls email: Cooperation@anern.com

$297.00 - $449.00
$297.00
$297.00 - $449.00
$297.00
AN-MPSG-N: 500W Solar generator

Video of 1000W All-in-one Lithium Battery Solar Storage Systems




Key Features of 1000W Portable Solar Storage Box

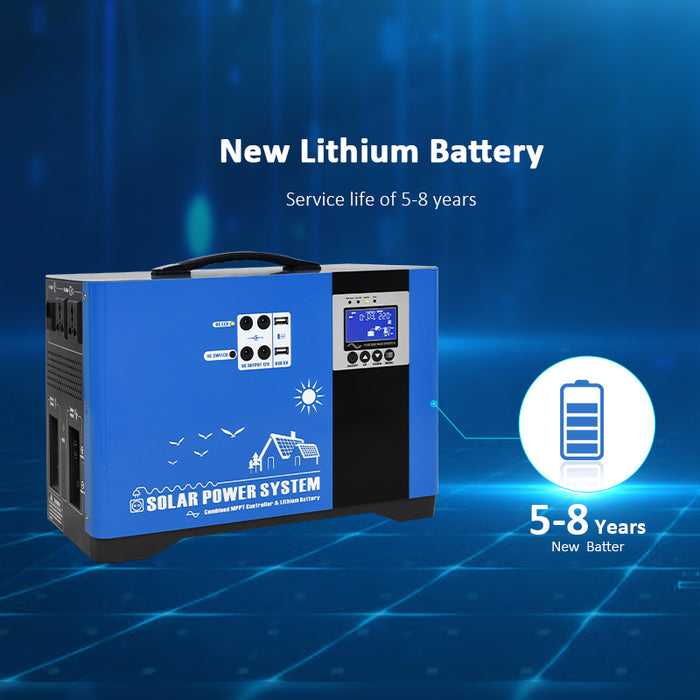

  • Built-in lithium battery, small size, light weight and high energy density, with overcharge and over discharge protection function, service life up to 5 years.
  • In addition to the conventionally configured power of Anern, we can also provide customized services according to customer needs to ensure to meet customers¡¯ electricity need in their places
  • Three use modes are available: mains mode/energy-saving mode/battery mode, which can be flexibly set according to your own needs.

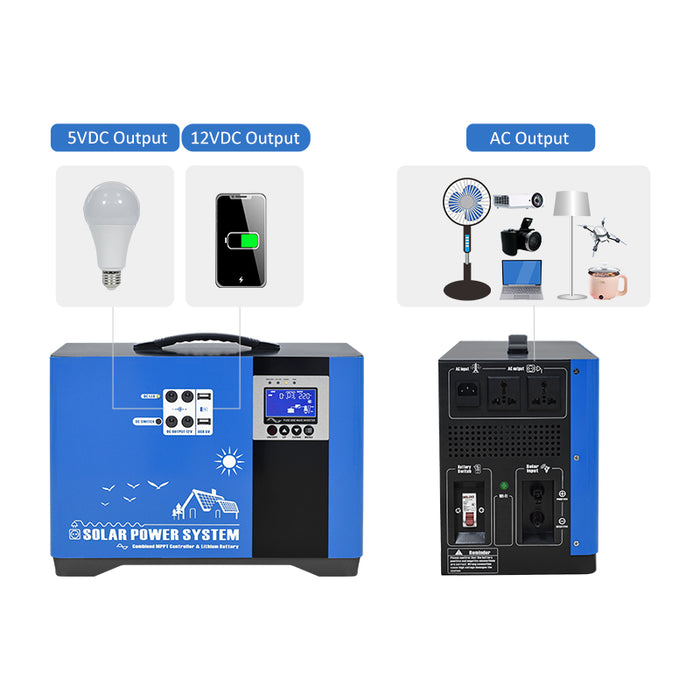

  • With 5VDC-USB, 12VDC-USB and 110VAC, 220VAC output interface at the same time, it can support AC electrical and DC electrical appliances at the same time.



Specification of 1000W Portable Solar Storage Box

Model MPSG-N500 MPSG-N1000
Battery Voltage 12V 24V
Inverter
RATED POWER 500W 1000W
Input Voltage Range 110/220VAC±10%
Input Frequency 45-65Hz
Output Voltage 110/120/220/240VAC(optional)
Output Frequency 50/60Hz
Output Wave Pure Sine Wave
Speficifation Of Built-in LiFePo4 Lithium Battery 600WH 1200WH
Communication RS485/WIFI(optional)
Solar Input
Max. PV Power 240W 480W
Range Of Charging Voltage 15-90VDC 30-90VDC
Rated Charge Current 20A(MPPT)
DC Output
5VDC USB Output 2个/MAX 1A
12VDC Output Ports 2个/MAX 5A
PHYSICAL
Heat Dissipation/Cooling Temperature control by intelligent exhaust fan
Display Digital LCD
Electricity Charging Yes

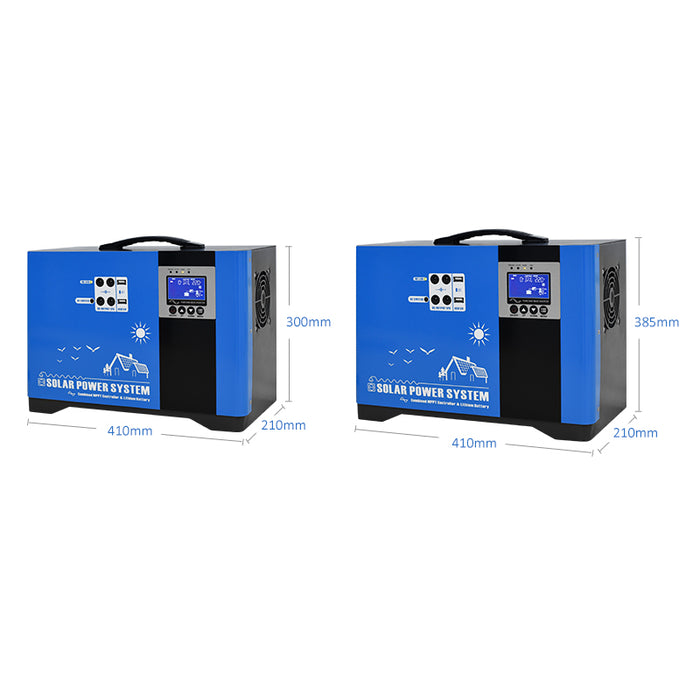

External Size：W*D*H（mm） 410*210*300mm 410*210*385mm
Package Size：W*D*H（mm） 458*258*348mm 458*258*433mm
P.W.(Package Weight) 16KG 23KG

Application of 1000W Portable Solar Storage Box

These series solar generators have adequate wattage capacity to power larger appliances, such as refrigerators, dishwashers, fans, TVs, air-conditioners, washing machines, hot water heaters, and sump pumps, or can be capable of powering multiple devices at the same time. If you use high-wattage solar panels, it may take less time to recharge the generator. Smart solar system to bring solar energy into your home.
