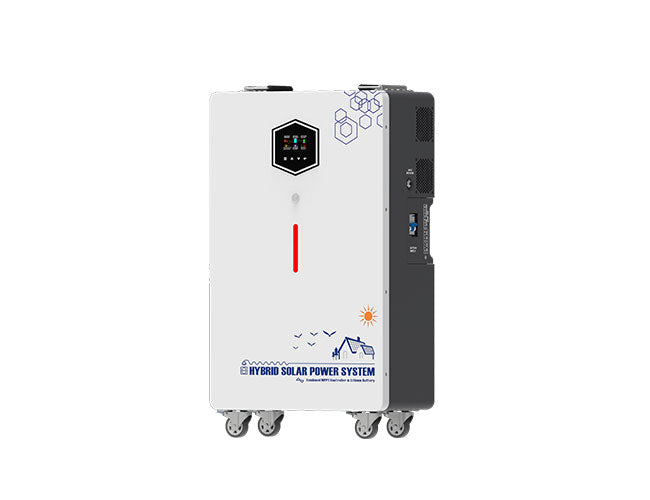

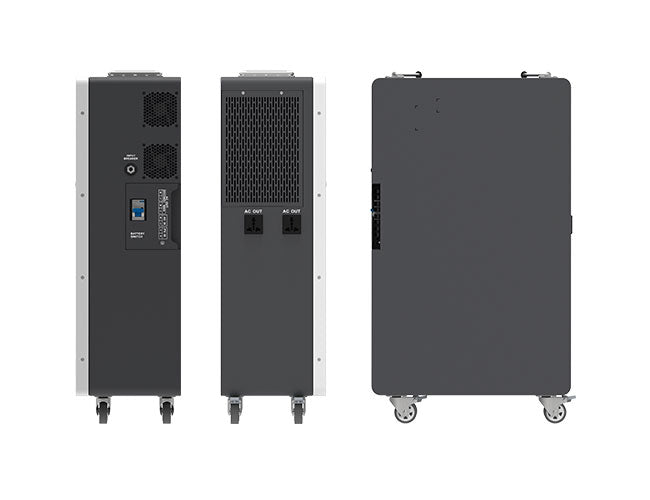

3KW Portable Solar Storage System
Description:
Package Content:
Description:
Package Content:
Model |
MPSG-T-S3000 |
Battery Voltage |
24V |
Inverter |
|
RATED POWER |
3000W |
Input Voltage Range |
170-275VAC |
Input Frequency |
45-65 |
Output Voltage |
110/220 |
Output Frequency |
50/60 |
Output Wave |
Pure Sine Wave |
Speficifation Of Built-in Lithium Battery |
2600WH(Single battery box) |
Communication |
WIFI(optional) |
MPPT Solar Input |
|
Max. PV Power |
1500W |
Range Of Charging Voltage |
34-150VDC |
Rated Charge Current |
60A(MPPT) |
MPPT efficiency |
≥99% |
Voltage For Floating Charge |
24.9VDC |
Low Voltage Recovery Voltage |
23.4VDC |
Low Voltage Protecton Voltage |
18.6VDC |
DC Output |
|
Mobile output |
TYPE C-PD60 / USB QC3.0 / USB-5VDC 2.4A/2 units |
12VDC Output Ports |
2 units /MAX 2A |
PHYSICAL |
|
Heat Dissipation/Cooling |
Temperature control by intelligent exhaust fan |
Display |
Touch Screen |
External Size:W*D*H(mm) |
536*480*505mm |
Package Size:W*D*H(mm) |
660*600*610mm |
G.W.(Gross Weight) |
72 |
