4.2KW Off-grid Lead-acid Battery Solar System

4.2KW Off-grid Lead-acid Battery Solar System

by Anern

Description:

This AN-OFF-SGHP 4.2KW system uses GEL batteries to store the solar energy, at the same time, the system can be connected with the grid for utilization of grid power optionally. The system uses battery power in priority, but when sunshine is not so good or loads consumption is too big which caused the battery power inadequacy, then the system can switch automatically to grid power supply. When the batteries restore capacity, the system can switch back to battery power source.

Anern System offers Cutting Edge Technology, State of the Art Quality with Greater Functionality than our competitors, at Competitive prices.

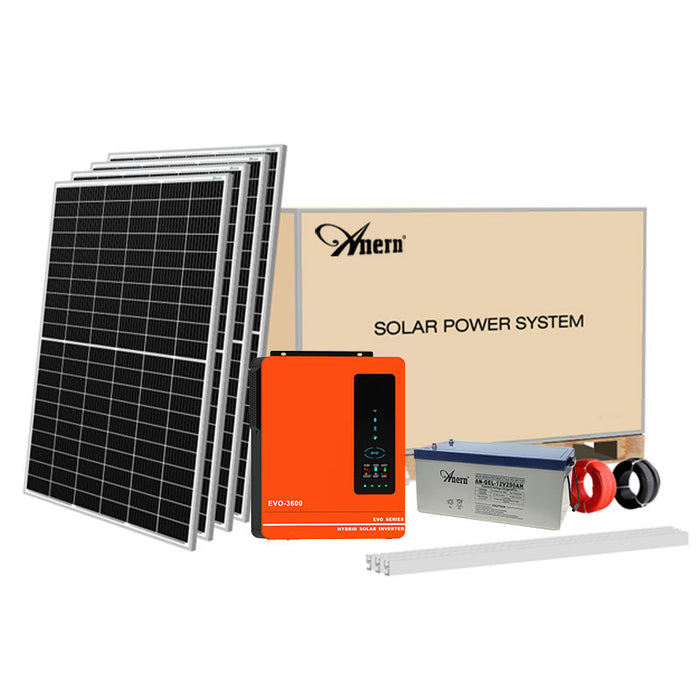

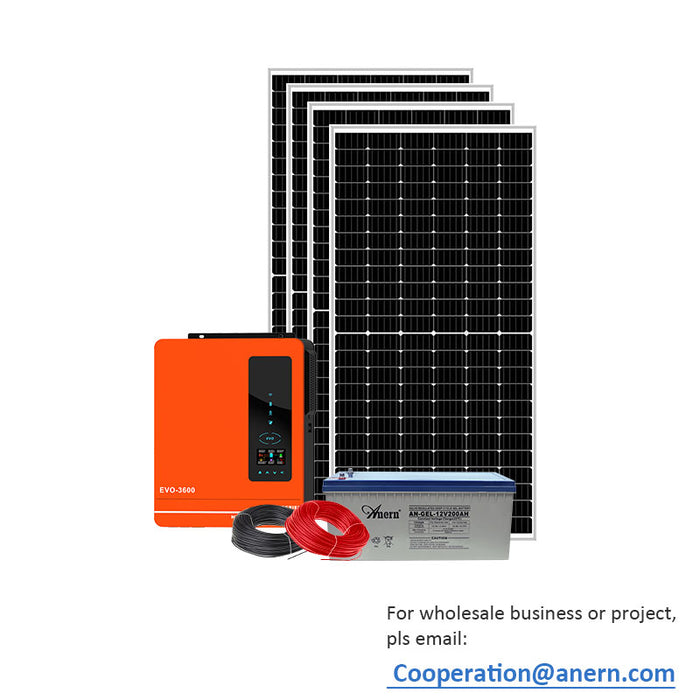

Package Content:

With 6pcs Half-cell Monocrystalline PV Module(550W), 1pcs Solar Inverter(3.6Kw), 4pcs Gel Battery, Solar Panel Bracket, Cables, 1pcs Circuit Breaker And 1pcs Wifi Monitoring Module

The shipping cost and product prices are for reference only, pls leave your demands and contact information, we will send you the quotation soon.

For wholesale business or project, pls email: Cooperation@anern.com

$2,532.00 - $2,532.00
$2,532.00
$2,532.00 - $2,532.00
$2,532.00

Videos of 4.2KW Off-grid Lead-acid Battery Solar System




Specification 3.6KW Off-grid Lead-acid Battery Solar System

System Basic Information: Solar Panels Rated Power:  3300W
Inverter Rated Output Power:  4200W
Solar Panel Type: Half-cell Monocrystalline PV Module
Max Power: 550W
Size:2279*1134*35mm
25 years power output guarantee		 QTY:6
Solar Inverter Rated Ouput Power: 4200W
Rated DC Voltage: 24V

Grid Power Input:
Grid Input Voltage: 220VAC
Input frequency: 50HZ
Inverter Output:
Output Voltage: 220VAC
Output Frequency: 50Hz
Wave Form: Pure Sine Wave
Solar Input:
Max Input Voltage: 500V
Rated Solar Input Power: 6200W
Max Current: 120A
Battery Rated Voltage: 24V
MPPT Range @ Operating Voltage: 90 ~ 450 VDC
Protections: reverse polarity, short-circuit, overvoltage, undervoltage, over-discharge, anti-thunder		 QTY:1
GEL Battery 12V/200AH per piece
GEL valve-regulated lead-acid battery, fully sealed, deep cycle, free maintenance type
Service Life: 5~6 years  		QTY:4

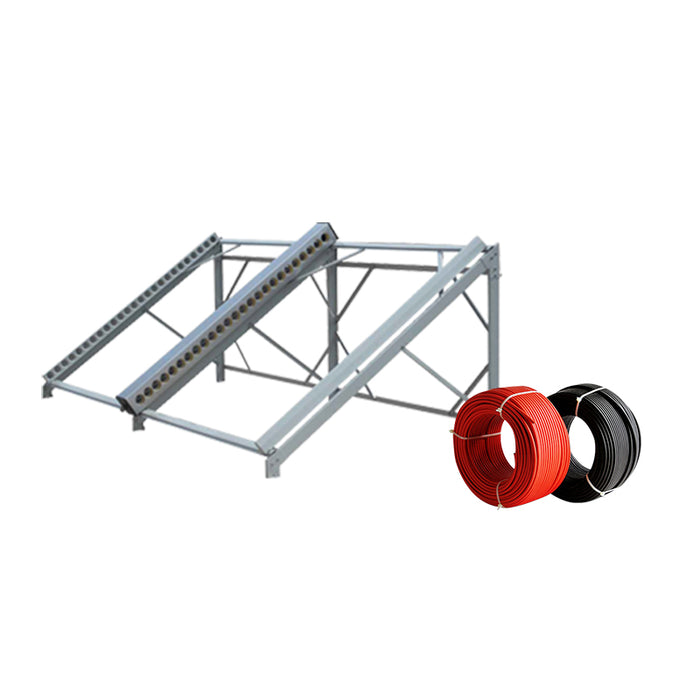

Solar Panel Rack Roof type mounting rack
including complete fittings,
aluminum alloy
(Rack can be customized per request)		 QTY:1
Cables International standard, with specification suitable for solar system, PV1-F 1*4 series red and black QTY:30
Circuit Breaker&MC4 2P/800V 30A (PV)
2P 80A(AC)
4P/1200V 140A(Battery)
MC4 Solar PV Connectors for Solar Systems male & female 2pcs		 QTY:1
WIFI
Monitoring Module		 Monitor, troubleshoot, or communication QTY:1

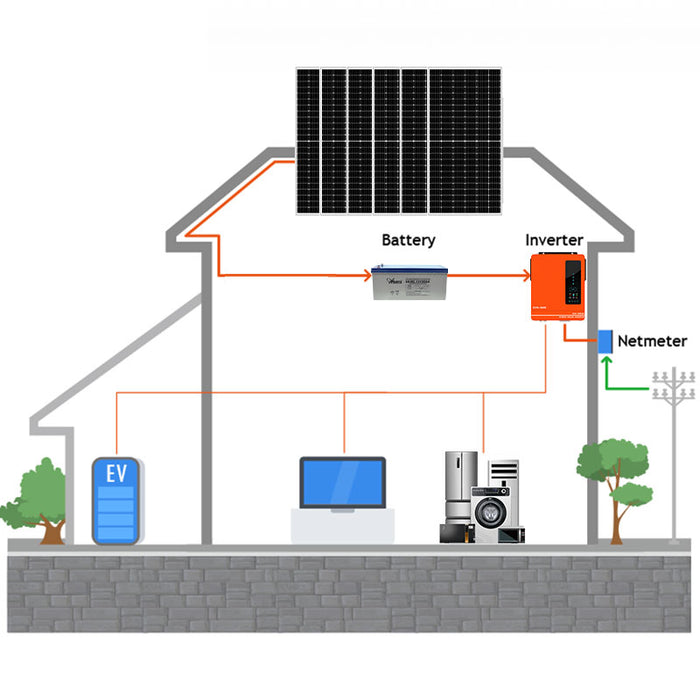

System Working Principle:
This system uses batteries to store the solar energy, at the same time, the system can be connected with the grid for utilization of grid power optionally. The system uses battery power in priority, but when sunshine is not so good or loads consumption is too big which caused the battery power inadequacy, then the system can switch automatically to grid power supply. When the batteries restore capacity, the system can switch back to battery power source.

Terms and conditions:
1. Package: Export standard package suitable for tough handling and sea transport.
2. Delivery: Goods to be ready within 7~30 days depending on order quantity.
3. Warranty: 5 years for solar panel, 2 years for controller/inverter/battery.
4. Certification: CE,ROHS
5. Validity: 30 days.

★★★★★
★★★★★
★★★★★
★★★★★
