5.5KW-Off-grid-Home-Electricity-Energy-Solar-System

5.5KW Off-grid Home Electricity Energy Solar System

by Anern

Description:

This AN-OFF-SGHP 3.5KW system uses GEL batteries to store the solar energy, Anern Superior Gel technology,more than 10 years design life in float service,recharged after being over-discharged,600+ times at 80% DOD cycle.at the same time, the system can be connected with the grid for utilization of grid power optionally. The system uses battery power in priority, but when sunshine is not so good or loads consumption is too big which caused the battery power inadequacy, then the system can switch automatically to grid power supply. When the batteries restore capacity, the system can switch back to battery power source.

Package Content:

With 8pcs Half-cell Monocrystalline PV Module(450W), 1pcs Solar Inverter(5.5Kw), 4pcs Gel Battery, Solar Panel Bracket, Cables, 3pcs Circuit Breaker And 1pcs Wifi Monitoring Module

The shipping cost and product prices are for reference only, pls leave your demands and contact information, we will send you the quotation soon.

For wholesale business or project, pls email: Cooperation@anern.com

$3,092.00 - $3,092.00
$3,092.00
$3,092.00 - $3,092.00
$3,092.00

Video of 5.5KW Off-grid Home Electricity Energy Solar System



Specification of 5.5KW Off-grid Home Electricity Energy Solar System

System Basic Information: Average daily generation: 16-18KWH
Rated Loads Capacity: 5500W
Solar Panel(8pcs) Type: Half-cell Monocrystalline PV Module
Max Power: 450W
Size: 2094*1038*35mm
25 years power output guarantee
Solar Inverter(1pcs) Rated Ouput Power: 5500W
Rated DC Voltage: 48V
Grid Power Input:
    Grid Input Voltage: 220VAC
    Input frequency: 50HZ
Inverter Output:
    Output Voltage: 220VAC
    Output Frequency: 50Hz
    Wave Form: Pure Sine Wave
Solar Input:
    Max Input Voltage: 500V
    Rated Solar Input Power: 6000W
    Max Current: 100A
Battery Rated Voltage: 48V
MPPT Range @ Operating Voltage: 120 ~ 450 VDC
Protections: reverse polarity, short-circuit, overvoltage, undervoltage, over-discharge, anti-thunder
GEL Battery(4pcs) 12V/250AH per piece
GEL valve-regulated lead-acid battery, fully sealed, deep cycle, free maintenance type
Service Life: 5~6 years

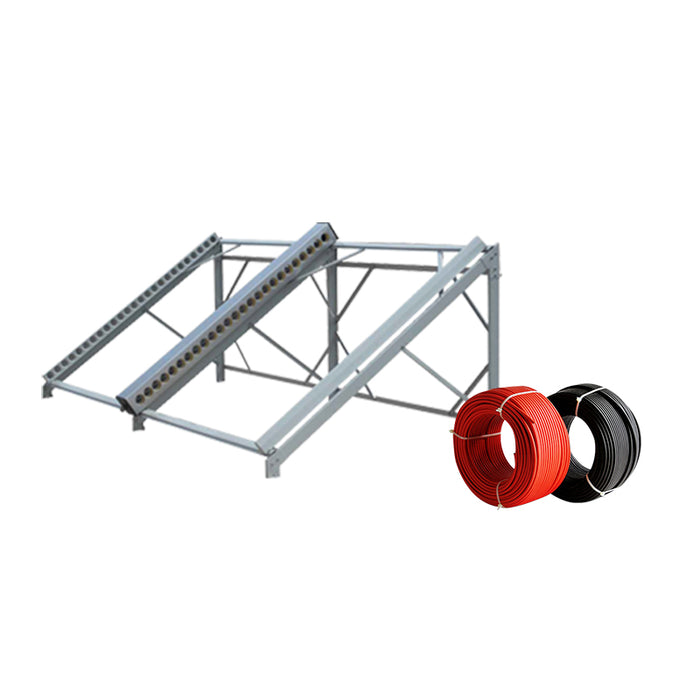

Solar Panel Rack(1pcs) Roof type mounting rack
including complete fittings,aluminum alloy
(Rack can be customized per request)
Cables International standard, with specification suitable for solar system, PVF-1*4 series red and black
Circuit Breaker(3pcs) DC1000V 2P 16A (PV)
DC500V 2P 63A(AC)
DC500V 2P 125A(Battery)
WIFI
Monitoring Module(1pcs)		 Monitor, troubleshoot, or communication

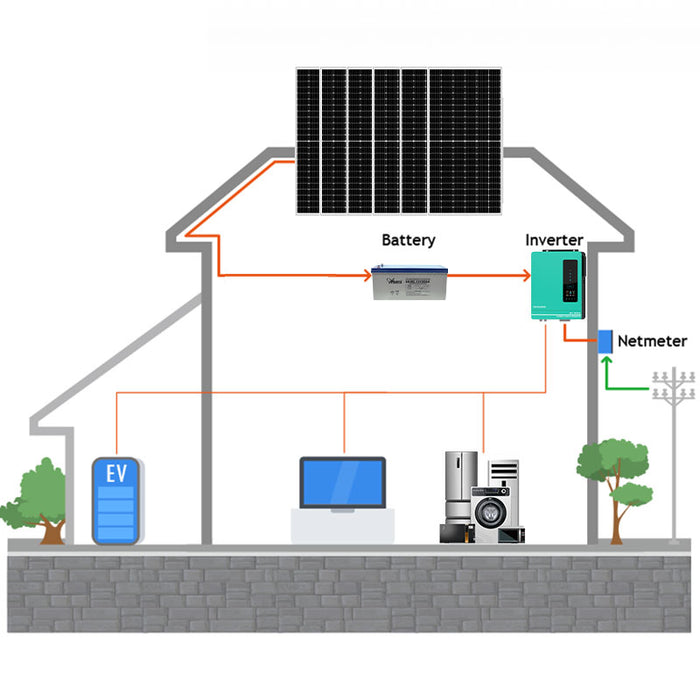

System Working Principle:
This system uses batteries to store the solar energy, at the same time, the system can be connected with the grid for utilization of grid power optionally. The system uses battery power in priority, but when sunshine is not so good or loads consumption is too big which caused the battery power inadequacy, then the system can switch automatically to grid power supply. When the batteries restore capacity, the system can switch back to battery power source.

Terms and conditions:
1. Package: Export standard package suitable for tough handling and sea transport.
2. Delivery: Goods to be ready within 7~30 days depending on order quantity.
3. Warranty: 5 years for solar panel, 2 years for controller/inverter/battery.
4. Certification: CE,ROHS
5. Validity: 30 days.
