Inverter & Array Sizing: Getting the DC/AC Ratio Right

Designing an effective solar energy system requires careful planning. A crucial aspect of this design involves accurately sizing your solar array and its inverter. Achieving the correct balance between these two components, often referred to as the DC/AC ratio, directly impacts your system's efficiency, output, and overall value. Understanding this ratio helps you maximize your solar investment and ensure a stable, reliable energy supply.

Understanding the DC/AC Ratio in Solar Systems

The DC/AC ratio, also known as the inverter load ratio (ILR), is a fundamental concept in solar system design. It represents the relationship between the nominal direct current (DC) capacity of your solar panel array and the alternating current (AC) output capacity of your solar inverter. In simple terms, it tells you how much solar panel power you are connecting relative to your inverter's capacity.

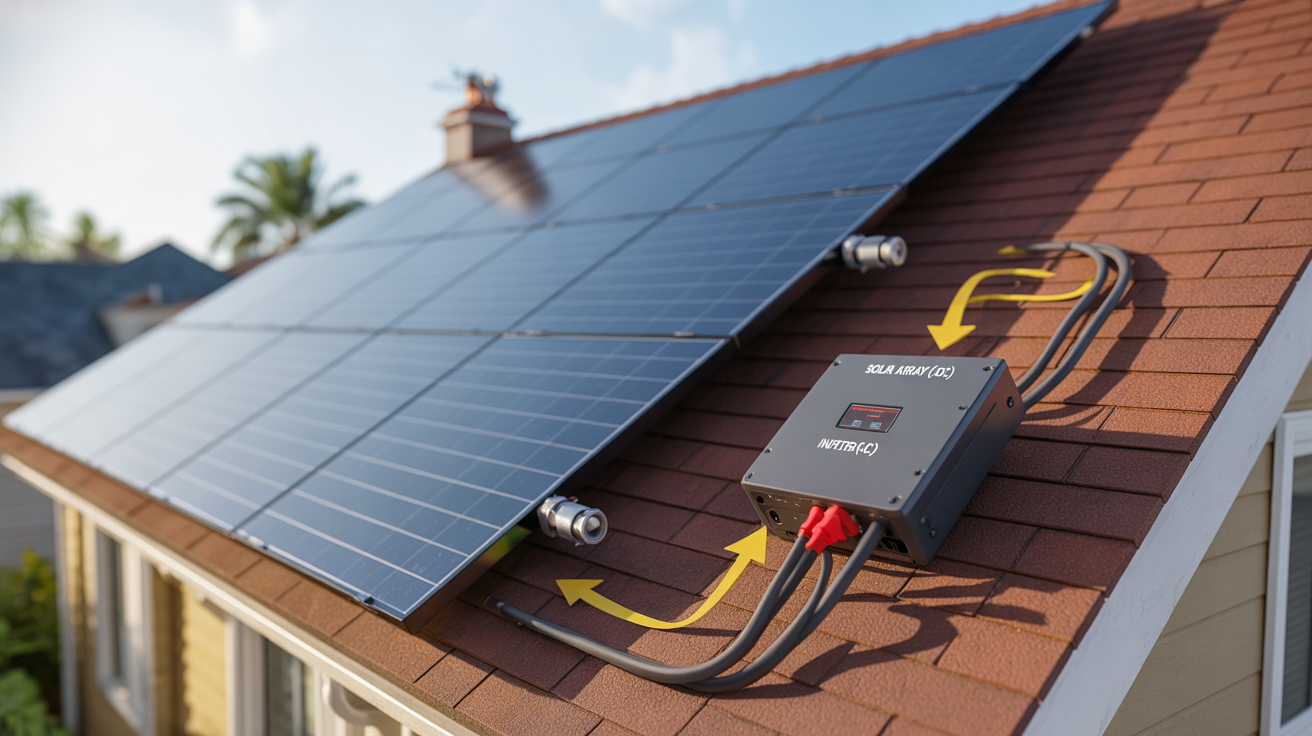

Solar panels produce direct current (DC) electricity, which the inverter then converts into alternating current (AC) for use in your home or for feeding into the grid. The rated peak capacity of a solar array, measured in DC, is typically reached only during a few hours of optimal sunlight. Because of this, the nominal capacity of the solar array will generally exceed the inverter capacity by at least 10%.

This design choice allows the system to generate more energy during periods of less than ideal sunlight, such as early mornings, late afternoons, or cloudy days. While a larger DC array relative to the inverter can lead to some power loss during peak midday hours—known as "clipping losses"—it simultaneously increases energy production during "shoulder hours" when sunlight is less intense. This often results in a more consistent and valuable energy output throughout the day.

Factors Influencing the Optimal DC/AC Ratio

Determining the ideal DC/AC ratio for your solar system involves considering several important factors. These elements help you strike a balance between maximizing energy capture and optimizing system performance and cost.

• Grid Code Obligations: Local regulations and grid connection requirements often prescribe technical obligations that can influence the acceptable DC/AC ratio. These codes help ensure the stability and safety of the electrical grid.
• Relative Costs: The fluctuating costs of solar panels compared to inverters play a significant role. With the rapid decrease in PV module costs in recent years, installing larger solar arrays has become more economically attractive in many regions.
• Connection Costs: The expenses associated with connecting your solar plant to the grid can also influence the optimal ratio. If connection infrastructure is sized to meet peak production, a larger share of total grid capacity might remain unused outside of peak hours. Downsizing the inverter can ensure more efficient use of connection infrastructure throughout the day.
• Time-Dependent Revenue Streams: In areas with time-of-use electricity pricing or specific power purchase agreements (PPAs), a higher DC/AC ratio can be advantageous. If midday energy has a lower value, increasing the array size relative to the inverter can boost production during late afternoon hours, when energy prices might be higher. This effect is more noticeable for fixed-tilt plants, as tracking systems naturally maintain a more constant energy output.
• System-Friendly Generation Profile: Using downsized inverters with a higher DC/AC ratio can create a more system-friendly PV generation profile. This approach makes the midday solar PV production peak, which can sometimes be challenging for grid operations, less pronounced.

Designing Your Solar System for Performance

Properly sizing your solar array and inverter is key to a high-performing system. You begin by estimating your household's energy consumption. This assessment helps determine the total energy your system needs to produce. The solar panels gather sunlight and convert it into DC electricity. Our high-performance solar inverters then efficiently transform this DC power into usable AC electricity for your home.

A well-designed DC/AC ratio balances the potential for clipping losses during peak sun hours with the increased energy harvest during less-than-ideal conditions. For instance, a PV plant with a 1 MW inverter and a 1.3 MW solar array (a DC/AC ratio of 1.3) will experience some power loss during peak hours due to clipping. However, this same plant gains "extra" energy production during the shoulder hours, leading to a more consistent power output throughout the day.

Our solar inverters are designed for reliability and optimal conversion, ensuring that the power generated by your panels is efficiently delivered to your home. By carefully considering the DC/AC ratio, you can achieve a solar setup that not only meets your energy demands but also maximizes the lifespan and effectiveness of your entire system.

Empowering Your Home with Comprehensive Energy Solutions

Achieving true energy independence goes beyond just solar panel and inverter sizing. It involves creating a complete energy ecosystem for your home. We have extensive experience in the solar and energy storage industry, focusing on providing reliable and scalable energy solutions.

Our commitment to innovation is evident in our core offerings:

• Lithium Iron Phosphate (LiFePO4) Batteries: We manufacture high-performance, safe, and reliable LiFePO4 batteries, forming the foundation of robust energy storage.
• Home Energy Storage Systems (ESS): Our integrated home energy storage systems combine our advanced lithium batteries with hybrid inverters and solar panels. These systems provide a seamless way to store excess solar energy for use when the sun is not shining or during power outages, giving you greater control over your energy consumption.
• Off-Grid Solar Solutions: For homes, farms, cabins, or any location without reliable grid access, our off-grid solar solutions offer complete energy autonomy. These systems are tailored to your specific needs, ensuring a continuous and dependable power supply.

By integrating these components, you can create a resilient energy infrastructure that reduces your reliance on traditional utilities and helps you achieve genuine energy independence. Our solutions are designed to deliver consistent performance and peace of mind.

A Path to Energy Autonomy

Optimizing the DC/AC ratio is a critical step in designing an efficient and cost-effective solar power system. It is a nuanced decision, influenced by technical standards, economic factors, and your specific energy goals. By carefully balancing the size of your solar array with your inverter's capacity, you can ensure your system generates power effectively throughout the day and year.
