Imagine harnessing the abundant energy of the sun to power your home. This capability is now a reality for many, offering a path to greater energy independence. But how does sunlight, composed of tiny packets of energy called photons, become the alternating current (AC) electricity that runs your appliances? This article will guide you through the fascinating process, from the initial capture of sunlight to its transformation into usable power within your home.
The Photovoltaic Effect: Capturing Sunlight's Energy
The journey begins with the photovoltaic (PV) effect, a scientific principle that allows certain materials to convert light directly into electricity. Solar panels are built from solar cells, which are typically made from semiconductor materials, most commonly silicon. These cells are remarkably thin, often less than the thickness of four human hairs.
Photons and Electron Excitation

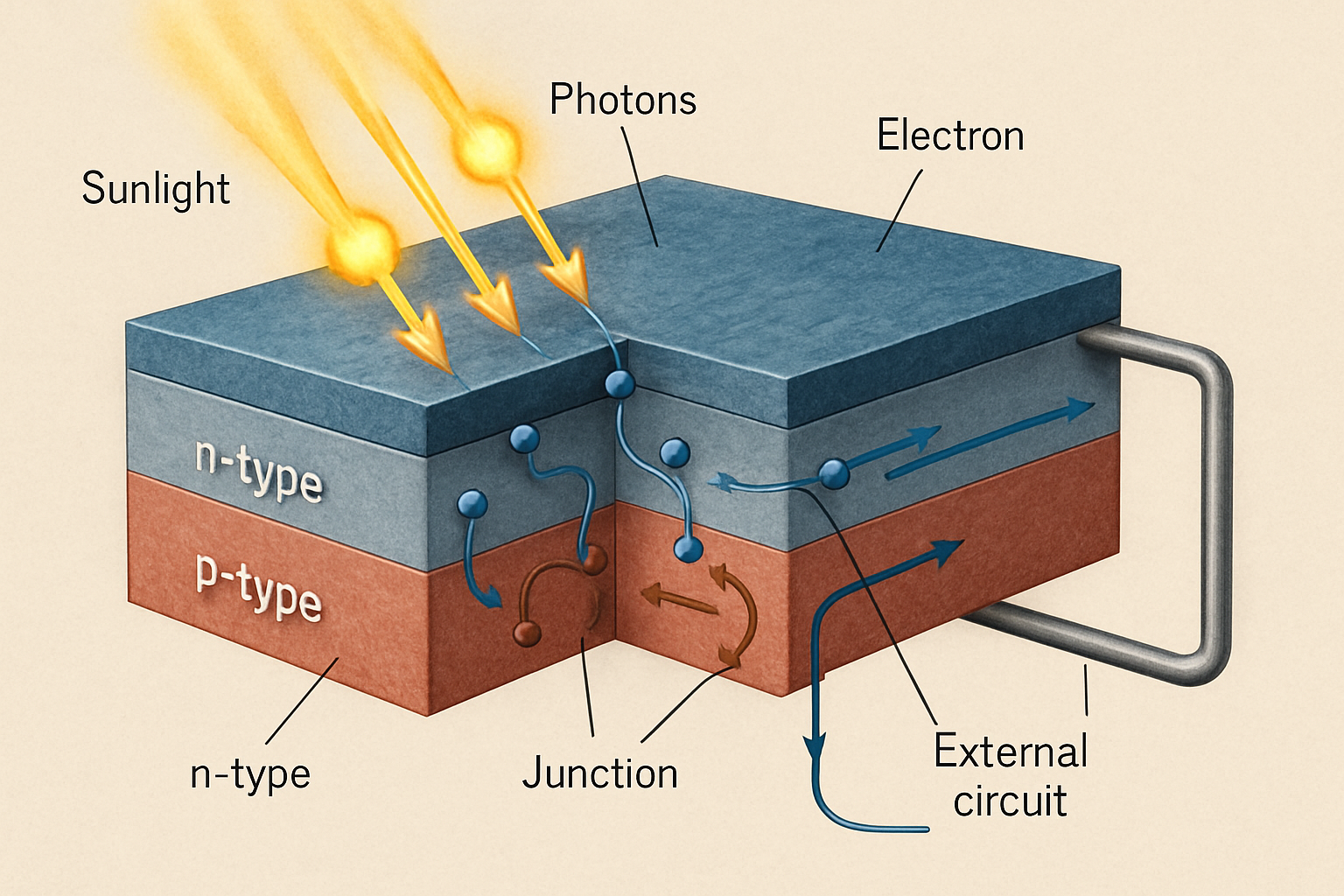

Sunlight consists of photons, small bundles of electromagnetic radiation. When photons strike a solar cell, they can be reflected, pass through, or be absorbed by the semiconductor material. If a photon carries enough energy and is absorbed, it transfers this energy to an electron within the silicon atom. This energy boost excites the electron, causing it to break free from its atomic bond and move to a higher energy state, known as the conduction band.
The P-N Junction and Direct Current (DC) Generation

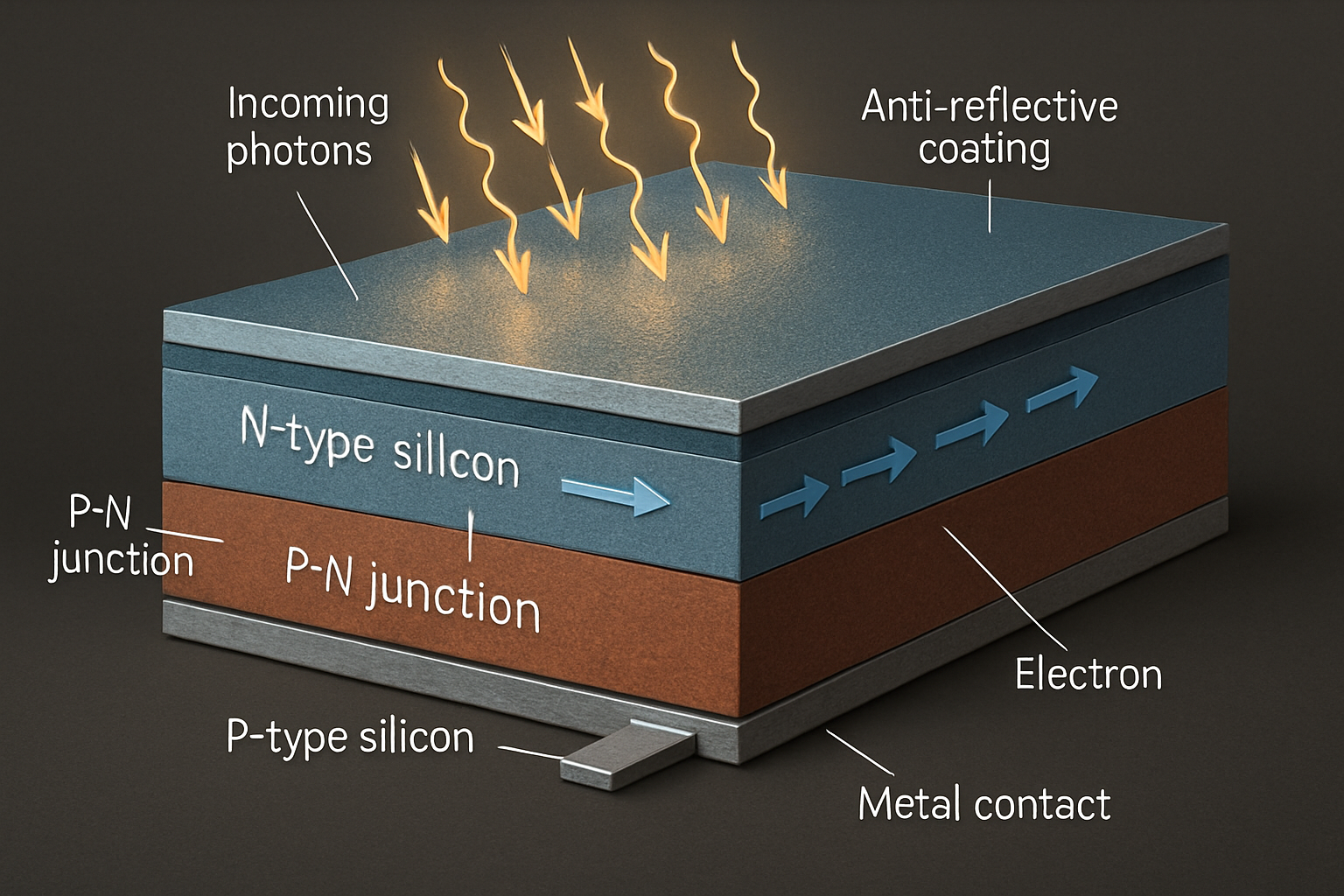

Solar cells are designed with two different types of semiconductor layers: a p-type (positive) and an n-type (negative), creating a P-N junction. This junction establishes an electric field. When electrons are freed by photons, this electric field acts like a one-way street, pushing the negatively charged electrons towards the n-type layer and leaving behind positively charged "holes" in the p-type layer. This separation of charges creates a voltage potential, similar to a battery. Electrical conductors on the cell collect these moving electrons, generating a direct current (DC) of electricity.
From Solar Panels to DC Power
Individual solar cells produce a small amount of power, typically around 1 to 2 watts. To generate more substantial power for a home, multiple cells are connected to form larger units called modules or panels. Several panels are then connected together to create a solar array.
Factors Influencing DC Output
- Sunlight Intensity: The more intense the sunlight (i.e., more photons hitting the panels), the more electricity the panels generate.
- Temperature: Solar cells generally perform best at lower temperatures. High temperatures can reduce efficiency by causing semiconductor properties to shift, leading to a decrease in voltage. Proper thermal management helps improve both efficiency and longevity.
- Panel Orientation and Tilt: Optimizing the angle and direction of your solar panels towards the sun maximizes energy capture throughout the day and year.
The power generated at this stage is direct current (DC) electricity. While some small devices can run on DC, most household appliances operate on alternating current (AC).

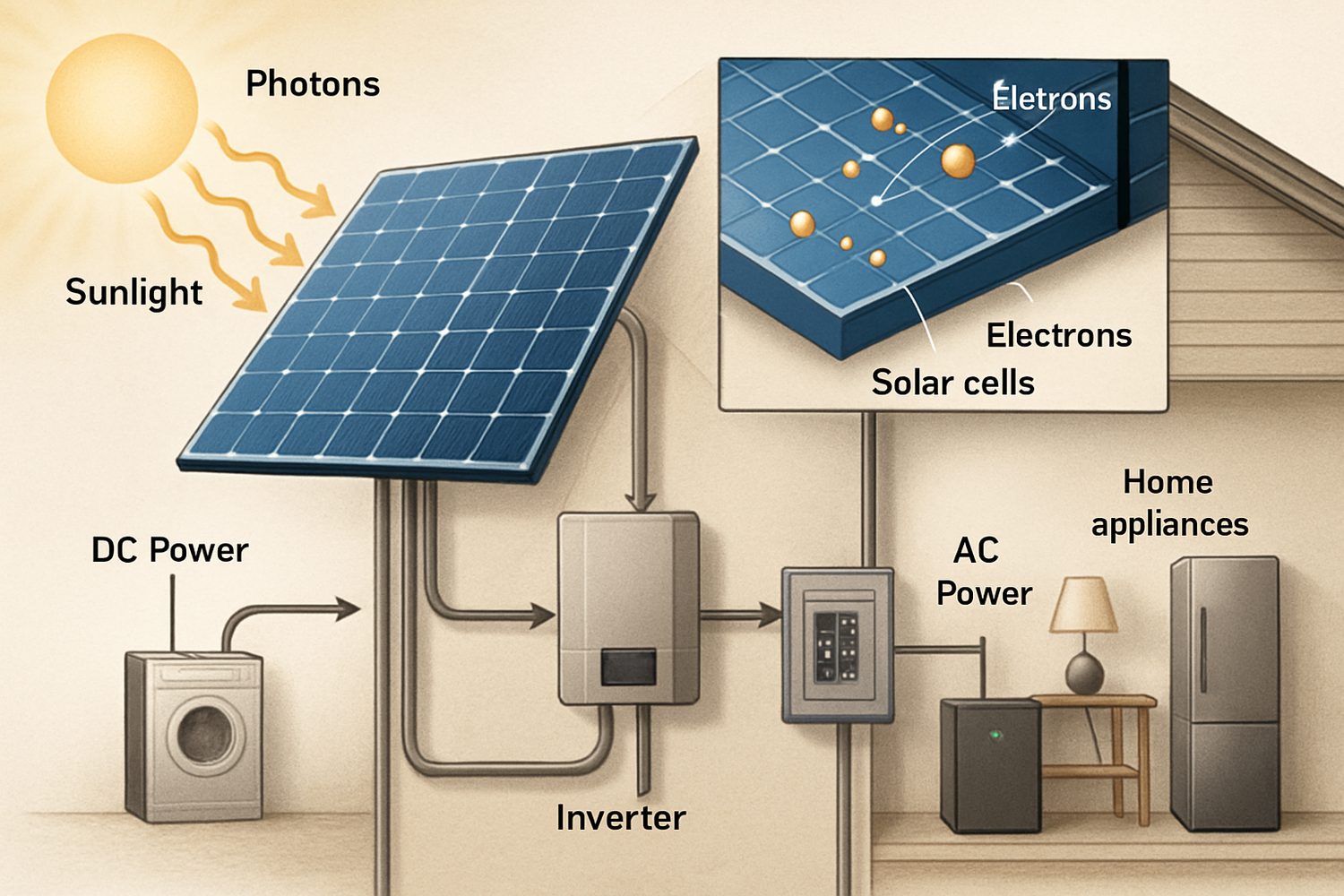

The Inverter's Role: DC to AC Conversion
The DC electricity produced by solar panels needs conversion before it can power your home or be fed into the utility grid. This is where the solar inverter plays a crucial role.
Why AC is Necessary
The electrical grid and most home appliances are designed to use alternating current (AC). AC allows for efficient transmission of electricity over long distances with minimal power loss. In contrast, DC electricity experiences more significant voltage drop over distance.
How Inverters Work
A solar inverter converts the variable DC output from your solar panels into clean, stable AC electricity. Modern inverters also perform essential functions such as Maximum Power Point Tracking (MPPT), which continuously adjusts the electrical load to ensure the panels operate at their peak power output, maximizing the energy harvested from the sun. Our solar inverters are engineered for high efficiency, ensuring optimal conversion and reliable power delivery to your home.
There are different types of inverters, each suited for various system designs:
- String Inverters: These are common for residential systems, connecting a "string" of panels to a single inverter.
- Microinverters: Installed on each individual panel, microinverters optimize the output of each panel independently, which can be beneficial in shaded conditions.
- Hybrid Inverters: These versatile inverters can manage both solar power generation and battery storage, allowing for seamless integration of an energy storage system.
Storing and Using Solar Energy
While solar panels generate electricity during daylight hours, your home needs power around the clock. This is where energy storage solutions become invaluable, providing reliability and enhancing energy independence.
The Importance of Energy Storage Systems (ESS)
An energy storage system allows you to store surplus solar electricity generated during the day for use at night or during periods of low sunlight. This capability reduces reliance on the grid, especially during peak demand times, and provides backup power during outages. For instance, in 2024, renewable power capacity reached 4,448 GW, with solar accounting for over 75% of the expansion. The cost of battery energy storage systems (BESS) declined by 93% from 2010 to 2024, dropping to $192 per kWh.
Our home energy storage systems integrate high-performance, safe, and reliable lithium iron phosphate (LiFePO4) batteries with hybrid inverters and solar panels. This integrated approach ensures you have power when you need it most.
| Feature | Benefit |
|---|---|
| High Performance | Consistent and efficient energy delivery. |
| Safety | Enhanced thermal stability reduces risk. |
| Long Cycle Life | Durable for many years of daily use. |
| Reliability | Stable power supply for critical loads. |
Off-Grid Solar Solutions
For locations without grid access, or for those seeking complete energy autonomy, off-grid solar solutions offer a self-sufficient power supply. These systems rely heavily on robust battery storage to provide continuous electricity to homes, farms, or remote cabins. Our off-grid solar solutions are designed to deliver reliable power in diverse environments, helping you achieve true energy independence.
Connecting to Your Home and Grid
Once solar energy is converted to AC and optionally stored, it seamlessly integrates with your home's electrical system.
Electrical Panel Integration
The AC power from your inverter feeds directly into your home's main electrical panel, where it can power your lights, appliances, and electronics. If your solar panels produce more electricity than your home consumes, the excess can be sent back to the utility grid, often through a net metering program. This allows you to receive credits for the power you contribute. For example, residential solar systems in the United States accounted for 67% of small-scale solar capacity among end-use sectors in 2023, with over 39.5 GW in 2022.
Ensuring System Safety and Efficiency
A well-designed solar and storage system includes safety features such as circuit breakers and rapid shutdown capabilities. Regular maintenance ensures your system operates at peak efficiency throughout its 20- to 30-year lifespan. Proper operation and maintenance can improve the average performance ratio of systems from 92% to over 95%, leading to substantial benefits.
Empowering Your Energy Future
Tracing power from photons to AC in your home reveals a sophisticated process driven by innovative technology. Solar energy conversion, facilitated by efficient solar panels and advanced solar inverters, provides a clean, sustainable power source. Integrating reliable lithium batteries and comprehensive home energy storage systems empowers you with control over your energy consumption, reduces your environmental impact, and offers peace of mind. As solar continues its rapid expansion, becoming a dominant renewable energy source with record-breaking additions, you are positioned to benefit from a reliable and scalable energy solution.
Disclaimer: This article provides general technical information and is not intended as financial or legal advice. Please consult with qualified professionals for specific guidance.
