Lead-acid vs LiFePO4: Off-grid battery sizing that actually works

Choosing between lead-acid and LiFePO4 batteries for your off-grid system isn't just about upfront cost. The sizing calculations, performance characteristics, and long-term economics differ dramatically between these technologies. After years of designing off-grid systems, I've seen too many installations fail because the battery sizing didn't account for the fundamental differences between these chemistries.

Lead-acid vs LiFePO4 battery comparison for off-grid sizing

Understanding the fundamental sizing differences

The most critical difference between lead-acid and LiFePO4 batteries lies in their usable capacity. Lead-acid batteries should never be discharged below 50% state of charge to maintain reasonable lifespan, while LiFePO4 batteries can safely discharge to 20% or even lower without significant degradation.

This means your actual sizing calculations must account for:

Lead-acid: Only 50% of rated capacity is usable
LiFePO4: 80-90% of rated capacity is usable

For a 10 kWh daily energy requirement, you'd need a 20 kWh lead-acid bank versus a 12.5 kWh LiFePO4 bank. This fundamental difference cascades through your entire system design.

Depth of discharge impact on sizing

According to IRENA's battery degradation research, battery life is significantly affected by discharge depth and operating temperature. Lead-acid batteries experience exponential capacity loss when discharged beyond 50%, while LiFePO4 maintains stable performance across a much wider discharge range.

Discharge Depth	Lead-acid Cycles	LiFePO4 Cycles
20%	2,500	8,000+
50%	1,200	6,000+
80%	400	3,000+

Calculating real-world battery capacity requirements

Your off-grid battery sizing must account for system losses, temperature effects, and aging. Here's the formula I use for both technologies:

Required Battery Capacity = (Daily kWh × Autonomy Days) ÷ (DoD × Temperature Factor × Aging Factor × System Efficiency)

Lead-acid sizing example

For a cabin requiring 8 kWh daily with 3 days autonomy:

Daily energy: 8 kWh
Autonomy days: 3
Depth of discharge: 0.5 (50%)
Temperature factor: 0.85 (cold weather impact)
Aging factor: 0.8 (80% capacity after 3 years)
System efficiency: 0.9

Required capacity = (8 × 3) ÷ (0.5 × 0.85 × 0.8 × 0.9) = 78.4 kWh

LiFePO4 sizing example

Same cabin with LiFePO4:

Depth of discharge: 0.8 (80%)
Temperature factor: 0.95 (better cold performance)
Aging factor: 0.9 (90% capacity after 10 years)
System efficiency: 0.95

Required capacity = (8 × 3) ÷ (0.8 × 0.95 × 0.9 × 0.95) = 37.1 kWh

The LiFePO4 system requires less than half the rated capacity, dramatically reducing system size and complexity.

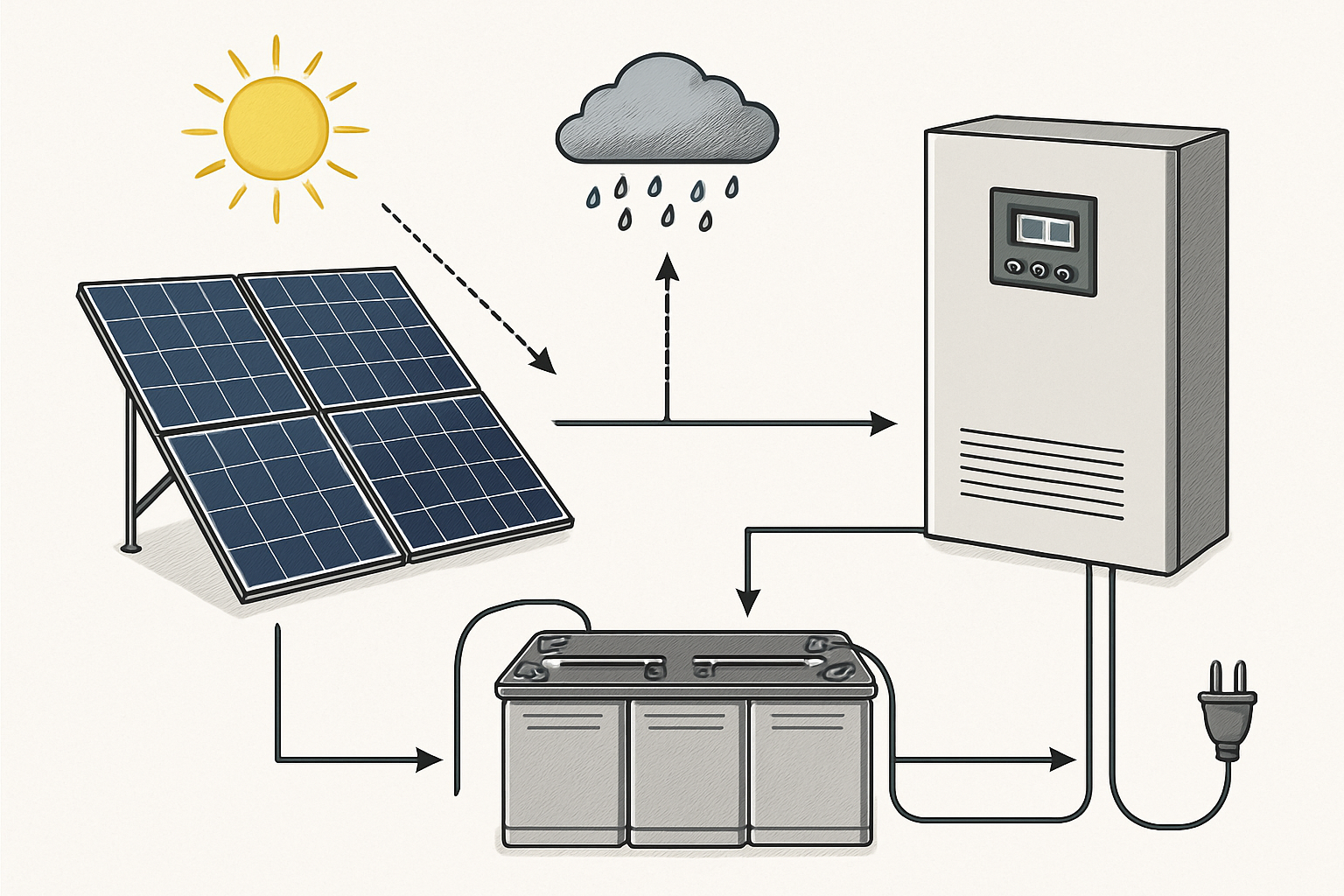

Solar panel sizing implications

Battery chemistry directly affects your solar panel sizing. Lead-acid batteries require higher charging voltages and longer absorption phases, while LiFePO4 batteries charge more efficiently with simpler profiles.

Charging efficiency differences

Lead-acid: 75-85% charging efficiency
LiFePO4: 95-98% charging efficiency

This means your PV array needs to be sized larger for lead-acid systems to compensate for charging losses. For the same 8 kWh daily requirement:

Battery Type	Required PV Output	Array Size (300W panels)
Lead-acid	10.7 kW	36 panels
LiFePO4	8.4 kW	28 panels

Cost analysis: upfront vs lifecycle economics

While LiFePO4 batteries cost 2-3 times more upfront, the total system economics often favor lithium technology for most off-grid applications.

10-year cost comparison

For a 10 kWh daily energy system:

Component	Lead-acid System	LiFePO4 System
Battery bank	$18,000 (replaced twice)	$15,000
Solar panels	$10,800	$8,400
Charge controller	$1,200	$800
Maintenance	$2,000	$200
Total 10-year cost	$32,000	$24,400

The LiFePO4 system saves $7,600 over 10 years while providing superior performance and reliability.

Performance considerations for sizing accuracy

Temperature significantly affects battery performance and sizing requirements. Based on IEA research on energy storage systems, cold weather can reduce lead-acid capacity by 30-50%, while LiFePO4 batteries typically lose only 10-20% capacity at freezing temperatures.

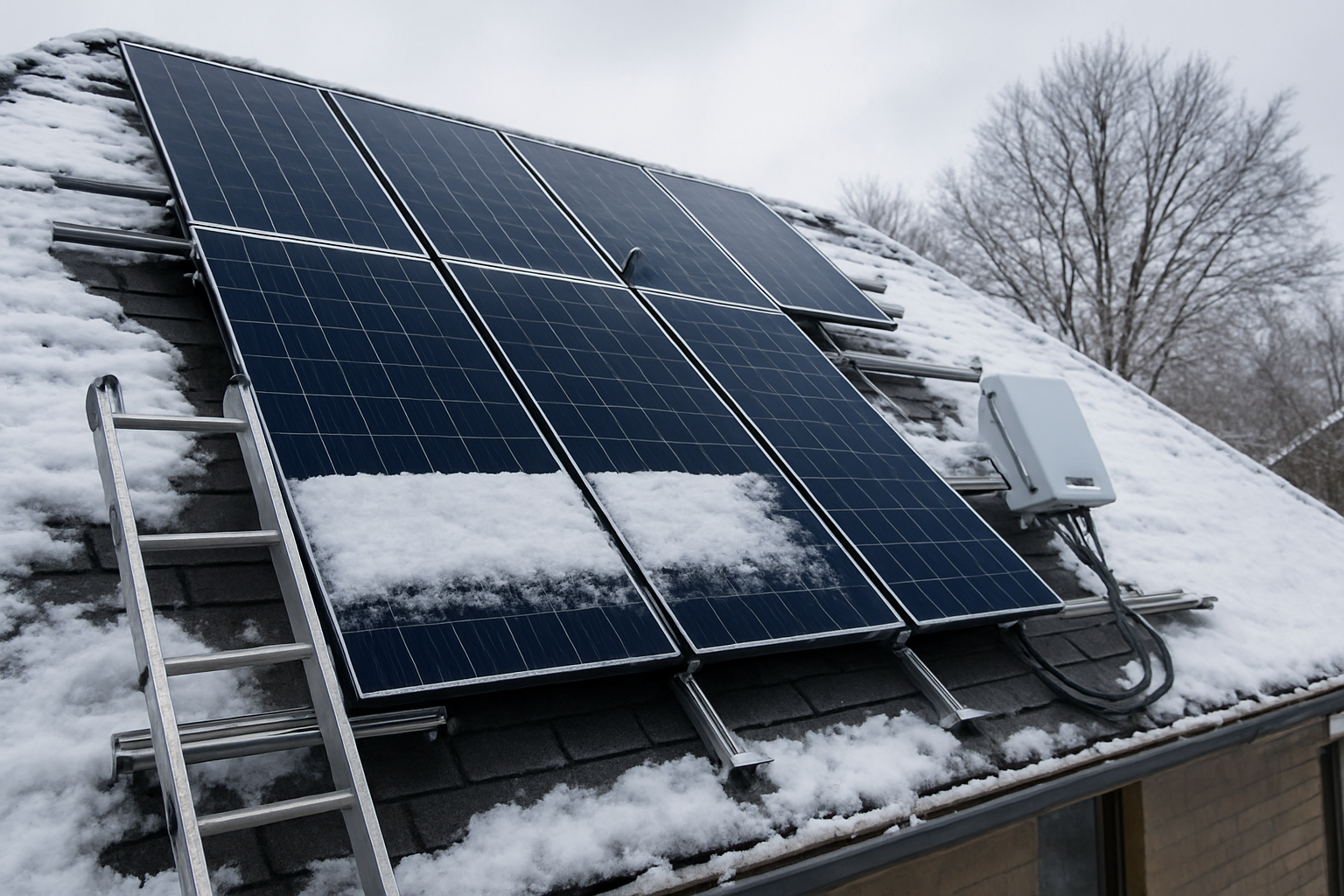

Seasonal sizing adjustments

Your battery bank must handle worst-case scenarios. In northern climates:

Lead-acid: Size for 40% capacity reduction in winter
LiFePO4: Size for 15% capacity reduction in winter

This temperature sensitivity means lead-acid systems often require heating or insulation, adding complexity and energy consumption to your off-grid system.

Making the right choice for your application

Choose lead-acid when:

Upfront budget is severely limited
System size is very small (under 2 kWh daily)
Technical expertise for maintenance is available
Replacement accessibility isn't a concern

Choose LiFePO4 when:

System reliability is critical
Maintenance access is limited
Space and weight are constraints
Long-term economics matter more than upfront cost

For most modern off-grid installations, LiFePO4 technology provides superior value despite higher initial investment. The simplified sizing calculations, reduced system complexity, and longer lifespan make it the preferred choice for reliable energy independence.

Remember that battery sizing isn't just about capacity numbers. The fundamental differences between lead-acid and LiFePO4 technologies affect every aspect of your system design, from solar panel requirements to charge controller selection. Understanding these differences ensures your off-grid system delivers reliable power for decades, not just the first few years.
