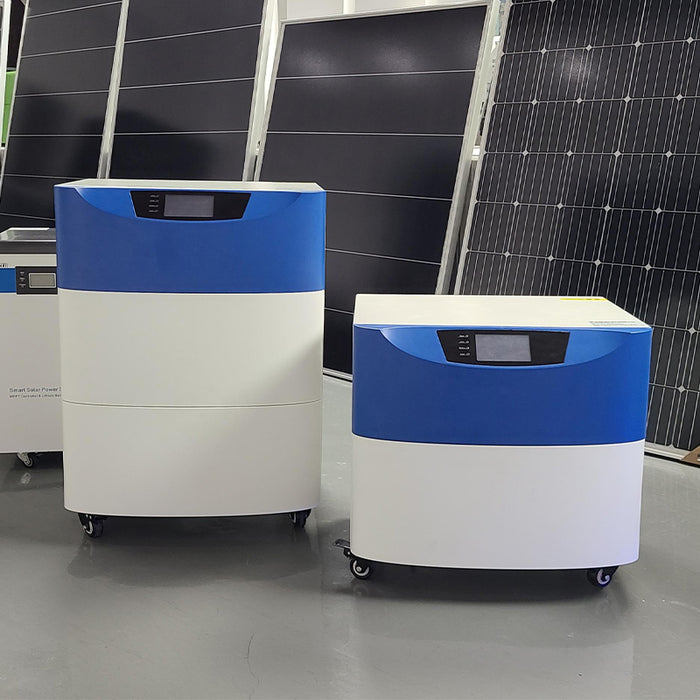

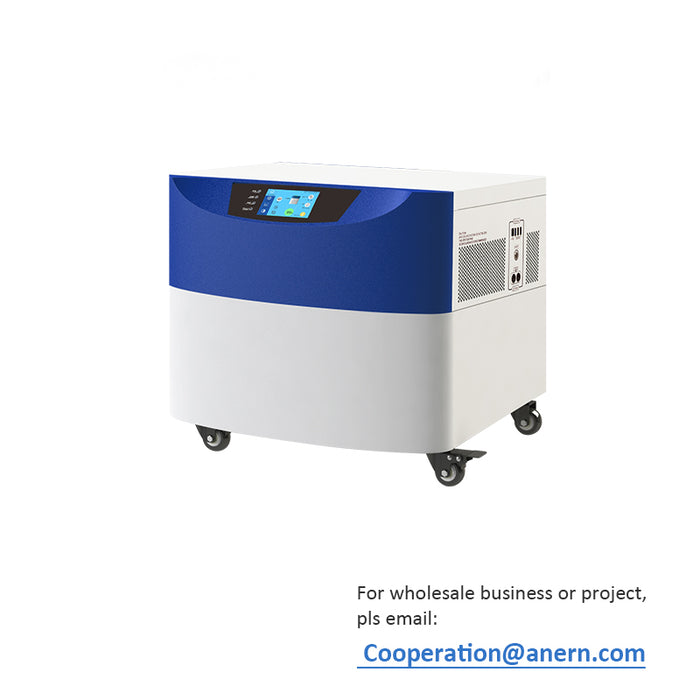

3KW 5KW Portable Touch Screen Solar Generator System
Description:
Package Content:
Description:
Package Content:
Model |
MPSG-T-S3000 |
MPSG-T-S5000 |
MPSG-T-D5000 |
Battery Voltage |
24V |
48V |
48V |
Inverter |
|||
RATED POWER |
3000W |
5000W |
5000W |
Input Voltage Range |
170-275VAC |
||
Input Frequency |
45-65 |
||
Output Voltage |
110/220 |
||
Output Frequency |
50/60 |
||
Output Wave |
Pure Sine Wave |
||
Specification Of Built-in Lithium Battery |
2700WH(Single battery box) |
4500WH(Single battery box) |
9000WH(Double battery box) |
Communication |
WIFI(optional) |
||
MPPT Solar Input |
|||
Max. PV Power |
1500W |
1500W |
3000W |
Range Of Charging Voltage |
34-150VDC |
65-150VDC |
65-150VDC |
Rated Charge Current |
60A(MPPT) |
30A(MPPT) |
60A(MPPT) |
MPPT efficiency |
≥99% |
||
Voltage For Floating Charge |
24.9VDC |
49.8VDC |
49.8VDC |
Low Voltage Recovery Voltage |
23.4VDC |
46.8VDC |
46.8VDC |
Low Voltage Protection Voltage |
18.6VDC |
37.2VDC |
37.2VDC |

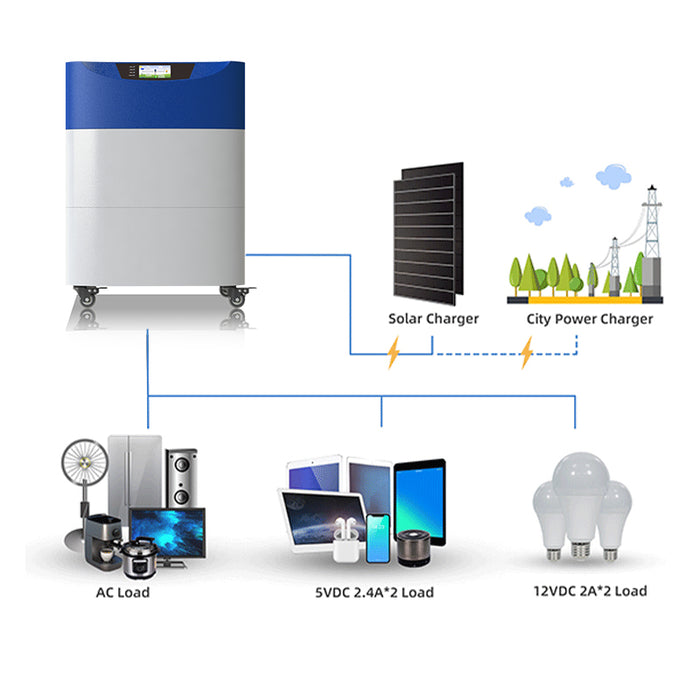

DC Output |
|||
Mobile output |
TYPE C-PD60 / USB QC3.0 / USB-5VDC 2.4A/2 units |
||
12VDC Output Ports |
2 units /MAX 2A |
||
PHYSICAL |
|||
Heat Dissipation/Cooling |
Temperature control by intelligent exhaust fan |
||
Display |
Touch Screen |
||

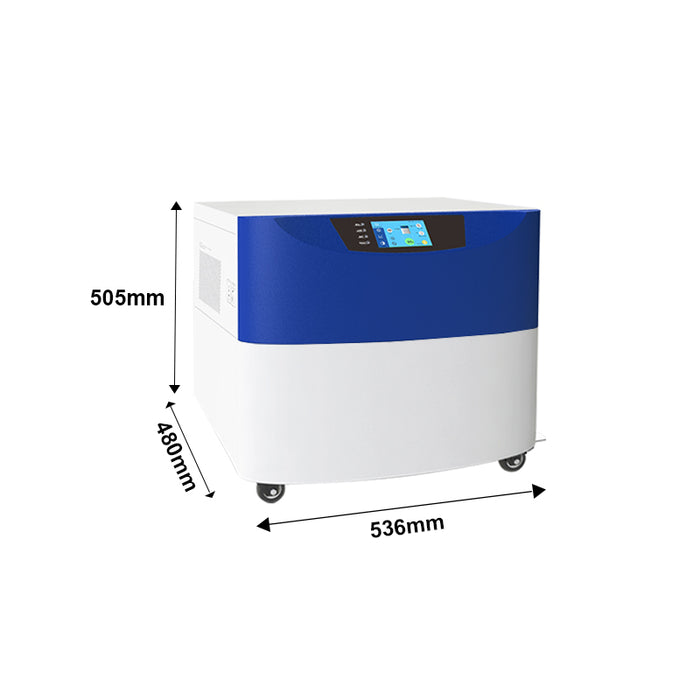

External Size:W*D*H(mm) |
536*480*505mm |
536*480*735mm |
|
Package Size:W*D*H(mm) |
660*600*610mm |
660*600*840mm |
|
G.W.(Gross Weight) |
72 |
92 |
120 |
