AC vs DC disconnects: choosing safely for hybrid inverters

Hybrid inverters link PV arrays, batteries, and the grid. That mix needs the right AC and DC disconnects to shut down equipment fast, protect people, and simplify service. This piece breaks down how to size and select disconnects on both sides, how combiner boxes and isolators fit in, and how standards shape safe practice.

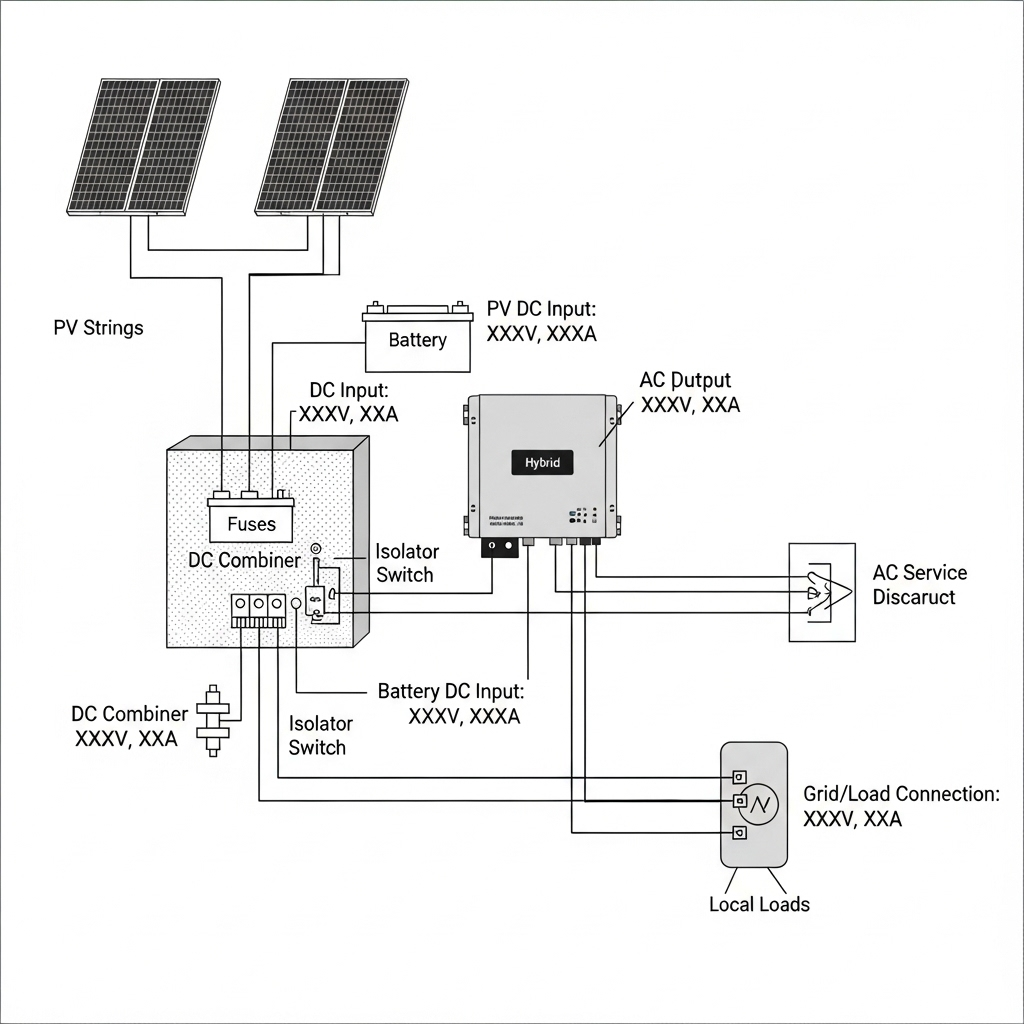

AC vs DC disconnects in hybrid systems

AC disconnects: grid and load side control

On the AC side, the disconnect isolates the hybrid inverter from the utility service and building loads. It must switch under load, carry continuous current, and withstand fault current. Look for:

• Voltage class matched to the grid (120/240 V split-phase, 230 V single-phase, or 400/480 V three-phase).
• Current rating ≥ 125% of the inverter’s maximum continuous AC output.
• Short-circuit interrupt rating (kAIC) that meets or exceeds available fault current at the point of interconnection.
• Compliance with switchgear standards (for example, IEC 60947-2 or UL 98/UL 489) and local code marking.

Grid-interactive behavior depends on inverter controls and grid codes. As noted by IRENA’s Grid Codes for Renewable Powered Systems, modern inverters are power-electronic devices that must manage harmonics and interharmonics, aligning with limits similar to IEEE 519 and interconnection practices aligned with IEEE 1547. A proper AC disconnect aids commissioning, testing, and emergency shutdown.

DC disconnects: PV and battery isolation

On the DC side you need isolation for two sources: the PV array and the battery bank. DC arcs do not self-extinguish at zero crossings, so DC disconnects need dedicated arc control. Key points:

• Voltage rating should exceed the maximum open-circuit voltage of the PV strings at the coldest expected temperature.
• Current rating should cover worst-case irradiance plus continuous service factors.
• Use purpose-built DC switch-disconnectors (for example, IEC 60947-3) or DC-rated breakers. Do not reuse AC-only devices on DC circuits.
• For batteries, select bi-directional DC disconnects or breakers that can interrupt both charge and discharge.

IEA’s Solar Energy Perspectives highlights the practical difference between alternating and direct current. AC is synchronous and common in distribution systems, while DC links enable controlled power flow. That difference is why DC-rated switches need specialized designs to handle arcs.

Comparison at a glance

Sizing process for safe selection

1) PV DC disconnect sizing

Find the maximum open-circuit voltage (Voc,cold). Use the module’s temperature coefficient to adjust. A simple rule is to add a margin that covers the coldest site temperature. Many designers target at least 1.15–1.25× the STC Voc of the series string.

Next, size current. A practical approach for overcurrent protection and switchgear is to apply 125% for irradiance and 125% for continuous operation, giving 156% of the string or combiner output current. This aligns with common code practices for continuous loads. Confirm with local codes.

Example: A 12-string array, each string Isc 10 A, combined in a box. Combiner output continuous current ≈ 12 × 10 A × 1.25 × 1.25 = 187.5 A. Choose a DC disconnect and busbars ≥ 200 A continuous at the site’s ambient rating. Ensure the voltage rating exceeds the coldest-day Voc.

2) Battery DC disconnect sizing

Hybrid inverters can charge and discharge batteries, so the battery disconnect must interrupt both directions. Use the battery’s maximum continuous charge/discharge current. Add thermal margin for ambient conditions.

The Ultimate Reference: Solar Storage Performance notes that usable life and performance depend on depth of discharge, temperature, and C‑rate. Higher C‑rates raise heat and stress. Select a disconnect with ample thermal headroom and low contact resistance to cut I²R losses. For example, at 100 A, every extra 1 mΩ adds about 10 W of heat at the contacts. That thermal detail supports both safety and cycle life.

3) AC disconnect sizing

For a hybrid inverter with 10 kW at 240 V split-phase, full-load current is about 41.7 A. Choose an AC disconnect rated at least 52 A (125% of continuous). Pick a standard size such as 60 A. Verify the device’s short-circuit rating meets service fault current (for example, 10 kAIC or 22 kAIC), coordinated with upstream protection.

4) Environmental and enclosure ratings

Outdoor gear should meet IP65 or NEMA 3R/4X, with UV-stable plastics or coated metals. Check derating curves for high ambient temperatures and direct sun. Heat can reduce current ratings significantly.

5) Coordination with combiner boxes and isolators

Combiner boxes typically include string fusing (gPV fuses), surge protection, and sometimes a main DC disconnect. If the inverter has an integrated switch, local regulations may still require an external, visible-blade, lockable disconnect. Battery banks need a nearby isolator for service and emergency response.

Standards, grid behavior, and why they matter

IRENA highlights that harmonics and interharmonics from power electronics can trigger flicker and instabilities; they reference harmonics limits similar to IEEE 519 and interconnection expectations similar to IEEE 1547. Your AC disconnect aids field tests for these parameters. Good isolation allows safe measurement of total harmonic distortion and inverter responses.

The IEA report The Power of Transformation explains that AC networks are synchronous, while DC links are not, allowing more controllable flows. That same principle shows up at small scale: DC paths need careful switching devices because arc quenching is harder than on AC. This is a technical reason to avoid AC-only gear on PV or battery DC circuits.

Hybrid systems also support local flexibility. IEA’s China Power System Transformation describes distribution-level balancing using aggregated batteries. To run flexible assets safely, field crews must isolate sections quickly. Well-placed disconnects at the PV combiner, battery bank, and service point make that possible.

For technology basics and policy context, see Energy.gov: Solar Energy and EIA: Solar explained. These resources frame why PV output is variable and why safe isolation supports reliability.

Worked example: hybrid inverter with PV and LiFePO4

System brief:

• Hybrid inverter: 8 kW, 230 V single-phase, max AC output current 35 A.
• PV: 10 strings, each 12 modules in series. Module Voc,STC 40 V, Isc 10 A, Voc temp coefficient about −0.3%/°C. Site minimum cell temperature −10°C.
• Battery: 51.2 V nominal LiFePO4, continuous 150 A charge/discharge, short bursts to 200 A per BMS limits.

PV voltage: Voc,cold ≈ 12 × 40 V × ≈ 480 V × ≈ 480 V × 1.105 ≈ 530 V. Pick a DC disconnect rated ≥ 600 V DC.

PV current at combiner: 10 strings × 10 A × 1.25 × 1.25 ≈ 156 A. Select a 175–200 A DC switch-disconnector or breaker with PV duty, and busbars for that current.

Battery disconnect: continuous current ≥ 150 A with surge tolerance. Choose 200 A DC with interrupt rating suitable for the battery’s prospective fault current. Use a class-T or equivalent high-rupture-capacity fuse upstream as needed.

AC disconnect: 35 A × 1.25 = 43.75 A. A 60 A, 230 V AC load-break switch is appropriate. Confirm kAIC with utility data.

Combiner box: include 10 × gPV string fuses sized near 1.25 × Isc, surge protection, and a main DC switch if required by code.

Combiner boxes and isolators: practical placement

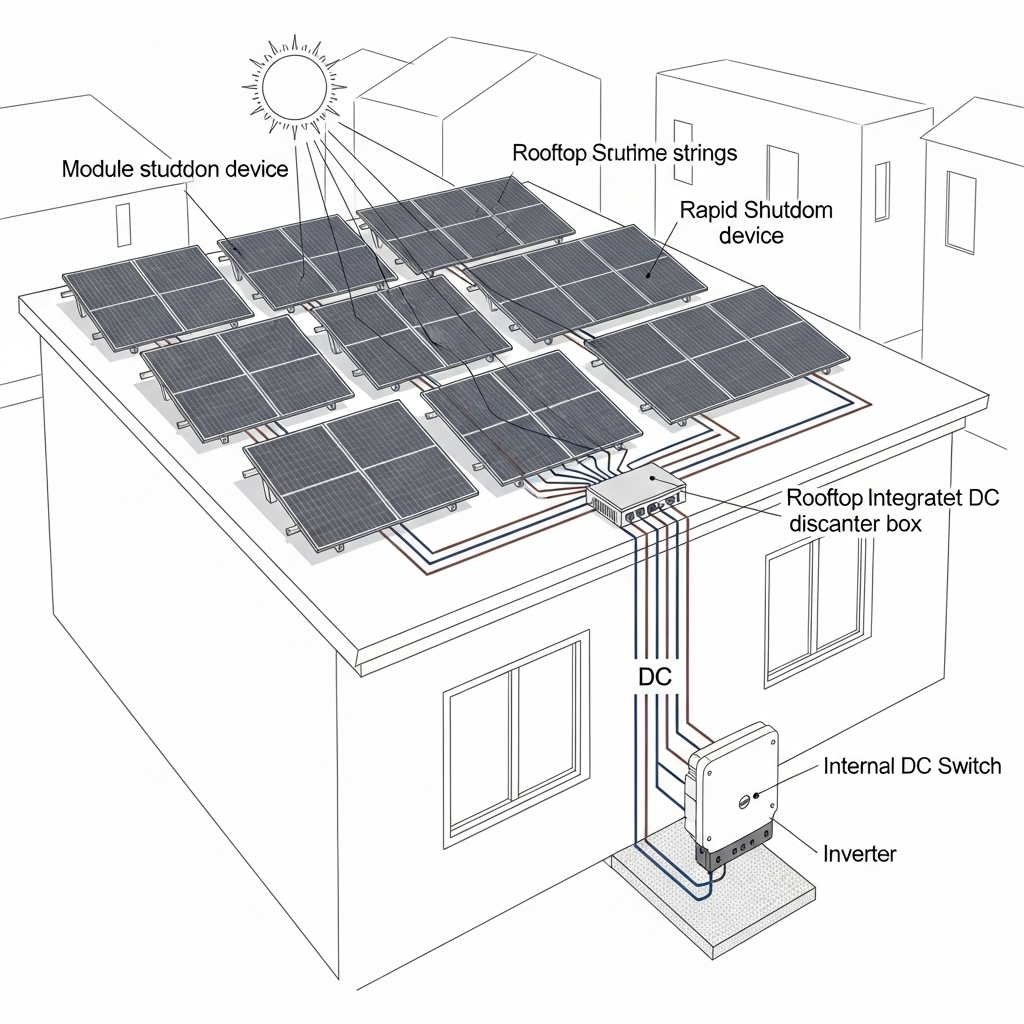

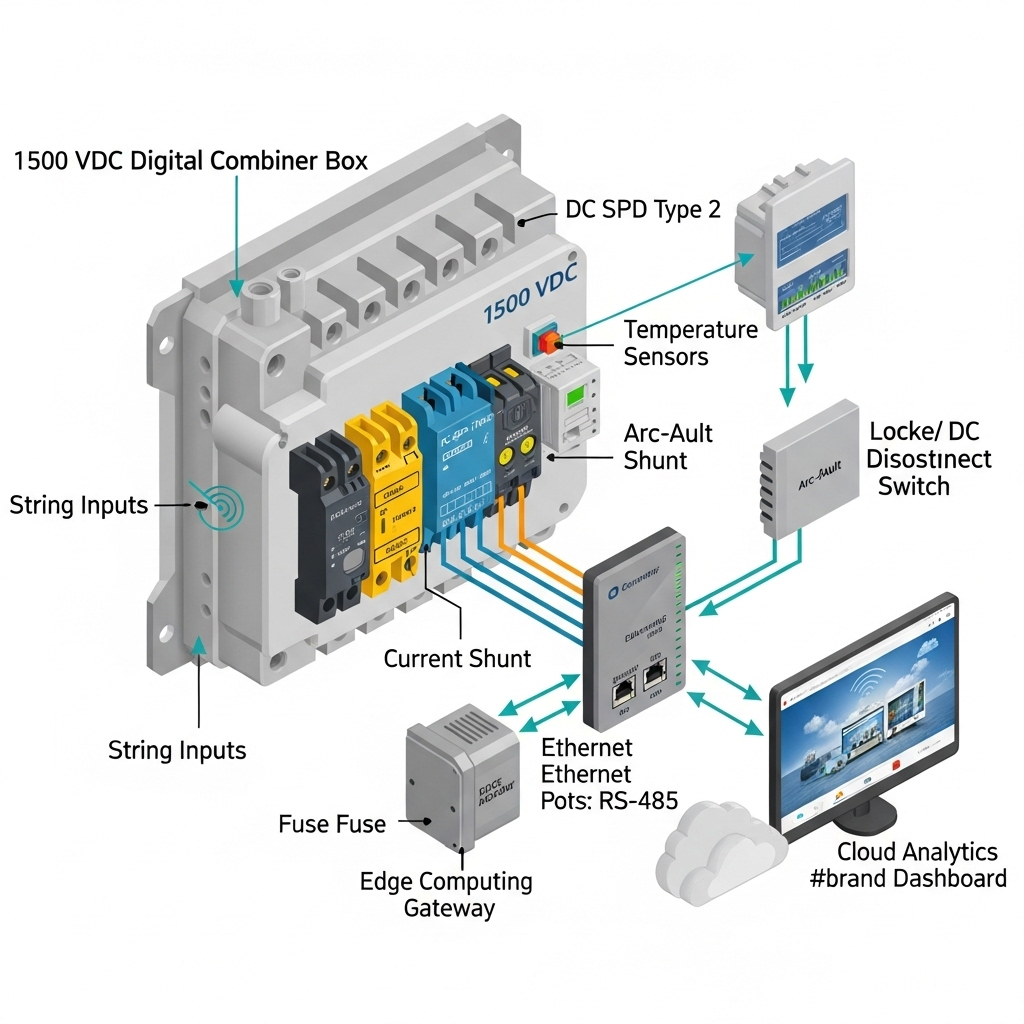

PV combiner box with integrated disconnect

A roof or array-adjacent combiner reduces homeruns and centralizes protection. An integrated DC disconnect shortens arc paths and simplifies lockout for module service. Keep it accessible and labeled. Use cable glands and strain reliefs suited to UV and temperature swings.

Battery isolator near the pack

Place a lockable battery isolator within reach of the pack. Hybrid inverters can regenerate current into the battery; the isolator must handle both polarities. Monitor temperature near lugs. As noted in the Solar Storage Performance reference, temperature strongly affects cycle life. Low-resistance terminations and correctly torqued lugs reduce heat and help preserve performance.

Inverter-integrated switches vs external devices

Many hybrid inverters include internal switches. External, visible, lockable disconnects are still valuable for first responders and maintenance. They also add redundancy and clear points of isolation during commissioning or fault finding.

Common pitfalls and how to avoid them

• Underrating DC voltage: cold weather pushes Voc up. Add margin based on the data sheet and local minimum temperatures.
• Using AC gear on DC: even at modest voltages, DC arcs can sustain. Always use DC-rated devices.
• Ignoring bidirectional current: batteries charge and discharge. Select devices and fuses that interrupt both directions.
• Missing fault current: check available fault at the AC point of interconnection and select adequate kAIC.
• Poor thermal practice: cramped enclosures and undersized lugs drive heat. Follow derating curves and use quality terminations.
• Weak labeling: clear, weatherproof labels speed safe operation during emergencies.

Data-backed notes you can use

• IRENA recommends assessing interharmonics from power electronics. Proper AC isolation helps validate inverter performance against harmonic limits similar to IEEE 519.
• IEA explains controllability advantages of DC links. Treat PV and battery DC switching with that in mind: use true DC switchgear.
• Energy.gov and EIA provide fundamentals on PV variability. Size AC and DC disconnects with headroom for continuous duty.
• The storage performance reference emphasizes the impact of C‑rate and temperature on LiFePO4. Lower resistance and cooler operation extend service life, so disconnects with solid copper blades and tight-contact designs help.

Quick specification checklist

• AC disconnect: voltage class, ≥125% continuous current, kAIC verified, lockable handle, suitable enclosure rating.
• PV DC disconnect: cold-day Voc margin, ≥156% current rule of thumb, PV-duty rating, gPV protection, surge protection upstream.
• Battery disconnect: bi-directional DC interrupt, continuous and surge current, high-rupture-capacity fuse if required, thermal headroom.
• Combiner box: string fuses, proper busbar rating, clear labeling, environmental sealing, optional integrated switch.

Safety and compliance note : local codes such as NEC 690/705 or regional equivalents may impose specific disconnect types, labeling, rapid shutdown, and placement requirements. Always confirm with the authority having jurisdiction.

Final take

Pick AC and DC disconnects that match real operating stresses: cold PV voltages, continuous currents, bidirectional battery flows, and site fault levels. Use DC-rated hardware for arrays and batteries, and verify AC kAIC at the service. Place combiner boxes and isolators where crews can reach them. Anchor the choices in published standards and data, and you will cut risk, reduce downtime, and make expansions easier later.

FAQ

Do I still need an external disconnect if the inverter has an internal switch?

Often yes. Many regions require a visible, lockable, externally accessible disconnect for service and first responders. An external device also adds redundancy.

How do I account for cold weather on PV voltage?

Use the module’s Voc temperature coefficient to estimate the coldest-day voltage and pick a DC rating above that. Many designers target at least 1.2× the STC string Voc.

Can I use an AC-rated switch on a 48 V battery?

Avoid that. DC arcs behave differently. Use DC-rated switchgear or breakers approved for the battery’s voltage and fault current.

What interrupt rating should I pick for the AC disconnect?

Match or exceed available fault current at the point of interconnection. Your utility or a short-circuit study can provide the number. Common ratings are 10–22 kAIC in small sites.

Should the PV combiner include surge protection?

Yes in most cases. Surge protection devices at the combiner reduce transient stress on the inverter and improve uptime. Verify coordination with upstream devices.
