LFP batteries dominate stationary storage deployments due to superior safety, cost, and longevity. The tables below compile typical specifications and standardized test metrics for LFP battery packs.
LFP Battery – Core Specifications (typical ranges, verify per product)
Parameter
Typical Range / Guidance
Units
Standards / Source
Nominal voltage (per cell)
3.2 V
V
Cell chemistry convention
Cycle life at warranted DoD
Manufacturer- and duty-cycle-specific:
LFP achieves ~2,400 cycles at 80% DoD (to ~80% of rated energy).
LFP achieves ~8,000 cycles at 60% DoD (2021 baseline)
(Projects typically warrant performance on a calendar-life (~15 years) and ~1 cycle/day basis with capacity augmentation
~80–100% usable, contingent on BMS limits and warranty terms.
Many LFP ESS warranties/datasheets permit up to 100% DoD (e.g., “usable energy”), while operations and modeling often apply a state-of-charge window (e.g., ~15–95% SoC ≈ ~80% DoD) to manage aging.
For industrial/stationary LFP, use IEC 62619 for cells and batteries (international)
UL 1973 for battery systems in stationary and motive auxiliary power applications (North America), which covers cells, modules/packs/racks, and the BMS.
Charging: Typically allowed 0 °C to ~45–55 °C; charging below 0 °C is disallowed or derated unless active heating/BMS strategy is provided
Discharging: Commonly −10 °C to −30 °C up to 55–60 °C
Rationale: Low-temperature charging increases risk of lithium plating and accelerated degradation; operating practices (pre-heat, reduced current) are used to mitigate.
The most critical factor for determining a battery's total cost of ownership is its lifespan, measured in cycles. However, "cycle life" is not a static number; it is intrinsically linked to the Depth of Discharge (DoD)—the percentage of the battery's capacity used in each cycle. LFP batteries are known for their exceptional cycle life.
LFP Battery – Cycle Life vs Depth of Discharge (DoD) (25 °C, 1C, laboratory conditions)
*Relative index = (cycle life × DoD) normalized to 100% DoD as 100%. Helps compare total lifetime energy throughput.
LFP Battery – Standard Test Plan (3rd-party lab or reviewer)
Test Dimension
Method
Measured Output
Relevance
Usable capacity
IEC 62933-2-1 system tests:
measure actual/available energy at the point of connection (POC) under standard conditions;
discharge at constant power for system-level trials and/or constant current per IEC 62620 for cell/battery characterization;
run at ≥2 rates or duty cycles after a standard charge.
kWh at POC;
% of nameplate;
test rate/profile;
ambient temperature;
voltage/SoC window used;
Verifies usable energy vs. label and informs sizing/augmentation assumptions.
Efficiency
Round-trip efficiency per IEC 62933-2-1 (6.2.3) using Annex A duty cycles, or the PNNL/Sandia ESS Performance Protocol;
report both DC-RTE and AC-RTE and include auxiliary loads in/out of service.
% DC-RTE;
% AC-RTE;
auxiliary energy (Eaux) during charge/discharge;
test temperature and profile.
Quantifies losses that affect economics, controls, and thermal design.
Thermal profile
Instrument pack/rack/enclosure with thermocouples (plus IR mapping if available);
run the capacity/efficiency cycles across representative rates and ambient conditions defined by the standard test conditions;
record temperature rise and hotspot locations.
Temperature map and ΔT across cells/modules/enclosure;
hotspot locations;
sustained gradients under load.
Informs cooling/HVAC design and operating limits; early warning for imbalance/hot-spots.
Safety / protection
UL 9540A thermal-runaway fire propagation testing at cell → module → unit → installation levels;
use results to support UL 9540 ESS listing and AHJ review under NFPA 855.
Data report (no pass/fail):
heat release rate
gas composition/volume
mass loss
flame/smoke behavior
propagation / no-propagation observations
Required/expected for code compliance and siting under NFPA 855; underpins system certification.

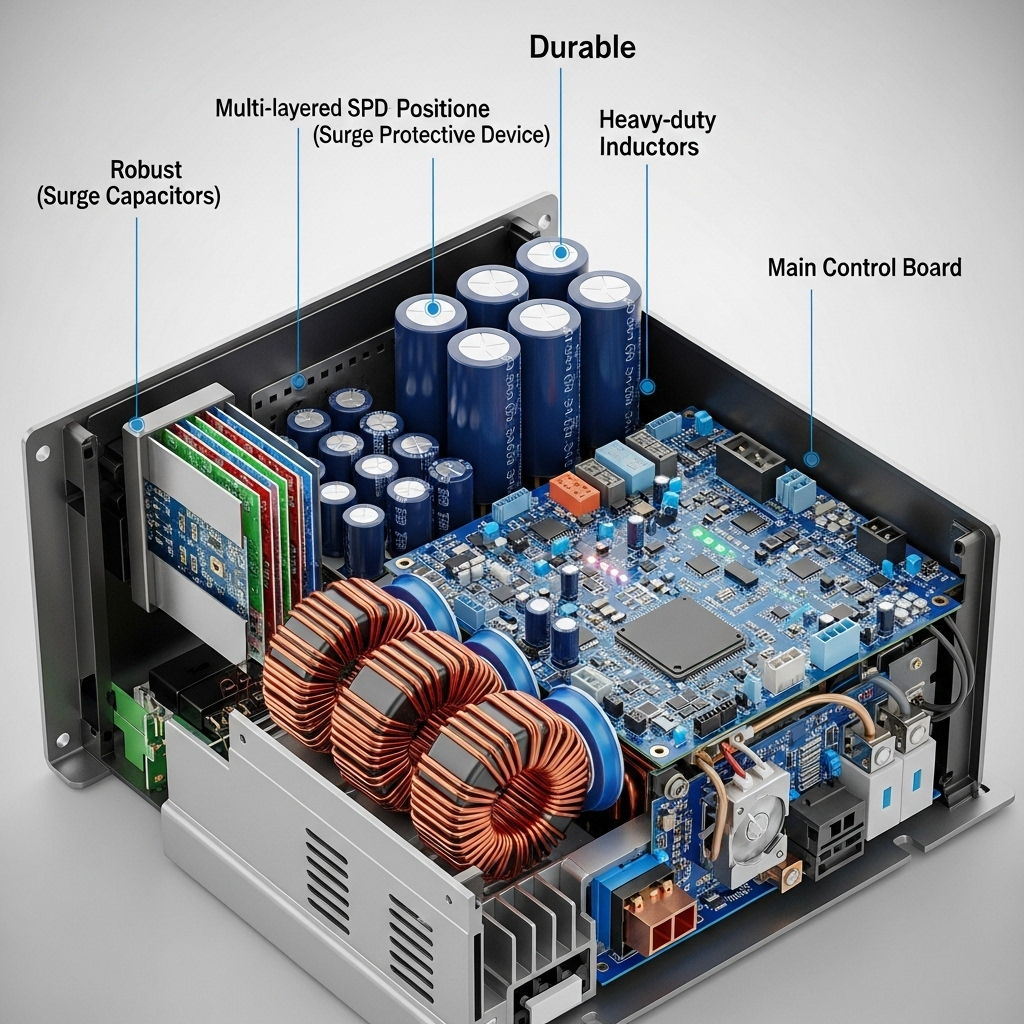

Solar Inverters – Efficiency Metrics Grid Code Compliance
Modern “smart” inverters must maintain high DC–AC conversion efficiency and power quality while meeting grid-support requirements (ride-through, volt/VAR, frequency response) mandated by standards like IEEE 1547-2018 (U.S.) and EN 50549 / VDE AR-N 4105 / EREC G99 (EU/UK).
In residential and commercial PV systems, the two primary inverter architectures are string inverters (central inverter for an array) and microinverters (one per panel). Based on SolarInsure data: microinverters show a first-two-year failure of less than 1 in 800 (~0.125%), while string inverters exhibit about 1 in 350 (~0.286%) failures. Microinverters typically sport longer service life and warranties—around 20–25 years—while string inverters often range from 10–15 years. String inverters are less costly per watt, making them common for large, unshaded arrays. Microinverters, however, excel in shading conditions and setup flexibility.
String vs Microinverters – Key Differences
Feature
String Inverter
Microinverter
Efficiency (typical, model-dependent)
~96–98% (varies by model)
~96–98% (varies by model)
Performance in shade
Limited — entire string impacted
Strong — MPPT per panel masks shading loss
Service lifespan
~10–15 years
~20–25 years
Warranty
10–15 years
20–25 years
Early failure rate (first 2 years)
~0.286% (1 in 350)
~0.125% (1 in 800)
Initial cost ($/W)
Lower
Higher
Monitoring
System-level
Panel-level
Expansion flexibility
Moderate — may need new inverter
High — can add panels individually
Key Efficiency Metrics for Inverters
Metric
Definition
Typical Values
Source
Peak efficiency
Maximum DC–AC conversion efficiency under optimal load and conditions
Compliance: Inverters must be certified to local interconnection standards (e.g. IEEE 1547/UL 1741 SB in North America, EN 50549 in EU) which ensure grid stability functions are built-in. Test reports and type approvals demonstrate these capabilities to regulators and utilities.
Energy Storage Systems (ESS) – Performance Metrics Cost Benchmarks
Key evaluation dimensions for battery ESS include round-trip efficiency, safety compliance, and lifecycle cost. The tables below outline standard performance metrics and current cost benchmarks, along with relevant safety standards (UL, IEC) for system certification.
Essential ESS Performance Indicators
Indicator
Definition
Typical Industry Range
Why It Matters
System Capacity (kWh)
Total energy storage potential of the battery bank.
5 kWh - 20 kWh+ (Residential)
Determines the total amount of energy available for storage.
Usable Capacity (kWh)
The actual energy that can be drawn from the system (Capacity x DoD).
Typically 80-100% of System Capacity for LFP.
The most important metric for understanding how much energy can be used daily or for backup.
Round-Trip Efficiency (%)
Percentage of energy returned after a full charge/discharge cycle.
80% - 92.5% (for Li-ion systems)
Directly impacts the financial return of the system. Higher efficiency means less wasted energy.
State of Health (SOH) (%)
The battery's current capacity as a percentage of its original capacity.
Starts at 100% and degrades over time.
Indicates the long-term health and remaining lifespan of the battery.
ESS Performance Safety Metrics
Dimension
Benchmark / Requirement
Context
Source
System efficiency (AC-to-AC)
~85% round-trip (NREL ATB modeling baseline)
~87% when DC-coupled PV charges the battery (fewer conversions)
AC-to-AC RTE depends on topology, auxiliary loads, and operating point; field studies report wider ranges near nominal vs part-load.
Policy context (corrected): Standalone storage became ITC-eligible under IRC §48 for property placed in service after Dec. 31, 2022; from 2025 onward, the tech-neutral §48E applies. Projects may also qualify for the Domestic Content (+10% ITC) and Energy Community (+10% ITC) bonus credits, subject to prevailing wage/apprenticeship and other requirements.
Key U.S. Incentives (Inflation Reduction Act, 2025)
Provision
Summary
Effective
Reference
Clean Electricity Investment Credit (§48E)
Tech-neutral ITC for clean electricity and energy storage placed in service after 2024; base rate 6% (30% if prevailing wage apprenticeship are met), with additional bonus credits available.
As amended by the IRA, standalone energy storage qualifies for the ITC for property placed in service after Dec. 31, 2022; subject to PWA and other rules.
From 2023 (still available for qualifying projects)
Off-grid and remote solar power systems are engineered with conservative design margins to ensure reliable power. Key design parameters (drawn from IEEE and NREL guidelines) are standardized to facilitate consistent system sizing and performance comparisons.
Sample Off-Grid System Sizing Guide
Use Case
Assumed Daily Use
Desired Autonomy
Recommended Solar Array
Recommended LiFePO4 Battery (Usable kWh)
Recommended Inverter Size (Continuous)
Small Off-Grid Cabin
5 kWh / day
2 Days
~3 kWp
10 kWh
3 kW
Average Energy-Independent Home
15 kWh / day
2 Days
~7 kWp
30 kWh
8 kW
Large Off-Grid Residence / Farm
30 kWh / day
3 Days
~15 kWp
90 kWh
12 kW+
Note: Solar array size is highly dependent on location (peak sun hours). These are estimates assuming ~4 peak sun hours and include a buffer for system losses.
Standard Off-Grid Sizing Inputs (IEEE 1562 NREL guidelines)
Parameter
Definition / Typical Value
Units
Source
Design month
Month in which the daily ratio of PV energy to load energy is the minimum (i.e., lowest PV output relative to load).
Budgetary practice: ~3 days (adjust for climate load criticality). IEEE recommended practice: 5–7 days for non-critical loads in high-insolation regions, 7–14 days for critical loads or low-insolation regions.
Determined by chemistry and vendor warranty/BMS. For LFP, many OEM datasheets rate usable energy at up to 100% DoD. Operationally, projects often apply an SoC window to improve life; PNNL benchmarking shows cycle life strongly depends on DoD.
Autonomy vs. reliability (clarified): NREL practice commonly sizes off-grid batteries to about 3 days autonomy for baseline designs, while IEEE Std 1562 recommends 5–7 days for non-critical loads in high-insolation regions and 7–14 days for critical loads or low-insolation regions. In practice, budget constraints and logistics often lead designers to combine ~3-day autonomy with a backup generator to maintain availability. See NREL’s guidebook and IEEE 1562 summaries for details. NREL; IEEE 1562 overview
Independent reviewers of solar generators, portable power stations, and home backup systems typically evaluate the following performance dimensions, enabling apples-to-apples comparisons across products.
Common Metrics in Third-Party Reviews
Test Dimension
How Tested
Data Recorded
Reference
Usable capacity
Charge fully, then discharge at fixed AC/DC load until cutoff; repeat at multiple C-rates
End-of-warranty capacity retention (e.g., ≥70%); presence of throughput clause (MWh) or cycles clause
Market Snapshot Forecasts
Global PV added another record year, with multiple high-quality sources reporting 2024 additions in the mid-hundreds of gigawatts, while U.S. solar crossed the 50 GWdc annual mark and grid-scale storage doubled again into 2025.
Global, U.S. EU — Capacity Annual Additions (latest public sources)
Metric
Value
Region / Year
Source
Renewables cumulative capacity
4,448 GW (all renewables); +585 GW added in 2024; Solar PV +452 GW in 2024 (IRENA)
Methodology note: IRENA’s 2024 PV additions (~452 GW) and SolarPower Europe’s 2024 PV additions (~597 GW) differ due to scope and data methods. Use one source consistently within a given analysis.
Data Dictionary (Terms Abbreviations)
Key Technical Terms
Term
Definition
DoD
Depth of Discharge – fraction of battery energy extracted; 100 % DoD = fully discharged from full state of charge.
RTE (Round-trip Efficiency)
Ratio of energy discharged (AC) to energy supplied during charging (AC), accounting for all system losses over charge-discharge cycle.
CEC efficiency
California Energy Commission weighted inverter efficiency – average efficiency across 6 load points: 10 %, 20 %, 30 %, 50 %, 75 %, 100 %, weighted for high-sun solar climates.
ηEU
European weighted inverter efficiency – inverter efficiency averaged over a mid-European insolation distribution profile.
MPPT
Maximum Power Point Tracking – control functionality that continuously adjusts voltage/current to extract maximum power from PV.
SoC
State of Charge – current stored energy in battery, expressed as percentage of usable capacity.
PV
Photovoltaic – technology converting sunlight to electricity using semiconductor materials.
BMS
Battery Management System – electronic system that monitors and manages charge, temperatures, and health of battery cells/packs.
Ride-through
Ability of inverter/ESS to remain connected and operational during short grid disturbances (voltage/frequency events) rather than tripping offline.
UL 9540A
Full-scale thermal-runaway fire propagation test for ESS—performed at cell, module, unit, installation levels—to characterize hazard, not a pass/fail certification.
NFPA 855
U.S. fire-safety installation standard for stationary ESS—covers clearances, ventilation, suppression, maximum unit-size, etc.
ITC (Investment Tax Credit)
U.S. federal dollar-for-dollar tax credit against investment cost of qualifying clean energy and standalone storage equipment. Often set at 30 % base, with bonus adders.
LCOS (Levelized Cost of Storage)
Lifecycle cost of energy storage per energy delivered ($/kWh or $/MWh), incorporating capital, charging energy, degradation, O M, and replacements.
RoCoF
Rate of Change of Frequency – metric defining how quickly grid frequency is changing, relevant to ride-through and protective functions.
