Components of a Solar Panel System

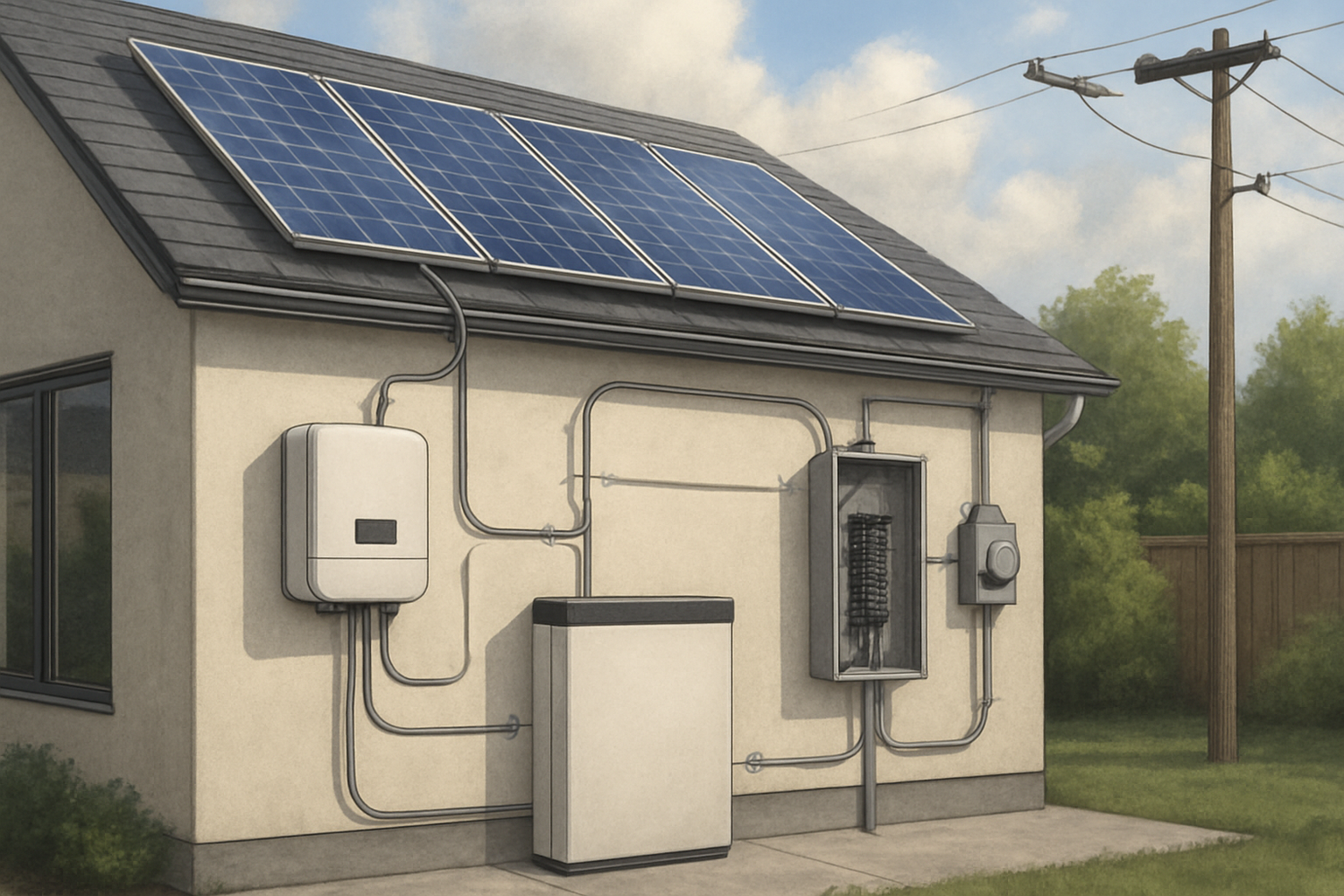

Harnessing solar power offers a path to energy independence and a sustainable future. A solar panel system is more than just panels on a roof; it is a sophisticated assembly of interconnected components working in harmony. Understanding each part helps you make informed decisions about your energy setup. This guide provides a comprehensive look at the essential elements that make up a functional solar energy system, detailing their roles and how they contribute to your power generation.

1. Solar Panels: The Power Generators

Solar panels, also known as photovoltaic (PV) modules, are the visible face of any solar system. These devices capture sunlight and convert it into electricity. This process, known as the photovoltaic effect, involves semiconductor materials absorbing photons from sunlight, which then knock electrons loose, creating an electric current.

1.1. Types of Solar Panels

• Monocrystalline Panels: These panels use a single, pure silicon crystal. You will recognize them by their uniform dark appearance. They offer high efficiency and a sleek look, performing well in various conditions.
• Polycrystalline Panels: Made from multiple silicon crystal fragments, these panels have a slightly lower efficiency than monocrystalline but are often more cost-effective. Their appearance is typically blue or speckled.
• Thin-Film Panels: These panels use thin layers of photovoltaic material, such as amorphous silicon or cadmium telluride. They are flexible and can be integrated into various surfaces, though they generally have lower efficiency and require more space than crystalline silicon panels for the same output.

The choice of panel type depends on factors like available space, budget, and specific efficiency requirements. For a deeper dive into system design, consider How to Map a Solar Panel System: Panels, Inverters, Wiring.

1.2. How Solar Panels Generate Electricity

When sunlight strikes the silicon cells within a solar panel, it excites electrons, causing them to flow and create direct current (DC) electricity. This DC electricity is then channeled out of the panels and into the rest of the system for further processing. The efficiency of this conversion varies, with modern panels often achieving efficiencies above 20%.

1.3. Key Specifications and Performance Factors

Understanding panel specifications helps you select the right modules. Key factors include:

• Wattage (Wp): The peak power output under standard test conditions.
• Efficiency (%): The percentage of sunlight converted into electricity.
• Temperature Coefficient: How much a panel's output changes with temperature fluctuations.
• Tolerance: The permissible deviation from the rated power.

For example, a typical residential solar panel might have a capacity of 300-400 Wp. Data-Backed Sizing: Right-Size Panels and Inverters offers more insights into selecting appropriate panel sizes.

2. Inverters: The Brains of the System

The electricity generated by solar panels is direct current (DC), but most homes and businesses use alternating current (AC). The inverter is the crucial component that converts DC electricity from your solar panels into usable AC electricity for your appliances or the grid.

2.1. Types of Inverters

• String Inverters: These are common for residential systems. Panels are wired in "strings," and one central inverter converts the DC power for the entire string. They are cost-effective but can be affected by shading on a single panel within the string.
• Microinverters: Each solar panel has its own microinverter. This setup optimizes the output of individual panels, meaning shading on one panel does not significantly impact others. They are excellent for complex rooflines or systems with potential shading issues.
• Hybrid Inverters: These inverters combine the functions of a solar inverter and a battery inverter into one unit. They are essential for systems that include battery storage, allowing seamless management of power flow between panels, batteries, and the grid. ANERN offers advanced solar inverters designed for high efficiency and reliability, ensuring optimal power conversion for your system.

Comparing inverter types can be complex. You can learn more about the differences in String vs Microinverters: Which Maximizes Beginner Solar ROI?

2.2. Function and Importance

Beyond DC-to-AC conversion, inverters play a vital role in monitoring system performance, detecting faults, and ensuring grid synchronization. They are critical for the safe and efficient operation of your solar setup. A reliable inverter is paramount for maximizing your solar energy harvest.

2.3. Efficiency and Sizing Considerations

Inverter efficiency, typically ranging from 95% to 99%, indicates how much DC power is successfully converted to AC power. Proper sizing of your inverter to match your solar panel array is crucial for optimal performance. An undersized inverter can limit your system's output, while an oversized one might operate less efficiently. For example, a 10 kWp solar panel capacity might require a 12.5 kVA solar inverter for primary use.

3. Energy Storage Systems (Batteries)

While solar panels generate electricity during daylight hours, your energy needs extend beyond that. Energy storage systems, primarily batteries, store excess solar energy for use when the sun is not shining, during peak demand, or during grid outages.

3.1. Why Batteries are Crucial

Integrating batteries provides significant advantages:

• Energy Independence: Reduces reliance on the utility grid.
• Grid Resilience: Provides backup power during blackouts.
• Peak Shaving: Allows you to use stored energy during expensive peak electricity rate hours.

The U.S. electric grid is undergoing significant changes, with terawatt-scale deployment of solar, wind, and battery storage technologies expected by 2050, highlighting the increasing reliance on such systems for grid reliability and resilience.

For systems without batteries, understanding the implications is key. Explore Myth vs Reality: Do Solar Panels Work Without Batteries? for more information.

3.2. Types of Solar Batteries

Various battery technologies are available, each with distinct characteristics:

• Lithium-ion Batteries (LiFePO4): These are increasingly popular for solar storage due to their high energy density, long cycle life, and minimal maintenance. ANERN specializes in high-performance, safe, and reliable LiFePO4 batteries, offering superior longevity and efficiency for your solar setup.
• Lead-Acid Batteries: A more traditional and cost-effective option, though they have a shorter lifespan and require more maintenance than lithium-ion batteries.

ANERN's home energy storage systems integrate advanced lithium batteries with hybrid inverters and solar panels, providing a comprehensive solution for residential energy needs. For off-grid applications, ANERN offers robust off-grid solar solutions, ensuring reliable power for homes, farms, and remote cabins.

3.3. Sizing and Management

Proper battery sizing is essential to meet your energy demands. This involves calculating your daily energy consumption and determining how many days of autonomy you need. For example, a basic load might require a 36 kWh solar battery. Battery management systems (BMS) are integral for monitoring battery health, preventing overcharging or over-discharging, and optimizing performance. You can find more details on matching components in Upgrade Smarter: Match Batteries, Inverters, and Panel Specs.

4. Mounting Systems and Racking

The mounting system secures your solar panels in place, ensuring they are positioned for optimal sunlight exposure and can withstand environmental conditions like wind and snow.

4.1. Types of Mounting

• Roof-Mount Systems: The most common type for residential installations, these systems attach panels directly to your roof structure. They are efficient in terms of space utilization.
• Ground-Mount Systems: Ideal for properties with ample land, ground mounts allow for flexible positioning and tilt angles, often leading to higher energy production.
• Pole-Mount Systems: These elevate panels on a single pole, suitable for smaller arrays or areas requiring panels to be higher off the ground.

Choosing the right mounting system depends heavily on your property's characteristics. Refer to Which Mounting System Fits Your Roof Type? A Quick Decision Tree for guidance.

4.2. Installation Considerations

Factors like roof type, tilt angle, and local weather patterns influence the design and installation of your mounting system. A properly installed system ensures stability and maximizes energy capture throughout the year.

5. Balance of System (BOS) Components

Beyond the major components, several "Balance of System" (BOS) elements are crucial for the safe, efficient, and reliable operation of your solar power system. These include wiring, disconnects, and monitoring tools.

5.1. Wiring and Cabling

High-quality wiring and cabling connect all components, safely transmitting electricity. Different types of cables are used for DC and AC circuits, each rated for specific voltages and currents. Proper wiring is fundamental for performance and safety. Avoid common installation errors by reviewing 7 Common Wiring Mistakes That Derail New Solar Installs and understanding Series vs Parallel: Wiring Choices That Shape Array Output.

5.2. Disconnects and Overcurrent Protection

Safety devices are non-negotiable. DC and AC disconnects allow you to safely shut down parts or all of your system for maintenance or emergencies. Fuses and circuit breakers provide overcurrent protection, preventing damage from electrical faults. These components are vital for protecting your investment and ensuring user safety. Learn more about these critical safety features in Safety First: DC-AC Disconnects and Overcurrent Protection.

5.3. Monitoring Systems

Monitoring systems provide real-time data on your system's performance, allowing you to track energy production, consumption, and battery status. These systems can alert you to potential issues, helping you maintain optimal efficiency. Many inverters come with integrated monitoring capabilities, or you can opt for third-party solutions. For insights into tracking your system's health, see Tool Review: Monitoring Apps to Track Inverter and Panel Health.

Bringing It All Together: Your Path to Sustainable Power

A well-designed solar panel system combines these components into a cohesive unit, delivering reliable and sustainable energy. From the initial capture of sunlight by robust solar panels to the intelligent conversion by inverters, the secure storage in advanced batteries, and the safe distribution through BOS components, each part plays a critical role.

ANERN, with years of experience in the solar and energy storage industry, focuses on providing reliable and scalable energy solutions. Our expertise in manufacturing lithium batteries, developing integrated energy storage systems, and offering off-grid solar solutions, alongside high-performance solar inverters, empowers customers to achieve true energy independence. We are committed to helping you build a robust and efficient solar future.

By understanding these components, you are better equipped to design, install, and maintain a solar energy system that meets your specific needs, contributing to a cleaner, more sustainable world.
