Upgrading a solar energy system involves more than simply adding new components. For optimal performance, longevity, and true energy independence, you must ensure your solar panels, inverters, and batteries work together seamlessly. This guide will walk you through the critical aspects of component compatibility, helping you make informed decisions for a smarter, more efficient solar upgrade.
Understanding Your Core Solar Components
Every solar power system relies on three fundamental components to capture, convert, and store energy. Knowing their individual roles and specifications is the first step toward a successful upgrade.
Solar Panels (PV Modules)
Solar panels are your system's energy collectors, converting sunlight into direct current (DC) electricity. When considering an upgrade, pay close attention to their electrical specifications:
- Wattage (Wp): The panel's maximum power output under standard test conditions.
- Open-Circuit Voltage (Voc): The maximum voltage produced by a panel when not connected to a load.
- Maximum Power Point Voltage (Vmp): The voltage at which the panel produces its maximum power.
- Short-Circuit Current (Isc): The maximum current produced when the panel's terminals are short-circuited.
- Maximum Power Point Current (Imp): The current at which the panel produces its maximum power.
These values are crucial for correctly sizing your inverter and configuring your panel strings.
Inverters
Inverters are the brain of your solar system, transforming the DC electricity from your panels into alternating current (AC) electricity usable by your home or the grid. Different types of inverters offer varying functionalities:
- String Inverters: Connect multiple panels in a series (a string) to one inverter.
- Microinverters: Convert DC to AC at each individual panel, optimizing output even with partial shading.
- Hybrid Inverters: Combine a solar inverter and a battery inverter into a single unit, managing both solar production and battery charging/discharging.
Key inverter specifications include its power rating (kW), maximum input voltage, MPPT (Maximum Power Point Tracking) voltage range, and efficiency.
Batteries (Energy Storage Systems)
Batteries store excess solar energy for use when the sun isn't shining, providing power during outages or at night. Lithium iron phosphate (LiFePO4) batteries are a popular choice due to their high performance, safety, and reliability. When selecting batteries, consider:
- Capacity (kWh): The total amount of energy the battery can store.
- Nominal Voltage (V): The battery's operating voltage, which must match your inverter's DC input.
- Depth of Discharge (DoD): The percentage of the battery's capacity that can be used without damaging it. LiFePO4 batteries often allow for a high DoD, extending their usable capacity.
- C-Rate: Indicates how quickly a battery can be charged or discharged relative to its capacity.
Adding battery storage can significantly improve a system's ability to provide services like voltage management and power system support.

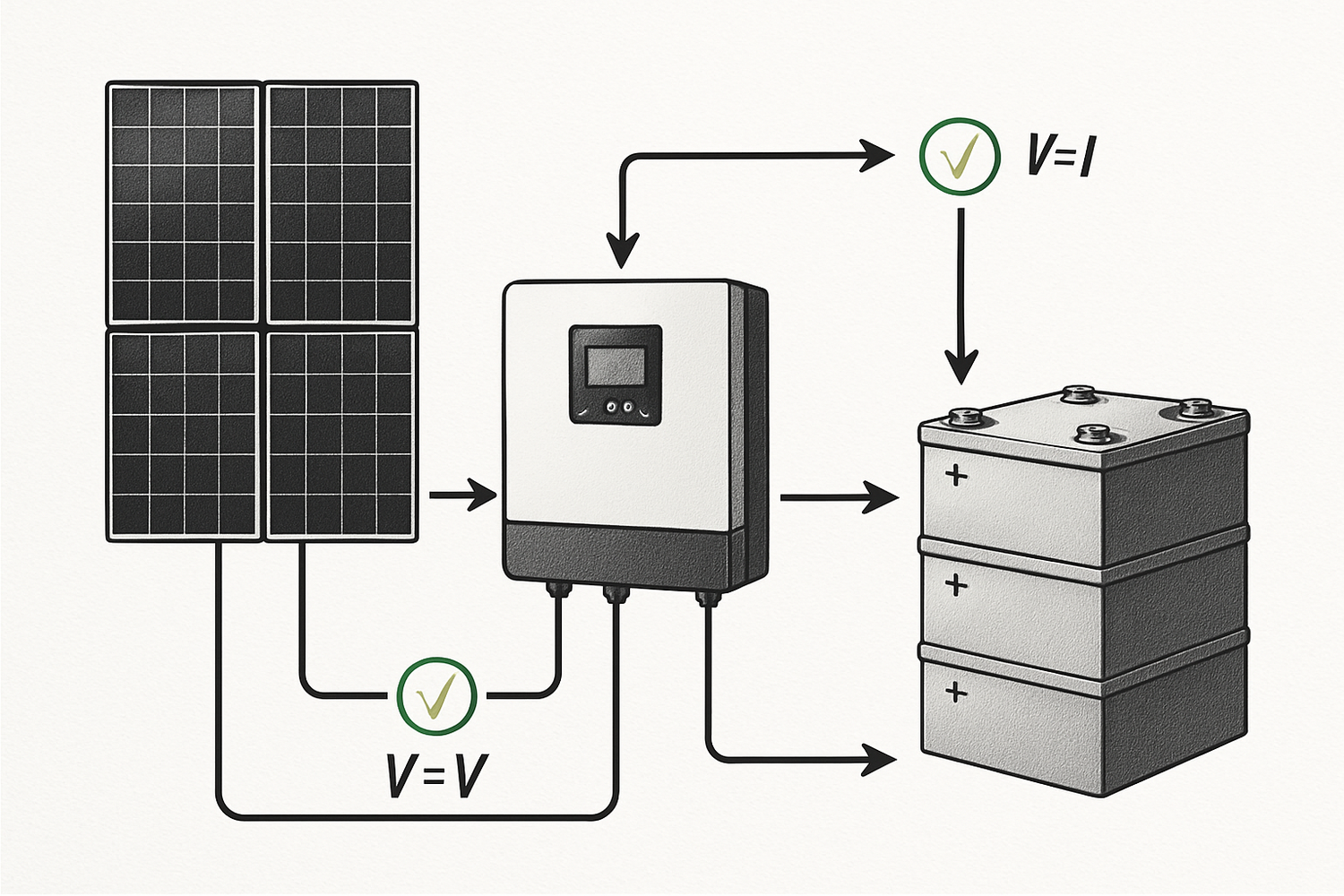

The Synergy of Matching Components
The true power of a solar system upgrade comes from how well its components interact. Mismatched components can lead to reduced efficiency, system instability, and even damage.
Panel-Inverter Compatibility
Properly matching your solar panels to your inverter is crucial. The inverter's MPPT voltage range must align with the voltage produced by your panel strings. If the panel string voltage is too low or too high, the inverter will operate inefficiently or not at all.
- Voltage Matching: Ensure the total Vmp of your panel string falls within the inverter's MPPT operating voltage range. The Voc of the string should not exceed the inverter's maximum DC input voltage, especially in cold temperatures where panel voltage can increase.
- Power Matching (Inverter Loading Ratio - ILR): The ILR is the ratio of the total DC power of your solar panels to the AC power rating of your inverter. An ILR between 1.2 and 1.5 is often recommended for optimal performance, allowing the inverter to operate at higher efficiency for longer periods. For example, a 5kW inverter might be paired with 6kW to 7.5kW of solar panels.
Solar PV's ability to contribute to the system depends significantly on the inverter technology available.
Inverter-Battery Compatibility
For systems with energy storage, the inverter and battery must communicate and operate harmoniously. Hybrid inverters are designed specifically for this purpose.
- Voltage Alignment: The DC voltage of your battery bank (e.g., 48V) must be compatible with the inverter's battery input voltage range.
- Communication Protocols: Modern hybrid inverters communicate with battery management systems (BMS) to optimize charging, discharging, and report battery status. Ensure your chosen inverter supports the communication protocol (e.g., CAN bus, RS485) of your battery.
- Charge/Discharge Rates: The inverter's maximum battery charge and discharge current must be within the battery's specifications to prevent damage and ensure efficient energy transfer.
Using smart inverter technology, solar PV can provide voltage management capabilities and power system support services. Adding battery storage improves the provision of these services.
System Sizing for Optimal Performance
Accurate sizing ensures your system meets your energy demands without over- or underspending. This involves calculating your average daily energy consumption (kWh) and designing each component to support that load.
Here’s a simplified approach:
- Determine Energy Needs: Review past electricity bills to find your average daily or monthly energy consumption. If you use 30 kWh per day, your system needs to generate and/or store at least that much.
- Size the Battery Bank: Based on your daily consumption and desired backup duration (e.g., 1-3 days of autonomy). Account for the battery's usable DoD.
- Size the Inverter: The inverter's continuous power rating should meet your peak instantaneous power demand. For example, if your home’s peak usage is 5kW, your inverter should be rated at least 5kW.
- Size the Solar Array: Calculate the total panel wattage needed to generate your daily energy requirements, considering local solar irradiance (peak sun hours) and system losses.
Strategic Upgrades and Future-Proofing
A smart upgrade considers not just immediate needs but also future expansion and technological advancements.
Assessing Your Current System
Before upgrading, evaluate your existing setup. Identify which components are underperforming, nearing end-of-life, or limiting your system's potential. For example, an older string inverter might be a bottleneck if you plan to add more panels or integrate battery storage.
Phased Upgrades
You do not always need to replace everything at once. A phased approach can be cost-effective:
- Inverter First: If your current inverter is old or lacks battery compatibility, upgrading to a hybrid inverter can unlock future storage options.
- Add Batteries: Once you have a compatible inverter, integrating energy storage becomes straightforward. Solar PV is increasingly being used with battery storage to help address shifts in peak demand and resource variability.
- Expand Panels: If your energy needs grow, adding more panels to an appropriately sized inverter is a logical next step.
Scalability and Modularity
Choose components that allow for easy expansion. Modular battery systems, for instance, let you add more capacity as your needs evolve. Similarly, inverters with multiple MPPT trackers offer flexibility for adding panels in different orientations or with varying characteristics.
The development of megawatt-scale charging for electric vehicles, for example, has shown how standards and modular products can spur innovation and create new markets.
Beyond the Specs: Practical Considerations
While technical specifications are paramount, other practical aspects contribute to a successful and safe solar upgrade.
Safety and Standards
Adhering to electrical codes and safety standards is critical. This includes proper grounding, overcurrent protection, and disconnects. These measures protect your investment and ensure the safety of your home and occupants.
Monitoring and Management
Modern solar systems often include monitoring platforms that provide real-time data on energy production, consumption, and battery status. This data helps you optimize system performance and identify any issues promptly.
Professional Installation and Support
While DIY can be tempting, the complexity of matching components and ensuring compliance often warrants professional expertise. Experienced installers can design a system tailored to your specific needs, handle the installation, and provide ongoing support. (Disclaimer: This article provides general information and is not a substitute for professional electrical or engineering advice.)
Your Path to Smarter Energy
A successful solar upgrade hinges on carefully matching your solar panels, inverters, and batteries. By understanding the specifications of each component and their synergistic relationship, you can build a robust, efficient, and future-ready energy system. This strategic approach ensures you maximize your investment and move closer to complete energy independence.
Frequently Asked Questions (FAQ)
What happens if my solar panels and inverter are not compatible?
If your solar panels and inverter are not compatible, the system will likely operate inefficiently, produce less power than expected, or fail to operate entirely. Incorrect voltage matching can lead to the inverter shutting down or being damaged. Always ensure the panel string voltage falls within the inverter's MPPT range and does not exceed its maximum input voltage.
Can I add batteries to my existing solar system?
Yes, you can often add batteries to an existing solar system, but it depends on your current inverter. If you have a traditional string inverter, you may need to add a separate battery inverter or upgrade to a hybrid inverter that can manage both solar input and battery storage. Ensure the battery's voltage and communication protocols are compatible with the chosen inverter solution.
How do I know if my system needs an upgrade?
Signs that your system might need an upgrade include consistently high electricity bills despite having solar, frequent power outages (if you lack battery backup), outdated equipment that is less efficient, or a desire for greater energy independence. An energy audit can help identify areas for improvement and determine the most impactful upgrades.
Is it better to upgrade all components at once or in phases?
The best approach depends on your budget and current system condition. Upgrading all components at once ensures a fully integrated, modern system. However, a phased upgrade can be more budget-friendly, allowing you to prioritize the most critical component replacements first, such as an inverter that enables battery integration.
