Lithium iron phosphate (LiFePO4) batteries represent a significant investment in your energy independence. Their long cycle life and inherent safety make them a superior choice for solar and energy storage solutions. To realize their full decade-plus lifespan, however, requires a clear understanding of proper storage and maintenance. This roadmap provides the essential practices to protect your battery's health and maximize its long-term value.
Foundational Principles of LiFePO4 Battery Health
Effective battery care starts with understanding the core factors that govern its longevity. These principles apply whether your battery is in daily use or prepared for long-term storage.
Understanding State of Charge (SoC)
State of Charge, or SoC, is the present charge level of a battery relative to its total capacity, expressed as a percentage. Think of it as the fuel gauge for your battery. Maintaining an optimal SoC is crucial because extremely high or low charge levels place stress on the battery's internal chemistry. For daily use, operating within a 20% to 80% SoC window is a common strategy to extend cycle life. For storage, the ideal range is different and is a key factor in preservation.

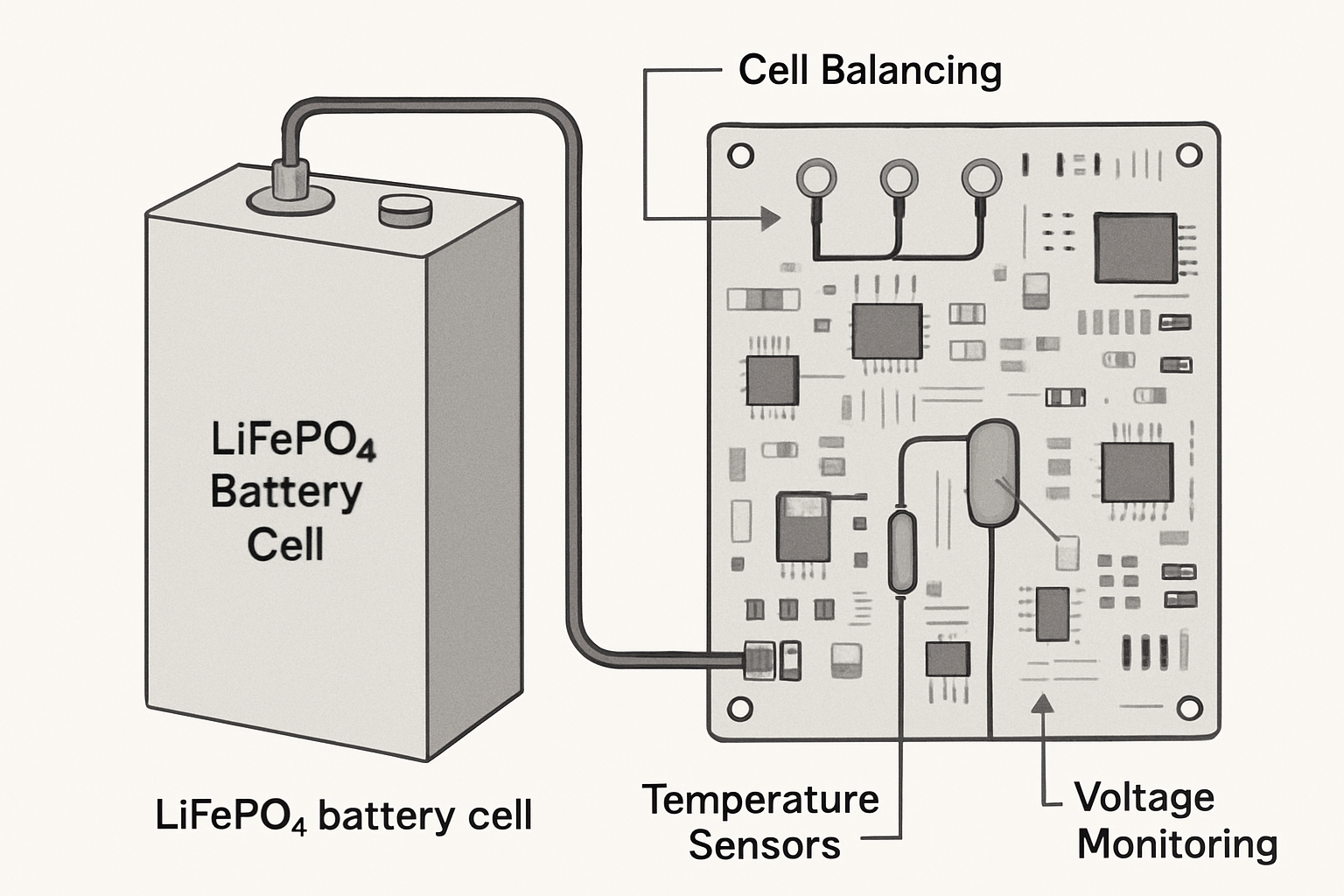

The Role of the Battery Management System (BMS)
The Battery Management System (BMS) is the intelligent core of your LiFePO4 battery pack. This electronic system monitors individual cell voltages, temperature, and current. Its primary job is protection. A quality BMS prevents damage from overcharging, over-discharging, and overheating. It also performs cell balancing, ensuring all cells within the pack are charged and discharged equally. This function is vital for achieving the battery's maximum capacity and lifespan.
Temperature's Impact on Chemical Stability
LiFePO4 batteries are sensitive to their thermal environment. Extreme temperatures, both hot and cold, can negatively affect their performance and accelerate degradation. High temperatures speed up unwanted chemical reactions, leading to faster capacity loss. According to research from institutions like the University of Michigan, avoiding temperature extremes is a critical aspect of battery care. The ideal operating temperature is generally between 20°C and 30°C (68°F to 86°F). Charging below freezing (0°C or 32°F) without a specialized low-temperature battery can cause permanent damage.
The Roadmap for Long-Term LiFePO4 Battery Storage
If you need to store your LiFePO4 battery for several months, such as during an off-season for an RV or boat, following a specific procedure is essential to preserve its health.
Preparing for Storage: The Pre-Checklist
Proper preparation is the most important step for ensuring your battery emerges from storage in good condition.
- Set the Optimal SoC: Before storing, charge or discharge the battery to a State of Charge between 50% and 70%. This mid-range level minimizes chemical stress and reduces the rate of calendar aging. Storing a battery at 100% or near 0% for extended periods can lead to irreversible capacity loss.
- Disconnect Everything: Ensure the battery is completely disconnected from all loads and charging sources. This prevents any small parasitic draws from slowly draining the battery over time.
- Inspect and Clean: Visually inspect the battery case for any signs of damage. Clean the terminals with a dry cloth to ensure they are free of dust and corrosion.
Creating the Ideal Storage Environment
Where you store the battery is just as important as how you prepare it. The location should be cool, dry, and stable. Avoid places with dramatic temperature fluctuations, such as a non-insulated garage or attic. The recommended storage temperature is between 15°C and 25°C (59°F and 77°F). A controlled environment like a basement or a climate-controlled storage unit is an excellent choice.

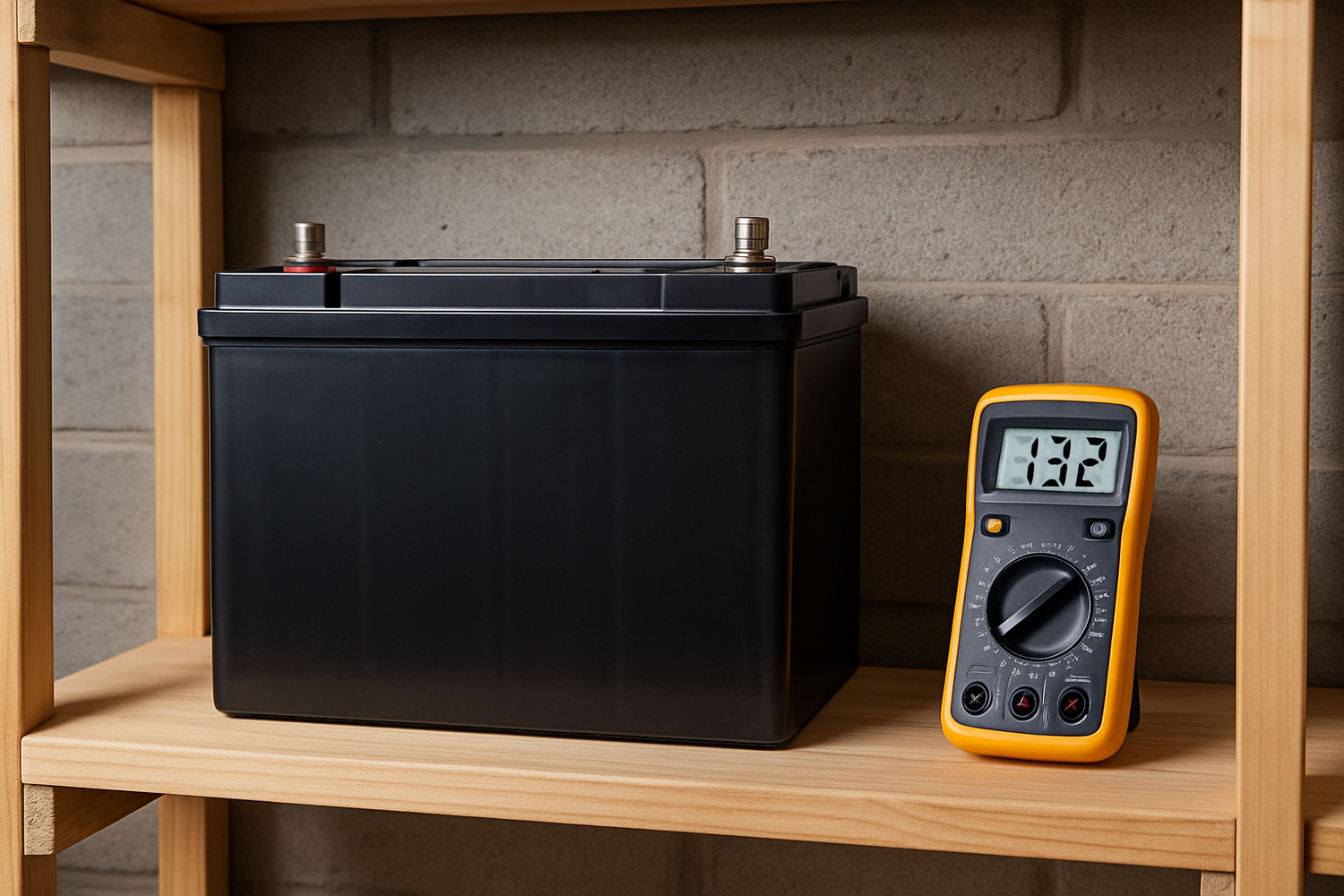

Periodic Check-ins During Storage
LiFePO4 batteries have a very low self-discharge rate, typically around 2-3% per month at room temperature. Despite this, it is wise to perform a quick check every 3 to 6 months. Use a voltmeter to check the voltage. If it has dropped significantly (e.g., below a 20% SoC equivalent), apply a brief charge to bring it back into the optimal 50-70% storage range.
Active Maintenance for Daily Operations
For batteries in active use, maintenance is about establishing routines and settings that promote longevity. The rapid growth in energy storage, as noted by the U.S. Energy Information Administration (EIA), underscores the importance of these practices for the increasing number of systems being deployed.
Optimizing Charging and Discharging Cycles
The way you cycle your battery has a direct impact on its lifespan. Two key factors are the C-rate and the Depth of Discharge (DoD).
- Manage C-Rates: The C-rate is the rate at which the battery is charged or discharged relative to its capacity. For a 100Ah battery, a 1C rate is 100 amps. While LiFePO4 can handle high C-rates, consistently using lower rates (e.g., 0.5C or less) is gentler on the battery and contributes to a longer life.
- Control Depth of Discharge (DoD): DoD refers to the percentage of the battery's capacity that has been discharged. While LiFePO4 batteries can be deeply discharged, shallower cycles significantly increase their lifespan.
| Depth of Discharge (DoD) | Estimated Cycle Life |
|---|---|
| 100% | 2,000 - 3,000+ Cycles |
| 80% | 4,000 - 5,000+ Cycles |
| 50% | 6,000 - 8,000+ Cycles |
| 20% | 10,000 - 15,000+ Cycles |
Note: These are typical estimates. Actual cycle life can vary based on battery quality, temperature, and C-rate.
Routine Physical Inspections
Periodically inspect your battery and its connections. Once a quarter, check that all cable connections are tight and free from corrosion. A loose connection can create resistance, leading to heat generation and inefficient performance. Also, visually inspect the battery case for any signs of swelling or damage, which could indicate an internal issue.
Leveraging Your System's Settings
Your solar charge controller and inverter have settings that must be configured correctly for LiFePO4 batteries. Ensure the charging voltage parameters (bulk, absorption, and float) match the battery manufacturer's specifications. Unlike lead-acid batteries, LiFePO4 batteries do not require a continuous float charge. A proper charger will stop charging once the battery is full.
A Lifetime of Reliable Energy
A LiFePO4 battery is a cornerstone of a modern energy storage system. Its longevity is one of its most compelling features, a fact highlighted by the International Energy Agency (IEA) in its analysis of technologies crucial for the energy transition. By following this roadmap for both storage and active maintenance, you are not just caring for a piece of equipment; you are ensuring a reliable, long-term source of power. A proactive approach based on managing SoC, temperature, and cycle depth will help you achieve the maximum return on your energy investment and enjoy years of dependable performance.
Frequently Asked Questions
What is the best State of Charge (SoC) to store a LiFePO4 battery?
The ideal SoC for long-term LiFePO4 battery storage is between 50% and 70%. This level minimizes stress on the battery's internal components, which helps to reduce capacity loss over time.
How often should I check a LiFePO4 battery in storage?
It is a good practice to check the voltage every 3 to 6 months. LiFePO4 batteries have a very low self-discharge rate, but a periodic check ensures the battery does not fall into a deeply discharged state, which could cause damage.
Can I leave my LiFePO4 battery on a trickle charger?
This is not recommended. A proper LiFePO4 charger will stop charging once the battery is full. A continuous trickle charge, often designed for lead-acid batteries, can cause stress and potentially harm the cells over time. Always use a charger with a specific LiFePO4 charging profile.
