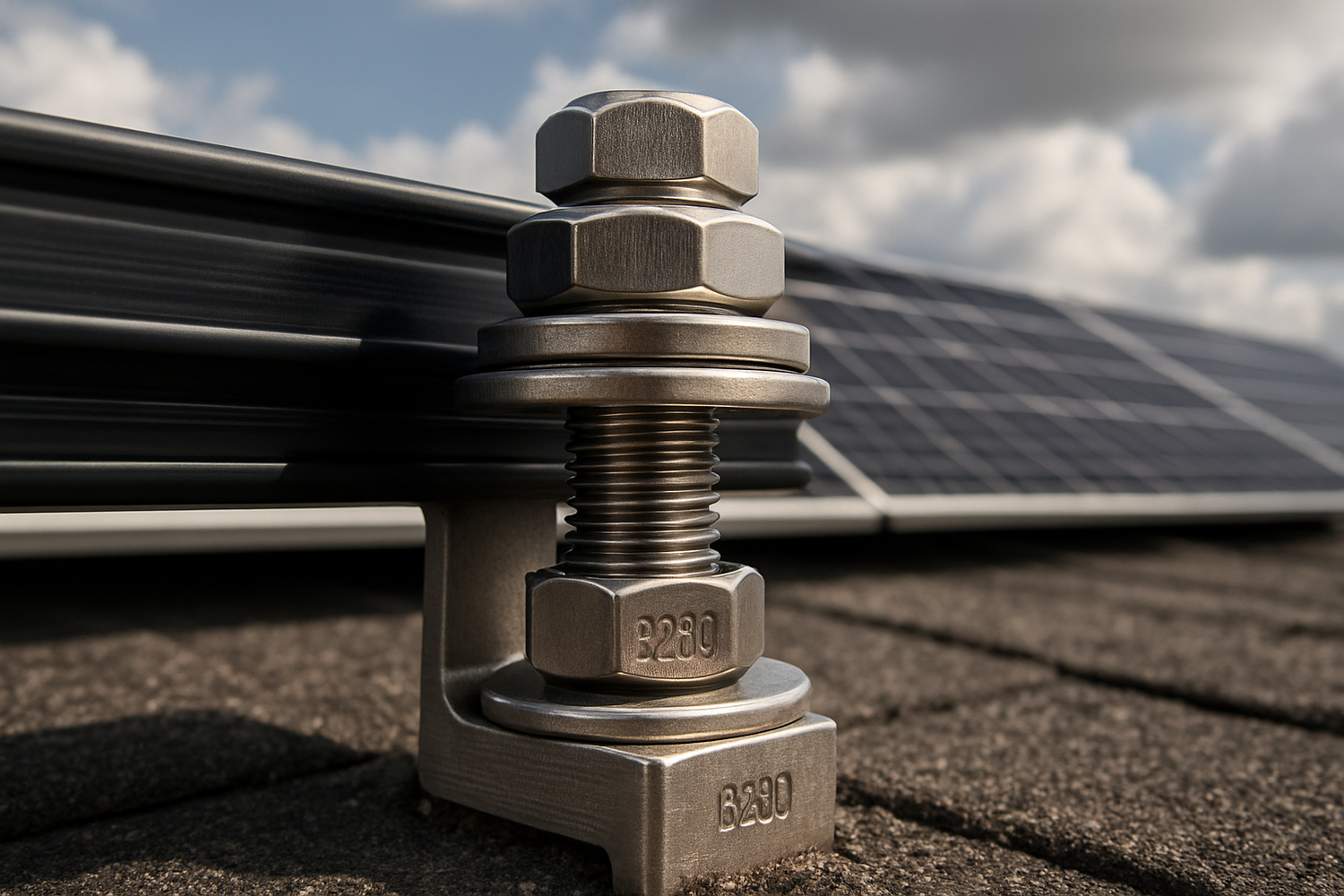

In any solar installation, the large, visible components like panels and inverters get most of the attention. Yet, the smallest parts often carry the greatest responsibility. Load-rated fasteners, the hardware securing photovoltaic (PV) rails to the mounting structure, are critical for the safety and longevity of the entire system. Choosing the wrong fastener can lead to catastrophic failure under high wind or heavy snow, turning a valuable asset into a liability. This checklist provides a systematic approach to procuring the correct fasteners, ensuring your solar array remains secure for decades.
Understanding the Forces: Wind and Snow Engineering
PV arrays are constantly exposed to environmental stresses. Wind and snow exert powerful forces that test the limits of every component. A solid grasp of these engineering principles is the first step in selecting appropriate hardware.
The Physics of Wind Uplift on PV Arrays
Wind flowing over a solar panel creates a pressure differential, similar to an airplane wing. This results in an upward force, known as uplift. During storms, powerful gusts can generate immense uplift forces that try to rip the panels from the roof. The fasteners are the primary components resisting this force. Their ability to handle tension is paramount. According to research on wind energy, understanding the dynamic behavior of these forces is crucial for assessing the lifetime of the structures. This principle applies directly to solar mounts, where fasteners must withstand repeated stress cycles without fatigue.
The Unseen Weight of Snow Accumulation
In colder climates, snow load is a major structural concern. A thick blanket of snow adds significant static weight to the entire array. Furthermore, as snow melts and refreezes, it can create uneven loads and ice dams. The fasteners must bear this downward pressure, or shear force, without bending or breaking. The structural integrity of the mounting system, as highlighted in various energy infrastructure standards, depends on every component meeting specific material and construction criteria. As noted in the Floating offshore wind outlook, standards like the AISC Steel Construction Manual provide a basis for ensuring material strength and reliability in demanding environments.
The Core of the Checklist: Fastener Specifications
Not all hardware is created equal. Procuring the right fasteners requires a detailed look at their material composition, strength ratings, and certifications. This ensures they are engineered specifically for the loads they will encounter.
Material Selection: Balancing Corrosion Resistance and Strength
The choice of material directly impacts a fastener's lifespan and performance. Environmental conditions, such as humidity and salinity in coastal areas, dictate the necessary level of corrosion resistance.
- 316 Stainless Steel: Offers superior corrosion resistance due to its molybdenum content, making it ideal for coastal and other harsh environments.
- 304 Stainless Steel: A common and cost-effective choice with good corrosion resistance suitable for most inland applications.
- Hot-Dip Galvanized Steel: Provides a thick, protective zinc coating for good corrosion resistance, though it may not match the longevity of stainless steel in some conditions.
It is also vital to consider galvanic compatibility. Mating dissimilar metals, like a stainless steel fastener with an aluminum rail, can cause corrosion if not managed properly with washers or other isolating materials.
Deciphering Load Ratings: Tensile and Shear Strength
A 'load-rated' fastener has been tested and certified to withstand specific forces. Understanding these ratings is non-negotiable.
- Tensile Strength: Measures the fastener's ability to resist being pulled apart. This is critical for countering wind uplift forces.
- Shear Strength: Measures the fastener's ability to resist forces that could slice it in half. This is essential for supporting the downward weight of snow and the panels themselves.
Always request technical data sheets from the manufacturer that clearly state these values. These specifications should be cross-referenced with the load calculations performed by the system's structural engineer.
| Fastener Material | Typical Tensile Strength (MPa) | Primary Application Benefit |
|---|---|---|
| 304 Stainless Steel | 515 - 690 | Good strength and corrosion resistance for general use. |
| 316 Stainless Steel | 515 - 690 | Excellent corrosion resistance for coastal/marine areas. |
| Hot-Dip Galvanized Steel (Grade 5) | ~830 | High strength and good corrosion protection. |
Certifications and Compliance
Reputable fasteners are manufactured in compliance with recognized standards. Look for certifications from organizations like ASTM (American Society for Testing and Materials) or ISO (International Organization for Standardization). These certifications ensure that the fasteners have undergone rigorous testing for material quality, dimensional accuracy, and load-bearing capacity. The use of internationally recognized standards is a common theme in large-scale energy projects, as seen in reports from the International Energy Agency, which emphasize reliability for sustained energy production.
The Procurement and Installation Process
Selecting the right fastener is only half the battle. A diligent procurement process and adherence to proper installation techniques are required to realize their full potential.
Vetting Suppliers Beyond the Price Tag
While cost is a factor, it should not be the primary driver. Choose suppliers who provide comprehensive technical documentation, evidence of quality control procedures, and traceability for their products. A reliable supplier can be a valuable partner in ensuring project safety. Ask for test reports and certifications for the specific batch of fasteners you are purchasing.
Ensuring System Compatibility
The selected fasteners must be compatible with the PV rails and mounting feet. This includes matching hole sizes, thread types, and head styles. Using an incompatible fastener can create stress concentrations or fail to achieve the necessary clamping force, compromising the connection. While ensuring the structural integrity of these small components is key, it's also part of a larger picture of system reliability. For a broader view on achieving optimal system output, you can consult this ultimate reference on solar storage performance, which details how interconnected components contribute to overall efficiency.
The Critical Role of Proper Installation
Even the highest-quality, load-rated fastener will fail if installed incorrectly. The most common installation error is improper torque. Over-tightening can stretch the fastener beyond its elastic limit, permanently weakening it. Under-tightening results in a loose connection that cannot resist the design loads. Always use a calibrated torque wrench and follow the manufacturer's specified torque values for every connection.
Securing Your Long-Term Energy Investment
The structural stability of a solar array is foundational to its energy production and financial return. By treating load-rated fasteners as the critical engineering components they are, you protect your investment from the predictable stresses of wind and snow. A procurement strategy based on verified data, material science, and precise installation transforms a simple checklist into a powerful risk management tool, ensuring the system's safety and performance for its entire operational life.
Disclaimer: This article provides general information and does not constitute professional engineering or financial advice. Always consult with a qualified structural engineer and follow all local building codes and regulations for your specific project.
Frequently Asked Questions
What is a load-rated fastener?
A load-rated fastener is a piece of hardware, such as a bolt or screw, that has been tested and certified by the manufacturer to withstand specific amounts of tensile (pulling) and shear (slicing) force before failure. This provides engineers with the verified data needed to design a safe and reliable structure.
How do I determine the required load rating for my project?
The required load rating is determined by a structural engineer. They calculate the potential wind and snow loads for your specific location, roof type, and array layout based on standards like ASCE 7. These calculations dictate the minimum tensile and shear strength the fasteners must have.
Can I use stainless steel fasteners with aluminum rails?
Yes, but it requires careful consideration to prevent galvanic corrosion. When two dissimilar metals are in contact in the presence of an electrolyte (like moisture), one can corrode faster. To mitigate this, use stainless steel fasteners (e.g., 304 or 316 series) with aluminum rails, as they are relatively close on the galvanic scale. Using isolating washers made of a non-conductive material can also provide an effective barrier.
What is the difference between shear and tensile strength in a fastener?
Tensile strength refers to a fastener's ability to resist being pulled apart along its length, which is crucial for resisting wind uplift. Shear strength is its ability to resist being cut or snapped by forces acting perpendicular to its length, which is important for supporting the weight of snow and equipment.
