Microinverters vs String Inverters: Installation Error Traps

The inverter is the operational core of any solar photovoltaic (PV) system, converting direct current (DC) from the panels into alternating current (AC) for your property. The choice between a microinverter and a string inverter system dictates not only performance characteristics but also presents unique installation challenges. Errors in the installation process for either technology can severely compromise energy production, create safety hazards, and lead to costly future repairs. Understanding these distinct error traps is vital for a successful and durable solar energy system.

Understanding the Core Differences in Installation

The physical architecture of each inverter type fundamentally changes the installation workflow. Acknowledging these differences is the first step in preventing common mistakes.

String Inverter Architecture: The Centralized Approach

String inverter systems connect multiple solar panels in a series to create a high-voltage DC circuit, or a "string." One or more of these strings then feed into a single, centralized inverter. This unit is typically installed on a wall in a garage, utility room, or on an exterior wall. The primary installation tasks involve careful DC-side wiring from the roof to the inverter location and then connecting the inverter's AC output to the main electrical panel.

Microinverter Architecture: The Distributed Method

Microinverter systems take a modular approach. A small inverter is installed directly beneath each solar panel on the roof. Each microinverter converts DC to AC right at the panel. These units are then connected in parallel using a proprietary AC trunk cable. This design eliminates high-voltage DC wiring running through the building, as all wiring from the roof to the electrical panel is standard AC. The installation focus shifts to meticulous roof-level connections and communication network setup.

Common Installation Mistakes with String Inverters

The centralized nature and high DC voltages of string systems create specific areas where errors can easily occur.

Improper String Sizing

This is one of the most frequent and damaging errors. String sizing involves calculating the number of panels per string to ensure the total voltage stays within the inverter's operating window under all temperature conditions. An oversized string (too many panels) can produce a voltage that exceeds the inverter's maximum input, causing permanent damage. An undersized string may not produce enough voltage for the inverter to even turn on, especially in low-light conditions. These complex calculations are part of the "soft costs" of system design, which, as noted by the IEA's Technology Roadmap - Solar Photovoltaic Energy 2010, can vary significantly and impact overall system price.

Inadequate Ventilation and Placement

String inverters generate a significant amount of heat during operation. Manufacturers specify clearance requirements around the unit to allow for proper air circulation and heat dissipation. A common mistake is installing them in tight, unventilated spaces, in direct sunlight, or too close to other heat-producing equipment. Overheating forces the inverter to reduce its power output (a process called derating) to protect its internal components, directly reducing your energy harvest and shortening the unit's lifespan.

DC Wiring and Connection Flaws

The high-voltage DC wiring between the solar array and the string inverter is a critical safety point. Poorly crimped connectors, using the wrong wire gauge for the distance, or accidentally reversing the polarity of a string can lead to significant power loss and dangerous arc faults. An arc fault is essentially electricity jumping through the air, creating intense heat that poses a serious fire risk.

Hidden Traps in Microinverter Installations

While microinverters eliminate many high-voltage DC risks, their distributed nature introduces different, more subtle installation challenges.

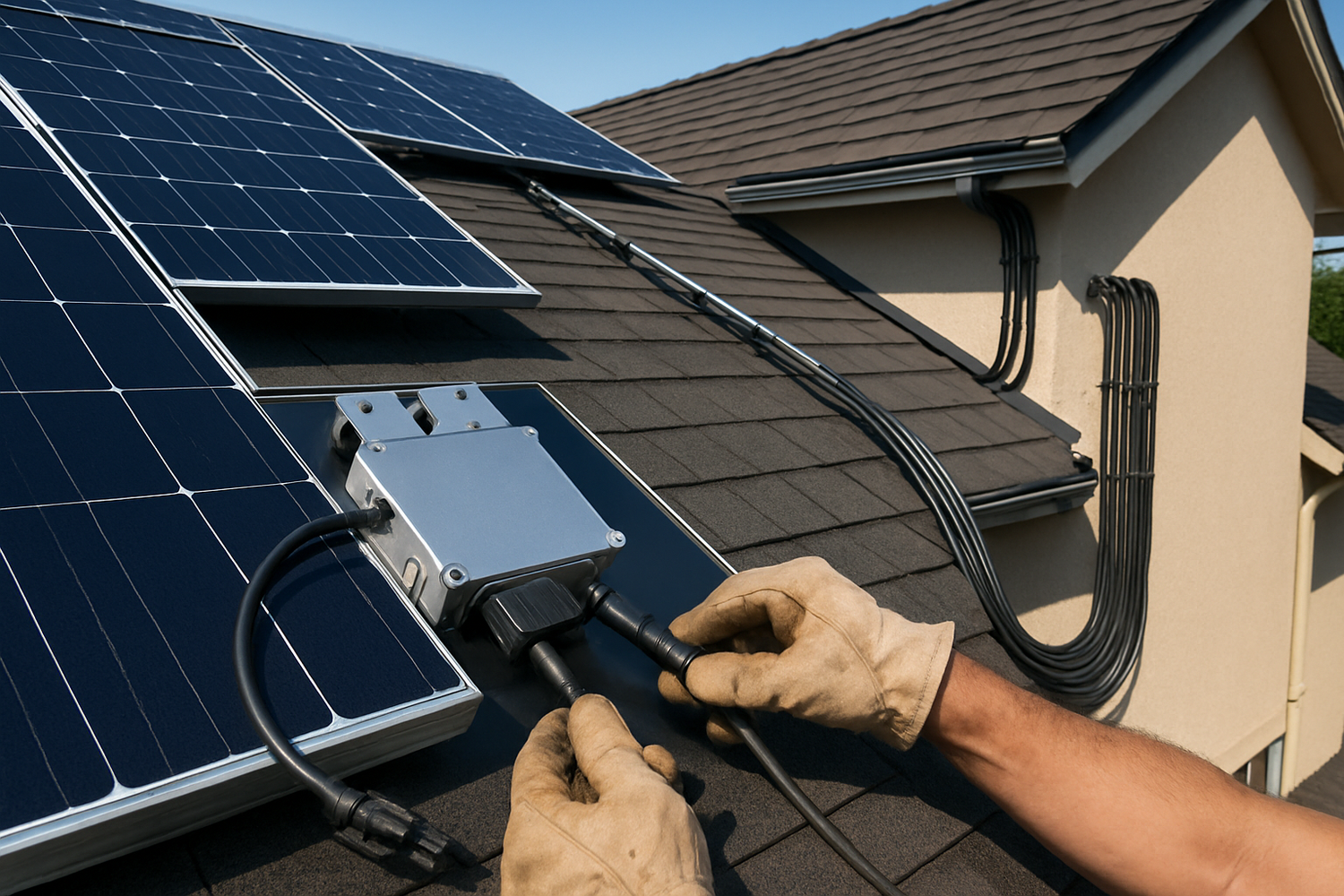

Poor AC Trunk Cable Management

The AC trunk cable is the backbone of a microinverter array. Each microinverter connects to this cable. Installers must properly seal any unused connectors on the trunk cable to prevent water ingress, which can cause short circuits and ground faults. Additionally, failing to properly secure the cable to the racking can lead to strain on the connectors from wind or thermal expansion, eventually leading to intermittent connections and system failure.

Communication and Monitoring Setup Errors

Panel-level monitoring is a key feature of microinverter systems, but it relies on a stable communication link between the microinverters and a central gateway. Often, this communication happens over the power lines (PLC). A frequent mistake is placing the gateway on a circuit with significant electrical noise from appliances like motors or old power supplies, which can disrupt the signal. The importance of robust digital communication for distributed energy resources is a key theme in modern grid integration, as outlined in the IRENA report Grid Codes for Renewable Powered Systems. Without proper communication, diagnosing a problem with a specific panel becomes nearly impossible.

Mismatched Component Compatibility

Every microinverter has a maximum input power and current rating. As solar panel technology advances, panel power and current outputs are increasing. According to research from the IEA's Solar PV Global Supply Chains report, module efficiency is constantly improving. An installer might inadvertently pair a new, high-output panel with a slightly older microinverter model that cannot handle its full output. This results in "clipping," where the microinverter intentionally limits the power it accepts, wasting potential energy generation.

Comparative Analysis of Installation Risks

The right choice depends on recognizing where the risks lie for each technology.

Error Type	String Inverter Risk	Microinverter Risk	Primary Consequence
Voltage Calculation	High	Low	Equipment damage or system underperformance.
High-Voltage DC Hazard	High	None	Arc fault, fire risk, and installer safety concerns.
Roof-Level Wiring Complexity	Low	High	Water ingress, connection failures, ground faults.
Monitoring Setup	Medium	High	Inability to troubleshoot or verify performance.
Environmental Exposure	Low (Inverter is sheltered)	High (Inverters are on the roof)	Premature failure due to heat, cold, and moisture.

Achieving a Flawless Installation

Ultimately, a reliable and high-performing solar energy system is not just about the components you choose, but about the quality of the installation. Both string and microinverter systems can deliver excellent results for decades when installed correctly. The key is recognizing that their vulnerabilities are different.

For string systems, the critical points are the initial design calculations and the high-voltage DC wiring. For microinverter systems, the focus must be on the integrity of every single connection on the roof and the stability of the communication network. A successful installation hinges on the installer's deep understanding of the chosen technology and a meticulous attention to detail, turning a collection of components into a powerful asset for your energy independence.

Disclaimer: This article provides general information and does not constitute professional electrical or financial advice. Always consult with a qualified and certified solar installer and a financial advisor to address your specific needs.
