Ultimate Guide: PV Combiner Boxes, Isolators, Disconnects

PV arrays generate direct current. You need safe collection, isolation, and switching to turn that DC into useful, reliable power. This piece focuses on PV Combiner Boxes, Solar Isolators, and DC Disconnects. You will see how each device works, where it fits, and how to select ratings that align with codes and field conditions. We combine practical steps with credible references.

Big picture: where these devices sit

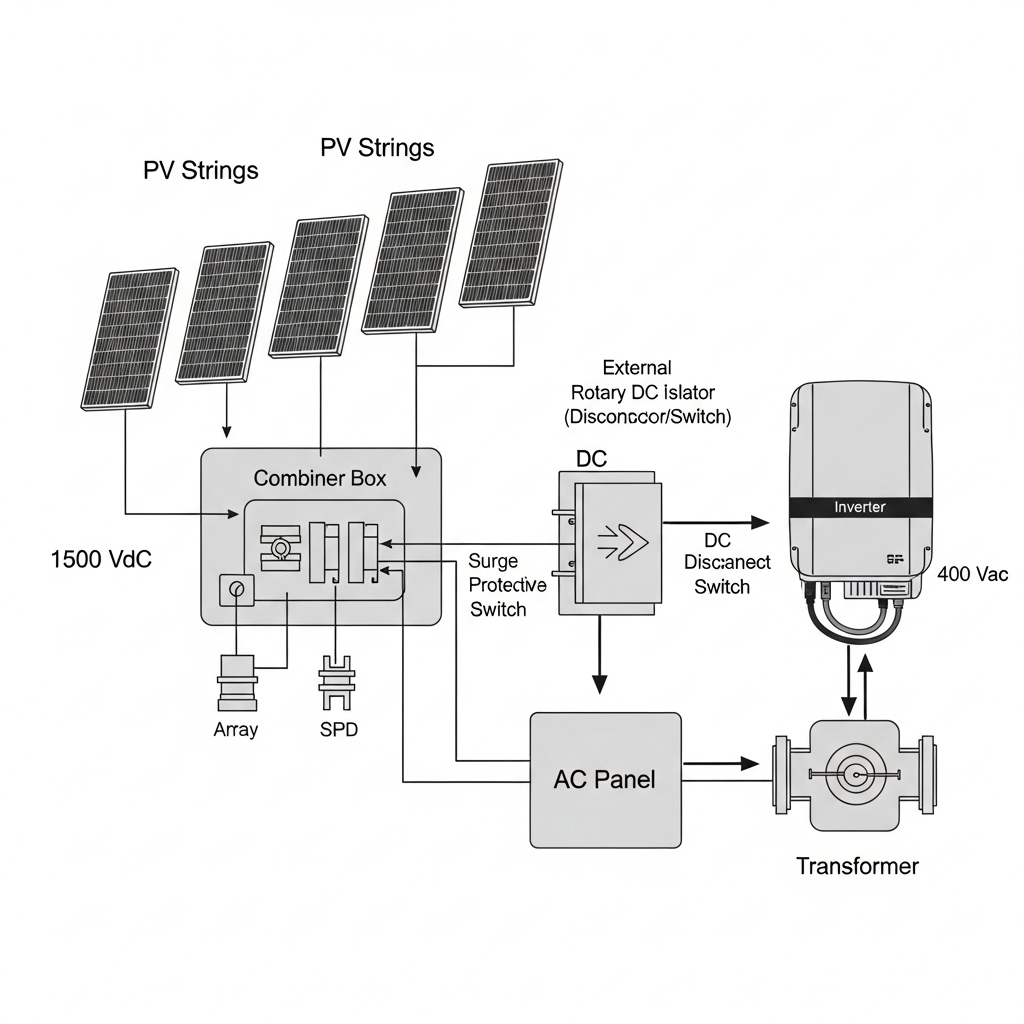

In a typical layout, multiple PV strings land in a PV Combiner Box near the array. A local Solar Isolator provides visible DC isolation for maintenance. A DC Disconnect sits at or in the inverter for service and emergency switching. Utility-scale and commercial sites look similar, just larger. This placement aligns with diagrams and balance-of-system concepts covered by System Integration of Renewables and the DC nature of PV described in Solar Energy Perspectives. For fundamentals of PV energy and hardware, see the U.S. Department of Energy’s overview at energy.gov.

Combiner Box function and PV String Combiner Box operation

A PV Combiner Box aggregates currents from several PV strings and protects each string. Here is how it operates under normal and fault conditions.

• String inputs: Each string connects through a fuse holder or breaker. This protects against reverse currents from parallel strings.
• SPD and grounding: A DC surge protective device clamps overvoltage spikes. Grounding and bonding bars manage equipment grounding and, in some designs, DC negative bonding if specified.
• Busbar: Downstream of fuses, currents sum on a busbar sized for the total current and expected temperature rise.
• Monitoring (optional): Shunt or Hall sensors report string or combiner current and voltage. Data can feed SCADA or local analytics.
• Output: A pair of positive and negative conductors run to the inverter input, often through an isolator or a separate DC disconnect.

Typical system voltages are 600–1500 Vdc. Utility sites often run 1500 Vdc to reduce losses. Commercial rooftops commonly run 1000–1500 Vdc. These voltage levels reflect industry practice and are discussed in IEA work on plant integration such as Getting Wind and Solar onto the Grid.

Thermal and mechanical details that matter

• Conductor terminations: Use torque values from the hardware manufacturer. Re-check after heat cycles during commissioning.
• Creepage and clearance: Maintain spacing for 1000–1500 Vdc. DC arcs sustain more easily than AC, so distances and insulation quality matter.
• Enclosure: Outdoor boxes need UV-stable, gasketed lids. Look for IP66/67 or NEMA 4/4X where water jets or salt mist are present.
• SPD coordination: Select DC SPDs matched to array Voc and system grounding scheme, and coordinate with upstream surge devices.

Solar Isolators vs DC Disconnects

Many teams say ‘isolator’ and ‘disconnect’ interchangeably, but their duties differ on drawings and in standards.

• Solar Isolator: A manually operated switch providing isolation with visible open contacts. Often mounted at the array or on the combiner.
• DC Disconnect: A switch or breaker intended to interrupt load current safely at rated voltage and fault levels, typically located near or integrated with the inverter.

In IEC contexts, load-break categories (e.g., DC-21B, DC-22B) under IEC 60947-3 define what a switch can safely interrupt. Under North American practice, enclosed switches and breakers are listed to relevant UL standards (for example, PV DC breakers under UL 489B and PV fuses under UL 248-19), while assemblies follow UL 508A or other applicable listings. Always verify the label and intended duty. This overview is practical guidance only. Non-legal advice.

Selection: ratings that hold up in the field

Choose devices for the current, voltage, and environment you actually have, not just nameplate values.

• Voltage: Base ratings on worst-case Voc at low ambient temperatures. This aligns with best practices summarized by the IEA and national codes, and reduces nuisance trips during cold, clear mornings.
• Current path: Size busbars, lugs, and cables for expected operating current plus margin for soiling mismatch and irradiance spikes.
• Enclosure and IP/NEMA: Use IP66/67 or NEMA 4/4X outdoors; for desert sites, consider reflective finishes and sun shields to cut internal temperatures.
• Materials: Stainless hardware, UV-stable plastics, and silicone gaskets reduce corrosion and moisture ingress.
• Monitoring: String-level sensing speeds diagnostics and supports availability targets, a trend also noted by market outlooks. See industry context at IRENA.

These ranges are common in the field. Always verify module Isc, site temperatures, and inverter input limits before final selection.

Installation: layout tips that reduce risk

• String homeruns: Route positive and negative together to lower loop area and limit inductive voltage spikes.
• Entry points: Use compression glands sized to the cable OD. Keep bend radius per cable spec to prevent conductor damage.
• Labeling: Mark polarity, string IDs, and maximum operating voltage at combiner and disconnect terminations. Clear labels speed service.
• Bonding: Scrape paint or use dedicated bonding lugs on racking. Check continuity back to the main grounding electrode.
• Isolation access: Place Solar Isolators where technicians can reach them without stepping over conductors.
• Heat: Avoid direct sun if possible. Shade plates or light-colored enclosures reduce thermal stress on fuses and SPDs.

The IEA’s emphasis on reliable grid integration under voltage events highlights why stable BOS design matters. Fault ride-through expectations and coordination are discussed in Getting Wind and Solar onto the Grid. Robust isolation and disconnect coordination help avoid unintended trips during transients.

Commissioning and O&M: fast checks that catch issues early

• Visual and torque: Inspect gaskets, glands, lugs, and labels. Torque all terminations, then re-torque after thermal cycling.
• IR scan: With stable irradiance, scan lugs and fuse holders. Hot spots relative to peers suggest loose terminations or overloaded paths.
• String current check: Under steady sun, a quick heuristic is that string currents should cluster within roughly ±5–10% if orientation and length match.
• Polarity and insulation: Confirm polarity at each input. Use insulation resistance testing within device limits to avoid SPD damage.
• SPD status: Record indicators on day one. Replace SPDs that show end-of-life after surges.

Modular PV design and mass-produced BOS components help scale plants reliably, a point noted in Transforming Global Markets for Clean Energy Products. Consistent O&M lifts uptime and keeps those benefits flowing.

PV + storage: isolation and disconnects that fit hybrid systems

Hybrid sites add battery DC paths and may share enclosures near inverters. Keep PV isolation and battery isolation distinct, each with DC-rated devices sized for its current and voltage regime. Correct coordination reduces backfeed hazards during service.

For storage performance context, see Ultimate reference: solar storage performance. That piece highlights the drivers that shape battery life and output, including temperature, depth of discharge, round-trip efficiency, and charge rates. These factors influence where you mount enclosures, how you ventilate, and which disconnect ratings you choose for battery circuits.

Standards snapshot and documentation

Standards vary by market. The following references and document types are common in PV projects. Always check the actual text used in your jurisdiction. Non-legal advice.

• Switch-disconnectors and isolators: IEC 60947-3 (DC utilization categories).
• Fuses: IEC 60269-6 (gPV), UL 248-19 (PV fuses).
• Circuit breakers: UL 489B (PV DC breakers).
• Assemblies and panels: IEC 61439 series, UL 508A for industrial control panels.
• Inverter interfaces and PV basics: context at energy.gov and the DC nature of PV explained in Solar Energy Perspectives.

Document what you install: datasheets, ratings, as-built wiring, torque logs, and thermal photos. Clear records ease inspections and speed approvals.

Sizing pointers without the math rabbit hole

This section focuses on practical checks rather than detailed formulas covered elsewhere.

• Voltage headroom: Confirm that SPD Uc, fuse voltage, isolator, and disconnect ratings all exceed worst-case Voc in cold conditions.
• Current headroom: Keep device continuous current ratings with margin above expected operating current. Mind enclosure temperature rise.
• Interrupt duty: Verify the DC load-break or interrupt rating at the actual Vdc. Not every switch with a high AC rating can interrupt high-voltage DC.
• Cable ampacity: Consider ambient, sun exposure, and grouping. Derate as needed and confirm gland temperature ratings.

Costs and reliability levers

Better enclosures, proven fuse holders, and quality SPDs can feel expensive upfront. Field data often shows they pay back through lower truck rolls and faster fault isolation. While numbers vary by market, many teams report fewer callbacks when they standardize on high IP/NEMA ratings and include string-level sensing for larger blocks. IRENA and IEA publications emphasize that robust balance-of-system choices support availability and integration of variable renewables. See IRENA and System Integration of Renewables for broader system context.

Why this matters across PV segments

Residential installers need tidy, labeled combiners and an accessible DC disconnect at the inverter. C&I teams benefit from string monitoring and corrosion-resistant hardware on rooftops and carports. Utility projects push 1500 Vdc, where creepage, SPD coordination, and verified DC interrupt ratings carry even more weight. Across all segments, simpler service and safer isolation protect uptime.

Key references at a glance

• According to Solar Energy Perspectives, PV modules produce DC and the system is modular, which supports scalable BOS design.
• System Integration of Renewables frames how PV plants tie into grids, underscoring the role of reliable BOS components and switching.
• Getting Wind and Solar onto the Grid discusses grid code evolution and disturbance behavior that good isolation and disconnect coordination support.
• The U.S. energy.gov solar page provides accessible PV basics to align teams on DC safety and equipment roles.
• Ultimate reference: solar storage performance compiles storage performance factors you can apply in hybrid PV+ESS layouts.

Note: Codes and listings differ by region. Coordinate with your AHJ and your inverter manufacturer. Non-legal advice.

FAQ

What is the core job of a PV Combiner Box?

It aggregates multiple PV strings, protects each string with a fuse or breaker, clamps surges with an SPD, and outputs a single positive/negative pair to the inverter.

How do Solar Isolators differ from DC Disconnects?

Isolators provide safe, visible isolation for service. DC Disconnects are intended to interrupt load current at rated Vdc. Some devices do both, but only if listed and marked for that duty.

Do I always need string-level monitoring?

No. It helps on larger blocks and sites with higher O&M costs. Many crews use it to speed fault finding and verify cleaning or repair results.

What IP rating should outdoor combiners have?

In harsh sites, look for IP66/67 or NEMA 4/4X. Salt, dust, and driving rain justify tighter enclosures and stainless hardware.

How often should I re-torque connections?

At commissioning, after initial thermal cycles, then per the O&M plan. Add checks after extreme heat waves or cold snaps.
