Ultimate Guide: Roof Pitch, Age, and Electrical Panel Readiness

Roof pitch, roof age, and the electrical panel decide solar readiness more than most people think. Get these three right, and you avoid surprise costs, delays, and yield loss. This piece gives clear thresholds, simple math, and practical upgrade paths so you can judge home solar suitability with confidence.

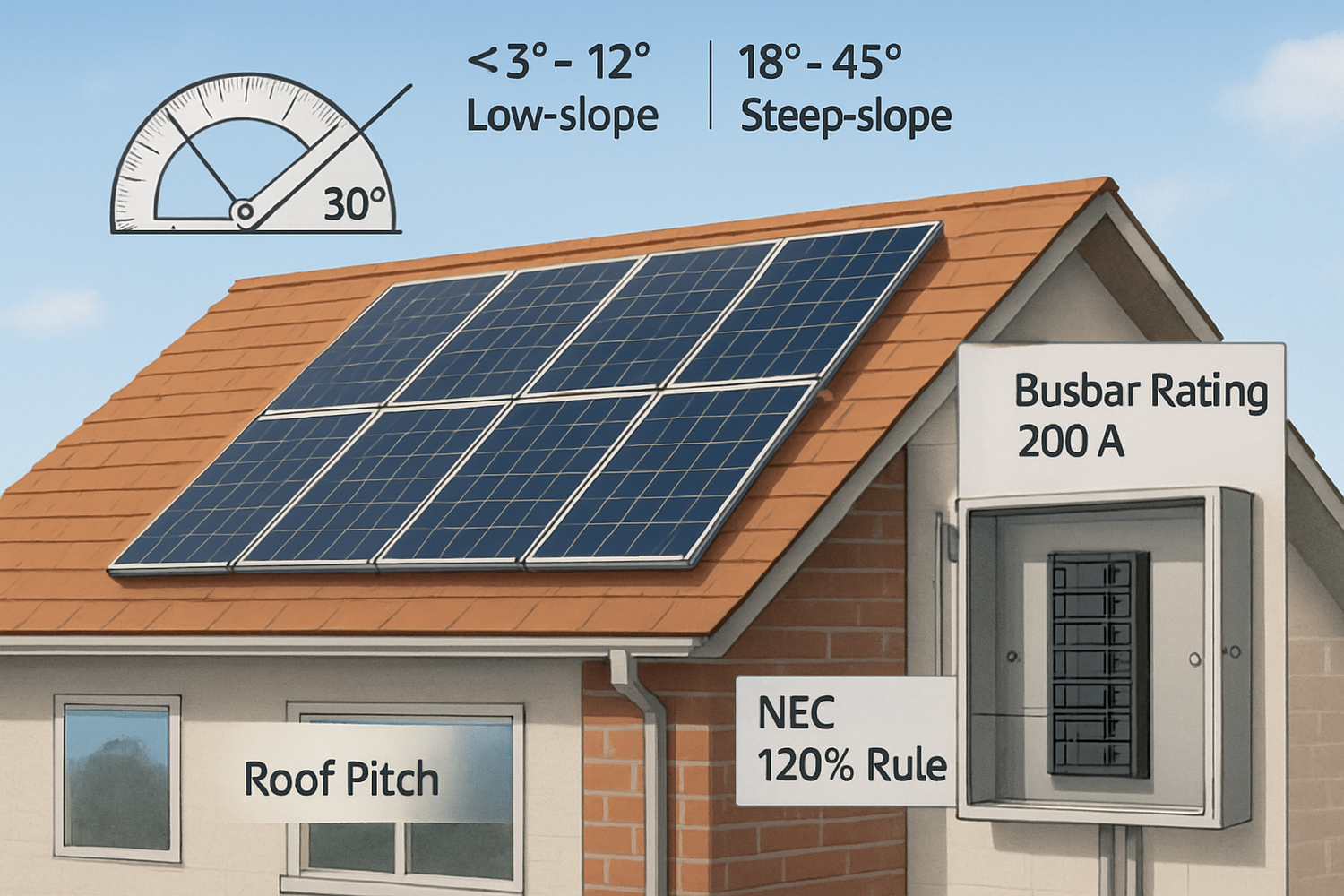

Roof Pitch: What works and how to adapt

Roof pitch shapes energy yield, mounting choices, and wind/snow loading. You do not need a perfect slope. Most homes can fit efficient designs with the right racking and layout.

Practical tilt ranges and output impact

As a rule of thumb in mid‑latitudes, a tilt near local latitude maximizes annual output. Deviations change the timing of production and trim annual kWh modestly. Energy.gov notes that many roof types and tilts can host PV with good results, with site condition and structure as key checks (see Energy.gov — Solar Energy).

Tilt range	Typical annual output vs near‑optimal	Design notes
0–5° (flat/low‑slope)	−8% to −12%	Ballasted racking at 5–10° improves drainage and yield.
15–20°	−2% to −5%	Common on many roofs; strong overall performance.
25–35°	≈0% to −3%	Near‑optimal annual yield in many regions.
40–45°	−3% to −8%	Better winter sun; slightly lower annual total.
50°+	−10% to −20%	Steeper roofs still work; layout and anchoring need care.

Value also depends on tariff timing. Time‑dependent pricing can reward production at specific hours. As summarized by the IEA, price adders can shift value toward arrays that generate at higher‑value times (Next Generation Wind and Solar Power; Full Report). This supports east–west or tilt choices that better match peak periods, even if annual kWh drops slightly.

Structure, loads, and roof type

Residential PV adds roughly 2–4 psf (pounds per square foot). Many code‑compliant roofs can handle this, but you still need a structural check. Pay attention to:

• Rafter/truss spacing and span
• Sheathing condition and fastener pullout strength
• Local wind and snow design loads
• Roofing material: asphalt shingle, metal standing seam, tile, or membrane

Energy.gov emphasizes verifying structural capacity and roof condition early in the process (Energy.gov — Solar Energy).

Wind, snow, and code basics

High‑wind zones benefit from more attachment points and lower tilt. Snowy climates may use steeper tilt to shed snow but must ensure balanced loading and clear pathways. These adjustments often change racking choices more than they change overall feasibility.

Age of roof: Replace now or install now?

Module lifespans often exceed 25 years. A tired roof can turn into a mid‑life tear‑off with remove‑and‑reinstall fees. A simple rule works well: if the roof has less than 10 years of life left, plan roofing work ahead of PV.

Service life signals and actions

Roofing type	Typical service life	Action if current age is…	Notes
3‑tab asphalt	15–20 years	≥10 years: install PV; 6–9 years: inspect closely; ≤5 years: re‑roof ahead of PV	Watch for granule loss, curling, soft spots.
Architectural asphalt	20–30 years	≥12 years: install; 7–11 years: inspect; ≤6 years: re‑roof	Heavier shingle, longer life.
Metal standing seam	40–50+ years	Most ages: install	Clamp‑on racking avoids penetrations.
Concrete/clay tile	30–50 years	Check underlayment age	Underlayment often limits life, not tile.
EPDM/TPO/PVC (low‑slope)	20–30 years	≥12 years: install; 7–11 years: inspect; ≤6 years: re‑roof	Ballasted systems reduce penetrations.

Inspection checklist:

• Water stains in attic or underlayment tears
• Soft decking, nail pull‑through, delamination
• Flashing wear near chimneys, vents, and valleys
• Existing roof warranty terms for solar penetrations

R&R cost risk and how to avoid it

Remove‑and‑reinstall for a future re‑roof can add material and labor costs. A small system might run roughly $1,000–$3,000 for R&R; larger arrays can exceed that. Doing roofing work ahead of PV often saves money and hassle across the system life. Energy agencies track steady PV cost declines, which strengthens the case for long‑life roof assemblies supporting a 25‑year system (see IRENA for cost trends context).

Electrical panel readiness: The NEC 120% rule in plain English

The main service panel limits how much PV you can backfeed on a load‑side connection. The common rule, often called the 120% rule, keeps busbar heating within limits. Codes vary by jurisdiction and year of NEC adoption.

Core idea: PV breaker rating plus main breaker rating cannot exceed 120% of the panel busbar rating.

Simple math:

• Max PV breaker = 1.2 × Busbar − Main breaker
• Example: 200 A busbar, 200 A main → Max PV breaker = 1.2 × 200 − 200 = 40 A

Busbar (A)	Main breaker (A)	Max PV breaker (A)	Indicative AC inverter size
100	100	20	~4.8–5.0 kW on 20–25 A breaker
125	100	50	~11–12 kW on 50–60 A breaker
200	200	40	~7.6–9.6 kW on 40–50 A breaker
225	200	70	~13–17 kW on 70–80 A breaker

Notes:

• Breaker sizing must follow inverter output current and listing. Many 7.6 kW inverters use a 40 A breaker.
• Rule placement, labeling, and calculation details depend on code cycle and inspector requirements.

Energy.gov highlights electrical limits and upgrades as common project steps (Energy.gov — Solar Energy). Time‑dependent tariffs and demand charges also shape value, particularly for commercial sites (see the IEA discussion of time‑dependent price adders and demand components in Next Generation Wind and Solar Power).

Common solutions if the panel is the bottleneck

• Main breaker downsizing: Example, reduce a 200 A main to 175 A if load calc allows. Raises PV breaker headroom. Low cost, quick.
• Load‑side vs supply‑side: A supply‑side tap can bypass the 120% busbar limit. Requires utility coordination and a proper disconnect.
• Service/panel upgrade: Move from 100 A to 200 A service. Improves PV headroom and future EV/heat pump readiness.
• Smart load centers or load management: Shifts large loads to fit available capacity. Helpful where upgrades are costly.
• Subpanel or meter‑main combo: Cleans up space, improves labeling, and can simplify future battery additions.

Costs vary by region and utility rules. Simple breaker changes may be a few hundred dollars. Full service upgrades can reach several thousand. A clean design upfront reduces change orders and inspection delays.

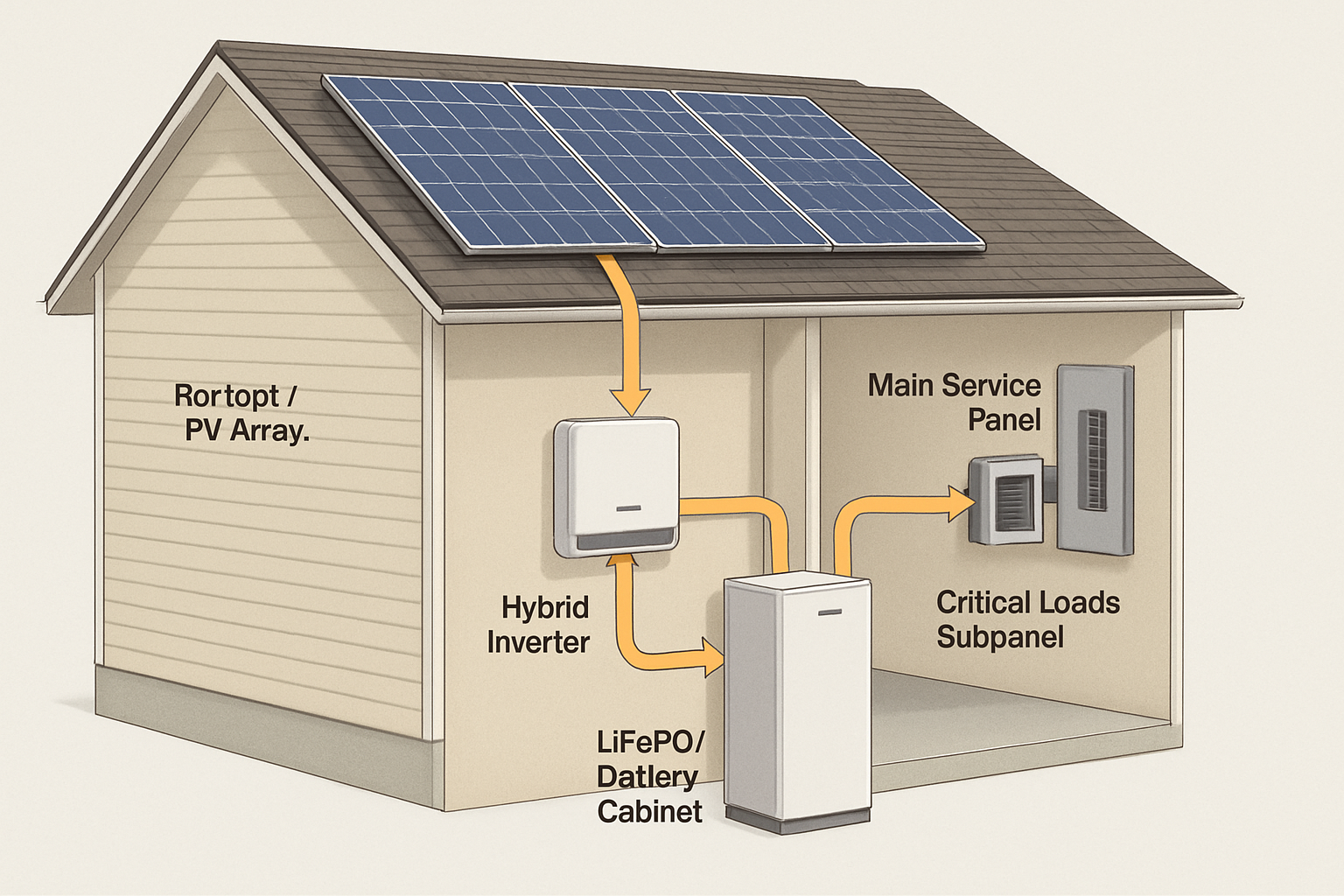

Storage and inverter notes that help readiness

A right‑sized energy storage system can shift solar production to higher‑value hours and reduce export stress. It does not eliminate busbar limits on the PV breaker, yet it can cut peak backfeed and improve self‑consumption. IEA scenario work shows storage growth accompanying solar to meet peak net load more reliably (Next Generation Wind and Solar Power (Full Report)).

• Hybrid inverters simplify battery integration and backup circuits.
• LiFePO4 batteries offer stable cycle life and safety for residential use.
• Export limiting or curtailment features may ease interconnection, where allowed.

Quick readiness check: 3 signals you can score today

1) Roof pitch and area

• Pitch 15–35°: strong. 0–15° or 35–50°: workable with racking. 50°+: still viable with careful layout.
• Unshaded area of ~50–70 sq ft per kW DC is a good space target.

2) Age of roof

• Remaining life ≥10 years: install PV confidently.
• Remaining life 6–9 years: get a roofer’s assessment and price both paths.
• Remaining life ≤5 years: schedule roofing ahead of PV to avoid R&R costs.

3) Electrical panel

• Find the busbar rating (inside the panel label) and main breaker rating.
• Apply Max PV breaker = 1.2 × Busbar − Main. If result is small, plan a breaker change, supply‑side tap, or panel upgrade.

Why these three factors matter for savings and timelines

IEA work on pricing signals shows that the hour you generate can be as valuable as total kWh in many markets (Next Generation Wind and Solar Power). Pitch shapes timing. Roof age drives total cost of ownership by avoiding mid‑life R&R. The electrical panel sets your interconnection path, which can make or break schedules. Together they set your project’s risk and return. Broader energy studies confirm that distributed PV and storage scale with solid interconnection and building‑side readiness (Next Generation Wind and Solar Power (Full Report); Energy.gov — Solar Energy).

Key takeaways you can act on

• Roof pitch: aim for 15–35°. Outside that range still works with racking. Expect modest kWh shifts.
• Age of roof: target ≥10 years of remaining life. Coordinate underlayment on tile roofs.
• Electrical panel: run the 120% check early. Choose between downsizing the main, a supply‑side tap, or a service upgrade.
• Consider storage: improves self‑consumption and resilience; plan space in the electrical layout.

Disclaimer: Information here is for general planning. It is not electrical, legal, or permitting advice. Codes and utility rules vary. Work with a licensed electrician, a qualified roofer, and your local AHJ.
