Why Solar Panels Produce DC, and How Inverters Deliver AC

Solar energy has transformed how we power our lives, offering a clean and abundant alternative to traditional energy sources. From rooftops to large-scale installations, solar panels are becoming a common sight, converting sunlight into electricity. The electricity produced by solar panels, however, is not directly usable by most household appliances or the electrical grid. This is where solar inverters play a vital role. This content explains how solar panels generate direct current (DC) electricity and how inverters efficiently convert it into alternating current (AC) for practical use, helping you achieve greater energy independence.

The Photovoltaic Effect: Harnessing Sunlight's Power

How Solar Cells Create DC Electricity

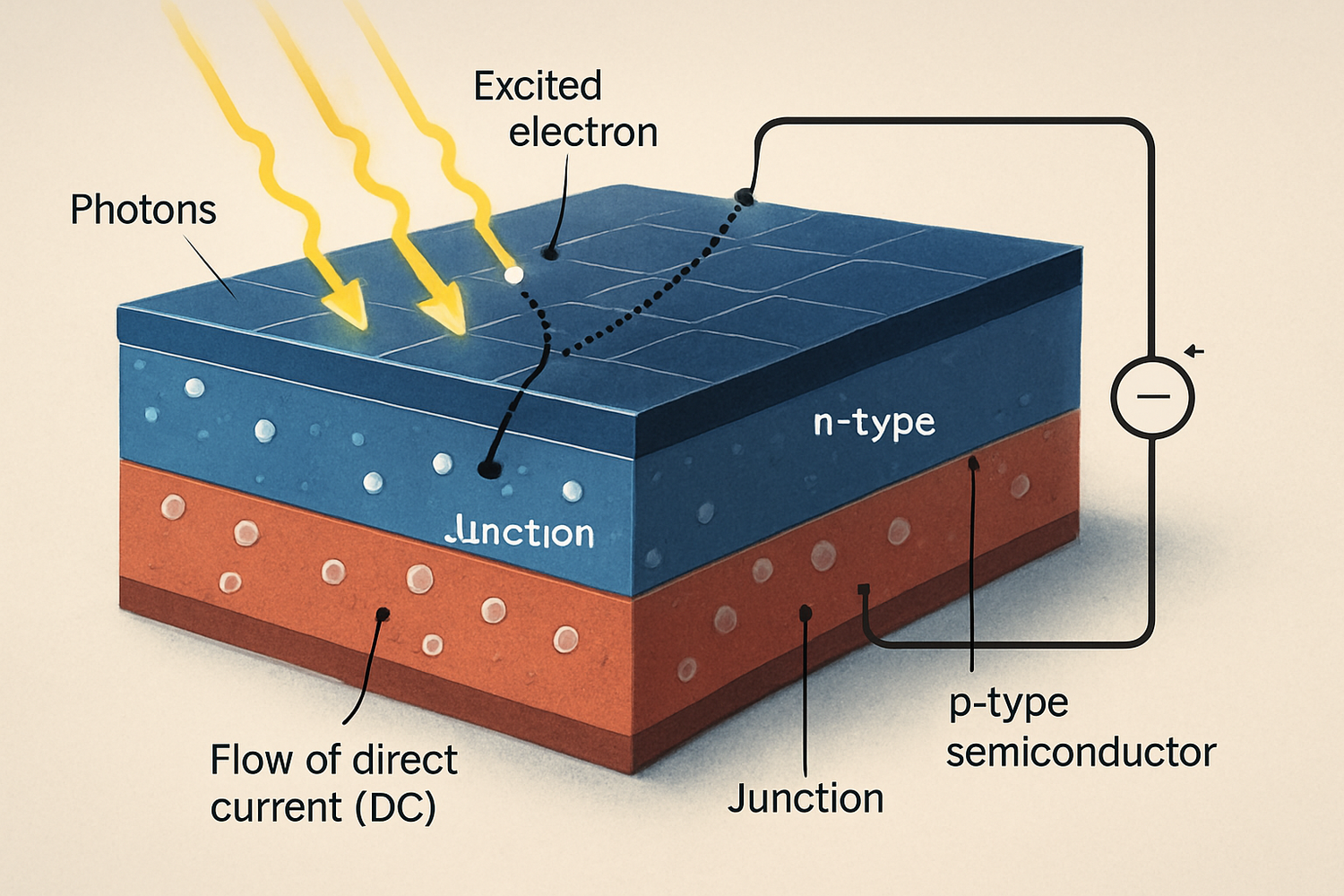

The fundamental process behind solar power generation is known as the photovoltaic effect. When light, composed of tiny energy packets called photons, strikes a solar cell, the semiconductor material within the cell absorbs these photons. This absorption excites electrons, causing them to break free from their atoms. Solar cells typically consist of two layers of semiconductor material, often silicon, one doped to create a positive charge (p-type) and the other a negative charge (n-type). This arrangement forms an electric field at their junction. The liberated electrons are then swept in one direction, while the "holes" (where the electrons were previously) move in the opposite direction. This directional movement of charge carriers creates direct current (DC) electricity. This DC electricity flows in a single direction, much like the current from a battery. All solar energy systems that generate electricity use the photovoltaic effect.

Direct Current (DC) vs. Alternating Current (AC): Why the Conversion Matters

Characteristics of DC and AC

Understanding the difference between direct current (DC) and alternating current (AC) is key to appreciating the role of an inverter. DC electricity, as generated by solar panels, maintains a constant voltage and flows in one consistent direction through a circuit. Think of it as a steady, one-way flow. In contrast, AC electricity frequently changes its direction, with its voltage varying from positive to negative in a repeating pattern, often represented as a sine wave.

The Grid Standard: Why AC Dominates

Most homes and electrical grids operate on alternating current (AC). This is primarily due to AC's efficiency in long-distance transmission and its ability to easily change voltage levels using transformers. For instance, in North America, the standard grid frequency is 60 hertz (Hz), while many other parts of the world use 50 Hz. Since solar panels produce DC, it must be converted into AC to be compatible with household appliances and to be fed into the public electricity grid.

The Solar Inverter: Bridging the Energy Gap

How Inverters Transform DC to AC

An inverter is a critical component in any solar energy system. It serves as the bridge, converting the DC electricity from your solar panels into usable AC electricity. The conversion process involves rapidly switching the direction of the DC input. Modern inverters use advanced power electronics, such as transistors made of semiconductor materials like silicon, to achieve this rapid switching. They also incorporate filters and control circuits to produce a clean, stable AC output that matches the grid's voltage and frequency requirements. High-quality inverters can achieve conversion efficiencies typically ranging between 95% and 98%, meaning minimal energy loss during this transformation.

Types of Solar Inverters for Every Need

The solar market offers various inverter types, each suited to different system configurations and needs:

• String Inverters: These are common in residential and small commercial systems. Multiple solar panels are connected in a series, forming a "string," and the combined DC output is sent to a single string inverter for conversion. While cost-effective, their performance can be affected if one panel in the string is shaded or underperforms.
• Microinverters: Unlike string inverters, microinverters are installed on each individual solar panel. This setup allows each panel to operate independently, maximizing its power output even if other panels are shaded or have issues. Microinverters often provide panel-level monitoring, offering detailed insights into system performance.
• Hybrid Inverters: These versatile inverters can convert DC to AC and also connect to a battery energy storage system. This feature allows you to store excess solar power for later use, enhancing self-consumption and providing backup power. Hybrid inverters are an excellent choice for those seeking integrated energy management and increased energy independence.

Building a Resilient Energy Future: Integrated Solar Solutions

Seamless Energy Storage Integration

Pairing solar panels with energy storage systems (ESS) unlocks the full potential of your solar investment. Our focus on lithium battery manufacturing, particularly high-performance and reliable Lithium Iron Phosphate (LiFePO4) batteries, forms the core of robust energy storage solutions. ESS, which can integrate lithium batteries, hybrid inverters, and solar panels, allows you to store excess solar energy generated during the day. This stored energy becomes available for use during evenings, cloudy days, or power outages, significantly reducing reliance on the grid and lowering energy bills. ESS also enables "peak shaving," discharging stored energy during high-demand periods when electricity costs are highest, further optimizing savings.

Powering Beyond the Grid

For locations without reliable grid access or those seeking complete energy autonomy, off-grid solar solutions offer a compelling path. These systems, often incorporating robust LiFePO4 batteries and solar inverters, provide continuous power regardless of grid connectivity. They are ideal for homes, farms, or remote cabins, ensuring a consistent and reliable energy supply. This approach enhances energy security and resilience, particularly in regions prone to outages or with unstable grid infrastructure.

Empowering Your Energy Independence

The journey from sunlight to usable household electricity involves a fascinating transformation, with the solar inverter serving as a critical intermediary. By understanding how solar panels generate DC and how inverters efficiently convert it to AC, you gain a clearer picture of your energy system. The global solar capacity reached approximately 2.2 terawatts (TW) in 2024, demonstrating the widespread adoption of solar power. This growth underscores the increasing importance of reliable and scalable energy solutions. Our commitment is to provide advanced solar inverters and integrated energy storage systems, including high-performance LiFePO4 batteries and comprehensive ESS solutions. We empower our clients to capture, convert, and manage their solar energy effectively, moving closer to true energy independence and a sustainable future.
