Achieving energy independence with a DIY solar system is a rewarding goal. At the core of that independence is the battery bank, a dense reservoir of power. While modern lithium batteries are remarkably efficient, they command respect. Improper management can lead to significant safety hazards, including fire. This text explains the three pillars of battery protection: the Battery Management System (BMS), correct fusing, and secure enclosures. Understanding how these components work together is fundamental to building a safe, reliable, and long-lasting energy storage system.

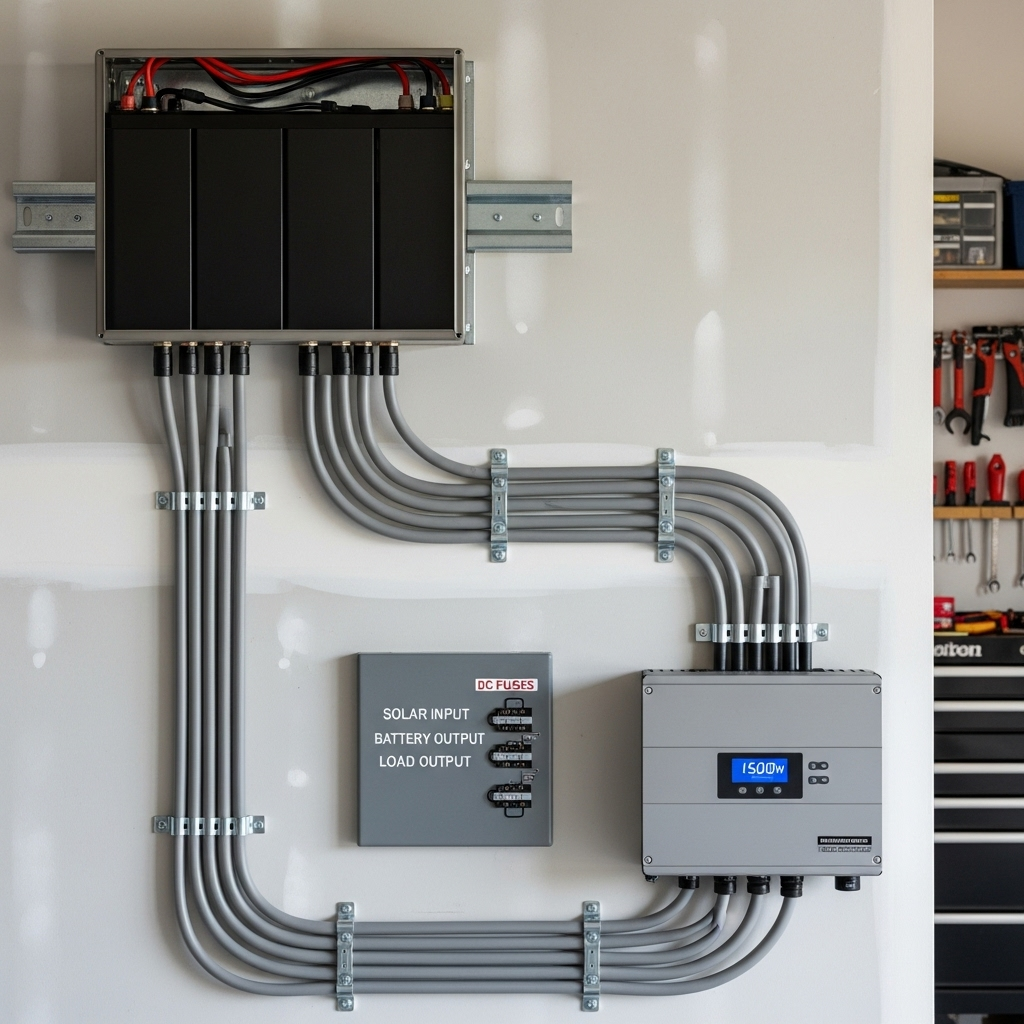

The Battery Management System (BMS): Your Battery's Guardian
Think of the Battery Management System as the intelligent brain of your battery pack. It's an electronic circuit board that monitors and manages all of the battery's critical functions. For lithium-based chemistries like Lithium Iron Phosphate (LiFePO4), a BMS is not an optional accessory; it is an essential safety and performance device.
What a BMS Does
A quality BMS provides multi-level protection by constantly monitoring voltage, current, and temperature. Its primary duties include:
- Overcharge Protection: It stops charging when any cell reaches its maximum voltage, preventing damage.
- Over-Discharge Protection: It disconnects the load when a cell drops to its minimum voltage, preventing irreversible capacity loss.
- Temperature Monitoring: It disconnects the battery if temperatures exceed safe operating limits, a key function in preventing thermal runaway.
- Short Circuit Protection: It instantly disconnects the battery if a short circuit is detected, preventing catastrophic failure.
- Cell Balancing: It ensures all individual cells within the battery pack maintain an equal state of charge. This process is vital for maximizing the battery's usable capacity and extending its service life.
Without a BMS, minor imbalances between cells can grow over time, leading to premature battery failure and creating dangerous conditions. As research from institutions like the International Renewable Energy Agency highlights, balance-of-system components are critical for the overall health and competitiveness of energy storage.
BMS Features for DIY Systems
When selecting a BMS, consider its communication capabilities. Some advanced systems can communicate with inverters and charge controllers. This integration allows for smarter energy management, optimizing charge and discharge cycles based on real-time data from the entire solar setup. This level of system synergy is a key factor in achieving both peak safety and efficiency.
Fusing: The First Line of Defense Against Overcurrent
Fuses are the sacrificial heroes of your electrical system. Their job is simple but critical: protect the wiring from excessive current that could cause it to overheat and ignite. In a fault condition, like a short circuit, the fuse blows, interrupting the flow of electricity before the wire itself becomes a hazard.
Sizing and Placing Fuses Correctly
The cardinal rule of fusing is to size the fuse to protect the wire. The fuse's amperage rating should be equal to or slightly less than the maximum current rating (ampacity) of the wire it's connected to. A common practice is to size the fuse at 125% of the maximum continuous current the circuit is expected to carry.
Placement is just as important. Fuses should always be installed as close to the source of power as possible. For a DIY solar system, this means placing fuses in several key locations:
- On the positive cable coming from the battery bank, before it connects to anything else.
- Between the solar array and the charge controller.
- Between the charge controller and the battery bank.
Choosing the Right Fuse Type
For connecting a lithium battery bank to a powerful inverter, a Class T fuse is highly recommended. Lithium batteries can deliver extremely high short-circuit currents, and Class T fuses have a very high interrupt rating (AIC), meaning they can safely interrupt massive current flows without failing. While other fuses like ANL are common, their lower interrupt capacity may not be sufficient for the fault currents a large LiFePO4 battery can produce.
| Fuse Type | Typical Interrupt Rating (AIC) | Primary Use Case |
|---|---|---|
| ANL Fuse | ~6,000 Amps | Lower power DC circuits, lead-acid batteries. |
| Class T Fuse | 20,000 Amps or higher | High-current applications, inverter/lithium battery protection. |
Enclosures: Physical Protection for Your Powerhouse
A battery enclosure does more than just conceal your batteries; it provides a critical layer of physical and environmental protection. A proper enclosure safeguards your investment from accidental impacts, moisture, dust, and pests, all of which can compromise safety and performance.
Key Features of a Safe Enclosure
When selecting or building an enclosure, prioritize materials and design features that enhance safety. Metal enclosures are generally preferred for their durability and fire resistance. The International Energy Agency recognizes that as battery storage becomes more widespread, robust safety measures, including physical protection, are crucial for secure operation.
Key features include:
- Ventilation: Even highly efficient batteries generate heat. Proper ventilation is essential to dissipate this heat and prevent it from building up, which could reduce battery life or trigger a BMS shutdown.
- Secure Mounting: The enclosure must be securely fastened to a wall or floor to prevent it from tipping over or shifting.
- Cable Management: Use appropriate cable glands or conduit to protect wires as they enter and exit the enclosure, preventing abrasion and potential short circuits.
- Code Compliance: Ensure the enclosure meets local electrical and fire safety codes. Standards like UL 9540 provide rigorous testing for energy storage system safety, including fire behavior.
Recent updates to the National Electrical Code (NEC) further emphasize safety for energy storage systems, with specific requirements for installation locations, disconnects, and fire hazard mitigation.
A Layered Approach to Safety
The BMS, fuses, and enclosure are not independent solutions but rather a layered safety system that works in concert. The BMS provides internal, electronic protection for the battery cells. Fuses offer external, electrical protection for the system's wiring. The enclosure delivers physical protection for the entire battery bank. For optimal results, all components in your system should be designed to work together, a concept detailed in the ultimate reference for solar storage performance, which shows how integrated design boosts both output and reliability.
Final Thoughts
Building a DIY solar and storage system is an empowering step toward energy security. However, safety must be the guiding principle at every stage of the project. Investing in a high-quality Battery Management System, sizing and placing fuses correctly, and using a robust, well-ventilated enclosure are non-negotiable. These three pillars of protection ensure your system not only performs efficiently but also operates safely for years to come, providing peace of mind along with clean, reliable power.
Disclaimer: This article is for informational purposes only and does not constitute professional electrical or legal advice. Always consult with a qualified electrician and adhere to local building and electrical codes for your projects.
Frequently Asked Questions
Can I build a lithium battery pack without a BMS?
No. It is extremely dangerous to operate a lithium-ion or LiFePO4 battery pack without a BMS. The BMS is critical for preventing conditions like overcharging and cell imbalances that can lead to catastrophic failure and fire.
What happens if my fuse is too large for the wire?
If the fuse's amperage rating is higher than the wire's ampacity, the wire can overheat and potentially start a fire during an overcurrent event before the fuse has a chance to blow. The fuse protects the wire, so it must be the 'weakest link' in the circuit.
Does my indoor battery enclosure need to be waterproof?
For a typical indoor installation (like a garage or utility room), a waterproof rating is not usually necessary. However, the enclosure should be rated to protect against dust and accidental contact. Look for appropriate NEMA or IP ratings based on the specific environment to ensure adequate protection.
