Smart BMS Settings to Prevent Overheating in Home ESS

Home energy storage systems (ESS) offer significant advantages, enabling you to capture solar energy, reduce reliance on the grid, and ensure power during outages. At the core of these systems are batteries, which store the collected energy. While highly efficient, batteries require careful management to operate safely and efficiently over their lifespan. A critical aspect of this management involves preventing overheating, a condition that can compromise performance, shorten battery life, and pose safety risks. This article will focus on how intelligent Battery Management System (BMS) settings are crucial for maintaining optimal battery temperatures and enhancing the safety of your home ESS.

Understanding Battery Overheating Risks

Batteries, especially those used in energy storage, generate heat during charging and discharging cycles. Under normal operating conditions, this heat is manageable. However, certain factors can lead to excessive heat accumulation, pushing temperatures beyond safe limits. Understanding these risks is the first step toward effective prevention.

Causes of Excessive Heat Generation

• High Charge/Discharge Rates: Pushing too much current into or out of a battery too quickly can overwhelm its internal chemistry, leading to a rapid temperature increase.
• Overcharging: Continuously charging a battery beyond its full capacity can cause irreversible damage and significant heat generation.
• Over-discharging: Depleting a battery below its minimum voltage can also stress its components and affect its thermal stability.
• Poor Ventilation: Inadequate airflow around the battery pack traps heat, preventing natural cooling and leading to a buildup of high temperatures.
• Internal Short Circuits: Manufacturing defects or physical damage can create internal short circuits, causing uncontrolled current flow and rapid heating.

Consequences of Battery Overheating

The implications of battery overheating range from performance degradation to severe safety hazards. Prolonged exposure to high temperatures accelerates battery degradation, significantly reducing its lifespan and capacity. More critically, extreme overheating can lead to thermal runaway, a self-sustaining chain reaction where increasing temperature causes further temperature increases, potentially resulting in fire or explosion. While lithium iron phosphate (LiFePO4) batteries, a common choice for home ESS due to their inherent stability, are less prone to thermal runaway than other lithium-ion chemistries, proper thermal management remains paramount for safety and longevity.

The Role of a Smart Battery Management System (BMS)

A Battery Management System (BMS) acts as the "brain" of a battery pack, overseeing its operation to ensure safety and optimize performance. A "smart" BMS takes this functionality further, incorporating advanced features for proactive thermal management and system optimization.

Core Functions of a Smart BMS

• Voltage Monitoring: Tracks individual cell voltages to prevent overcharging and over-discharging.
• Current Management: Regulates the flow of current during charging and discharging, preventing excessive rates.
• Temperature Sensing: Monitors the temperature of individual cells and the overall battery pack, often with multiple sensors.
• Cell Balancing: Ensures all cells within the pack maintain similar voltage levels, preventing some cells from being overstressed while others are underutilized.
• State of Charge (SoC) and State of Health (SoH) Estimation: Provides accurate information about the battery's remaining capacity and overall health.

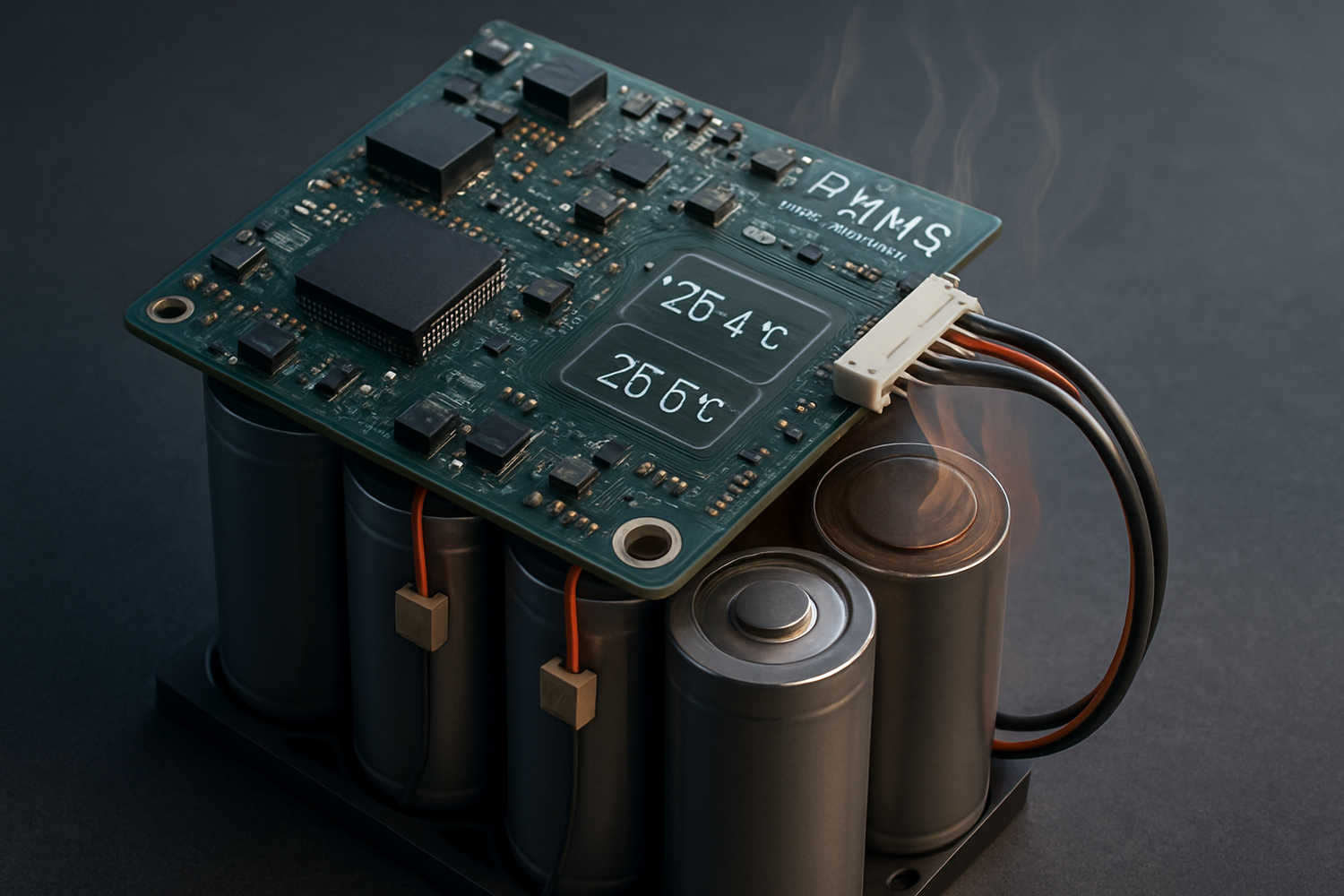

How a Smart BMS Prevents Overheating

The "smart" capabilities of a BMS enable sophisticated overheating prevention. These systems can actively manage charge and discharge processes, dynamically adjusting parameters based on real-time temperature data. For instance, if a cell's temperature begins to rise, a smart BMS can reduce the charging current or even temporarily halt the operation to allow the battery to cool down. It can also communicate with other system components, such as hybrid inverters, to coordinate a safe shutdown if critical temperature thresholds are exceeded. This proactive approach significantly mitigates the risk of thermal runaway and extends the battery's operational life. According to the U.S. Department of Energy, advanced battery management systems are crucial for ensuring the safety and reliability of energy storage systems.

Key Smart BMS Settings for Overheating Prevention

Configuring your smart BMS with appropriate settings is vital for effective overheating prevention. These settings act as safeguards, ensuring the battery operates within its safe thermal envelope.

Temperature Thresholds

Setting precise temperature thresholds is fundamental. These include:

• Charge Temperature Cut-off: The maximum temperature at which charging is allowed. Exceeding this will halt charging.
• Discharge Temperature Cut-off: The maximum temperature for discharging. Operation stops if this limit is reached.
• Low Temperature Cut-off: For LiFePO4 batteries, charging below 0°C (32°F) can cause plating damage. A smart BMS prevents charging in freezing conditions.

Typical safe operating temperatures for LiFePO4 batteries generally range from -20°C to 55°C (-4°F to 131°F) for discharge, and 0°C to 45°C (32°F to 113°F) for charge, though specific manufacturer recommendations should always be followed.

Current Limits

Controlling the current flow is essential to manage heat generation.

• Maximum Charge Current: Limits how quickly the battery can be charged. A lower current generates less heat.
• Maximum Discharge Current: Limits the power drawn from the battery. High discharge currents, especially sustained ones, can lead to significant temperature increases.

For example, a 100Ah LiFePO4 battery might have a recommended continuous charge/discharge current of 0.5C to 1C (50A to 100A), but exceeding these limits, even for short bursts, can elevate temperatures. A smart BMS dynamically adjusts these limits based on real-time temperature data, ensuring optimal thermal performance.

Voltage Cut-offs

While primarily for preventing overcharge and over-discharge, voltage cut-offs indirectly contribute to thermal management by preventing states that induce stress and heat.

• Overvoltage Protection (OVP): Stops charging if any cell voltage exceeds a safe maximum (e.g., 3.65V for LiFePO4).
• Undervoltage Protection (UVP): Disconnects the load if any cell voltage drops below a safe minimum (e.g., 2.5V for LiFePO4).

Preventing these extreme voltage states reduces the likelihood of internal damage and subsequent heat generation.

Cell Balancing

Cell balancing ensures that all individual cells within a battery pack maintain similar voltage levels. Imbalanced cells can lead to some cells being overcharged or over-discharged while others are not, causing uneven stress and localized heating. A smart BMS typically employs active cell balancing, which can transfer energy from higher-voltage cells to lower-voltage cells, promoting uniformity and reducing heat generation across the pack. This process helps extend the battery's overall lifespan and contributes significantly to thermal stability.

Fault Detection and Alarms

A smart BMS continuously monitors for anomalies such as sudden temperature spikes, unexpected voltage drops, or excessive current. Upon detecting a fault, it can trigger audible alarms, send notifications to your monitoring device, or even automatically disconnect the battery to prevent damage or fire. This early warning system is critical for proactive intervention.

Communication with Inverter/ESS Components

Modern smart BMS units can communicate seamlessly with hybrid inverters and other ESS components via protocols like CAN bus or RS485. This allows for coordinated action. For instance, if the BMS detects an overheating condition, it can signal the inverter to reduce charging power or shut down the system, preventing further temperature increases. This integrated approach enhances overall system safety and reliability.

Installation and Maintenance Best Practices

While smart BMS settings are paramount, proper installation and ongoing maintenance are equally important for preventing overheating and ensuring the longevity of your home ESS.

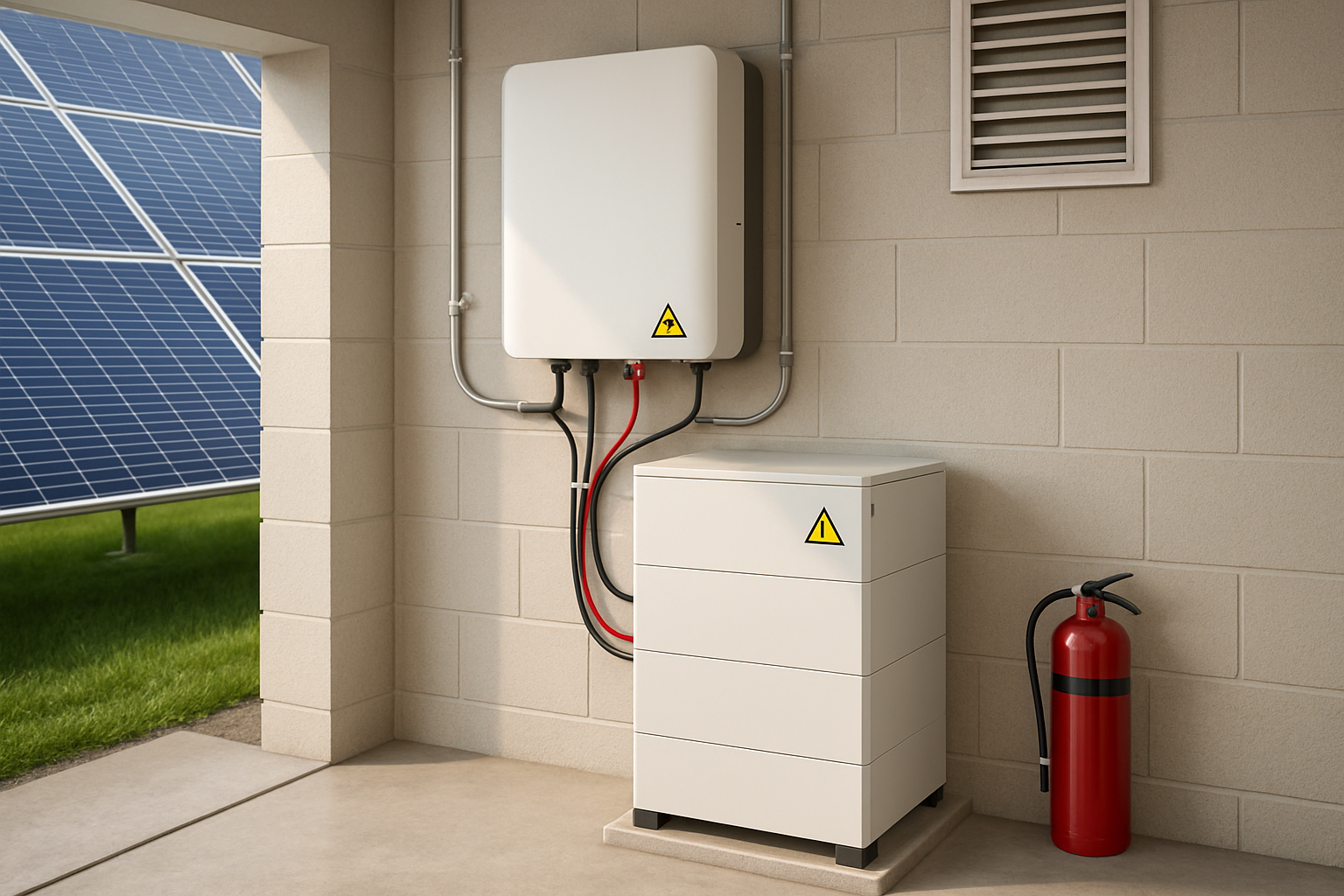

Proper Ventilation and Environmental Control

Ensure your battery system is installed in a well-ventilated area. Adequate airflow is essential for dissipating heat generated during operation. Avoid confined spaces without air circulation. If necessary, consider active cooling solutions like fans, especially in warmer climates or where the battery enclosure is sealed. Maintaining the ambient temperature within the manufacturer's specified range is also crucial. For example, the International Renewable Energy Agency (IRENA) emphasizes the importance of proper ventilation for battery safety in energy storage systems.

Regular Monitoring and Firmware Updates

Regularly check your ESS monitoring interface for battery temperature readings and any alerts from the BMS. Many smart BMS units offer remote monitoring capabilities via mobile apps or web portals, allowing you to keep an eye on your system from anywhere. Additionally, keep the BMS firmware updated to benefit from the latest safety features, bug fixes, and performance enhancements provided by the manufacturer.

Professional Installation

While some aspects of ESS can be DIY, professional installation is strongly recommended for battery systems. Qualified installers ensure that all components, including the BMS, are correctly wired, configured, and integrated according to safety standards and manufacturer guidelines. This minimizes the risk of installation errors that could lead to overheating or other hazards.

Ensuring Long-Term Safety and Performance

Maintaining optimal operating temperatures through intelligent BMS settings is a cornerstone of a safe and reliable home energy storage system. By understanding the causes of overheating and leveraging the advanced capabilities of a smart BMS – including precise temperature thresholds, current limits, voltage cut-offs, and active cell balancing – you can significantly enhance the safety and extend the operational life of your battery investment. The integration of high-performance, safe, and reliable LiFePO4 batteries with sophisticated BMS technology provides a robust foundation for achieving energy independence. Prioritizing these technical details and best practices ensures your home ESS delivers consistent, worry-free power for years to come.
