The Ultimate DIY Solar Kit Blueprint: Inverter, Wiring, Permits

Taking control of your energy production with a DIY solar kit is a powerful step toward independence. But a successful project relies on more than just mounting panels on a roof. A solid blueprint is necessary, one that focuses on the technical core of your system. This guide provides that blueprint, concentrating on three critical pillars: selecting the right inverter, executing flawless wiring, and navigating the permitting process. Mastering these areas ensures your system is not only functional but also safe, efficient, and compliant.

Selecting the Heart of Your System: The Solar Inverter

The solar inverter is the hardworking centerpiece of your solar installation. It performs the crucial task of converting the Direct Current (DC) electricity produced by your solar panels into Alternating Current (AC) electricity that powers your home. This component is a major part of what experts refer to as the 'balance of system' (BOS), which includes all parts of the solar setup besides the panels themselves. According to a report by the International Energy Agency, these BOS components are vital for delivering usable power.

Understanding Inverter Types and Functions

Not all inverters are created equal. The three primary types you will encounter are string inverters, microinverters, and hybrid inverters. String inverters are a cost-effective solution where panels are wired together in a series, feeding into a single inverter. Microinverters are installed on each individual panel, optimizing the output of each one separately, which is ideal for roofs with partial shading. Hybrid inverters are the most versatile, designed to work with battery storage systems from the start, allowing you to store excess energy for later use.

Sizing Your Inverter for Optimal Performance

Properly sizing your inverter is critical. An undersized inverter will 'clip' or waste potential energy from your panels during peak production hours. An oversized one may operate inefficiently and cost more than necessary. A key concept is the Inverter Loading Ratio (ILR), which is the ratio of your solar panel array's DC power rating to the inverter's AC power rating. An ILR of 1.15 to 1.25 is common, meaning the DC capacity of the panels is 15-25% higher than the inverter's capacity. This can maximize energy harvest throughout the day, not just at the sun's peak. As research supported by the U.S. Department of Energy's SunShot program has shown, advanced inverters are also key to helping the grid respond to electrical disturbances, making them a forward-thinking choice for grid-tied systems.

The Blueprint for Safe and Efficient Wiring

The wiring is the vascular system of your solar installation. It carries the power you generate to where it needs to go. Getting it right is a matter of both performance and safety. A poorly executed wiring job can lead to significant power loss, create fire hazards, and will not pass an electrical inspection.

Essential Wiring Components and Tools

Your DIY solar kit blueprint must include the correct materials. This means using UV-resistant PV wire specifically designed for solar applications. You will also need proper connectors, conduit to protect the wiring from physical damage, junction boxes, and correctly rated circuit breakers. One of the most important choices is the wire gauge (thickness). Using a wire that is too thin for the current and distance will cause voltage drop, which is a loss of energy as heat. Always use a voltage drop calculator to select the right gauge for your specific layout.

A Step-by-Step Wiring Guide

The wiring process follows a logical path. First, you connect the panels to each other, either in series to increase voltage or in parallel to increase amperage. These connections lead to a combiner box and then run to the inverter. From the inverter, AC power is wired to your home's main electrical service panel. For this final connection, innovative devices exist that can simplify the process. An EERE success story highlights a device that fits between the electric meter and its socket, removing the need for complex wiring inside the home or expensive panel upgrades. Proper grounding of all components is a non-negotiable safety step to protect against shocks and surges.

Navigating the Permitting and Inspection Maze

Many DIY enthusiasts focus on the hardware, but the paperwork is just as important. The permitting, inspection, and interconnection (PII) process can feel daunting, but it is a structured part of ensuring your system is safe and legal. These are recognized 'soft costs' that are integral to any solar project.

Why Permits Are Usually Non-Negotiable

The claim that some kits do not need permits is often misleading. If your system connects to the utility grid, a permit is almost certainly required. Permits ensure your project adheres to local building and electrical codes, which are in place to prevent fires and ensure structural integrity. Without a permit and a passed inspection, your utility company will not grant you Permission to Operate (PTO), and your homeowner's insurance may not cover any incidents related to the solar installation.

The Typical Permitting Process

The process begins with your local Authority Having Jurisdiction (AHJ), usually the city or county building department. You will need to submit a plan set, which typically includes a site plan showing panel layout, a wiring diagram (also called a single-line diagram), and specification sheets for your major components like panels and the inverter. After the AHJ reviews and approves your plans, they will issue the permit, allowing you to begin work. Once the installation is complete, you must schedule one or more inspections before the system can be activated.

Integrating High-Performance Storage

A truly independent energy system often includes storage. This allows you to use your solar power long after the sun has set, providing resilience during grid outages and maximizing your use of clean energy.

The Role of Batteries in Your DIY System

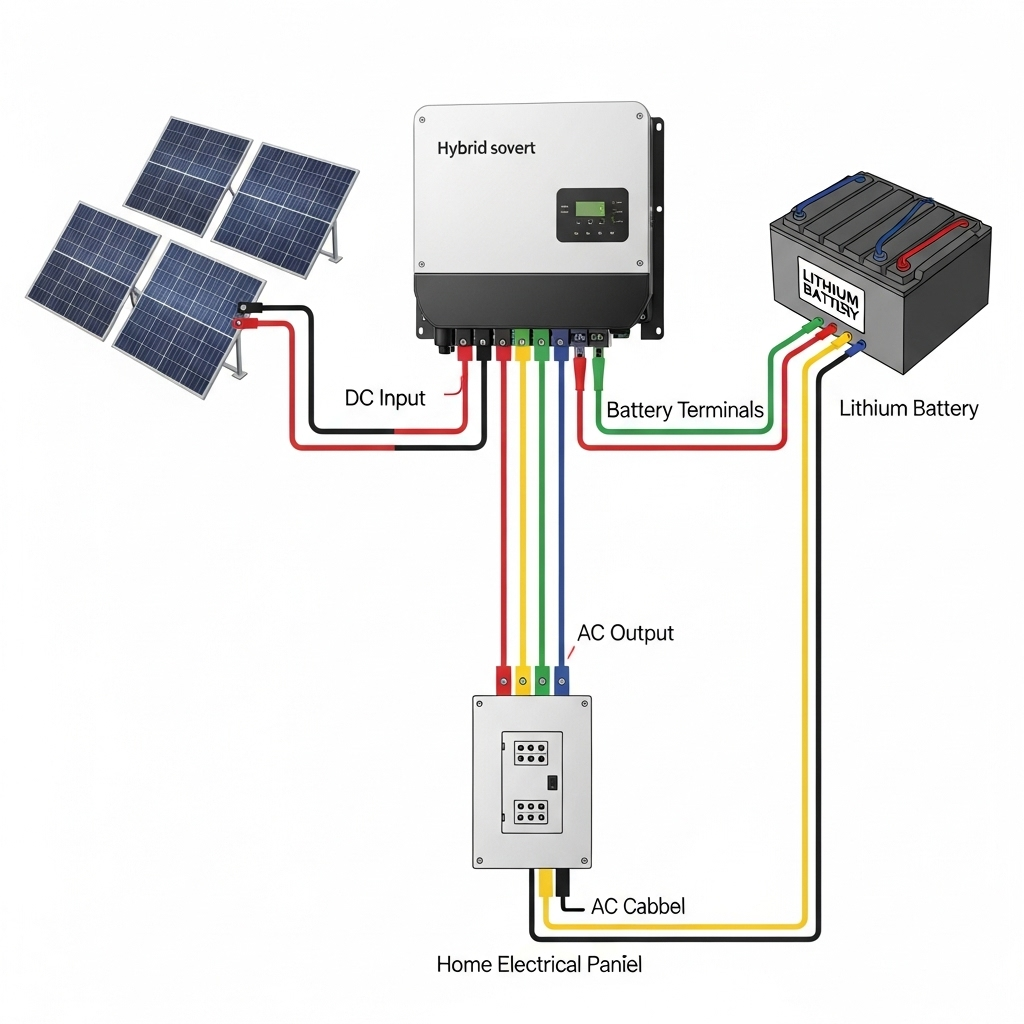

Modern battery technologies, particularly Lithium Iron Phosphate (LiFePO4), offer a safe, reliable, and long-lasting way to store solar energy. A hybrid inverter is designed to manage this process seamlessly, directing excess solar generation to charge the batteries and drawing from them when the home's demand exceeds solar production. This integration turns your home into a self-sufficient microgrid. The International Renewable Energy Agency (IRENA) continually tracks the falling costs of renewable technologies, making the addition of battery storage more accessible than ever.

Maximizing Your System's Output

Building a great system goes beyond just the main components. Understanding the nuances of battery performance is critical for designing a system that meets your expectations for energy independence. For a deep dive into metrics like Depth of Discharge (DoD), round-trip efficiency, and cycle life, which directly impact how much usable energy you get from your investment, our Ultimate Reference for Solar Storage Performance provides essential data and insights. Factoring these performance metrics into your blueprint ensures your system delivers reliable power for years to come.

Your Blueprint for Success

Building a DIY solar kit is an ambitious and rewarding project. By focusing on this blueprint—meticulous inverter selection, precise and safe wiring, and diligent navigation of the permit process—you lay the groundwork for a successful outcome. This technical foundation is what transforms a collection of components into a reliable power source, moving you closer to achieving true energy independence.

Frequently Asked Questions

What size inverter do I need for a 5kW solar array?

For a 5kW (5,000 watt) DC solar array, you would typically look for an inverter with an AC output between 4kW and 5kW. Using a slightly smaller inverter (e.g., 4.5kW) can sometimes be more efficient and cost-effective, as solar panels rarely operate at their absolute maximum rating. This practice is known as inverter 'clipping' or having a higher Inverter Loading Ratio (ILR), and it can maximize your total energy harvest.

Can I wire my solar panels myself?

Yes, wiring is a common part of a DIY solar installation, but it demands a strong understanding of electrical principles and local codes. You must be comfortable working with DC and AC electricity, calculating wire gauges, and making secure connections. If you have any doubts, hiring a licensed electrician for the final connection to your home's main panel is a wise safety measure. *Disclaimer: This information is for educational purposes only and does not constitute professional electrical advice.*

How long does it take to get a solar permit?

The timeline for receiving a solar permit varies dramatically depending on your municipality. In some areas with streamlined processes, it can take as little as a few weeks. In other jurisdictions, it may take two to three months or longer. It is crucial to contact your local building department early in your planning phase to understand their specific requirements and timelines.

What is the difference between a string inverter and a microinverter?

A string inverter connects to a series (a 'string') of solar panels and converts the combined DC power to AC power at a single, centralized point. Microinverters are small inverters installed on the back of each individual solar panel. They convert DC to AC at the panel level. This makes them more effective at handling partial shading, as the poor performance of one panel will not affect the others in the array.
