Sizing an Energy Storage System (ESS) for hybrid inverter setups requires precise calculations that balance daily energy needs, system efficiency, and backup requirements. Many installers underestimate the complexity, leading to undersized systems that fail during peak demand periods or oversized configurations that waste resources.
After working with hundreds of hybrid inverter installations, I've seen the same sizing mistakes repeatedly. The key lies in understanding how hybrid inverters manage power flow between solar panels, batteries, and the grid – a dynamic process that affects your ESS capacity requirements significantly.
Understanding Hybrid Inverter Power Management

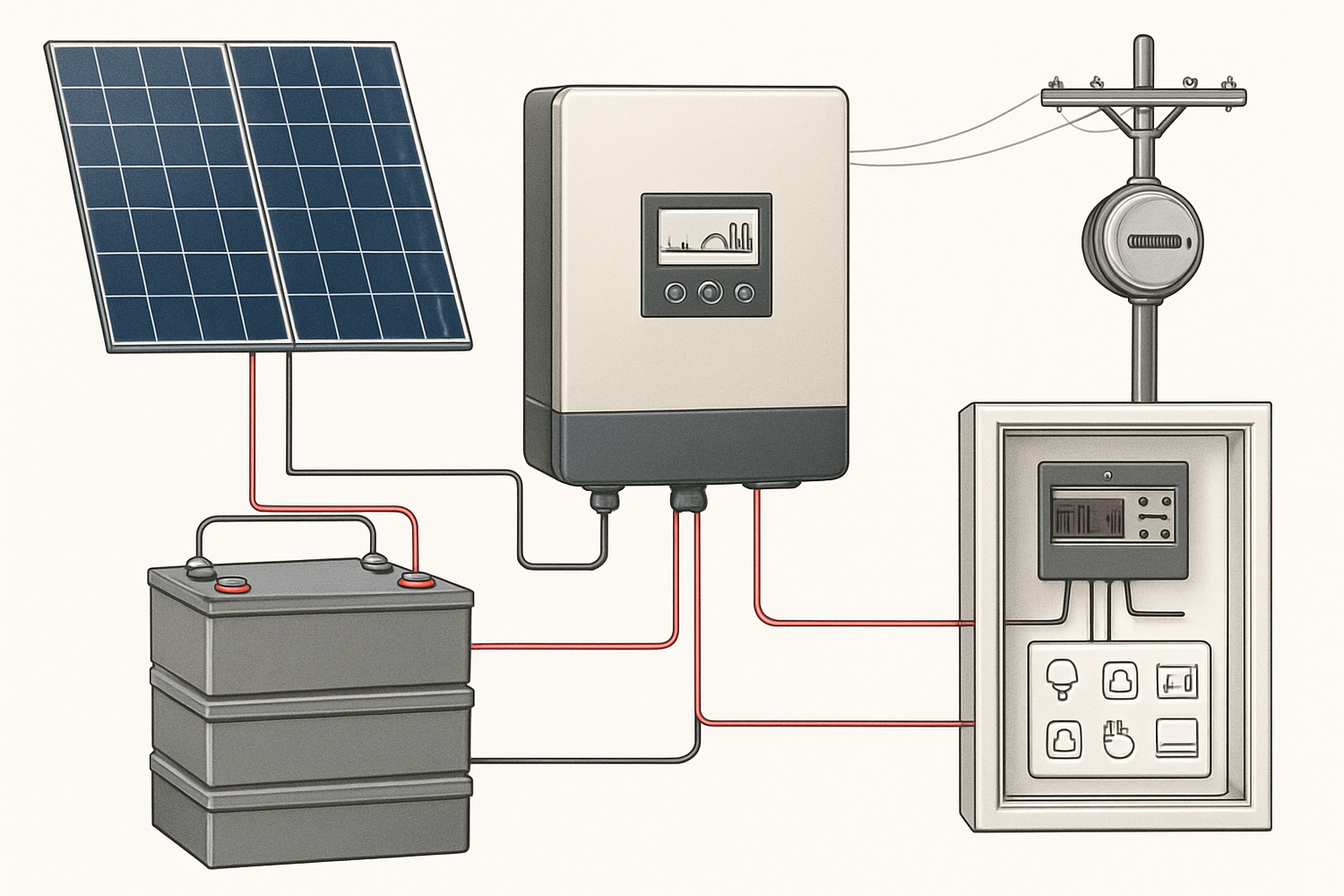

Hybrid inverters operate differently from standard grid-tie or off-grid inverters. They continuously prioritize power sources: solar first, then battery, finally grid power. This hierarchy directly impacts your ESS sizing calculations.
During peak solar production, excess energy charges your batteries while supplying loads. When solar drops below load requirements, the hybrid inverter seamlessly draws from your ESS. Understanding this power flow helps determine the minimum battery capacity needed for seamless operation.
Key Efficiency Factors in Hybrid Systems
Hybrid inverters introduce multiple conversion stages, each with efficiency losses. DC-DC conversion for battery charging typically operates at 95-97% efficiency, while DC-AC conversion for load supply achieves 94-96% efficiency. These losses compound, requiring larger ESS capacity than simple calculations suggest.
According to IRENA's Electricity Storage Valuation Framework, system efficiency considerations are crucial for proper sizing, as they directly impact the usable energy available from your battery bank.
Calculating Your Base ESS Capacity Requirements
Start with your daily energy consumption in kWh. Multiply by 1.2 to account for system losses, then divide by your chosen depth of discharge (DoD). For LiFePO4 batteries, use 90% DoD; for lead-acid, use 50% DoD maximum.
Formula: ESS Capacity (kWh) = (Daily Load × 1.2) ÷ DoD
Example: 15 kWh daily load with LiFePO4 batteries:
- Base requirement: (15 × 1.2) ÷ 0.9 = 20 kWh
- This represents your minimum ESS size for single-day autonomy
Peak Load Considerations
Your hybrid inverter must handle instantaneous peak loads, not just daily energy totals. Calculate your maximum simultaneous load in kW. Your ESS must support this peak demand even when solar production is zero.
Modern LiFePO4 batteries typically provide 1C discharge rates, meaning a 20 kWh battery delivers 20 kW peak power. However, factor in inverter limitations and cable losses when determining actual available power.
Autonomy Days and Backup Requirements
Autonomy days represent how long your ESS operates without solar input or grid power. Most residential hybrid systems require 2-3 autonomy days for reliable operation during extended cloudy periods.
Multiply your base ESS capacity by desired autonomy days:
- 2-day autonomy: 20 kWh × 2 = 40 kWh total capacity
- 3-day autonomy: 20 kWh × 3 = 60 kWh total capacity
Regional weather patterns influence autonomy requirements. Areas with frequent multi-day cloud cover need longer autonomy periods, while consistently sunny regions can operate with shorter backup duration.
Grid-Interactive vs Off-Grid Sizing
Grid-interactive hybrid systems can reduce ESS requirements since grid power provides backup. Size for time-of-use optimization and brief outages rather than extended autonomy. Off-grid hybrid systems require full autonomy sizing plus seasonal adjustments for reduced winter solar production.
Scaling Factors and System Integration
Temperature affects battery capacity significantly. Cold weather reduces available capacity by 10-20%, requiring oversizing in northern climates. Conversely, excessive heat degrades battery lifespan, making thermal management crucial for long-term performance.
Consider future load growth when sizing your ESS. Adding battery capacity later often proves more expensive than initial oversizing. Plan for 20-30% growth over the system's 15-20 year lifespan.
Inverter Compatibility and Voltage Considerations
Match your ESS voltage to your hybrid inverter specifications. Common configurations include:
| System Voltage | Typical ESS Size Range | Best Applications |
|---|---|---|
| 12V | 1-5 kWh | Small cabins, RVs |
| 24V | 3-15 kWh | Medium homes, workshops |
| 48V | 10-100+ kWh | Large homes, commercial |
Higher voltage systems offer better efficiency and reduced cable costs for larger installations. The IRENA Grid Codes for Renewable Powered Systems report emphasizes the importance of proper voltage matching for grid-forming inverter systems.
Real-World Sizing Examples and Validation
A typical 3-bedroom home consuming 25 kWh daily with a 5 kW hybrid inverter requires approximately 35-45 kWh ESS capacity for reliable operation. This accounts for efficiency losses, 2-day autonomy, and 15% future growth margin.
Commercial applications scale proportionally but require careful load analysis. A small business with 100 kWh daily consumption and critical load requirements might need 150-200 kWh ESS capacity, depending on backup duration needs and peak demand characteristics.
Validation Through Monitoring
After installation, monitor actual performance against calculations. Track daily energy flows, peak demands, and battery state-of-charge patterns. Adjust sizing recommendations for future installations based on real-world data rather than theoretical calculations alone.
Modern hybrid inverters provide detailed monitoring capabilities, enabling precise validation of sizing decisions and identification of optimization opportunities.
Cost-Benefit Analysis and Optimization
Larger ESS capacity increases upfront costs but provides greater energy security and potential grid services revenue. Calculate payback periods considering time-of-use electricity rates, demand charges, and backup power value.
LiFePO4 batteries cost $400-600 per kWh installed, while system integration adds 20-30% to total project costs. However, proper sizing prevents costly retrofits and ensures optimal return on investment over the system's operational life.
The key to successful ESS sizing lies in balancing capacity, cost, and reliability requirements specific to your application. Undersizing saves money initially but compromises performance, while oversizing provides security at higher cost. Professional load analysis and careful calculation ensure optimal results for your hybrid inverter installation.
