Sizing off-grid solar systems requires mathematical precision rather than guesswork. After working with hundreds of remote installations across diverse climates, I've learned that accurate PV array and LiFePO4 battery sizing determines the difference between reliable energy independence and costly system failures.
According to the IEA Technology Roadmap for Solar Photovoltaic Energy, off-grid systems ranging from 30 USD for small PV systems to 75,000 USD for village mini-grids are now economically and technically feasible. The key lies in precise component sizing that matches your actual energy demands.
Understanding Your Energy Foundation
Precise sizing starts with accurate load assessment. Unlike grid-tied systems where you can draw unlimited power, off-grid systems must generate and store every watt-hour you consume.
Calculate your daily energy consumption using this systematic approach:
- List every electrical device with its power rating
- Estimate daily usage hours for each device
- Multiply watts by hours to get watt-hours (Wh)
- Sum all devices for total daily consumption
For example, a typical remote cabin might consume 3,500 Wh daily, including LED lighting (200 Wh), refrigeration (1,800 Wh), electronics (800 Wh), and water pumping (700 Wh). This baseline becomes your sizing foundation.

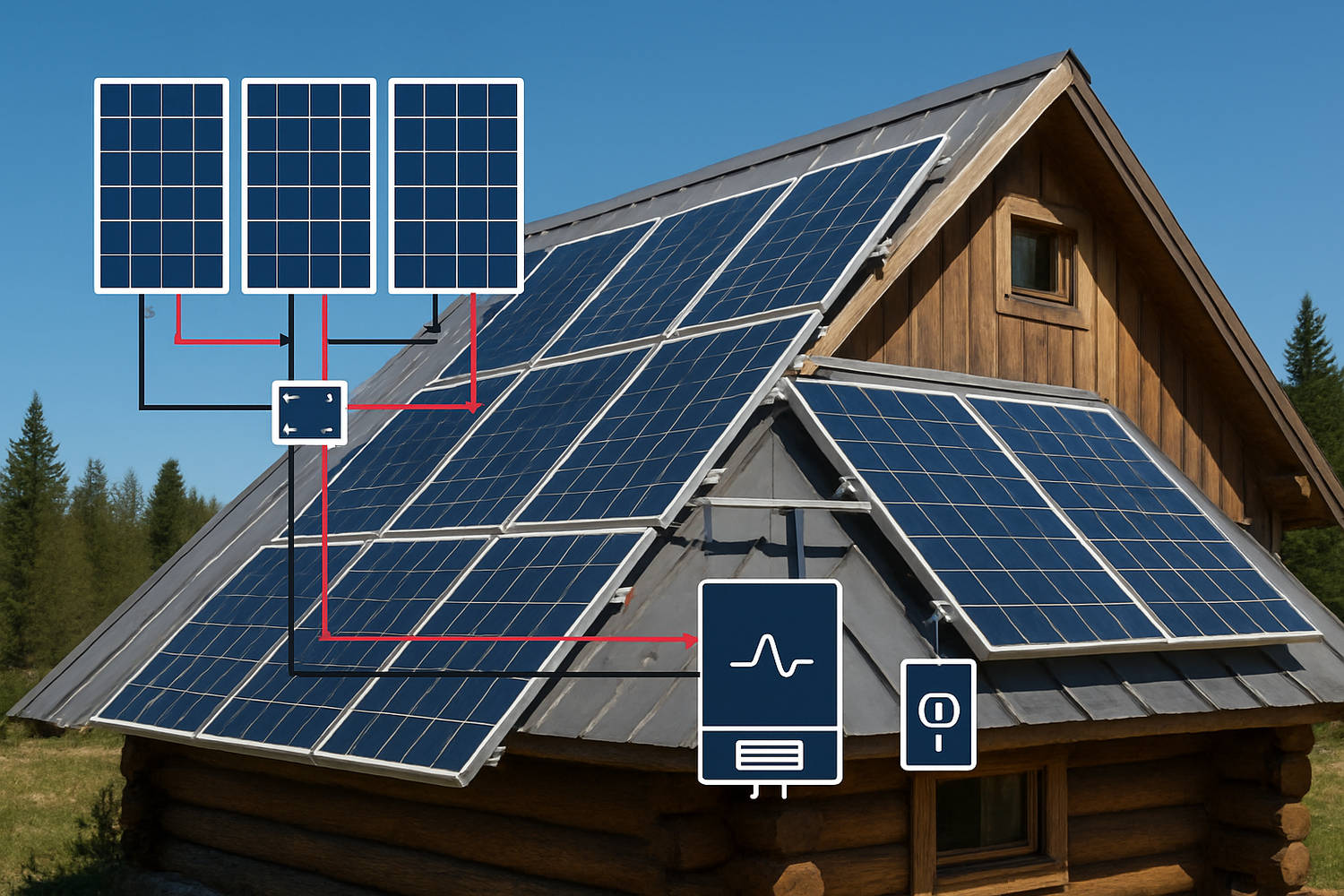

PV Array Sizing: Beyond Simple Math
PV array sizing involves multiple efficiency factors that many calculators oversimplify. The basic formula appears straightforward:
PV Array Size (W) = Daily Load (Wh) ÷ Peak Sun Hours ÷ System Efficiency
System efficiency typically ranges from 0.75 to 0.85, accounting for:
- Inverter losses: 8-12%
- Battery charge/discharge losses: 10-15%
- Wiring losses: 2-3%
- Temperature derating: 5-10%
- Dust and soiling: 2-5%
Using our 3,500 Wh example with 4.5 peak sun hours and 0.80 system efficiency:
PV Array Size = 3,500 Wh ÷ 4.5 hours ÷ 0.80 = 972W
Round up to 1,000W minimum, but I recommend 1,200W (20% oversizing) for seasonal variations and system degradation over time.
LiFePO4 Battery Bank Calculations
LiFePO4 batteries have revolutionized off-grid energy storage with their superior cycle life and usable capacity. Unlike lead-acid batteries limited to 50% depth of discharge, LiFePO4 batteries can safely discharge to 90-95% capacity.
The precise sizing formula considers multiple factors:
Battery Capacity (Ah) = (Daily Load × Autonomy Days) ÷ (System Voltage × Usable DoD × Battery Efficiency)
| Battery Type | Usable DoD | Round-trip Efficiency | Cycle Life (80% DoD) |
|---|---|---|---|
| LiFePO4 | 90-95% | 95-98% | 6,000-10,000 |
| Lead-Acid | 50% | 80-85% | 500-1,200 |
For our 3,500 Wh daily load with 3 autonomy days in a 48V system:
Battery Capacity = (3,500 × 3) ÷ (48 × 0.90 × 0.96) = 253 Ah
This translates to approximately 12.1 kWh of LiFePO4 storage capacity.
Real-World Sizing Considerations
Theoretical calculations provide starting points, but real installations require additional considerations based on environmental conditions and usage patterns.
Temperature Impact on Performance
Both PV panels and batteries perform differently across temperature ranges. PV panels lose approximately 0.4% efficiency per degree Celsius above 25°C, while LiFePO4 batteries maintain stable performance from -20°C to 60°C.
In hot climates, increase PV array sizing by 10-15% to compensate for temperature losses. Cold climates require battery capacity increases of 20-30% due to reduced chemical activity at low temperatures.
Seasonal Variations and Peak Demand
Size your system for the worst-case scenario, typically winter months with reduced solar irradiance and increased heating loads. According to IEA Solar Energy Perspectives, seasonal irradiance variations can reduce PV output by 40-60% in northern latitudes.
December solar irradiance in northern climates often drops to 1.5-2.0 peak sun hours compared to 6-7 hours in summer. Size your PV array for winter conditions to ensure year-round reliability.
Integration and System Optimization
Precise sizing extends beyond individual components to system integration. The inverter capacity must handle peak loads while maintaining efficiency at typical operating levels.
Size inverters at 125-150% of maximum simultaneous load to prevent overloading during startup surges. For our example system with 1,500W peak load, a 2,000W inverter provides adequate headroom.
Charge Controller Selection
MPPT charge controllers should handle 125-130% of PV array current to accommodate high irradiance conditions. For a 1,200W array at 48V (25A), select a 30-35A MPPT controller.
Validation and Performance Monitoring
After installation, monitor actual performance against calculated expectations. Key metrics include:
- Daily PV generation vs. predicted output
- Battery state of charge patterns
- System efficiency measurements
- Load factor analysis
Modern monitoring systems provide real-time data enabling system optimization and early problem detection. Expect 5-10% variations from calculated values due to environmental factors and component tolerances.
Economic Optimization Strategies
While precise sizing ensures reliability, economic optimization balances performance with cost. LiFePO4 batteries cost 2-3 times more than lead-acid initially but deliver superior lifecycle value through longer lifespan and deeper discharge capability.
Consider modular expansion capabilities when sizing initial systems. Start with 80% of calculated capacity and add components as loads increase or budget allows. This approach reduces upfront investment while maintaining upgrade flexibility.
Moving Beyond Estimates to Precision
Precise off-grid PV array and LiFePO4 battery sizing requires systematic analysis of loads, environmental conditions, and component characteristics. The formulas and methods outlined here eliminate guesswork while ensuring reliable energy independence.
Start with accurate load assessment, apply proper efficiency factors, and size for worst-case conditions. Monitor actual performance and adjust calculations based on real-world data. This methodical approach delivers systems that perform reliably for decades while optimizing both performance and investment.
Remember that undersized systems lead to frequent blackouts and premature component failure, while oversized systems waste capital without proportional benefits. Precise sizing strikes the optimal balance between reliability, performance, and cost-effectiveness.
