The idea of setting up your own solar power system in a single weekend is appealing. It suggests a fast track to lower electricity bills and greater energy independence. For a person with solid DIY skills and meticulous preparation, a weekend installation is an ambitious yet achievable goal. This guide outlines the process, focusing on what it takes to complete a DIY solar kit installation successfully and safely.
Pre-Weekend Prep: The Blueprint for Success
The success of your weekend project is determined long before Saturday morning. Thorough preparation is the most critical phase. Rushing this stage will almost certainly lead to delays, frustration, and potential safety hazards. A well-planned project ensures a smooth and efficient installation.
Assessing Your Home and Energy Needs
First, evaluate your property's suitability for solar. Your roof should be in good condition with at least 10-15 years of life remaining. You don't want to install a solar array only to remove it a few years later for roof repairs. Identify a section of your roof that receives maximum direct sunlight, ideally facing south (in the Northern Hemisphere), with minimal shading from trees or other buildings. Next, analyze your electricity bills from the past year to understand your average energy consumption. This data is vital for sizing your DIY solar power system correctly, ensuring you choose a kit with the right number of panels, an appropriately sized inverter, and adequate battery storage.
Navigating Permits and Regulations
Before purchasing any equipment, you must understand local regulations. Contact your local planning department and homeowners' association (HOA) to learn about any restrictions or permit requirements for residential solar installations. You will also need to coordinate with your utility company for interconnection—the process of connecting your system to the grid. Some utilities have specific requirements and paperwork that can take time to process. As noted in materials from the U.S. Department of Energy, the interconnection process can sometimes cause delays, so starting this conversation early is key. This step ensures your system is compliant and safe.
Disclaimer: This information is for educational purposes only and does not constitute legal or financial advice. Always consult with local authorities and qualified professionals.
Gathering Your Tools and Team
A successful installation requires the right tools. Create a comprehensive list that includes a sturdy extension ladder, a reliable drill, socket wrenches, a torque wrench, wire strippers, and essential safety gear like a harness, hard hat, and non-slip footwear. Working with electricity and at heights demands a focus on safety. It's also highly recommended to have at least one helper. An extra set of hands is invaluable for lifting heavy panels, managing tools, and ensuring overall safety on the job site.
The Weekend Installation: A Step-by-Step Guide
With all your prep work complete, the weekend is dedicated to execution. A disciplined timeline will help you stay on track. The goal is to complete the structural and mechanical work on Saturday, leaving the electrical connections and system checks for Sunday.
Day 1 (Saturday): Mounting and Racking
Saturday is all about the physical framework. Start early by laying out the mounting hardware on your roof according to the manufacturer's instructions. Measure carefully to ensure your array will be straight and properly positioned. Install the roof mounts, using appropriate flashing and sealant to create a waterproof seal at every penetration point. This step is critical for preventing leaks. Once the mounts are secure, assemble and attach the racking system. This metal grid is what the solar panels will sit on, so ensure it is level and torqued to specification.
Day 2 (Sunday): Panels, Wiring, and Connection

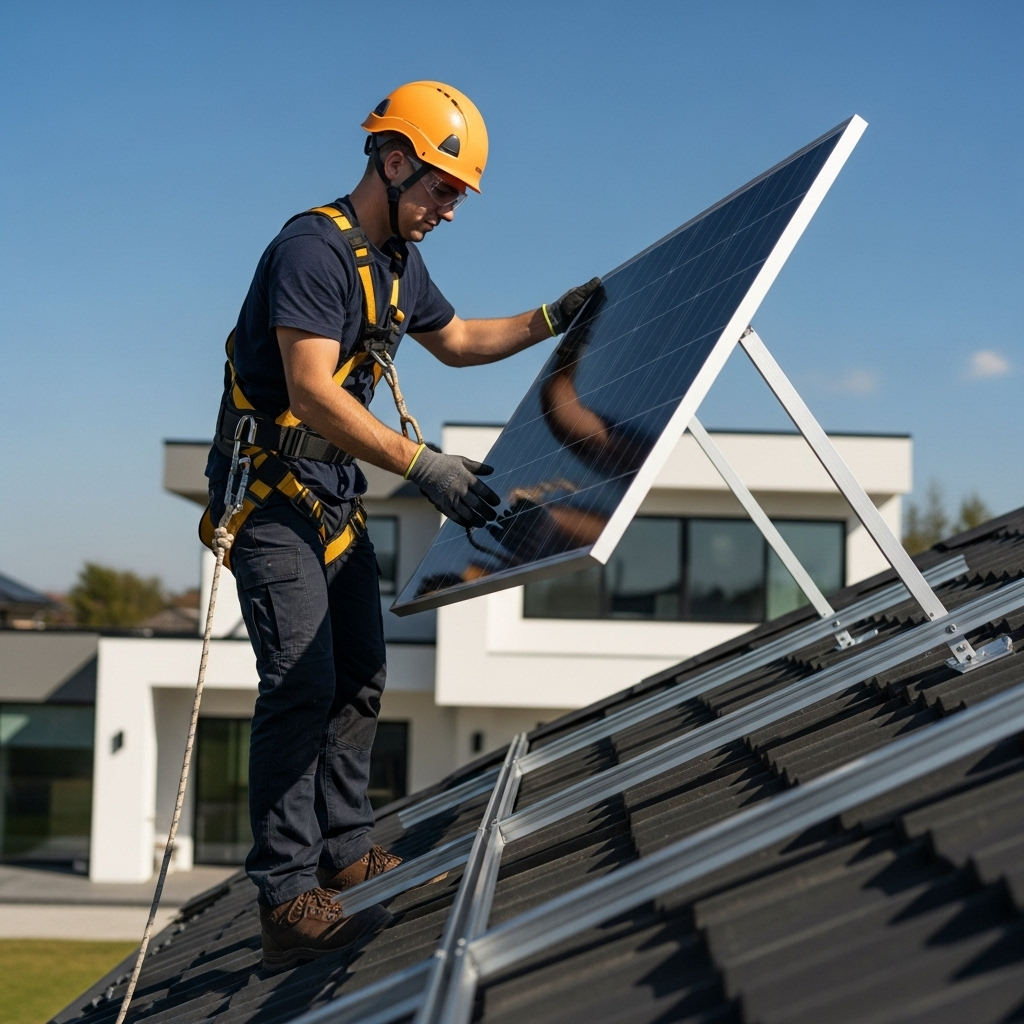

Sunday is for bringing the system to life. Carefully lift the solar panels onto the roof and secure them to the racking system. Once the panels are in place, you can begin the wiring. This typically involves connecting the panels to each other in 'strings' and then running the wires down to your power equipment location. From there, you will connect the wiring to the solar inverter, which converts the DC electricity from the panels into AC electricity for your home. If your kit includes a battery, such as a high-performance LiFePO4 unit, you will also connect it according to the system diagram.
Maximizing Your System's Performance
Getting your system installed is a major accomplishment. Now, you can focus on ensuring it operates at peak efficiency. A few key factors influence how much power your solar array will generate over its lifetime.
Panel Orientation and Tilt
The direction and angle of your solar panels have a significant impact on energy production. A study on solar power from the International Energy Agency, Next Generation Wind and Solar Power, highlights that adjusting the tilt can modify the annual generation profile, potentially increasing winter output. While a south-facing orientation is often ideal, even east-west orientations can be effective. The optimal tilt angle depends on your latitude and whether you want to maximize year-round production or focus on a specific season.
Understanding Your Inverter and Battery
The solar inverter and battery are the brains and heart of your storage system. The inverter manages the flow of energy, while a lithium battery provides a reliable power source during outages or at night. Understanding how these components work together is key to achieving energy independence. For a detailed analysis of how to measure the effectiveness of your setup, it's helpful to review the ultimate reference for solar storage performance, which breaks down important metrics and what they mean for your system's output.
| Component | Function | Key Consideration |
|---|---|---|
| Solar Panels | Convert sunlight into DC electricity | Efficiency, wattage, and physical size |
| Inverter | Converts DC electricity to usable AC electricity | Type (string, micro, hybrid), capacity, and efficiency |
| Battery | Stores excess energy for later use | Capacity (kWh), chemistry (LiFePO4), and depth of discharge |
| Racking | Secures panels to the roof or ground | Material (aluminum), durability, and compatibility |
Your Path to Energy Independence
Completing a DIY solar kit installation in a weekend is a significant undertaking that requires skill, planning, and a commitment to safety. While challenging, the reward is a tangible reduction in your reliance on the grid and a step toward a more sustainable energy future. With careful preparation and a methodical approach, you can successfully set up your own solar power system and enjoy the benefits for years to come.
Frequently Asked Questions
How much can I save with a DIY solar kit?
Savings vary based on your electricity rates, system size, and sun exposure. By eliminating professional installation labor costs, the initial investment is lower, potentially shortening the payback period. Over the 25+ year lifespan of the panels, the savings on utility bills can be substantial.
Do I need to be an electrician to install a solar kit?
While you don't always need to be a licensed electrician for the entire installation, the final connection to your home's electrical panel and the grid often requires a qualified professional. It is crucial to check local regulations, as some jurisdictions mandate that all electrical work be performed by a licensed electrician to ensure safety and code compliance.
What are the main components of a DIY solar kit?
A typical DIY solar kit includes solar panels, a solar inverter to convert electricity from DC to AC, racking and mounting hardware to attach the panels to your roof, and the necessary wiring and connectors. Many modern kits also include an energy storage component, such as a lithium battery, to store excess power.
