Choosing a solar energy system involves critical decisions, especially when it comes to the inverter and Balance of System (BOS) components. These choices fundamentally shape your system's performance, reliability, and how it interacts with the utility grid or operates independently. You need to understand the distinct requirements for off-grid and grid-tied setups to build a robust and efficient energy solution.
Understanding Inverters: The Core of Your Energy System

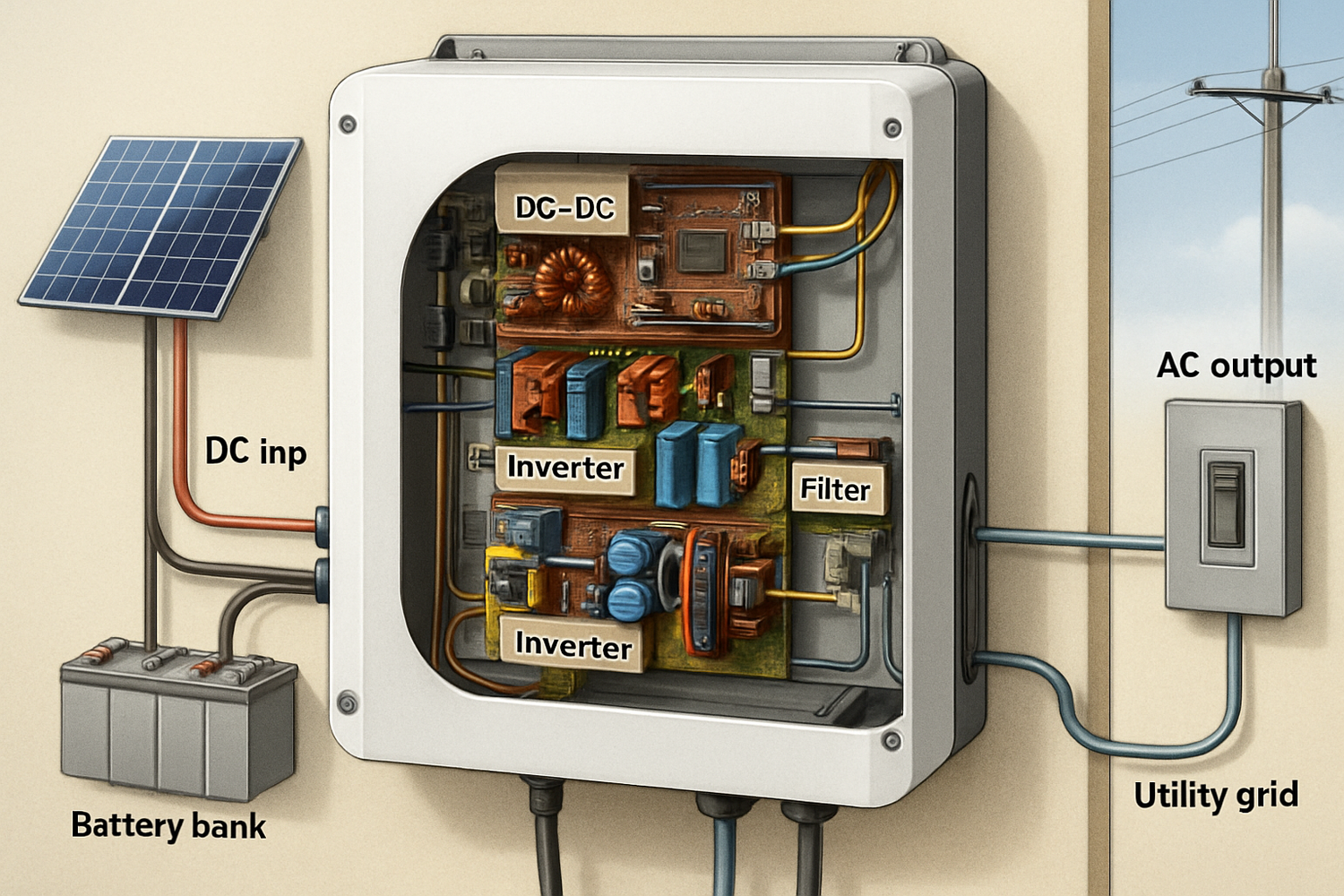

Inverters are central to any photovoltaic (PV) system. They transform the direct current (DC) electricity generated by solar panels into alternating current (AC), which powers most homes and businesses. This conversion process is essential for making solar energy usable. According to the IEA, PV systems typically require an inverter to convert DC from modules into AC.
Grid-Tied Inverters: Integrating with the Utility
Grid-tied inverters, often called grid-following inverters, are designed to synchronize with the utility grid. They rely on the grid's presence to operate, matching its voltage and frequency. These inverters prioritize sending excess solar electricity back to the grid, often through net metering programs. Advanced grid-tied inverters, sometimes referred to as smart inverters, offer functionalities like reactive power support to regulate voltage and frequency, helping grid operators manage solar production levels. The U.S. Department of Energy highlights that advanced inverters are crucial for high solar PV penetration due to their smart functionalities and ability to maintain a balanced grid.
Off-Grid Inverters: Enabling Independence
Off-grid inverters, or grid-forming inverters, create their own stable AC waveform, effectively forming a local grid. This capability is vital for systems operating without a utility connection. They can manage power flow between solar panels, batteries, and loads, and crucially, provide black-start capability—meaning they can initiate power production even when the system is completely down. This functionality is not yet a mandatory requirement in most grid codes, but there is growing interest. IRENA notes that grid-forming capability is not yet required from inverter-based generators in any grid code as of 2021, though some regions are developing specifications.
Hybrid Inverters: Bridging Both Worlds
Hybrid inverters combine the functionalities of both grid-tied and off-grid inverters. They can connect to the grid, charge batteries from solar or the grid, and provide backup power during outages by operating in an off-grid mode. This flexibility offers the best of both worlds: grid resilience with the option for energy independence.
Balance of System (BOS) Components: The Supporting Structure
The Balance of System (BOS) includes all components of a PV system except the solar panels themselves. These elements are critical for the system's safety, efficiency, and longevity. The IEA defines BOS components as inverters, transformers, electrical protection devices, wiring, monitoring equipment, and structural components for installing PV modules.
Key BOS Components for All Systems
Common BOS elements include wiring, circuit breakers, fuses, disconnect switches, charge controllers (for battery systems), mounting structures for panels, and monitoring systems. These components ensure safe operation, protect against electrical faults, and allow you to track system performance. Selecting high-quality, durable BOS components is just as important as choosing efficient solar panels or inverters.
BOS for Grid-Tied Systems: Focus on Grid Compliance
For grid-tied systems, BOS components must meet specific utility and electrical codes. This includes appropriate disconnects for utility workers, accurate metering for net billing, and robust overcurrent protection. The emphasis is on seamless and safe integration with the existing electrical infrastructure. The structural components, such as fixed mounting frames, are also part of the BOS.
BOS for Off-Grid Systems: Focus on Reliability and Storage
Off-grid BOS components often involve more complexity due to the need for energy storage. This includes battery banks, battery management systems (BMS), and often a dedicated charge controller to regulate the flow of electricity to and from the batteries. Robust wiring and protection are crucial to handle high currents associated with battery charging and discharging. The system must be designed to withstand environmental conditions without external grid support. IRENA highlights that mini-grids, which are often off-grid, have a decade-long track record of reliable operations in remote and demanding conditions.
Choosing for Off-Grid Systems: Achieving True Energy Independence
Designing an off-grid system means building a self-sufficient power plant. Your choices for inverters and BOS components directly impact your energy autonomy and system resilience.
Inverter Selection for Off-Grid: Prioritizing Grid-Forming Capabilities
For off-grid setups, a grid-forming inverter is non-negotiable. It must be capable of creating a stable AC waveform to power your loads and manage your battery bank. Look for inverters with high surge capacity to handle starting motors or other inductive loads. The ability to manage multiple energy sources (solar, battery, generator) is also a significant advantage. While large-scale grid-forming inverter deployment is still evolving, at the mini-grid level (from a few watts to tens of megawatts), this technology is proven. IRENA's research indicates that grid-forming inverter technologies, often linked to battery systems, enable power systems to operate without conventional generation, a proven technology at the mini-grid level.
BOS Considerations for Off-Grid: Sizing and Robustness
Sizing your battery bank correctly is paramount for off-grid reliability. You will need enough storage to cover periods without solar generation, such as nights or cloudy days. LiFePO4 batteries offer high performance and safety for these applications. Your charge controller must be appropriately sized for your solar array and battery voltage. All wiring and protective devices need to handle the maximum currents expected from your solar panels and battery bank. Over-sizing these components slightly can add a layer of safety and future-proofing.
Practical Off-Grid Scenarios
Off-grid solutions are ideal for remote cabins, farms, or homes where grid connection is unavailable or prohibitively expensive. They provide complete energy independence, allowing you to power essential loads reliably. For example, a remote farm might use an off-grid system to power irrigation pumps and essential lighting, ensuring continuous operation regardless of external infrastructure.
Choosing for Grid-Tied Systems: Enhancing Resilience and Savings
Grid-tied systems aim to reduce your electricity bill and provide backup power during outages, leveraging the existing utility infrastructure.
Inverter Selection for Grid-Tied: Smart Features and Compliance
Grid-tied systems primarily use grid-following inverters. You should select models compliant with local utility regulations and grid codes. Features like rapid shutdown, arc fault detection, and integrated monitoring are important for safety and performance. Advanced grid-tied inverters can also offer reactive power compensation and grid support functions, contributing to overall grid stability. The Electric Power Research Institute (EPRI) has laid a solid foundation for using and improving inverter technology, enabling advanced inverters to collect data and provide reactive power support.
BOS Considerations for Grid-Tied: Safety and Integration
For grid-tied systems, BOS components must ensure safe interconnection with the utility. This includes clearly marked disconnect switches, proper grounding, and overcurrent protection devices that meet national electrical codes. The mounting system for your solar panels must be robust and securely attached to your roof or ground array, designed to withstand local weather conditions. Proper planning ensures your system operates safely and efficiently while complying with all regulatory requirements.
Practical Grid-Tied Scenarios

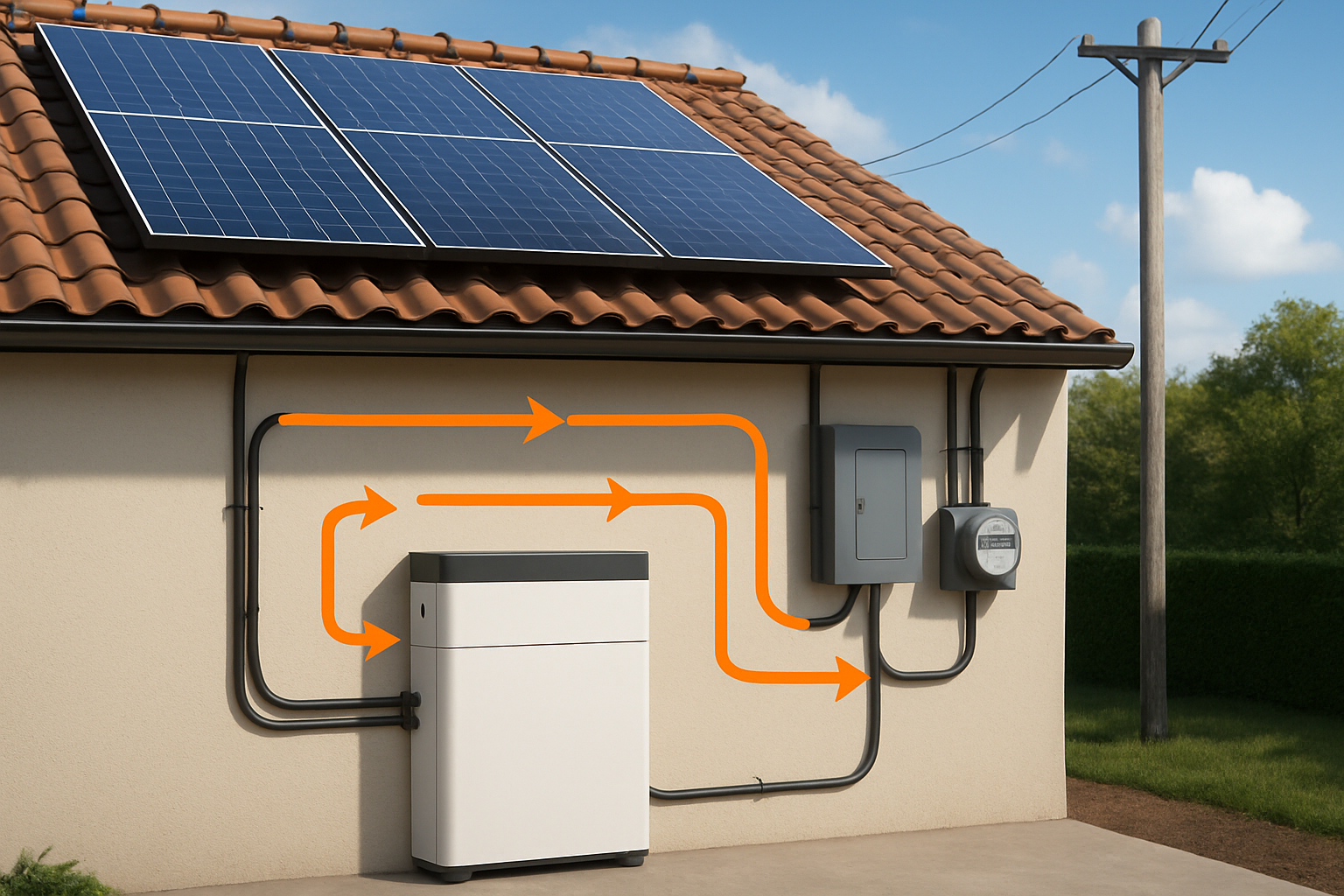

Grid-tied systems are suitable for most urban and suburban homes. They allow you to offset your electricity consumption, potentially earning credits for excess energy fed back to the grid. Many homeowners opt for grid-tied systems with battery backup to maintain power for critical loads during grid outages, blending grid reliability with personal energy security.
Making Informed Energy Decisions
Selecting the right inverter and Balance of System components is fundamental to the success of your solar energy project. Whether you seek complete energy independence with an off-grid setup or enhanced resilience and savings with a grid-tied system, understanding the distinct technical requirements is essential. Focus on reliable and scalable energy solutions tailored to your specific needs. This approach helps you achieve your energy goals with confidence.
非法律建议：本文内容仅供信息参考，不构成法律、投资或专业技术建议。在做出任何能源系统设计或安装决策前，请咨询合格的专业人士。
Frequently Asked Questions
What is the primary difference between an off-grid and a grid-tied inverter?
An off-grid (grid-forming) inverter creates its own AC waveform and operates independently, making it suitable for systems without utility connection. A grid-tied (grid-following) inverter synchronizes with the utility grid and requires its presence to operate, primarily feeding power back to the grid or supplementing home use.
Why are LiFePO4 batteries often recommended for off-grid systems?
LiFePO4 batteries are frequently chosen for off-grid systems due to their high performance, safety, long cycle life, and deep discharge capabilities. These characteristics make them reliable for sustained energy storage in independent power setups.
What does "Balance of System" (BOS) mean in solar energy?
BOS refers to all components of a solar PV system apart from the solar panels themselves. This includes inverters, wiring, mounting structures, electrical protection devices, and monitoring equipment. These components are vital for the system's safe and efficient operation.
Can a grid-tied system provide power during an outage?
Standard grid-tied systems typically shut down during a grid outage for safety reasons (to prevent back-feeding the grid while utility workers are making repairs). However, grid-tied systems equipped with battery backup and a hybrid inverter can often provide power to critical loads during an outage by switching to an off-grid operating mode.
How do grid codes impact inverter selection?
Grid codes are technical rules that define how power generation systems, including solar, must interact with the utility grid. For grid-tied systems, your inverter must comply with these codes regarding voltage, frequency, and other operational parameters. While grid-forming capabilities are not universally mandated, some regions are beginning to specify requirements for them, particularly as renewable energy penetration increases. Great Britain’s National Grid ESO, for example, published draft specifications for grid-forming inverters in 2020.
