Compatibility Checklist: DC vs AC Coupling for Retrofits

Adding a battery to an existing solar photovoltaic (PV) system offers significant benefits, from increasing self-consumption to providing backup power during outages. This process, known as retrofitting, requires careful planning. A crucial decision involves choosing between DC coupling and AC coupling for integrating your new battery storage. Each method presents unique advantages and compatibility considerations for legacy PV installations.

DC Coupling Explained

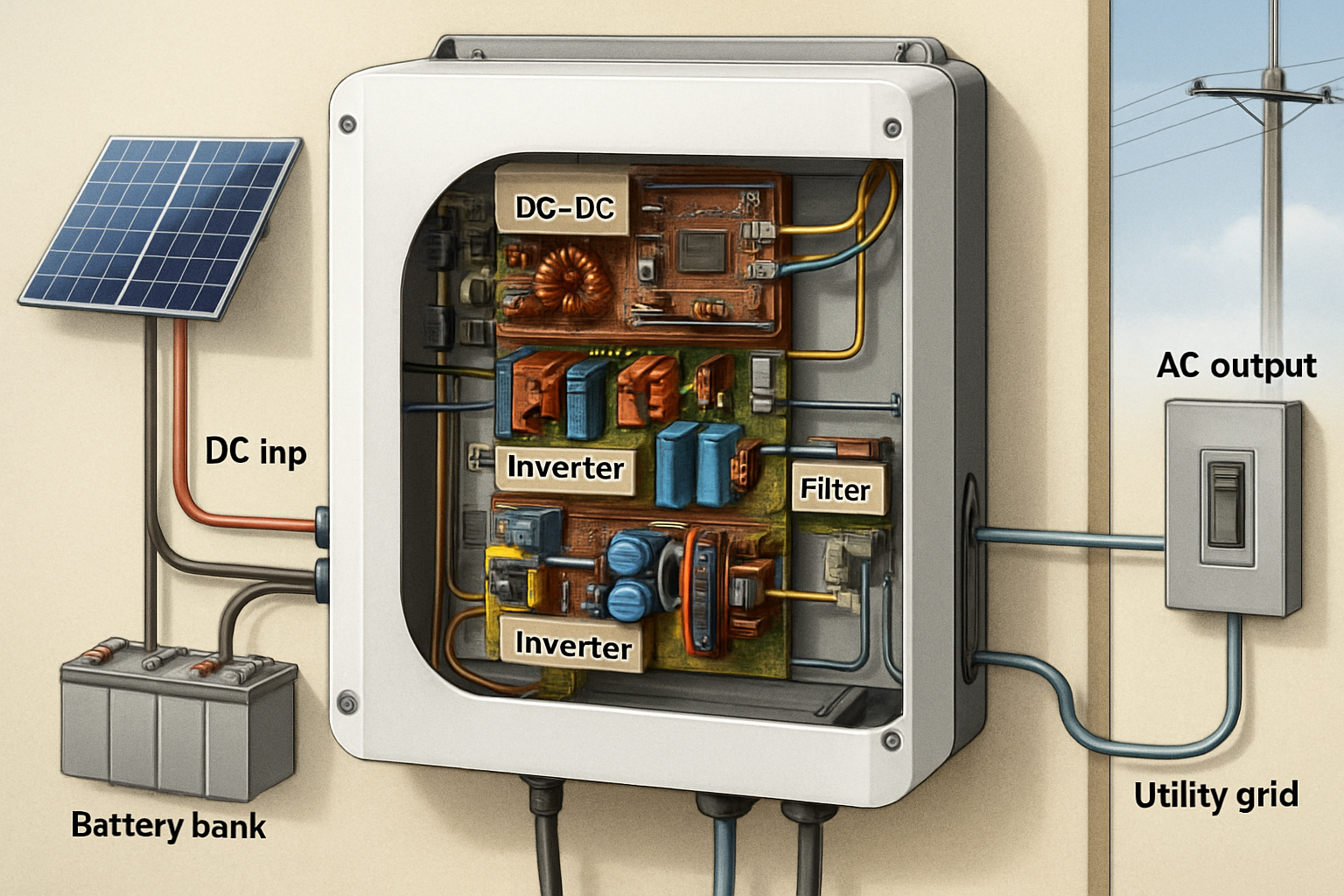

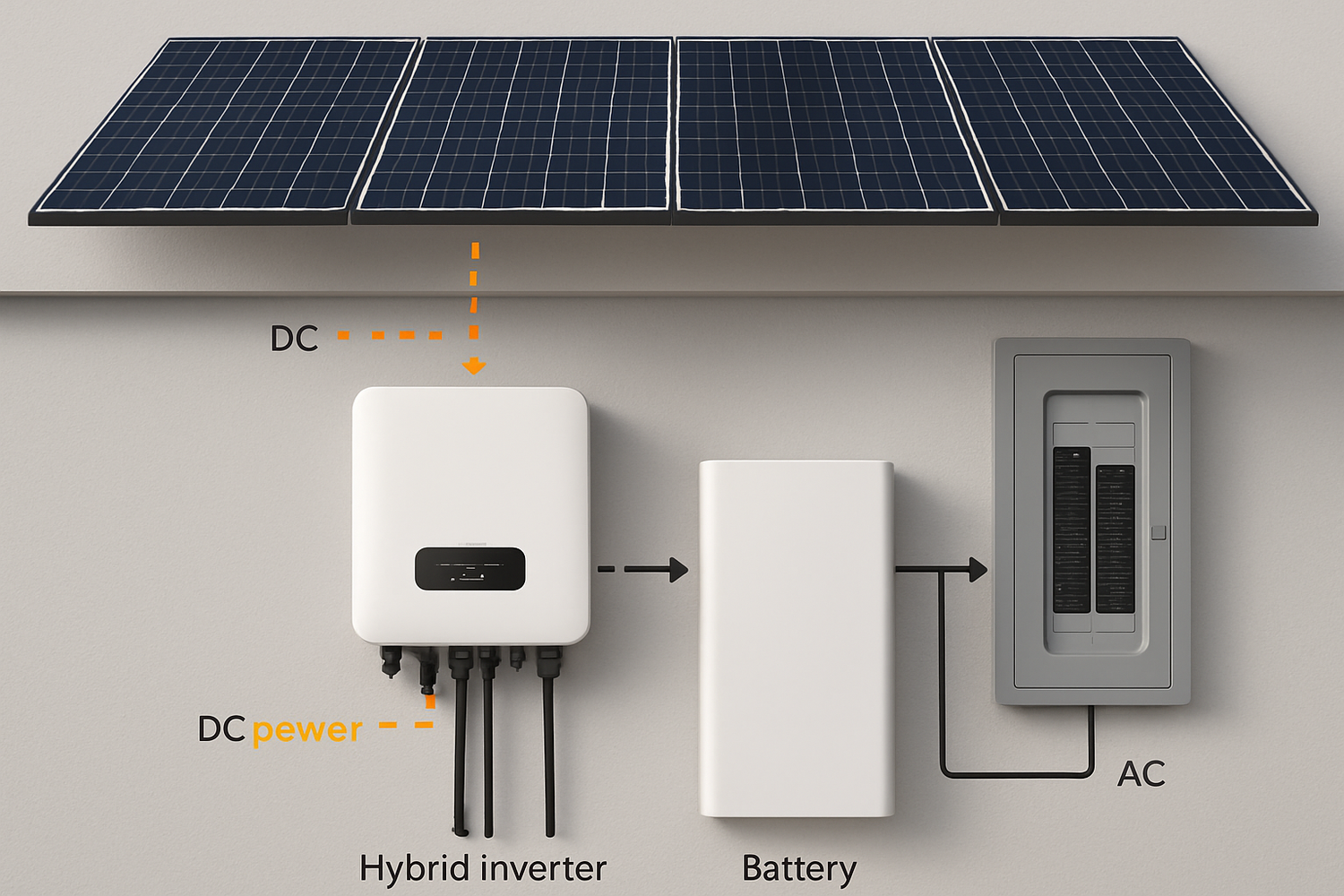

DC coupling directly connects solar panels and batteries on the direct current (DC) side of the system. This setup typically uses a hybrid inverter or a DC charge controller to manage the flow of electricity between the solar array, the battery, and the home's electrical system.

How DC Coupling Works

In a DC coupled system, the DC electricity generated by your solar panels flows directly to a charge controller or a hybrid inverter. This device then directs the power to either charge the battery or convert it to alternating current (AC) for immediate use in your home. Any excess AC power can feed back into the grid. This direct path minimizes energy losses often associated with multiple conversions.

Advantages of DC Coupling

• Higher Efficiency: DC coupling often achieves greater overall system efficiency. Power from the solar panels goes directly to the battery or is converted to AC with fewer conversion steps. This reduces energy loss compared to systems requiring multiple DC-AC-DC conversions.
• Optimal for New Systems or Major Upgrades: If you are replacing your main solar inverter or installing a completely new system, DC coupling can be a streamlined and efficient choice.
• Black Start Capability: Many DC coupled hybrid inverters can provide power to your home during a grid outage, even if the grid is down. They can restart and operate independently.
• Simplified System Design: With a single hybrid inverter managing both solar input and battery storage, the system design can be more integrated and less complex in terms of component count.

Considerations for DC Coupling Retrofits

Retrofitting an existing system with DC coupling often means replacing your current grid-tied solar inverter with a new hybrid inverter. This can be a more involved and potentially more expensive upgrade. You need to ensure the new hybrid inverter is compatible with your existing solar panel array's voltage and current specifications. The International Energy Agency (IEA) highlights that PV systems typically require an inverter to transform direct current into alternate current for most usages, emphasizing the inverter's central role.

AC Coupling Explained

AC coupling integrates battery storage by connecting a dedicated battery inverter to the AC side of your existing solar system. Your original grid-tied solar inverter continues to operate, converting solar DC power to AC power, which then flows to your home's electrical panel.

How AC Coupling Works

In an AC coupled system, your existing solar inverter converts the DC power from your panels into AC power. This AC power then feeds into your home's electrical panel. When you add a battery, a separate battery inverter (or multi-mode inverter) connects to this same AC panel. This battery inverter converts AC power from the grid or your solar system into DC to charge the battery, and then converts DC power from the battery back to AC for use in your home or for export to the grid.

Advantages of AC Coupling

• Easier Retrofit: AC coupling is often simpler for retrofitting existing systems because you do not need to replace your original solar inverter. This can reduce installation complexity and cost.
• Modular Expansion: You can often add battery storage to an existing AC coupled system without significantly altering the solar PV side. This offers flexibility for future upgrades.
• Utilizes Existing Infrastructure: By keeping your current solar inverter, you leverage your initial investment and avoid the cost of a full inverter replacement.
• Independent Operation: The solar PV system and the battery storage system can operate somewhat independently, which can be advantageous for troubleshooting or maintenance.

Considerations for AC Coupling Retrofits

While simpler to install, AC coupling involves multiple power conversions (DC from panels to AC by solar inverter, then AC to DC by battery inverter for charging, then DC to AC for discharging). This can lead to slightly lower overall system efficiency compared to DC coupling. You also need to ensure the battery inverter is compatible with your existing grid-tied inverter to avoid potential communication or operational issues. The IEA discusses measures to integrate variable renewable energy, including retrofitting conventional power plants for flexibility, a concept that extends to optimizing PV systems with storage.

Making the Right Choice: Compatibility Checklist

Selecting between DC and AC coupling for your solar battery retrofit depends on several factors specific to your current system and energy goals. A careful assessment helps ensure a successful and efficient upgrade.

Assessing Your Existing System

• Current Inverter Type and Age: Is your existing solar inverter a simple grid-tied inverter, or is it a hybrid model? Older inverters might not be compatible with newer battery systems, making AC coupling a more straightforward path.
• System Size and Performance: Evaluate your current solar array's output and your household's energy consumption patterns. This helps determine the appropriate battery capacity and the best coupling method to maximize self-consumption.
• Wiring and Electrical Panel: Assess your existing electrical infrastructure. AC coupling might require less significant wiring changes to your main electrical panel, especially if space is limited.

Key Factors for Decision Making

Consider these points when making your choice:

Feature	DC Coupling	AC Coupling
Efficiency	Generally higher (fewer conversions)	Slightly lower (more conversions)
Installation Complexity	Potentially higher (may require inverter replacement)	Generally lower (uses existing solar inverter)
Cost	Higher if new hybrid inverter needed	Potentially lower (if existing inverter is kept)
Black Start Capability	Common with hybrid inverters	Requires specific battery inverter features
System Scalability	Can be integrated, but depends on hybrid inverter capacity	Often more modular for adding storage capacity
Component Integration	More integrated (single hybrid inverter)	More distributed (separate solar and battery inverters)
