Embarking on a do-it-yourself solar panel installation is a significant step toward energy independence. While prefab solar kits have made this process more accessible, the success and safety of your system hinge on meticulous wiring and unwavering attention to safety protocols. A single overlooked connection or a shortcut on safety can compromise performance and create serious hazards. This guide provides a detailed checklist for the wiring and safety procedures essential for a successful self-installed solar panel system.
Foundational Safety: Preparing for Your Solar Installation
Before a single wire is connected, establishing a secure working environment is paramount. Proper preparation minimizes risks and sets the stage for a smooth installation process.
Personal Protective Equipment (PPE) is Non-Negotiable
Working with electrical systems, even when they are not yet energized, requires a commitment to personal safety. Always use the appropriate Personal Protective Equipment. This includes insulated gloves to protect against accidental shock, safety glasses to shield your eyes from debris, and sturdy, rubber-soled footwear for grip and insulation. Using insulated tools provides an additional layer of protection against electrical currents.
Understanding Your Local Electrical Codes
Electrical codes are not suggestions; they are legally enforceable standards designed to ensure safety. Before you begin, contact your local Authority Having Jurisdiction (AHJ) to understand the specific requirements for residential solar installations in your area. Compliance is crucial for passing inspections, securing permits, and ensuring your system can be safely connected to the grid if you choose to do so.
Creating a Safe Work Environment
Your work area, whether on the roof or at ground level, must be secure. If working at height, use a properly secured ladder and consider a safety harness. Avoid working in adverse weather conditions like rain, high winds, or extreme heat. Keep the area organized and free of clutter to prevent trips and falls. Ensure all components are safely secured until they are ready to be installed.
The Core of the System: DC Wiring Best Practices
The direct current (DC) side of your system, which runs from the solar panels to the inverter, involves high voltages and is the heart of your power generation. Precision here is critical for both safety and efficiency.
Selecting the Right Wires and Connectors
Use only photovoltaic (PV) wire, which is specifically designed for solar applications. It features thick insulation that is resistant to UV radiation and extreme weather. The wire gauge (AWG) is equally important; a wire that is too thin for the current it carries can overheat and cause a fire. It also leads to voltage drop, reducing your system's overall power output. Always use high-quality, locking MC4 connectors to ensure a secure and weather-resistant connection between panels.
Series vs. Parallel Connections Explained
How you connect your solar panels determines the voltage and amperage delivered to your inverter. Connecting panels in series increases voltage while amperage stays the same. Connecting them in parallel increases amperage while voltage stays the same. Your choice depends on the electrical requirements of your inverter. It is vital to keep the total voltage within the inverter's operating range.
| Connection Type | Voltage Effect | Amperage Effect | Best Use Case |
|---|---|---|---|
| Series | Adds up (V1 + V2 + ...) | Stays the same | Long wire runs, systems requiring higher voltage for inverter efficiency. |
| Parallel | Stays the same | Adds up (A1 + A2 + ...) | Systems where shading is a concern on some panels, or to stay below inverter voltage limits. |

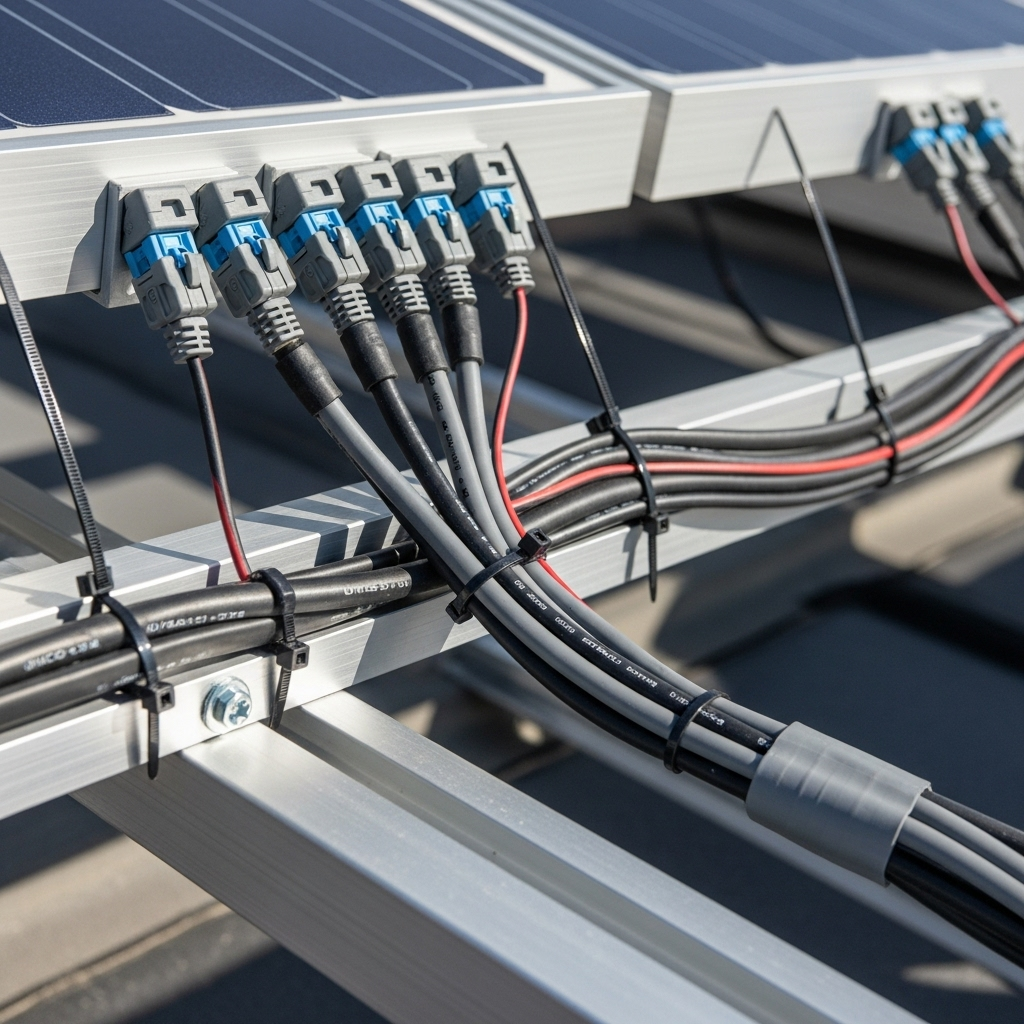

Secure and Tidy Cable Management
Proper cable management is not just for aesthetics; it is a crucial safety measure. Wires left dangling can be damaged by wind, animals, or abrasion against the roofing material. Use UV-resistant zip ties or specialized solar wire clips to secure all cables to the mounting rails. Where wires must run a longer distance or penetrate the roof, protect them within a suitable electrical conduit to prevent physical damage and ensure longevity.
Bridging the Gap: AC Wiring and Grid Connection
Once the DC power reaches your inverter, it must be safely converted to alternating current (AC) for use in your home. This stage involves connecting to your property's main electrical system.
Inverter and Component Integration
The solar inverter is a key component of what the International Energy Agency's Solar Energy Perspectives report calls the 'balance of system' (BOS). These components are responsible for delivering the generated power. The DC wiring from your array will connect to the inverter's input terminals. From there, the inverter outputs standard AC power. Ensure all connections to the inverter, disconnects, and any combiner boxes are torqued to the manufacturer's specifications to prevent loose connections, which can lead to arcing.
Connecting to Your Home's Electrical Panel
This is the most critical step and the one most often requiring a licensed electrician. The AC output from the inverter must be connected to a dedicated circuit breaker in your home's main electrical service panel. An improper connection here can create a serious fire hazard and endanger utility workers. Innovations are emerging to simplify this process. As a U.S. Department of Energy success story highlights, technologies exist that can streamline the connection to a home's electrical meter, but local regulations still apply.
Grounding: The Ultimate Safety Net
A proper grounding system is your primary defense against electric shock and equipment damage from events like lightning strikes or short circuits. This involves two types of grounding: equipment grounding, which connects all metal frames of the panels and racking to the earth, and system grounding, which grounds one of the current-carrying conductors. Follow your kit's instructions and local codes meticulously to ensure your entire system is safely grounded.
The Final Verification: A Comprehensive Safety Checklist
Before you energize your system, conduct a thorough final review. This methodical check ensures every detail has been addressed correctly.
Pre-Energization Checks
Go through your system with a fine-toothed comb. Create a physical list and check off each item:
- Confirm all electrical connections, from the MC4 connectors to the terminals in the inverter and service panel, are tight and secure.
- Double-check the polarity of all DC wiring. Reversing the positive and negative connections can permanently damage your equipment.
- Inspect the entire wire run to ensure no cables are pinched, stretched, or have damaged insulation.
- Verify that all grounding conductors are properly attached to the panels, racking, and inverter.
- Use a multimeter to check the open-circuit voltage (Voc) of your solar strings at the inverter input to confirm it is within the safe operating range of the inverter.
System Commissioning and Monitoring
Energize the system following the correct sequence, which is typically turning on the AC breaker first, followed by the DC disconnect switch. Once active, monitor your system's performance closely for the first few hours and days. Understanding your system's expected output is key to identifying any potential issues early. For a deeper analysis of what to expect, our detailed guide on solar storage performance provides valuable benchmarks and data to compare against.
Emergency Shutdown Procedures
You and everyone in your household should know how to perform an emergency shutdown. Clearly label the AC and DC disconnect switches. In an emergency, these switches allow you to completely and safely de-energize the entire solar power system. This procedure is vital for maintenance and for the safety of first responders.
Your Path to Safe Energy Production
A self-installed solar kit offers a rewarding path to generating your own clean electricity. However, the ultimate value of your system is measured not just in kilowatts produced, but in its safety and reliability. By diligently following a comprehensive wiring and safety checklist, you ensure your investment is secure, compliant, and ready to provide clean energy for years to come. Proper installation is the foundation for maximizing the benefits of solar energy, a key factor as global analyses, like IRENA's Renewable Power Generation Costs in 2024, continue to show the strong financial case for renewables.
Frequently Asked Questions (FAQ)
What wire size should I use for my solar panels?
The correct wire size (AWG) depends on the current (amps) of your solar array and the length of the wire run from the panels to the inverter. A higher current or a longer distance requires a thicker wire (which has a lower AWG number) to minimize power loss from voltage drop and to prevent overheating. Always consult the NEC wire sizing charts and the specifications in your solar kit's manual.
Is a DC disconnect switch required for all solar installations?
In most locations, a rapid shutdown DC disconnect switch located near the solar array is a mandatory safety requirement by the National Electrical Code (NEC). This device allows firefighters and service personnel to quickly and safely de-energize the high-voltage DC wiring on the roof. Always confirm the specific requirements with your local building and fire departments.
Can I perform all the wiring myself?
While a skilled DIYer can typically handle the DC wiring between the solar panels and the inverter, the final AC connection to your home's main electrical panel often legally requires a licensed electrician. This ensures the grid connection is safe, code-compliant, and properly permitted.
Disclaimer: The information provided is for educational purposes only and does not constitute professional electrical or legal advice. Always consult with a qualified electrician and your local permitting office before beginning any solar installation project.
