Aesthetic Blueprint: All-Black Modules, Concealed Cabling

The Evolution of Solar Panel Design

Solar energy systems are increasingly recognized for their financial and environmental benefits. Yet, for many property owners, the visual impact remains a primary concern. The appearance of a solar installation can significantly influence a home's curb appeal. Fortunately, the industry has responded with design-forward solutions that merge high performance with sophisticated aesthetics. Two of the most impactful advancements in this area are all-black solar modules and concealed cabling techniques, which together create a seamless, integrated look.

The Appeal of All-Black Solar Modules

The days of solar panels with bright blue cells and prominent silver frames standing out on a roof are fading. All-black modules offer a subtle, premium alternative that complements modern architecture and a wide range of roofing materials.

What Distinguishes All-Black Modules?

Traditional solar panels often feature polycrystalline cells, which have a blue, marbled appearance, set against a white backsheet and enclosed in a silver aluminum frame. All-black modules take a different approach for a uniform look:

• Monocrystalline Cells: They are typically made from a single silicon crystal, which gives them a uniform black color.
• Black Backsheet: Instead of a standard white backsheet, a black one is used, eliminating the visible white diamonds or squares between cells.
• Black Frame: The aluminum frame is anodized or powder-coated black to match the other components, creating a cohesive, single-color unit.

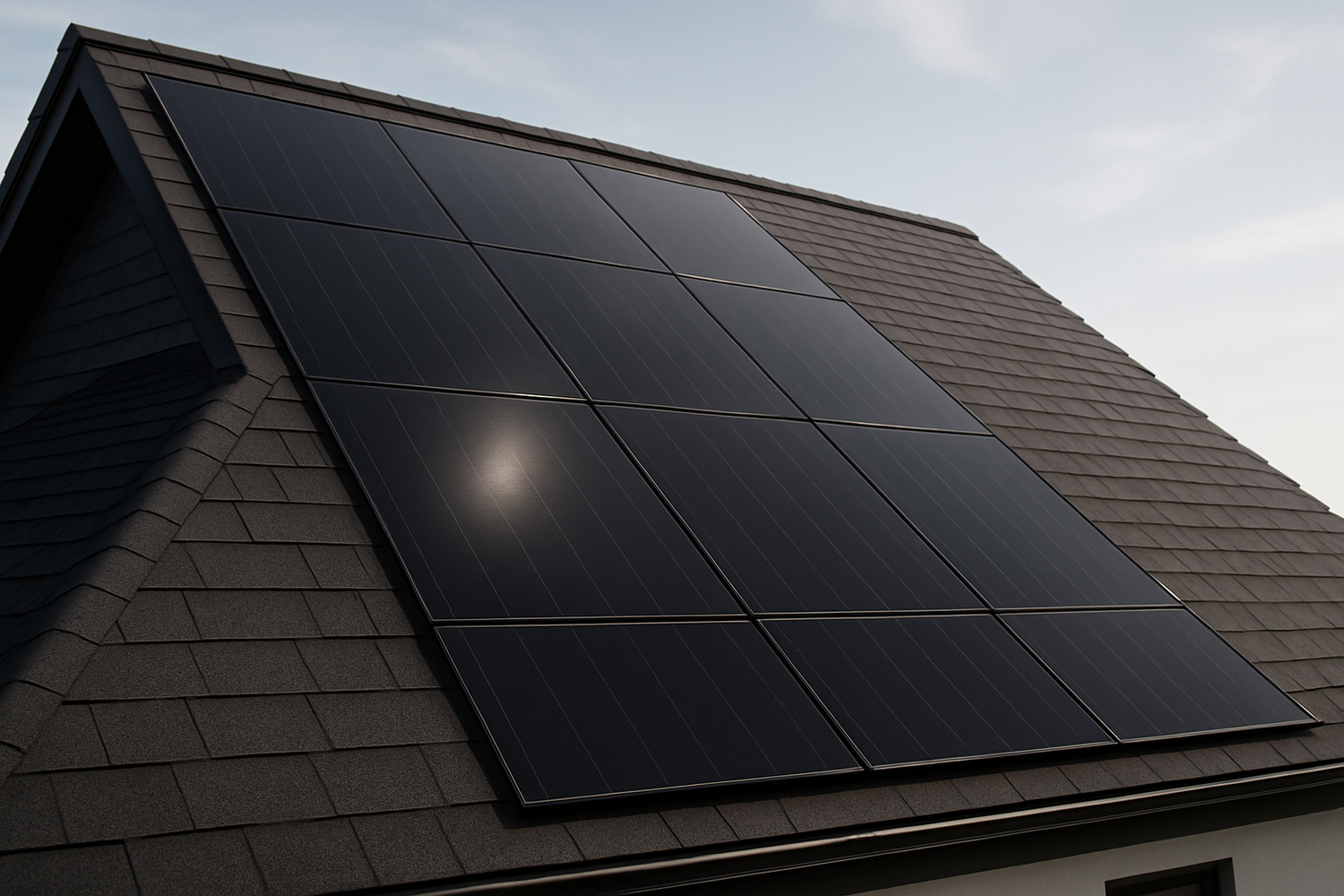

This construction results in a panel that appears as a sleek, black surface, blending effortlessly into a dark-colored roof for a minimalist finish.

Performance and Efficiency Considerations

A common question is whether the aesthetics of all-black panels come at the cost of performance. The black backsheet can absorb more heat than a white one, and higher temperatures can slightly reduce efficiency. However, advancements in cell technology and module construction have largely mitigated this effect. For most residential applications, the performance difference is negligible. In fact, as the IEA's Technology Roadmap - Solar Photovoltaic Energy 2010 points out, increased module efficiencies are a primary driver of system cost reductions, making high-quality monocrystalline cells a sound investment. The focus remains on maximizing output from every available surface.

The Unseen Advantage: The Art of Concealed Cabling

Even the most attractive solar panels can have their appearance undermined by messy, visible wiring. Professional installers use specific techniques to hide cables and conduits, ensuring the final installation is as clean as possible.

Why Professional Cable Management Matters

Exposed electrical conduits running across a roof or down the side of a house create visual clutter. Beyond aesthetics, poorly managed wiring can be more susceptible to weathering, physical damage, or even pests over the long term. A clean installation is often a sign of a high-quality, durable system. The electrical installation is a critical phase where attention to detail separates a standard setup from a superior one. As detailed in reports like IRENA's Renewable Power Generation Costs in 2024, both DC and AC electrical work are fundamental components of total system costs, and planning for a clean setup should be part of this process.

Techniques for Hiding Solar Wiring

Achieving a wire-free look requires careful planning and execution. Installers can employ several strategies:

• Attic Runs: Whenever possible, technicians run conduit through the attic space instead of on top of the roof. This keeps all wiring completely out of sight from the array to the inverter.
• Rail-Integrated Wiring: Modern racking systems often feature integrated channels or clips designed for cable management, securing wires neatly beneath the panels.
• Color-Matched Conduits: When external conduit is unavoidable, it can be painted to match the roof or wall color, significantly reducing its visual prominence.

A Holistic Approach to Solar Aesthetics

A truly aesthetic solar installation considers every component, not just the panels and wires. The placement of other system hardware is just as important for maintaining a property's visual integrity.

Inverter and Equipment Placement

The inverter, which converts DC electricity from the panels to AC electricity for your home, is a key piece of equipment. Along with disconnects and meters, this hardware can be bulky. Strategic placement is key. Locating the inverter and other components in a garage, on a less visible side wall, or within a custom enclosure can keep them out of direct lines of sight.

Low-Profile Mounting Systems

The racking that attaches the solar panels to the roof also plays a role in the final look. Low-profile mounting systems are designed to hold the panels closer to the roof's surface. This reduces the gap between the panel and the roof, creating a more integrated, less obtrusive appearance that follows the natural lines of the building. Technological developments continually aim to better integrate solar collectors into building envelopes, a trend noted by the IEA in its report on Barriers to Technology Diffusion.

Fusing Functionality with Form

Achieving energy independence through solar power no longer requires a compromise on design. By selecting all-black modules, insisting on concealed cabling, and paying attention to equipment placement, you can have a system that is both a powerful energy generator and a sophisticated architectural feature. A well-designed solar installation enhances your property, reflecting a commitment to both sustainability and style.
