If you have an existing grid-tied solar panel system, you are already generating clean electricity. The next strategic step is to store that energy for use at night or during power outages. This involves a solar power system upgrade to integrate a DC lithium battery. This conversion adds a powerful layer of energy independence to your home, but it requires a clear understanding of the technical pathways available.
Choosing Your Conversion Strategy
Integrating a DC battery with your AC solar system requires a method to manage the flow of energy. Your solar panels produce Direct Current (DC) electricity, while your home uses Alternating Current (AC). Batteries also store energy as DC. The primary decision is how to couple the new battery to your existing setup.

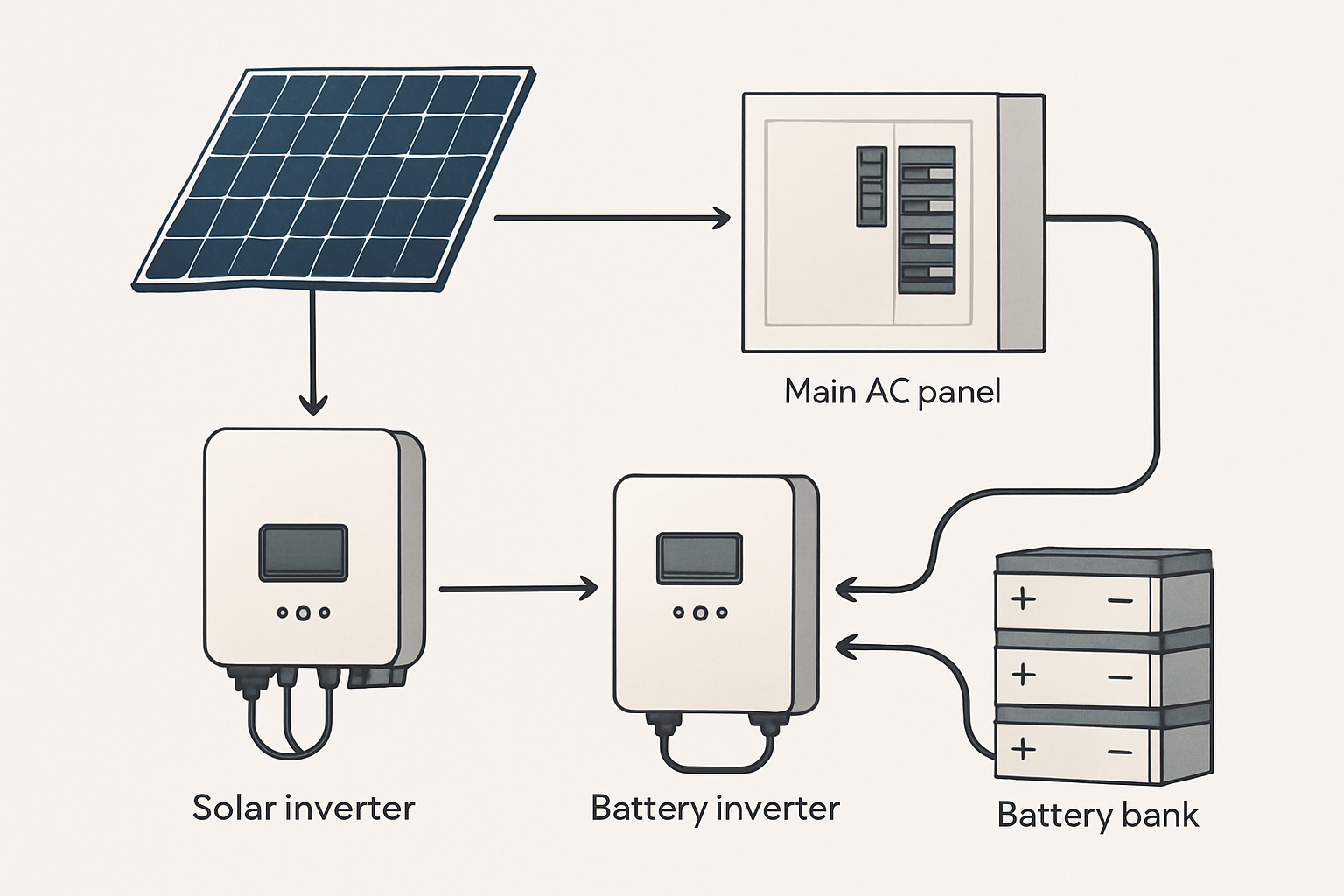

AC Coupling: The Straightforward Retrofit
AC coupling is often the most direct method for adding a battery to an existing solar installation. In this configuration, your current solar inverter continues its job of converting DC power from the panels into AC power. A second inverter, a battery inverter, is added to the system. This new inverter takes surplus AC power, converts it back to DC to charge the battery, and then converts it back to AC when your home needs to draw power from the battery. The main advantage is its compatibility; it can be retrofitted to almost any existing grid-tied solar system.
DC Coupling: The Efficiency-Focused Redesign
DC coupling offers a more integrated and efficient solution, though it is often more suitable for new installations. This approach involves replacing your existing solar inverter with a single, sophisticated hybrid inverter. This device manages power from the solar panels, the battery, and the grid all in one unit. Power flows directly from the solar panels to the battery in DC form, avoiding unnecessary conversions. This results in higher round-trip efficiency, often up to 98%, meaning less energy is lost during charging and discharging.

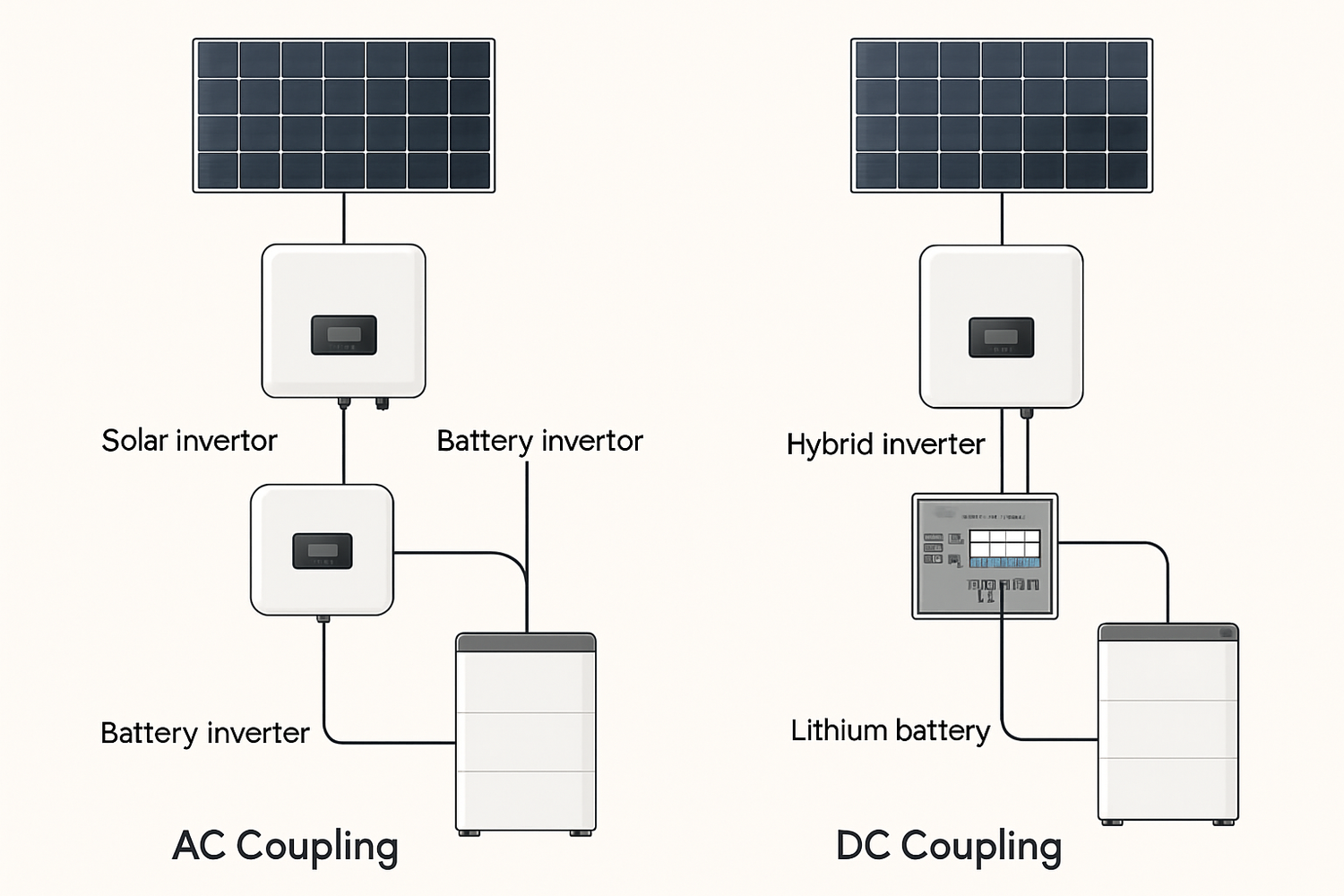

Comparing the Two Approaches
| Feature | AC Coupling | DC Coupling |
|---|---|---|
| Best For | Retrofitting existing solar systems | New solar and storage installations |
| Efficiency | Lower (around 90-94%) due to multiple conversions | Higher (up to 98%) with a single conversion |
| Installation Complexity | Simpler, less invasive to existing setup | More complex, often requires replacing the inverter |
| System Components | Solar inverter + battery inverter | Single hybrid inverter |
Hardware Essentials for a Successful Upgrade
A successful AC to DC conversion depends on selecting high-quality, compatible components. The right hardware ensures your system is safe, reliable, and performs optimally for years to come.
The Heart of the System: The Inverter
In an AC-coupled system, you will add a battery inverter that works alongside your existing solar inverter. For a DC-coupled system, a hybrid inverter is the central component that replaces your old one. This single piece of equipment intelligently directs the flow of electricity, deciding whether to power your home, charge your battery, or send power to the grid. Its specifications must match your energy needs and be compatible with your chosen battery.
Choosing Your Lithium Battery: LiFePO4
The choice of battery is critical. Lithium Iron Phosphate (LiFePO4) batteries are a leading choice for residential energy storage due to their superior safety, long cycle life, and thermal stability. When sizing a battery, you need to consider its capacity, measured in kilowatt-hours (kWh), which determines how much energy it can store. According to the U.S. Energy Information Administration (EIA), the addition of battery storage capacity is rapidly growing, underscoring its increasing importance in modern energy systems. Key performance metrics are also vital for evaluating long-term value. As detailed in this comprehensive guide on solar storage performance, understanding factors like Depth of Discharge (DoD) and cycle life helps ensure you select a battery built for endurance.
The Unseen Guardian: The Battery Management System (BMS)
Every quality lithium battery pack includes a Battery Management System (BMS). This electronic system is the brain of the battery, protecting the cells from operating outside their safe limits. A BMS prevents overcharging, deep discharging, and overheating, which are crucial for both the safety and longevity of your investment.
The Conversion Process: From Planning to Power-On
Upgrading your system is a technical project that requires careful planning and execution. Following a structured process ensures a safe and effective outcome.
System Design and Sizing
The first step is a thorough assessment of your energy consumption. Calculate your daily electricity usage and determine what essential appliances you want to run during a power outage. This analysis will inform the required capacity of your battery (kWh) and the power rating of your inverter (kW). Proper sizing is key to creating a system that meets your expectations for backup power and energy independence.
Installation and Safety Protocols
The installation of a home battery storage system involves high-voltage electrical work and must comply with local building and electrical codes. Working with a qualified and certified installer is highly recommended to ensure the system is set up safely and correctly. They will handle permitting, wiring, and commissioning to guarantee your system operates as intended.
Disclaimer: This article provides general information and is not a substitute for professional engineering or financial advice. Always consult with qualified professionals before making decisions about your solar energy system.
Achieving Energy Independence with Integrated Storage
Converting your AC solar system to include DC lithium battery storage is a definitive move toward managing your own energy supply. This upgrade not only provides reliable backup power but also maximizes your use of the clean energy you generate. With falling battery costs, as noted in reports from the International Renewable Energy Agency (IRENA), energy storage is becoming more accessible. By carefully selecting your conversion strategy and components, you build a resilient and efficient home energy solution prepared for the future. This integration aligns with global trends toward decentralized power, where homeowners play an active role in a cleaner energy landscape, a trend highlighted by the International Energy Agency (IEA).
Frequently Asked Questions
Can I add any battery to my existing solar panel system?
No, you cannot connect just any battery directly. Integrating a DC lithium battery requires a compatible inverter—either a battery inverter for an AC-coupled system or a hybrid inverter for a DC-coupled system—to manage charging and discharging safely and efficiently.
How much does it cost to add a lithium battery to a solar system?
The cost varies widely depending on the battery's capacity (kWh), the type of inverter needed, and installation complexity. A complete home battery storage system installation can range from $9,000 to over $19,000 before any incentives or rebates are applied.
What is the lifespan of a LiFePO4 battery in a solar storage system?
LiFePO4 batteries are known for their longevity. They can typically deliver between 4,000 and 6,000 full charge-discharge cycles. Depending on usage patterns, this often translates to a lifespan of 10 to 15 years or more, making them a durable long-term investment.
