What Should Your Inverter Show on Day 1? Expert Answers

After installing a solar and energy storage system, the moment of activation is exciting. Your inverter is the central component, converting the sun's direct current (DC) energy into alternating current (AC) for your home. Knowing what to see on its display the first day helps confirm everything operates as intended.

The Inverter's Role in Your Solar System

The inverter performs a critical function within your solar setup. It acts as the bridge between your solar panels and your home's electrical system, or the grid.

Bridging DC and AC Power

Solar panels produce DC electricity, which is not directly usable by most household appliances or the utility grid. Your inverter transforms this DC power into AC power. This conversion is continuous during daylight hours, allowing you to power your home, charge batteries, or send surplus energy back to the grid. Inverter-based resources (IBRs) like solar PV are increasingly vital for the reliability of modern electricity grids, as noted by IRENA in their Grid Codes for Renewable Powered Systems report.

Smart Monitoring and Grid Interaction

Beyond conversion, modern inverters are intelligent. They monitor your system's performance, track energy production, and manage interactions with the utility grid. For systems with battery storage, the inverter also orchestrates energy flow, deciding when to charge the battery, discharge it, or draw power from the grid.

Initial Power-Up: What to Expect

When your solar system first activates, the inverter goes through a startup sequence. This is a series of internal checks to ensure safe and proper operation.

Startup Sequence and Self-Checks

Upon activation, you might notice various indicator lights illuminating sequentially, possibly accompanied by a soft whirring sound. The inverter performs self-diagnostics, checking its connections to the panels, the grid, and any connected batteries. This process typically takes a few minutes. Once complete, the display will show operational data.

Common Status Indicators

Your inverter's display or indicator lights communicate its status. Here are common indicators:

• Power/On Light: A steady green light usually means the inverter is active and producing power.
• Grid Connected Light: Another green light confirms successful synchronization with the utility grid.
• Fault/Error Light: A red or amber light indicates an issue. This requires attention.
• Battery Status Light: If you have a home energy storage system (ESS), a light might show the battery's charging or discharging state.

Key Data Points to Verify on Day One

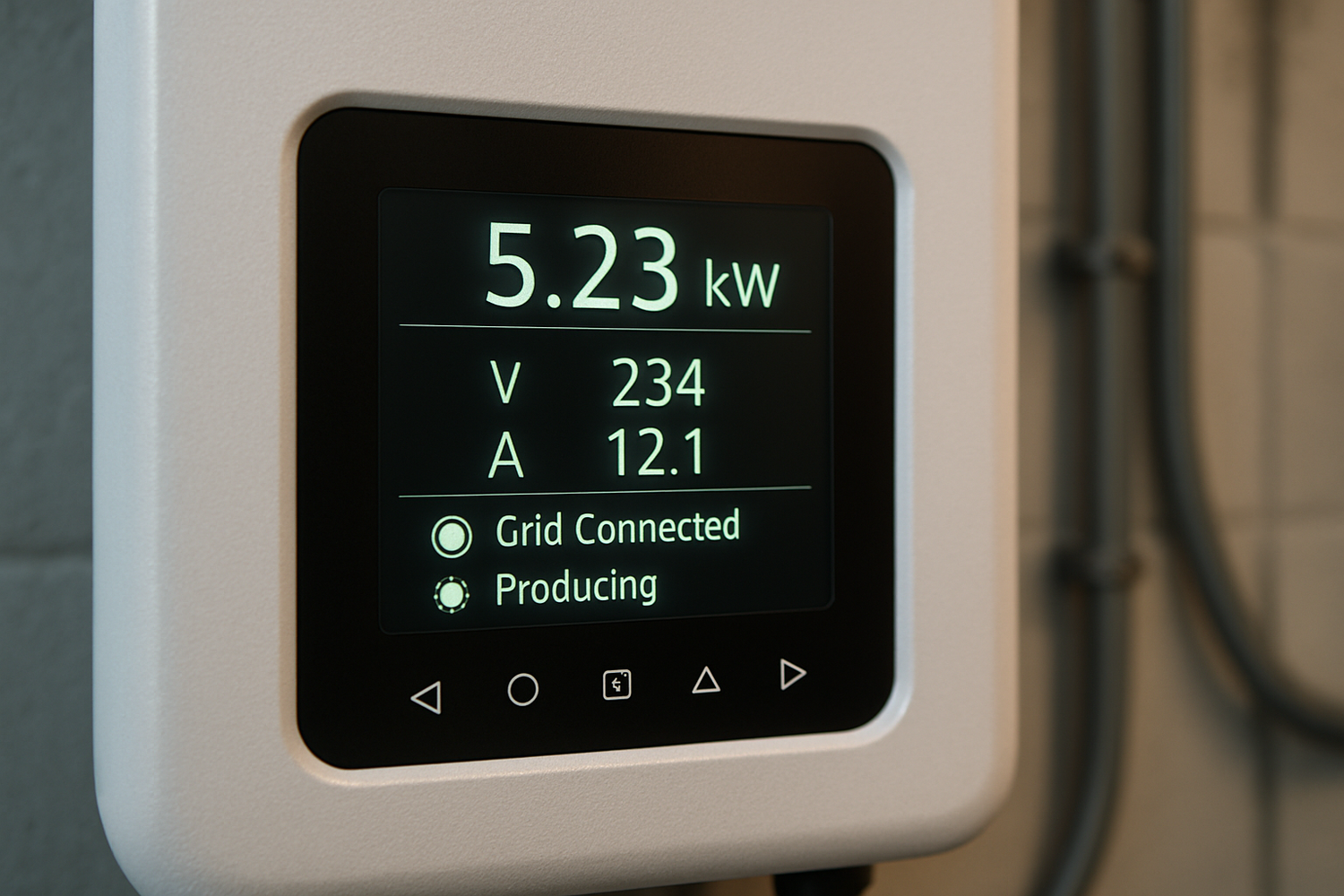

The display provides real-time insights into your system's performance. On day one, focus on these readings to confirm proper operation.

Power Output Readings (kW/kWh)

This is arguably the most important reading. You should see a kilowatt (kW) reading, indicating instantaneous power production, and potentially a kilowatt-hour (kWh) reading, showing accumulated energy. On a sunny day, expect to see a positive kW number. This number will fluctuate with sunlight intensity. A solar PV plant with a higher DC/AC ratio, meaning more solar array capacity relative to inverter capacity, can produce more total energy, even with some "clipping losses" during peak hours. This can lead to a more valuable, plateau-shaped output from a power system perspective, as illustrated by the IEA's System Integration of Renewables report.

Voltage and Current Levels

The inverter display often shows DC voltage and current from the panels, and AC voltage and current being sent to your home or the grid. The DC voltage will vary with sunlight intensity and temperature, while the AC voltage should be stable and match your home's standard voltage (e.g., 120V or 240V in North America, 230V in Europe). Stable readings indicate healthy electrical connections and proper power conversion. Anomalies in these readings could signal issues with panel strings or wiring.

Grid Status and Connection

For grid-tied systems, the inverter must synchronize with the utility grid. The display should confirm a "grid connected" status. This ensures that the power your system produces can flow seamlessly into your home or back to the grid. Grid codes require defined behavior from all generators, including inverter-based ones, to ensure predictable system behavior and resilience to grid faults. IRENA highlights the importance of such codes for reliably integrating renewable energy onto the grid. A blinking grid light or a "waiting" message might mean the inverter is still trying to connect, or there's a temporary grid instability.

Battery Status (if applicable)

If your system includes a home energy storage system (ESS) with lithium iron phosphate (LiFePO4) batteries, the inverter's display or a connected monitoring app will show the battery's state of charge (SoC) and whether it is charging or discharging. On day one, the battery might be charging from the solar panels or drawing a small amount of power for its initial setup. A healthy battery status typically shows a steady charge or discharge rate corresponding to your home's energy use or solar production.

Here is a quick reference for typical day one inverter display statuses:

Display Indicator/Reading	Expected Behavior on Day One (Sunny Conditions)	Potential Anomaly (Requires Attention)
Power/Status Light	Solid Green	Red, Amber, or Off
Grid Connected Light	Solid Green	Blinking, Off, or "Waiting" Message
Instantaneous Power (kW)	Positive number, varying with sun intensity (e.g., 2.5 kW, 5.0 kW)	Zero or consistently very low readings during peak sun
Daily Energy (kWh)	Accumulating positive number throughout the day	Stuck at zero or not increasing
AC Voltage	Stable, matching grid voltage (e.g., 230V, 240V)	Fluctuating wildly, significantly lower/higher than expected
DC Voltage	Positive, varying with sunlight but within expected range for your panels	Zero or significantly outside expected range
Battery SoC (if applicable)	Increasing if charging, stable if full, or slowly decreasing if discharging	Stuck at 0% or 100% inappropriately, or not reacting to solar input
Error Codes	None	Any numeric or alphanumeric code displayed

Troubleshooting Common Day One Anomalies

While most installations proceed smoothly, sometimes you might encounter unexpected readings or behaviors. Knowing what to check can save time and help you communicate effectively with your installer.

No Display or Power

If the inverter display is blank or shows no power, first check the AC and DC disconnect switches. These are typically located near the inverter and should be in the "ON" position. Also, verify that the circuit breaker for your solar system in your main electrical panel is not tripped. A tripped breaker indicates an overload or fault and needs to be reset after identifying the cause. If these basic checks do not resolve the issue, contact your installer.

Low or Zero Power Production

On a sunny day, if the power output is very low or zero, consider these factors:

• Time of Day/Weather: Early morning, late afternoon, or cloudy/rainy weather naturally reduce output. Solar PV output can vary significantly based on these conditions.
• Shading: Even partial shading from trees, chimneys, or other obstructions on panels can significantly impact production. Observe your roof during the sunniest part of the day.
• Switches: Re-confirm all AC and DC switches are in the "ON" position. Sometimes, a switch may not be fully engaged.

While solar PV output can vary significantly, aggregating generation across large areas can reduce, but not fully eliminate, variability. This short-term variability, sometimes called the "balancing effect," requires system flexibility to manage rapid changes in net load, as discussed in The Power of Transformation report by the IEA.

Error Codes

If an error code appears, consult your inverter's manual. Many common codes relate to minor issues that can be resolved easily, such as a temporary grid outage or an overloaded circuit. For persistent or unclear error codes, contact your installer or a certified technician. Do not attempt to open the inverter yourself, as this can be dangerous and void warranties. Professional assistance ensures safety and proper diagnosis.

Beyond Day One: Ongoing Monitoring

Verifying the inverter's display on day one is a solid start. Consistent monitoring ensures your system continues to perform optimally.

Leveraging Monitoring Apps

Most modern inverters come with companion monitoring apps for your smartphone or computer. These apps provide detailed insights into daily, weekly, and monthly energy production, battery status, and grid interaction. They often send alerts for any detected issues, allowing you to track your system's health from anywhere.

Scheduled Checks for Long-Term Performance

Beyond the initial day, regularly checking your inverter's display and monitoring app helps you understand your system's typical output and identify any deviations. This proactive approach helps detect potential issues early, ensuring your system delivers reliable energy for years.

Empowering Your Energy Independence

Understanding what your solar inverter should show on day one gives you confidence in your new energy system. By recognizing normal operation and knowing how to address initial anomalies, you take an active role in managing your home's energy future. Your solar and energy storage system represents a significant step towards greater energy reliability and sustainability. We focus on providing dependable and scalable energy solutions, helping homeowners achieve true energy independence through high-performance, safe, and reliable lithium iron phosphate batteries, integrated home energy storage systems, and efficient solar inverters.

Disclaimer: This content is for informational purposes only and does not constitute professional advice. Always consult with certified solar professionals for specific installation, troubleshooting, or electrical work.
