How Solar Panels Generate Electricity

Harnessing the sun’s energy is a major step toward sustainability and energy independence. Solar panels are at the forefront of this transformation, converting sunlight into usable electricity through fascinating science. This guide explains how solar panels generate electricity, from capturing light to delivering power for your home or business.

1. The Photovoltaic Effect: The Heart of Solar Technology

Solar panels work thanks to the photovoltaic effect—the process by which certain materials produce an electric current when exposed to light. Most modern solar panels use silicon-based photovoltaic (PV) cells, where light energy is converted directly into electricity.

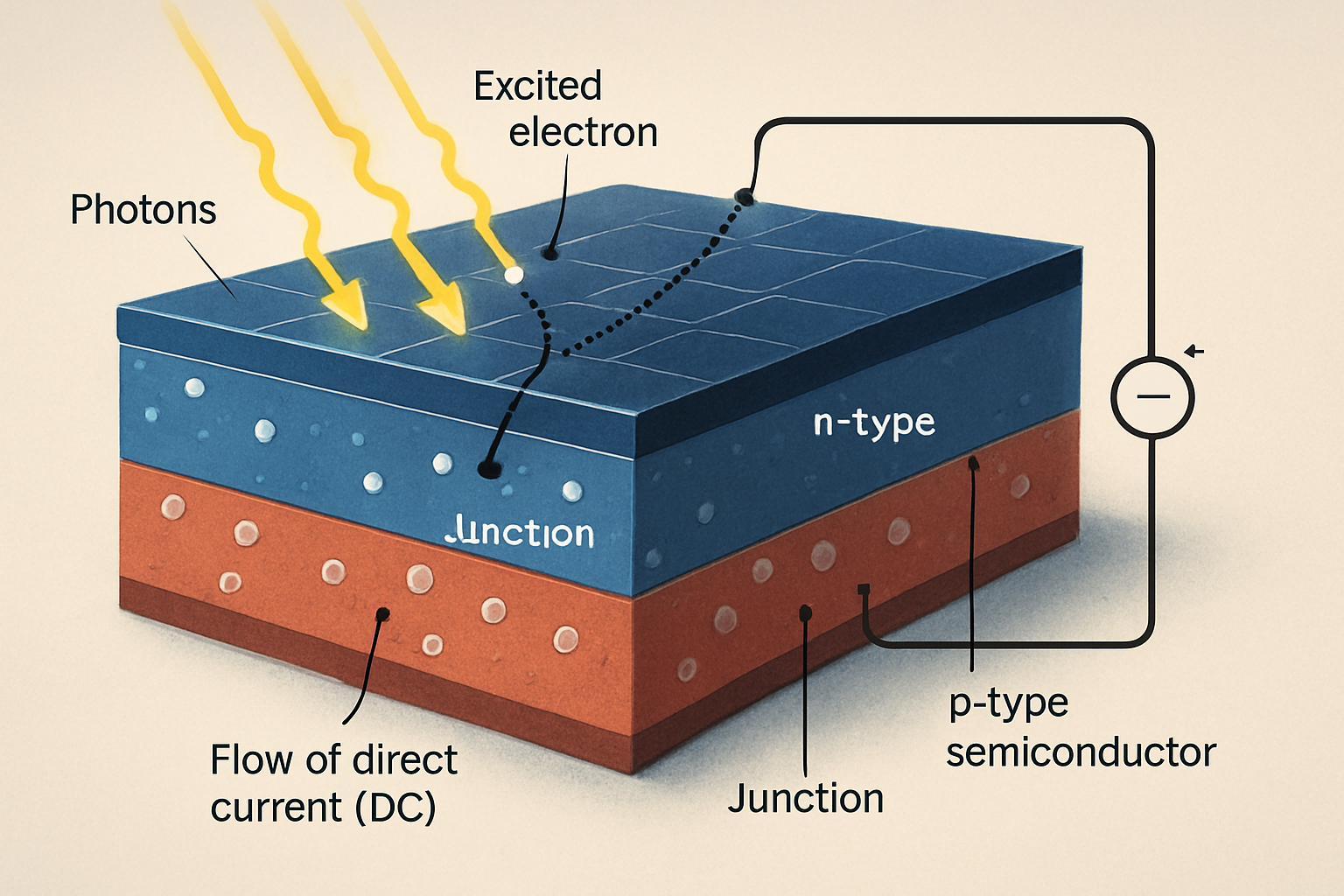

1.1 How a Solar Cell Works

A solar cell is made from two layers of silicon: the p-type (positive) and n-type (negative) layers. When these layers are joined, they form a junction with an electric field. When sunlight hits the cell, photons energize electrons, knocking them loose from their atoms. This process creates a flow of electrons—electricity. For more details on the basic physics, see the U.S. Department of Energy’s introduction to solar cell basics.

1.2 From Single Cells to Powerful Panels

A single solar cell generates a small voltage (typically 0.5–0.6V). Multiple cells are connected in series to create a solar module (panel), and panels are combined into arrays for greater output. This modular approach enables solar power systems to be scaled for homes, businesses, or utility-scale plants.

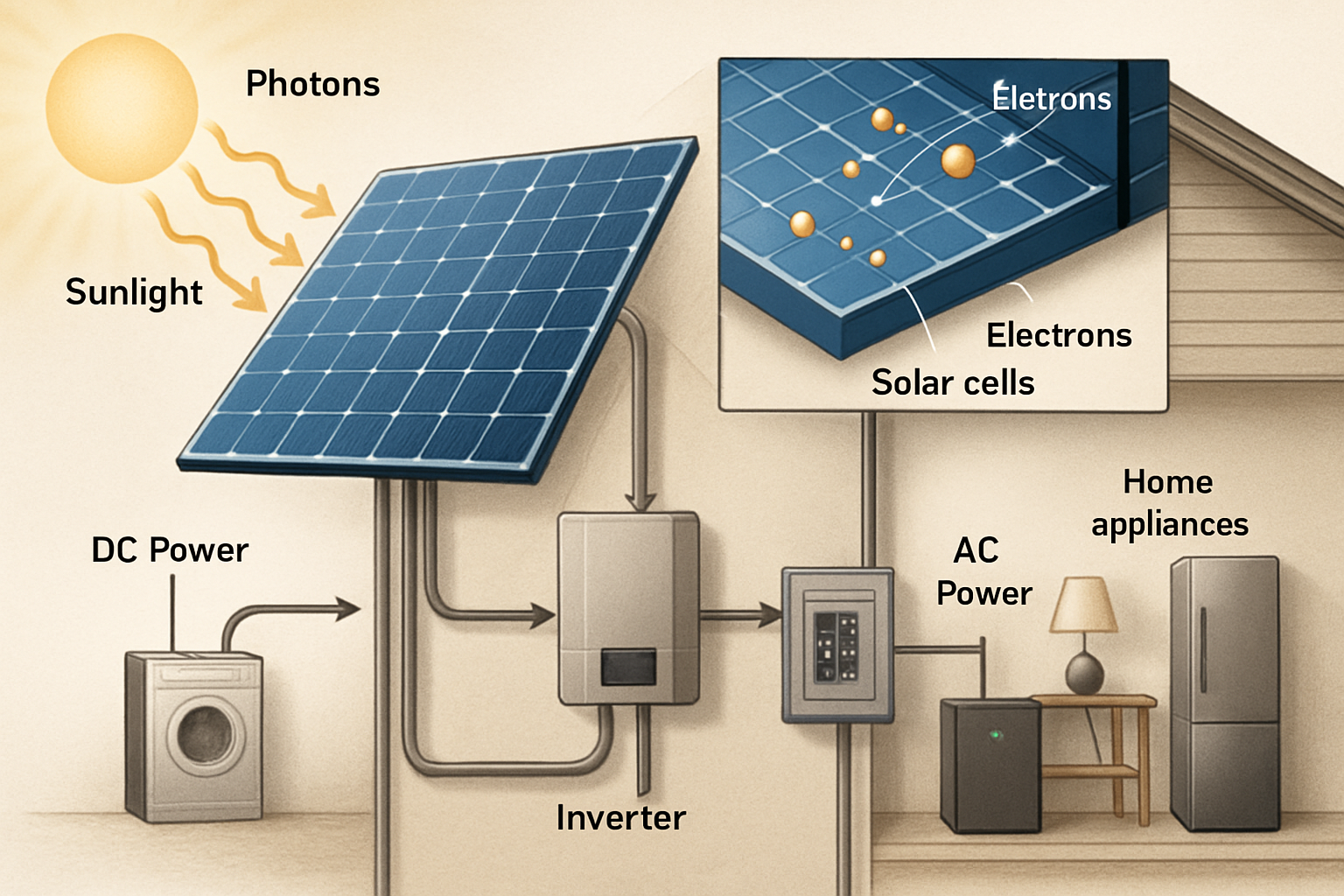

2. Converting Solar Energy: DC to AC Power

The electricity generated by solar panels is direct current (DC), but most homes and the grid use alternating current (AC). To use solar energy for household appliances or to feed it into the grid, DC must be converted to AC.

2.1 Why Solar Panels Produce DC

The photovoltaic effect naturally produces direct current, with electrons flowing in a single direction through an external circuit. DC is ideal for batteries and some electronics, but for standard home and grid use, AC is required.

2.2 The Role of Inverters

An inverter converts DC from solar panels to AC for everyday use. Inverters may include features like maximum power point tracking (MPPT) to optimize output. There are several types: string inverters (common in residential systems), microinverters (one per panel, better in shade), and hybrid inverters (which also manage battery storage). For a technical overview, visit DOE: Types of Solar Inverters.

3. Energy Storage: Batteries and Solar Power

Because sunlight varies throughout the day and across seasons, energy storage is important for continuous power. Solar batteries—often based on lithium iron phosphate (LiFePO4) chemistry—store excess solar energy for later use, providing reliability during cloudy days or nighttime. For a comparison of battery types, see the NREL Battery Storage Guide.

• Why store solar energy? Storage increases self-consumption, improves resilience during outages, and may save money by reducing peak demand charges.
• Types of batteries: Lithium batteries (especially LiFePO4) are common due to safety, long lifespan, and efficiency.
• Integrated Energy Storage Systems: Many modern setups combine solar, inverters, and batteries into integrated solutions for homes and businesses.

4. Factors Affecting Real-World Solar Output

Actual electricity output from solar panels depends on several variables:

• Sunlight intensity (irradiance): More sunlight means more power.
• Temperature: Panels perform better in cooler conditions; high temperatures reduce efficiency.
• Panel orientation and tilt: Facing panels directly at the sun maximizes output.
• Shading: Even partial shading can significantly reduce production, especially with string inverters.
• Panel efficiency: Higher efficiency means more power from the same surface area.

For more on optimizing your system, see NREL: Photovoltaic Research.

Latest data from the International Energy Agency (IEA) Solar PV Report shows efficiency and adoption rates continue to rise globally.

5. Solar Power in Practice: Applications and Benefits

Solar technology is used in a wide variety of applications—from powering off-grid cabins and remote sensors to providing electricity for entire cities. For grid-tied homes, excess power may be sent back to the grid via net metering, reducing overall electricity costs. Off-grid systems rely entirely on on-site generation and storage.

Adopting solar energy not only reduces reliance on fossil fuels but also cuts energy costs and increases resilience to grid disruptions. For tips on choosing and maintaining a solar system, consult guides from the U.S. Department of Energy or your local energy authority.

Conclusion

Understanding how solar panels generate electricity helps you make informed decisions about adopting renewable energy. The combination of photovoltaic science, effective conversion, and energy storage enables homeowners and businesses to achieve greater independence and sustainability.

Disclaimer: This guide is for educational purposes and does not constitute engineering or investment advice. For system design or financial planning, consult certified solar professionals and reference official government resources.
