The Ultimate Guide to Safely Charging LiFePO4 Batteries

Lithium iron phosphate (LiFePO4) batteries are central to modern solar energy storage systems, valued for their long lifespan and inherent safety. However, unlocking their full potential depends entirely on proper charging practices. Following the right procedures for LiFePO4 battery charging not only safeguards your investment but also ensures optimal performance and longevity. This guide provides clear, actionable steps for safe and efficient charging.

Understanding the Core Principles of LiFePO4 Charging

Safe charging is more than just plugging in a cable; it involves understanding the technology that protects and manages your battery. From the internal management system to the specific charging algorithm, each component plays a vital role.

The Role of the Battery Management System (BMS)

The Battery Management System (BMS) is the brain of your LiFePO4 battery. This electronic circuit is a critical safety component that monitors and manages the battery's health. Its primary functions include preventing overcharging, over-discharging, and short circuits. The BMS also ensures that all cells within the battery pack are balanced, meaning they maintain a similar state of charge. By controlling the battery's operating conditions, the BMS is your first line of defense against potential damage.

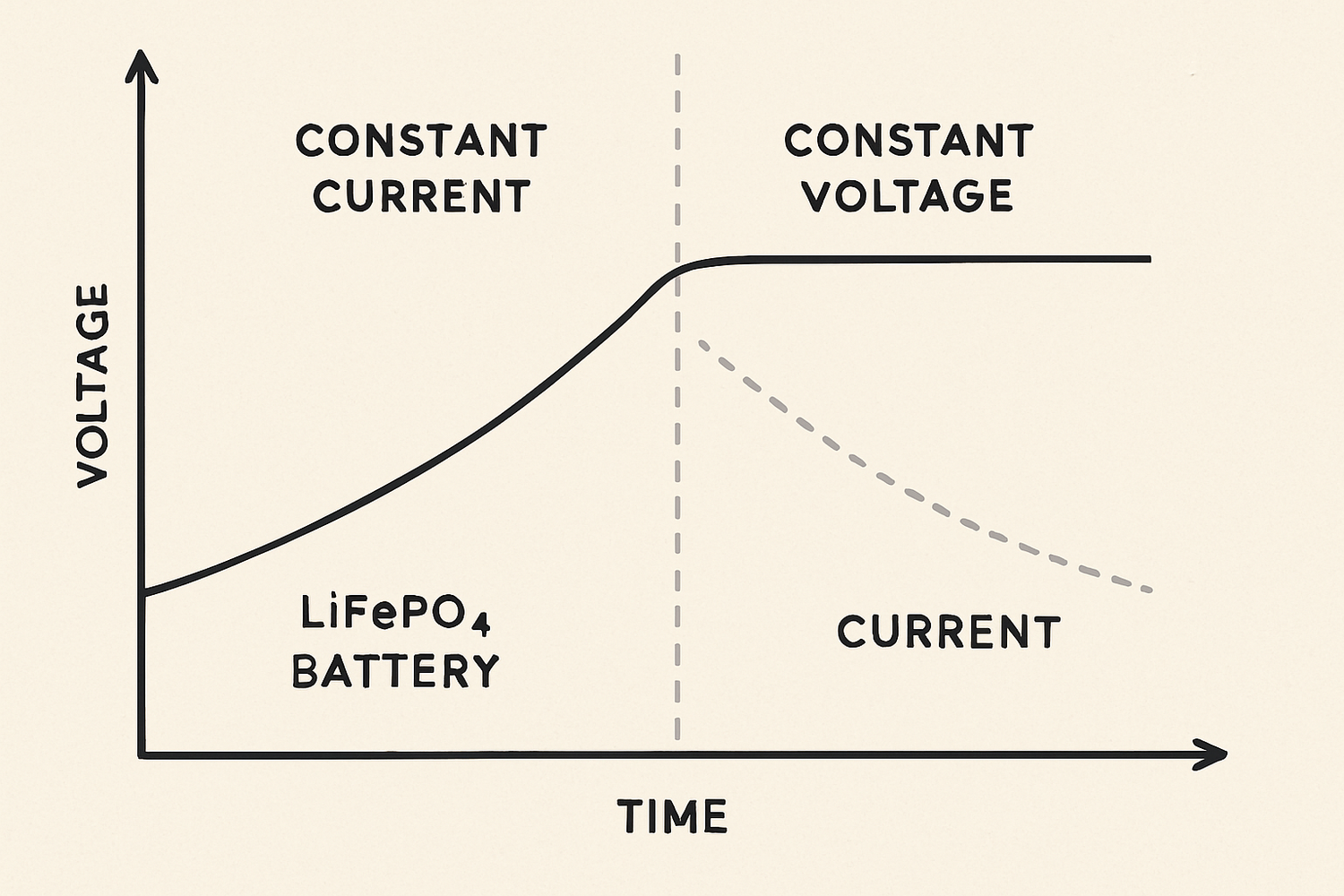

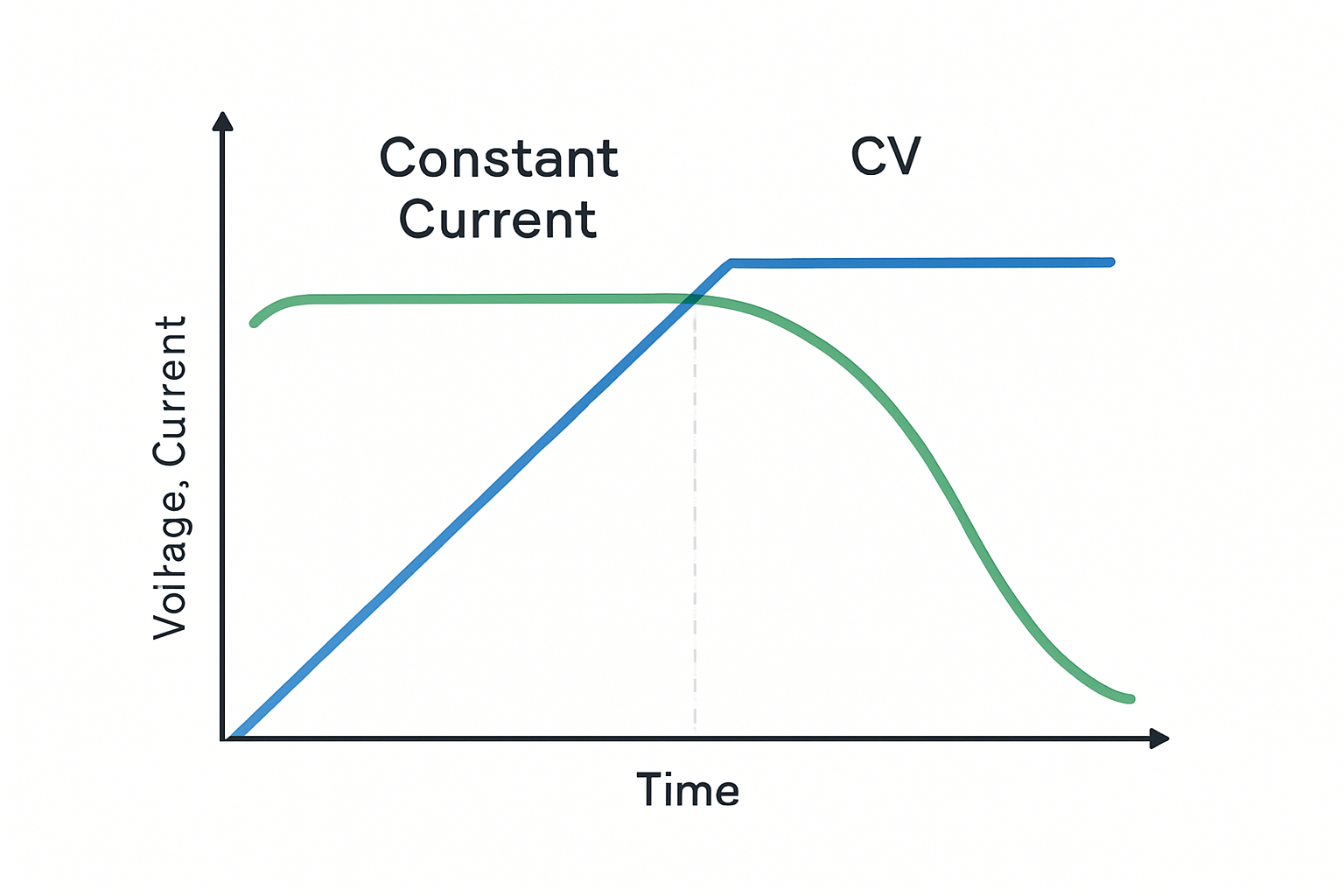

The Two-Stage Charging Process: CC/CV

LiFePO4 batteries use a two-stage charging algorithm known as Constant Current/Constant Voltage (CC/CV). In the first stage (CC), the charger supplies a steady current, causing the battery's voltage to rise gradually. Once the voltage reaches a set limit (typically 3.6-3.65V per cell), the charger switches to the second stage (CV). In this phase, the voltage is held constant while the current gradually decreases. The charging process is complete when the current drops to a predetermined low level. This method ensures a fast yet safe charge without stressing the battery cells.

Why a LiFePO4-Specific Charger is Non-Negotiable

Using a charger designed for a different battery chemistry, like lead-acid, is a significant risk. Chargers for lead-acid batteries have different voltage profiles and often include an 'equalization' or 'float' stage that is unnecessary and potentially harmful to LiFePO4 batteries. A dedicated LiFePO4 charger is programmed with the correct CC/CV algorithm and voltage limits, ensuring the BMS can function correctly and protect the battery. Always use a charger that explicitly supports LiFePO4 chemistry to guarantee safe charging.

Critical Factors Influencing Safe Charging

Beyond the charger itself, environmental conditions and specific settings have a major impact on the safety and efficiency of the charging process. Paying attention to these factors will help you maximize your battery's lifespan.

The Goldilocks Zone: Optimal Charging Temperatures

Temperature is a crucial factor in LiFePO4 battery safety and health. The recommended charging temperature range is between 0°C and 45°C (32°F to 113°F). Charging below freezing can cause lithium plating on the anode, a condition that permanently reduces capacity and can create internal short circuits. Conversely, charging at excessively high temperatures (above 45°C or 113°F) can accelerate component degradation and shorten the battery's life. A quality BMS will include temperature sensors and prevent charging outside this safe window.

Setting the Right Voltage and Current

Correct voltage and current settings are fundamental to LiFePO4 battery charging. The charge rate, expressed as a C-rate, should be managed to avoid stress. A charge rate of 0.5C (half the battery's capacity in amps) is generally recommended for optimal life. For example, a 100Ah battery would be charged at 50A. While LiFePO4 batteries can often handle faster rates, a gentler charge helps extend their lifespan. The charging voltage should be set according to the manufacturer's specifications.

The Impact of State of Charge (SoC) on Longevity

How you manage the State of Charge (SoC) directly affects how long your battery lasts. Unlike older battery technologies, LiFePO4 batteries do not suffer from 'memory effect' and do not need to be fully discharged. In fact, avoiding very deep discharges can significantly extend their cycle life. For maximum longevity, it's often recommended to operate the battery between 20% and 80% SoC. As detailed in the ultimate reference on solar storage performance, maintaining an optimal SoC is crucial for extending cycle life and getting the most from your system.

Step-by-Step Guide to Charging Your LiFePO4 Battery

Whether you are harnessing power from the sun, the grid, or a generator, the fundamental principles of safe charging remain the same. The key is ensuring your equipment is correctly configured for LiFePO4 chemistry.

Charging from Solar Panels

When charging with solar, a solar charge controller is essential. This device regulates the power from your solar panels to prevent overcharging the battery. It is critical to configure the charge controller with a specific LiFePO4 charging profile. This ensures the controller uses the correct voltage settings and CC/CV algorithm. Modern MPPT (Maximum Power Point Tracking) controllers are highly efficient and offer customizable settings for this purpose.

Charging from the Grid or a Generator

To charge from an AC source like the grid or a generator, you need a high-quality AC-to-DC smart charger. Once again, the charger must be specifically designed for or have a selectable mode for LiFePO4 batteries. This guarantees the charging process adheres to the precise voltage and current parameters required, protecting the battery and ensuring a complete charge.

Initial Charging and Balancing

When you first receive a new LiFePO4 battery, it's good practice to perform a full initial charge. This allows the BMS to properly balance all the internal cells for the first time. Cell balancing is a critical function where the BMS ensures all cells are at an equal voltage level, which is essential for long-term health and performance.

A Smarter Approach to Energy Management

Properly charging your LiFePO4 batteries is the most effective way to protect your energy storage investment. By understanding and implementing the principles of safe charging—using the right equipment, respecting temperature limits, and setting correct parameters—you ensure your system operates reliably for years to come. The growth of battery storage is a key part of the clean energy transition, and as noted in the IEA's report, The Role of Critical Minerals in Clean Energy Transitions, its deployment continues to grow rapidly. Proper care ensures these advanced systems deliver on their promise of energy independence and sustainability.

Frequently Asked Questions

Can I use a lead-acid battery charger for my LiFePO4 battery?

It is strongly discouraged. Lead-acid chargers use different charging voltages and algorithms that can damage a LiFePO4 battery or cause its BMS to shut down. Always use a charger specifically designed for LiFePO4 chemistry.

What happens if I charge my LiFePO4 battery below freezing?

Charging a LiFePO4 battery below 0°C (32°F) can cause irreversible damage known as lithium plating. This permanently reduces the battery's capacity and can create a safety hazard. A quality BMS should prevent charging in these conditions.

How often do I need to fully charge my battery?

LiFePO4 batteries do not require regular full charges. For optimal longevity, it is often better to keep them in a partial state of charge, such as between 20% and 80%. A full charge is beneficial occasionally to allow the BMS to rebalance the cells.

Is it safe to leave the charger connected indefinitely?

A high-quality LiFePO4 smart charger will automatically stop charging once the battery is full, making it generally safe. However, LiFePO4 batteries do not require a 'float' charge. For long-term storage, it is best to disconnect the battery and store it at around a 50% state of charge in a cool, dry place.
