Utility interconnection vs off-grid approvals: key differences

Adopting solar energy or energy storage systems offers a path to greater energy independence and sustainability. As you consider integrating these advanced energy solutions, you will encounter two primary approaches: utility interconnection or a completely off-grid setup. Each path presents distinct regulatory landscapes, technical demands, and economic considerations. Understanding these key differences is crucial for a successful project.

This discussion clarifies the unique approval processes for systems connected to the utility grid versus those designed for complete self-sufficiency. You will gain clarity on the requirements and implications of each choice, empowering you to make an informed decision for your energy future.

Utility Interconnection: Navigating Grid Integration

Connecting your solar or energy storage system to the existing electrical grid involves adhering to a specific set of rules and procedures set forth by utility companies and regulatory bodies. This pathway allows you to draw power from the grid when your system produces less than you need and often send excess energy back, potentially earning credits.

Regulatory Framework and Standards

The foundation of grid-tied solar and energy storage systems lies in robust regulatory frameworks and technical standards. Key among these are the IEEE 1547 and UL 1741 standards. The IEEE 1547 standard establishes criteria and requirements for interconnecting distributed energy resources (DER) with electric power systems, covering performance, operation, testing, safety, and maintenance . It is designed to be universally adoptable and technology-neutral, applying to systems up to 10 MVA .

UL 1741 is a crucial safety standard for inverters, converters, controllers, and interconnection system equipment used in renewable energy systems . This standard ensures protection against electrical hazards, mechanical impacts, and environmental conditions, while also validating accurate performance and reliable communication functionality . Compliance with UL 1741 is typically required by regulatory bodies and utilities to ensure safe and reliable deployment of renewable energy systems . Furthermore, general grid codes, which are technical, operational, and procedural standards, are set by grid operators and regulatory authorities to ensure overall grid stability, reliability, and efficiency .

Application and Approval Process

The approval process for grid interconnection typically involves both your local Authority Having Jurisdiction (AHJ) and the electric utility company . Utilities use "screens" to assess the potential impact that DER projects, such as behind-the-meter solar PV, might have on the local network . These screenings are part of distribution planning activities and guide the approval process . Many existing grid "screens" were designed for lower DER penetration levels .

Your application will require detailed documentation, including site plans, system design schematics, electrical wiring diagrams, component specification sheets, and certification documents . The AHJ reviews this information to ensure compliance with local electrical, building, and fire codes . After technical reviews and sometimes a utility witness test, you receive Permission to Operate (PTO), allowing your system to connect and send power to the grid.

Technical Requirements and Safety

A critical safety feature for grid-tied systems is anti-islanding protection. This mechanism ensures that if the utility grid experiences an outage, your solar or energy storage system automatically disconnects from the grid, preventing power from being fed back into the lines . This protects utility workers who might be repairing lines, as an energized circuit poses severe hazards . Modern inverters are designed with anti-islanding functions to detect outages and cease power export within seconds .

Beyond anti-islanding, grid codes mandate requirements for voltage and frequency stability, reactive power control, and fault ride-through capabilities . Your system must operate within specified voltage and frequency limits to avoid grid disturbances . Advanced inverters, which are crucial components, must be capable of providing reactive power support to maintain voltage stability . They also need fault ride-through (FRT) capabilities, allowing them to remain connected and operational during short-term grid disturbances like voltage sags .

Off-Grid Approvals: Embracing Self-Sufficiency

An off-grid solar or energy storage system operates entirely independently of the public utility grid. This setup provides complete energy independence, making it ideal for remote locations, cabins, or properties where grid access is unreliable or unavailable. However, this independence comes with its own set of design and permitting considerations.

System Design and Sizing Considerations

Designing an off-grid system requires careful planning to ensure a continuous and reliable power supply. Unlike grid-tied systems, off-grid setups necessitate a complete ecosystem of components, including solar panels, a charge controller, a robust battery storage system, and an inverter . Lithium iron phosphate (LiFePO4) batteries are a popular choice for their high performance, safety, and reliability in these systems. You will likely also need a backup generator to supplement power during extended periods of low sunlight or high demand .

System sizing is paramount. You determine the amount of energy required daily to power your loads, and then size your solar array and battery bank accordingly . Experts often recommend an array to load ratio (ALR) of at least 1.3 for off-grid systems, meaning your solar array should be sized to produce 30% more power than your average daily load to account for variations . Off-grid systems typically require significantly more physical space for the battery bank and additional solar panels compared to grid-tied setups . A comprehensive battery system for a typical home can be the size of a small refrigerator or larger, and may require a dedicated equipment room with proper ventilation and temperature control .

Local Permitting and Inspections

A common misconception is that off-grid systems do not require permits because they do not connect to the utility grid . This is not accurate. Most jurisdictions require building and electrical permits for off-grid solar installations to ensure safety and compliance with local codes . While you bypass the utility interconnection approval process, your local AHJ will still review your plans for structural soundness, electrical safety, and adherence to building and fire codes . For instance, if you install panels on your roof, a building permit verifies the roof's ability to support the additional weight . An electrical permit ensures the system meets electrical safety standards, given that it generates and stores electricity . Always consult your local authorities to understand specific requirements for your area .

Equipment and Safety Standards

Even without grid connection, the components within an off-grid system must meet stringent safety and performance standards. Inverters, for example, are still subject to standards like UL 1741, which covers equipment for both stand-alone and grid-connected power systems . For battery storage, various UL standards apply, such as UL 9540 for Energy Storage Systems and Equipment, UL 1973 for Batteries for Use in Stationary and Motive Auxiliary Power Applications, and UL 1642 for Lithium Batteries . Adhering to these standards ensures the overall safety, reliability, and longevity of your off-grid energy solution.

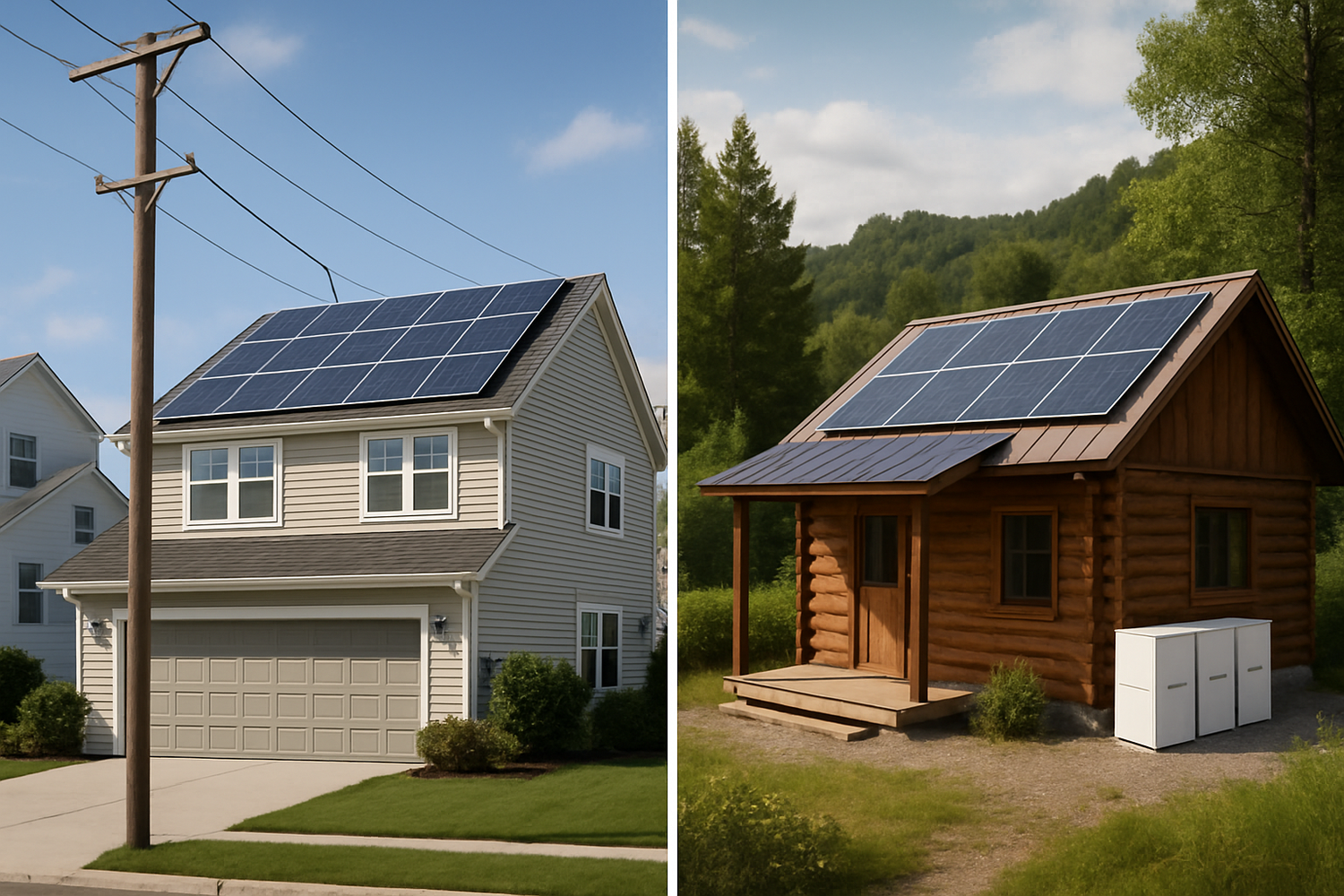

Key Differences and Strategic Choices

The choice between utility interconnection and an off-grid system hinges on various factors, including your location, energy goals, and budget. Here, we outline the fundamental distinctions.

Regulatory Bodies and Oversight

The primary difference in approvals lies in the governing authorities. For utility interconnection, you primarily interact with your electric utility for interconnection agreements and Permission to Operate, alongside local AHJs for building and electrical codes . The utility dictates technical requirements for grid compatibility and safety. For off-grid systems, your interaction is almost exclusively with the local AHJ, ensuring compliance with general building and electrical codes, without direct utility involvement in the power flow approvals .

Technical Complexities and Grid Interaction

Grid-tied systems necessitate complex technical compliance to ensure seamless interaction with the utility grid. This includes features like anti-islanding, precise voltage and frequency synchronization, and reactive power support . The system must be able to respond to grid conditions and potentially provide grid services . Off-grid systems, conversely, are designed for independent operation. Their technical complexity centers on robust sizing of generation and storage to meet all loads, managing energy flow autonomously, and ensuring system stability without external grid support . Intentional islanding is the inherent operating mode for off-grid setups.

Financial Implications and Incentives

The financial aspects differ significantly. Grid-tied systems often have lower upfront costs because they do not require extensive battery storage, as the grid acts as a virtual battery for excess energy . You can benefit from net metering, where excess electricity generated is sent back to the grid in exchange for credits, potentially reducing or eliminating your electricity bill . Many incentives, such as tax credits and rebates, are available for grid-tied installations .

Off-grid systems, while offering complete freedom from utility bills, typically involve a higher initial investment due to the necessity of comprehensive battery storage, charge controllers, and often a backup generator . The long-term operating costs are low, as solar energy is abundant and system maintenance is minimal . However, you gain full energy independence and are insulated from fluctuating energy prices and grid outages . For properties located far from existing grid infrastructure, the cost of extending power lines can make off-grid solutions economically more viable despite higher equipment costs .

Choosing Your Energy Path

Deciding between a utility-interconnected or an off-grid solar and energy storage system involves weighing your priorities. If you seek to reduce electricity bills, contribute to a greener grid, and benefit from incentives while maintaining grid reliability, a grid-tied system is often suitable. This approach is generally more affordable upfront and leverages the grid for backup and excess energy management.

If your goal is complete energy autonomy, resilience against grid outages, or if your property is in a remote area without grid access, an off-grid system offers the ultimate independence. While requiring a higher initial investment and careful system management, it provides a stable and reliable power supply entirely on your terms. Regardless of your choice, understanding the distinct approval processes and technical requirements is your first step toward achieving your energy goals.
