When choosing a battery for a solar energy storage system or an off-grid application, longevity is a primary concern. Lithium Iron Phosphate (LiFePO4) batteries are frequently praised for their extended lifespan, but are these claims backed by evidence? This analysis examines the data to provide a clear picture of LiFePO4 battery longevity compared to other common battery chemistries.
Understanding Battery Lifespan: Beyond the Spec Sheet
A battery's lifespan is not a single number but a result of several interconnected factors. To accurately assess longevity, it's important to distinguish between two key metrics and the variables that influence them.
Cycle Life vs. Calendar Life: Two Sides of the Same Coin
Cycle life refers to the number of charge and discharge cycles a battery can endure before its capacity drops to a certain percentage of its initial rating, typically 80%. Calendar life, on the other hand, is the total time a battery lasts before it needs replacement, regardless of how many cycles it has undergone. Both are critical, as a battery in a daily-use solar system is affected by cycling, while a backup battery is more influenced by calendar aging.
Key Factors Influencing Longevity
Several operational conditions directly impact how long any battery will last. The Depth of Discharge (DoD) indicates how much of the battery's capacity is used in each cycle. Temperature plays a significant role; very high or low temperatures can accelerate degradation. Finally, the rates at which the battery is charged and discharged also affect its internal components and overall lifespan.
The LiFePO4 Advantage: A Look at the Chemistry
The superior lifespan of LiFePO4 batteries is rooted in their fundamental chemistry. The unique molecular structure provides inherent stability that sets it apart from other lithium-ion technologies.

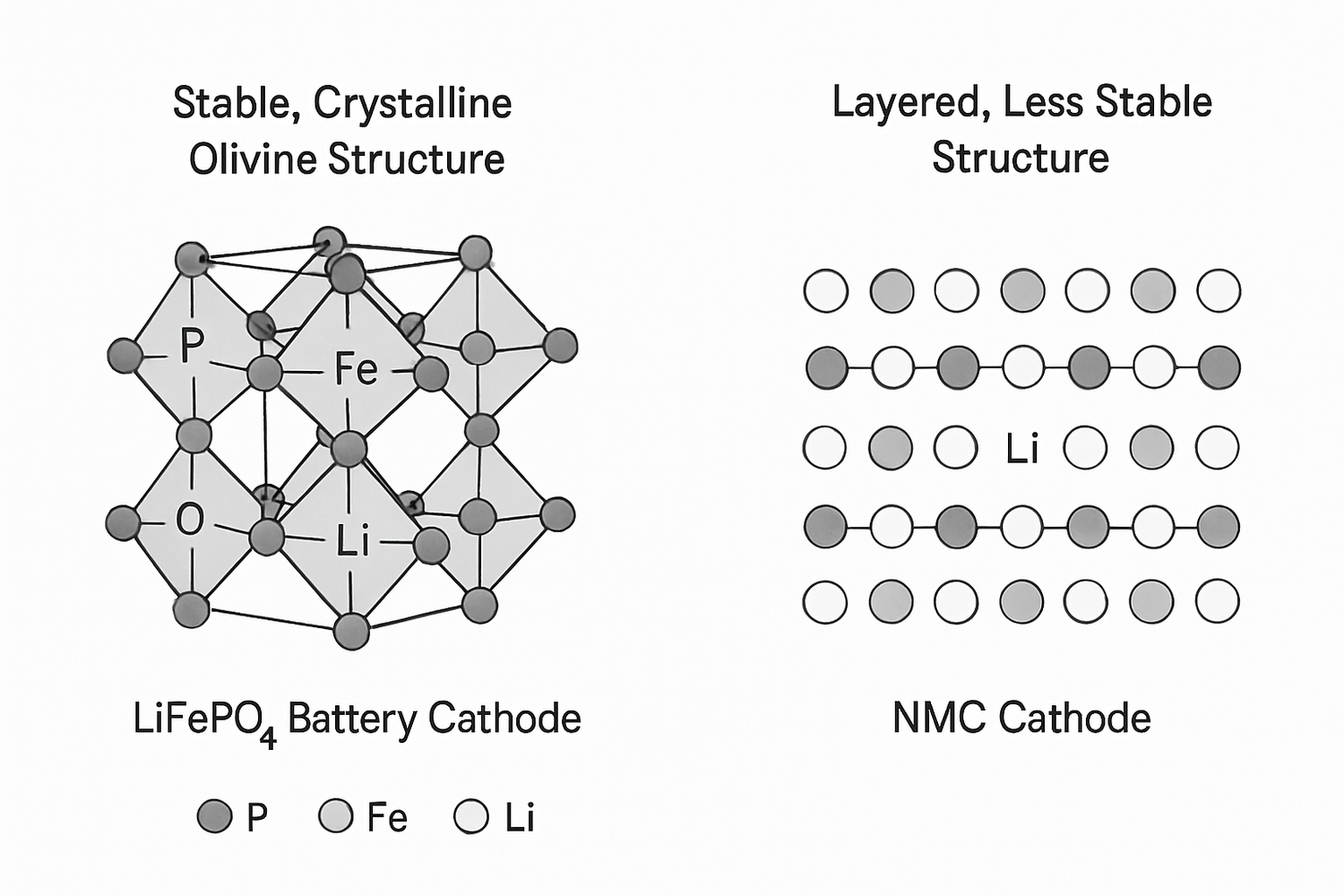

The Stability of the Olivine Structure
LiFePO4 batteries use a phosphate-based cathode material that forms a strong, three-dimensional crystal structure known as an olivine structure. This structure is exceptionally stable, particularly during the charge and discharge process when lithium ions are moving in and out. Unlike the layered oxides in other chemistries like Nickel Manganese Cobalt (NMC), the olivine structure does not easily degrade or break down from mechanical stress or high temperatures.
How Stability Translates to More Cycles
This chemical stability directly results in a longer cycle life. Because the cathode material resists structural change, a LiFePO4 battery can handle thousands of cycles with minimal capacity loss. It's common for these batteries to be rated for 3,000 to 6,000 cycles or more, while traditional lead-acid batteries may only last for 300-500 cycles. This durability makes them well-suited for applications that require frequent, deep cycling, such as home energy storage.
Data-Driven Comparison: LiFePO4 vs. Other Chemistries
When comparing batteries, the numbers reveal a clear story. Data on cycle life, temperature performance, and capacity retention highlight the advantages of LiFePO4 technology.
Cycle Life at Different Depths of Discharge (DoD)
Depth of Discharge has a major impact on battery lifespan. While deeper discharges stress most batteries, LiFePO4 chemistry is remarkably resilient. Even at 80-90% DoD, LiFePO4 batteries maintain a high cycle count, a feat that would quickly degrade lead-acid batteries.
| Battery Chemistry | Typical Cycle Life (at 80% DoD) | Safety Profile | Nominal Cell Voltage |
|---|---|---|---|
| LiFePO4 (LFP) | 3,000 - 6,000+ | Very High (Stable) | 3.2V |
| Lead-Acid (AGM/Flooded) | 300 - 700 | Moderate (Venting required) | 2.0V |
| Lithium NMC | 1,000 - 2,000 | Good (Requires careful management) | 3.7V |
The Impact of Temperature on Performance
LiFePO4 batteries demonstrate superior thermal stability. They operate efficiently across a wider temperature range and have a much higher thermal runaway threshold (around 270°C) compared to NMC batteries (around 210°C). This makes them safer and more reliable, especially in environments with fluctuating temperatures. Research from the U.S. Department of Energy continually explores methods to improve battery performance and mitigate degradation from environmental factors.
Long-Term Capacity Retention
Beyond just the number of cycles, it is important to consider how much capacity a battery retains over its life. LiFePO4 batteries exhibit a very low rate of capacity fade. According to a detailed analysis on solar storage performance, LiFePO4 systems consistently demonstrate minimal degradation, ensuring they deliver reliable power for many years. This slow aging process means they provide more value over their operational life.
A Clearer Perspective on Long-Term Value
The data confirms that LiFePO4 batteries last significantly longer than their counterparts. Their robust chemical structure leads to a higher cycle life, better thermal stability, and slower capacity degradation. While the initial investment may be higher, their extended lifespan and reliability result in a lower total cost of ownership. For anyone seeking a durable and dependable energy storage solution, the evidence points toward LiFePO4 as the leading choice. As highlighted by the International Renewable Energy Agency (IRENA), advancements in battery storage are crucial for the global transition to renewable energy, with technologies like LiFePO4 playing a key role due to their safety and longevity.
Frequently Asked Questions
How many years can a LiFePO4 battery last?
With proper care and average use, a LiFePO4 battery can last 10 to 15 years or even longer. This is significantly longer than the typical 3-5 year lifespan of a lead-acid battery. The actual duration depends on cycle frequency, depth of discharge, and operating temperature.
Does charging a LiFePO4 battery to 100% shorten its life?
Unlike some other lithium-ion chemistries, charging to 100% is not significantly detrimental to a LiFePO4 battery. However, for long-term storage (several months), it is often recommended to keep them at a 50-70% state of charge to maximize calendar life.
Are LiFePO4 batteries better for solar energy storage?
Yes, their characteristics make them an excellent fit for solar energy storage. Their high cycle life is ideal for the daily charge-and-discharge pattern of a solar system. Furthermore, their high efficiency ensures that more of the captured solar energy is stored and available for use, and their safety profile provides peace of mind for home installations.
