FAQs: Do Home LiFePO4 Batteries Need Ventilation?

Lithium iron phosphate (LiFePO4) batteries are a leading choice for home energy storage, valued for their long lifespan and safety profile. A common question that arises during installation is about ventilation. Unlike traditional lead-acid batteries, the requirements for LiFePO4 are different. This article provides clear answers on thermal management and ventilation needs for your home battery system.

Understanding LiFePO4 Battery Chemistry and Safety

The ventilation needs of a battery are directly tied to its chemical makeup and behavior during operation. LiFePO4 chemistry has distinct advantages that influence its installation requirements.

The Stable Nature of Lithium Iron Phosphate

LiFePO4 batteries have a very stable crystalline structure. This makes them chemically and thermally safer than other lithium-ion variants. The phosphate-based cathode material is not prone to thermal runaway until it reaches very high temperatures, making it an exceptionally safe option for residential applications. This inherent stability is a primary reason for its widespread adoption in home energy storage.

What is Off-Gassing?

Off-gassing is the release of gas from a battery during charging or discharging. This is a normal and expected process in flooded lead-acid batteries, which release hydrogen and oxygen. LiFePO4 batteries, however, are different. Under normal operating conditions, they are sealed and do not release any gases. You will not experience the routine off-gassing associated with older battery technologies.

Extreme Conditions and Potential Risks

In rare and extreme cases of failure, such as severe physical damage or a major internal short circuit, a LiFePO4 cell can vent. This involves the release of electrolyte vapor, which is not the same as the flammable hydrogen gas from lead-acid batteries. While the risk is low, it underscores the importance of installing the battery in a suitable location and using a certified battery management system (BMS) to prevent conditions that could lead to cell failure.

The Role of Thermal Management for Optimal Performance

While LiFePO4 batteries do not require ventilation for off-gassing, they do require effective thermal management. Controlling temperature is crucial for maximizing the battery's lifespan, performance, and safety.

Why Temperature Matters

Every battery operates best within a specific temperature range. For most LiFePO4 batteries, this is typically between 20°C and 25°C (68°F to 77°F). Operating continuously at high temperatures accelerates the degradation of internal components, which can permanently reduce capacity and shorten the battery's service life. Conversely, very low temperatures can temporarily reduce performance and charging efficiency.

Passive vs. Active Cooling

Thermal management strategies can be either passive or active. For most residential LiFePO4 systems, passive cooling is sufficient. This involves ensuring adequate space for natural air convection to dissipate heat. Active cooling, which uses fans or liquid cooling systems, is generally reserved for large-scale commercial installations or systems in extremely hot climates where ambient temperatures cannot keep the battery cool.

Data-Driven Performance Insights

The impact of temperature on battery health is not theoretical. It has measurable effects on cycle life and efficiency. For a detailed analysis of how operational parameters affect battery longevity, the ultimate reference on solar storage performance offers valuable data. The information shows a clear correlation between maintaining a stable temperature and achieving the maximum number of cycles from your investment.

Practical Installation Strategies for Your Home System

Proper installation is the key to effective thermal management. Where and how you install your battery makes a significant difference.

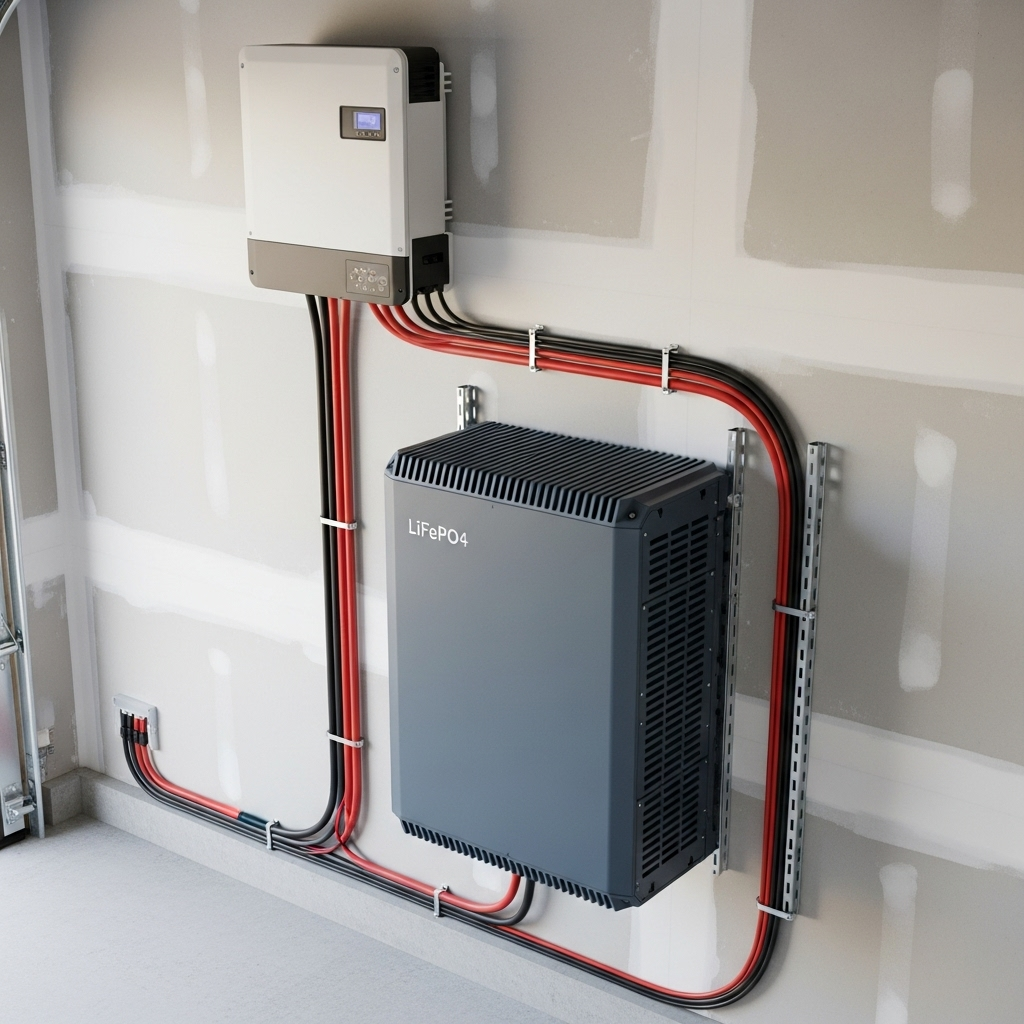

Choose the Right Location

Your battery's location is the first line of defense against heat. Install your system in a cool, dry, and protected area. A garage or a basement is often a better choice than a hot attic or an outdoor shed exposed to direct sunlight. Protecting the battery from extreme ambient temperatures is a simple way to extend its life.

Ensure Proper Spacing and Airflow

Heat dissipates through convection. To facilitate this, you must provide adequate clearance around the battery unit. A general guideline is to leave at least 10-15 cm (4-6 inches) of open space on all sides. It is also critical to ensure that any vents built into the battery's casing are not blocked by walls, equipment, or debris.

Considerations for Enclosures and Cabinets

If you place your battery in an enclosure or cabinet, the enclosure itself must be designed for thermal management. A sealed box can trap heat and create a dangerous micro-environment for the battery. A properly designed enclosure should have vents to allow for passive airflow, preventing heat from building up around the unit.

When is Dedicated Ventilation Required?

Although most home systems do not need forced ventilation, certain scenarios call for more robust thermal management. The growing investment in battery storage, which more than doubled in 2022 according to the IEA, highlights the need for reliable installations. As noted in the World Energy Investment 2023 report, proper infrastructure is key to supporting this growth.

High-Density Installations

If you are installing multiple battery modules together in a confined space, the combined heat output will be higher. In these situations, simple passive airflow may not be enough. A ventilation fan may be necessary to actively pull cool air into the space and exhaust hot air.

Hot Climates

In regions with consistently high ambient temperatures, the baseline temperature of the installation space may already be near the upper limit of the battery's ideal range. In these environments, a dedicated ventilation system can help maintain a safe operating temperature and protect your investment from premature degradation.

Always Follow Manufacturer Specifications

The most important rule is to read and follow the installation manual provided by the battery manufacturer. The manual will provide specific requirements for spacing, ventilation, and operating temperatures. Adhering to these guidelines is essential for ensuring safety and maintaining your product warranty.

A Final Perspective on LiFePO4 Ventilation

The question of ventilation for home LiFePO4 batteries is more about thermal management than gas dispersal. These batteries are sealed and safe under normal conditions. The priority is not to vent gases but to prevent heat accumulation. By choosing a proper location, ensuring adequate airflow, and following manufacturer guidelines, you provide the ideal environment for your battery to deliver reliable, long-term performance and help you achieve energy independence.

Frequently Asked Questions

Do LiFePO4 batteries produce gas?

Under normal operating conditions, LiFePO4 batteries are sealed and do not produce or release any gas. Off-gassing is only a concern in rare, catastrophic failure events caused by severe abuse, not during routine operation.

Can I install a LiFePO4 battery in a sealed box?

This depends on the system's size and the ambient temperature. While a small system in a cool climate might be acceptable, a sealed box can trap heat and shorten the battery's life. Always consult the manufacturer's guidelines; a vented enclosure is a much safer choice for thermal management.

What is the ideal temperature for a home LiFePO4 battery?

Most manufacturers recommend an operating temperature range between 20°C to 25°C (68°F to 77°F) for optimal performance and longevity. While they can operate outside this range, performance and lifespan may be negatively impacted.

How much space should I leave around my battery?

A general rule is to provide at least 10-15 cm (4-6 inches) of clear space on all sides of the battery unit. This allows for adequate natural air circulation to dissipate heat. Always refer to your specific product manual for the exact requirements.
