Grid‑tied solar panels stop producing during a home power outage for safety. A hybrid inverter with a battery changes that. It can form a local microgrid, keep critical circuits alive, and prevent any backfeed to utility lines. This page explains how safe islanding works, what to specify, and how to size a solar panel microgrid for real outages.
Why grid‑tied PV shuts off in blackouts
Standard grid‑tied inverters are “grid‑following.” They synchronize to utility voltage and frequency. If the grid goes down, they must stop producing within fractions of a second. This prevents backfeed that could endanger lineworkers and equipment. EnergySaver notes that solar panels alone will not power a home during an outage; they need storage and the right inverter to isolate from the grid and supply loads safely, often called solar plus storage (Energy.gov EnergySaver: Solar Plus Storage).
The same safety logic sits behind interconnection standards. Anti‑islanding rules require PV inverters to detect loss of grid and disconnect. Hybrid inverters solve the outage gap by forming a local AC source and managing both PV and batteries while keeping utility lines isolated.
What a home microgrid is—and how hybrid inverters enable it
A microgrid is a small, controllable electric system that can operate with the larger grid or as an island. With advanced inverters and controls, PV can help form microgrids—from a single home to a clinic or campus—providing resilience during grid failures. As summarized in sector research, microgrids are designed to interact with the grid during normal operations but operate as an island during a blackout, with IEEE 1547.4 offering guidance on design and operation within larger grid infrastructures. Although microgrids were relatively rare as of 2019 (less than 4 GW installed in the U.S.), interest in PV‑based microgrids is rising as technology and operating experience improve. Future grids may flexibly isolate segments near distributed generation so available power can serve local loads during major outages. This vision would require changes in grid operations but could add resilience benefits.
Mini‑ and microgrids are an established path to reliable power in many regions. IRENA highlights their growing role in supplying dependable, clean electricity where grids are weak or disrupted (IRENA: Renewable Energy Mini‑grids).

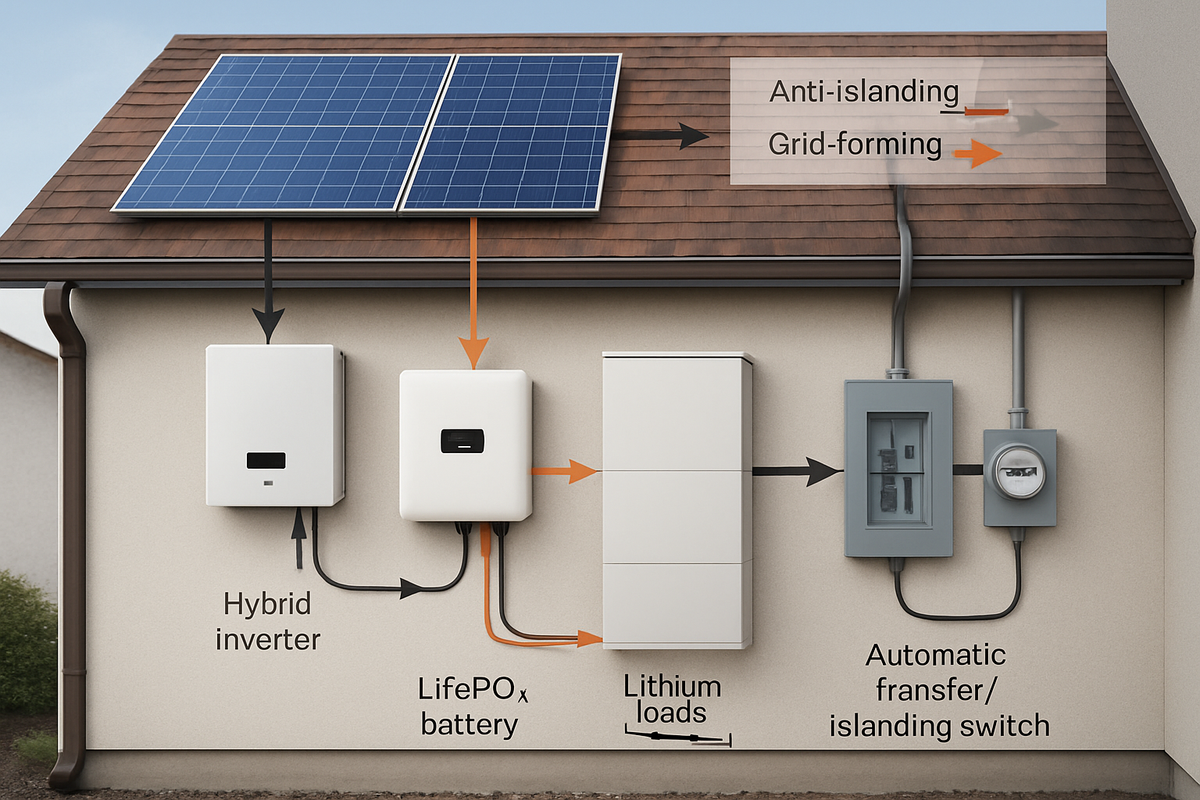

On the technology side, hybrid inverters combine PV inversion, battery charging, and grid‑forming capabilities. They can:
- Run “grid‑connected” and optimize self‑consumption.
- Detect an outage, open an internal or external transfer switch, and create a stable AC waveform for a critical loads subpanel.
- Balance PV production, battery charge/discharge, and load demand while ensuring no backfeed to the utility.
Core components of a safe solar panel microgrid
1) Hybrid inverter with islanding support
Look for models that provide grid‑forming backup on a dedicated emergency power supply (EPS) output. Key functions include fast transfer (often 10–20 ms UPS‑class), frequency‑watt and volt‑VAR controls, and PV curtailment to avoid battery overcharge during bright sun and low load. EnergySaver reinforces the need for appropriate equipment to operate during outages (Energy.gov EnergySaver: Solar Plus Storage).
2) Battery storage, ideally LiFePO4
Lithium iron phosphate (LiFePO4) batteries offer high cycle life, stable chemistry, and good thermal behavior for residential use. A typical home ESS integrates LiFePO4 modules, a hybrid inverter, and PV. This all‑in‑one approach simplifies wiring and controls while improving safety and efficiency.
3) Critical loads subpanel and transfer mechanism
A dedicated subpanel isolates must‑run circuits: refrigeration, lighting, Wi‑Fi, home office, well pump, or medical devices. The hybrid inverter’s internal transfer switch or an external automatic transfer switch (ATS) connects the subpanel during an outage. The utility side stays isolated.
4) Protection and compliance
Modern interconnection and safety rules (IEEE 1547 family, UL 1741, and NEC 690/705) govern anti‑islanding, ride‑through, rapid shutdown, ground‑fault protection, and arc‑fault detection. The International Energy Agency notes that robust integration practices help solar PV scale while maintaining grid reliability (IEA: Solar PV).
Distributed generation fundamentals and interconnection basics are outlined by EIA (EIA: Distributed generation), while DOE’s solar program provides general technology context (Energy.gov: Solar Energy).
How safe islanding works, step by step
Normal grid conditions
The hybrid inverter synchronizes to utility power. PV supplies the home first, then charges the battery, then exports surplus if allowed. The critical loads subpanel is pass‑through from the grid, ready for transfer if needed.
Outage detection and isolation
On grid loss, the inverter opens its grid relay or ATS and stops any export. It starts producing a stable AC waveform locally. Transfer time can be fast enough to keep electronics online.
Operating the island
- PV feeds the subpanel and charges the battery if there is surplus.
- The inverter uses frequency‑watt control to throttle PV if the battery is full and loads are light, preventing overvoltage.
- Voltage and frequency stay within appliance limits, using droop controls and ride‑through profiles adapted from grid standards.
Sector research indicates that as devices get more interconnected, coordination of distributed PV in isolated segments could unlock resilience not feasible today, especially during disasters. That aligns with the trend toward flexible, segmentable grids described in microgrid literature.
Sizing your home microgrid for real outages
Define critical power and energy
List must‑run loads, their watts, and typical run hours in an outage. Target peak power and daily energy.
- Peak power example: fridge 600 W (startup 1,200 W), lights 150 W, router 15 W, laptop 60 W, well pump 1,000 W (intermittent) → about 2–3 kW peak.
- Daily energy example: fridge 1.2 kWh, lights 0.6 kWh, router 0.3 kWh, laptop 0.3 kWh, pump 1.0 kWh → about 3.4 kWh per day.
Add headroom for HVAC fans, induction cooktops, or medical devices if needed. Many homes settle on a 5–10 kW hybrid inverter with a 10–20 kWh battery for multi‑hour to multi‑day resilience, depending on weather and load discipline.
Why LiFePO4 suits residential backup
LiFePO4 batteries support high cycle counts and high round‑trip efficiency. They maintain usable capacity over many years, and they have a stable chemistry that pairs well with indoor or garage installations with proper thermal control. Depth of discharge is often 80–90% in daily cycling use.
Solar array sizing
To sustain the island through long outages, size PV to recharge the battery during average sun. As a rough check, if daily critical energy is 5 kWh, a 2–3 kW array in moderate sun may cover it. In cloudy seasons, add capacity or plan for load shedding. The IEA documents strong growth and cost declines in PV, which make solar‑plus‑storage increasingly practical (IEA: Solar PV).
Backup options at a glance
| Backup option | Islanding supported | Typical transfer time | Noise / emissions | Suited for | Notes |
|---|---|---|---|---|---|
| Grid‑tied PV (no storage) | No | Not applicable | Silent / none | Bill savings only | Shuts off during outages due to anti‑islanding. |
| Hybrid inverter + LiFePO4 battery | Yes | ~10–20 ms (UPS‑class) typical | Silent / none onsite | Critical loads, extended outages | Can recharge from PV; scalable storage. |
| Standby generator | Yes | ~1–10 s | Loud / emissions | Whole‑home, heavy loads | Needs fuel, maintenance; can integrate as a backup source. |
Practical design and installation tips
Match equipment to standards
- Select a hybrid inverter certified to UL 1741 and compliant with IEEE 1547 interoperability features used in your region.
- Confirm EPS or backup output rating meets your critical load peak.
- Verify rapid shutdown (NEC 690.12) if required.
Plan the electrical layout
- Create a critical loads subpanel sized for the inverter’s backup output.
- Use an internal transfer relay or an ATS listed for microgrid applications.
- Include surge protection, proper bonding and grounding, and overcurrent protection per code.
Controls and setpoints that keep the island stable
- Enable frequency‑watt curtailment so PV ramps down as battery reaches full.
- Set state‑of‑charge reserves (for nighttime) and priority rules for critical circuits.
- If pairing with a generator, coordinate start/stop and frequency limits so the inverter and generator share loads cleanly.
Commissioning and maintenance
- Simulate a blackout to verify transfer time, voltage, and frequency.
- Label service disconnects and train household members on which circuits are backed up.
- Update firmware to maintain interconnection features and protections.
Why resilience is gaining value
Outages vary by location and season. EIA describes how distributed resources can affect local reliability and how utilities track outage metrics across states (EIA: Distributed generation). For homeowners, even a few hours without refrigeration, internet, or sump pumps can be costly. A microgrid adds tangible resilience and can cut fuel dependence for generators.
Policy and market trends support this shift. IRENA reports momentum in mini‑ and microgrids for reliable, low‑carbon supply in both remote and grid‑connected settings (IRENA: Renewable Energy Mini‑grids). DOE highlights solar‑plus‑storage as a practical way to keep critical loads powered during outages (Energy.gov EnergySaver: Solar Plus Storage; Energy.gov: Solar Energy).
Industry research adds that as microgrid technology improves and experience grows, grids could flexibly isolate segments near distributed PV during large events, allowing available power to serve local loads even outside established microgrids. That approach would depart from current operations but could provide added resilience benefits.
Product considerations without the hype
A reliable home microgrid centers on a few proven building blocks:
- Lithium battery modules based on LiFePO4 chemistry for safety and long cycle life.
- A hybrid inverter that can form a microgrid, manage PV and storage, and meet interconnection standards.
- An integrated ESS that bundles batteries, inverter, and controls to simplify installation and service.
- Off‑grid capable configurations for cabins, farms, or accessory buildings that lack utility service.
- A robust solar inverter stage to convert DC from panels to clean AC for household loads.
Focus on verified performance, clear protection features, and expandability. Choose systems that are scalable, so you can add battery capacity or more PV as needs grow. This aligns with a simple goal: dependable energy and more independence from grid disruptions.
Bringing it all together
Hybrid inverters make safe islanding practical at home. They detect outages, isolate from the utility, and form a stable microgrid that runs on sunlight and stored energy. With a right‑sized LiFePO4 battery, a well‑defined critical loads subpanel, and standards‑compliant controls, you gain backup power without backfeed risk. Sector research and policy resources—from IRENA, IEA, EIA, and DOE—point to the same direction: solar‑plus‑storage is becoming a dependable tool for resilience. Build on that with careful design, a clean installation, and routine testing. Your home microgrid will be ready for the next blackout.
