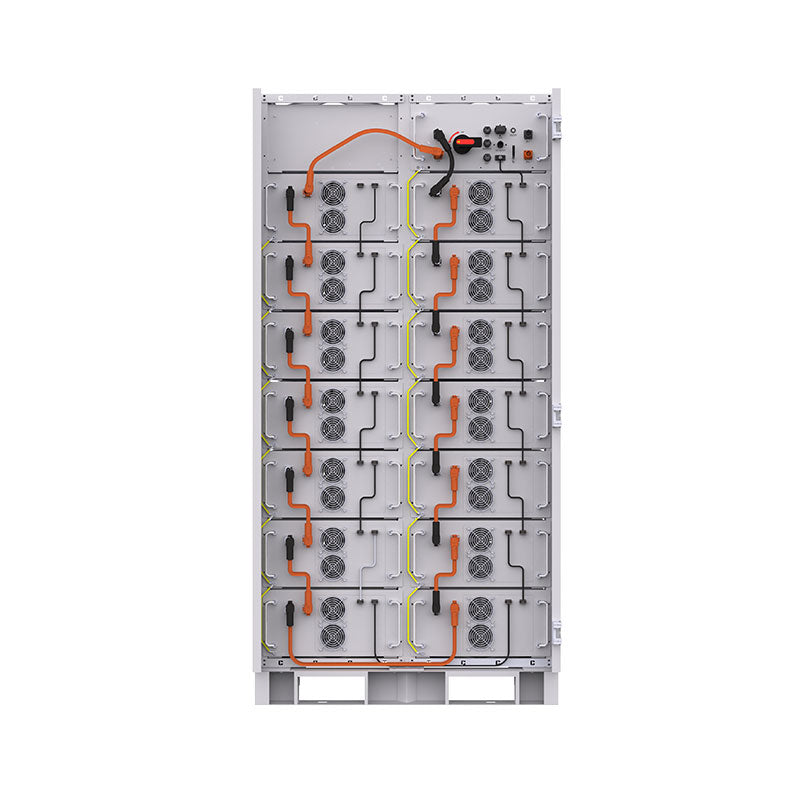

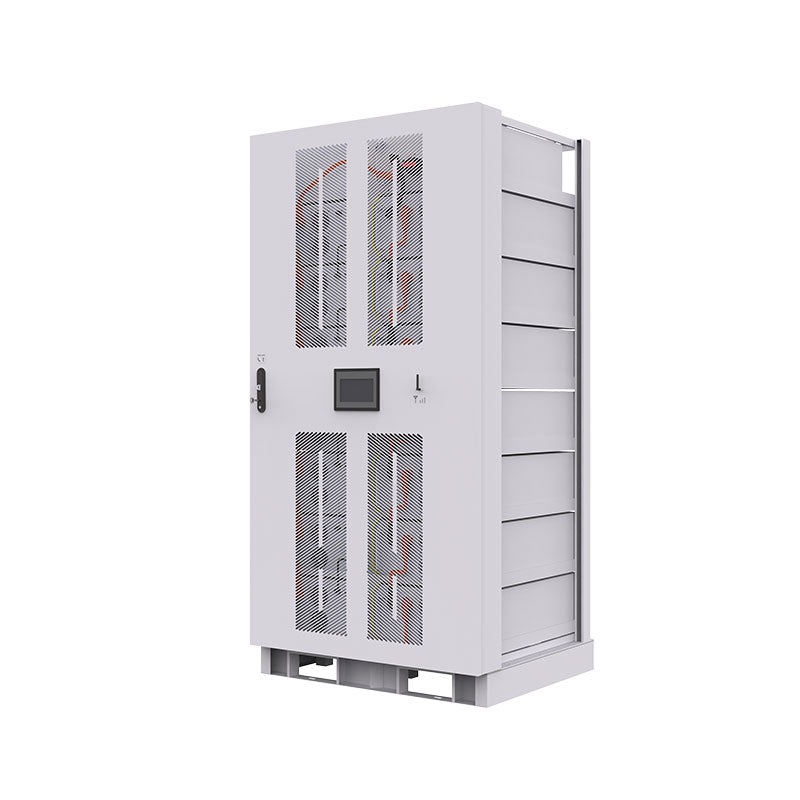

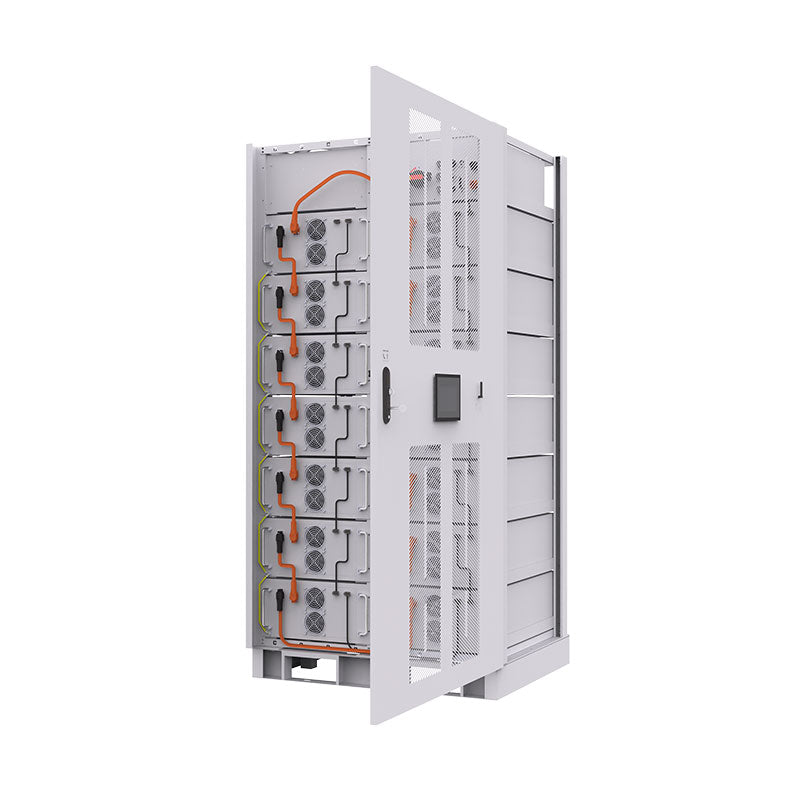

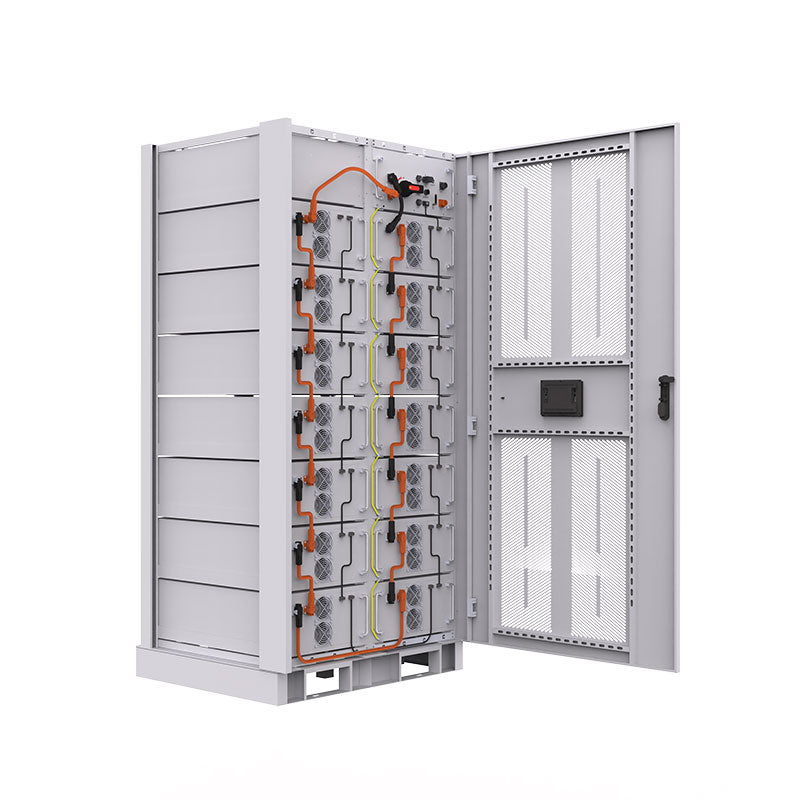

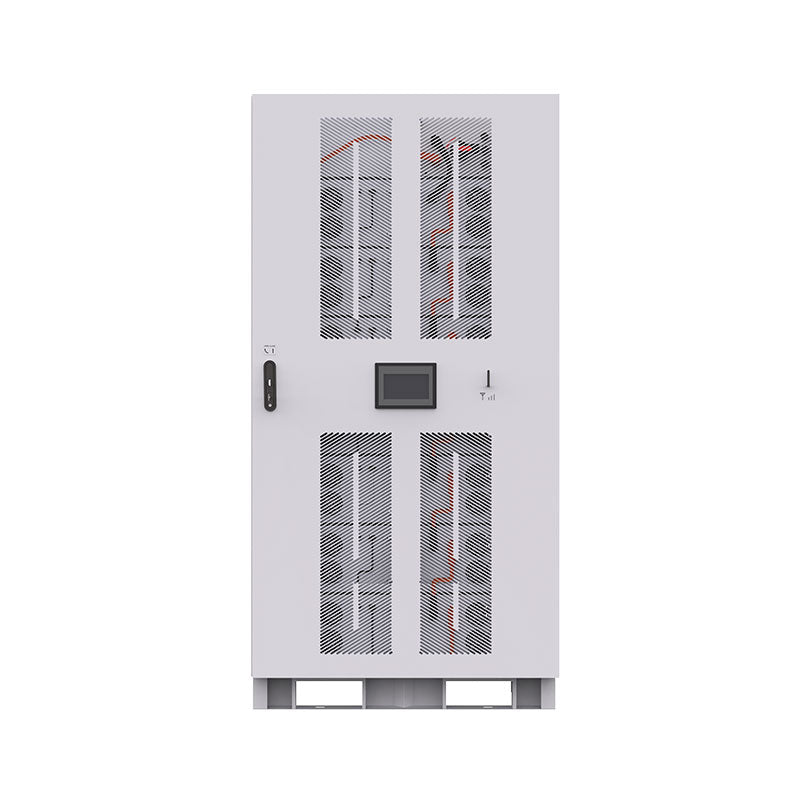

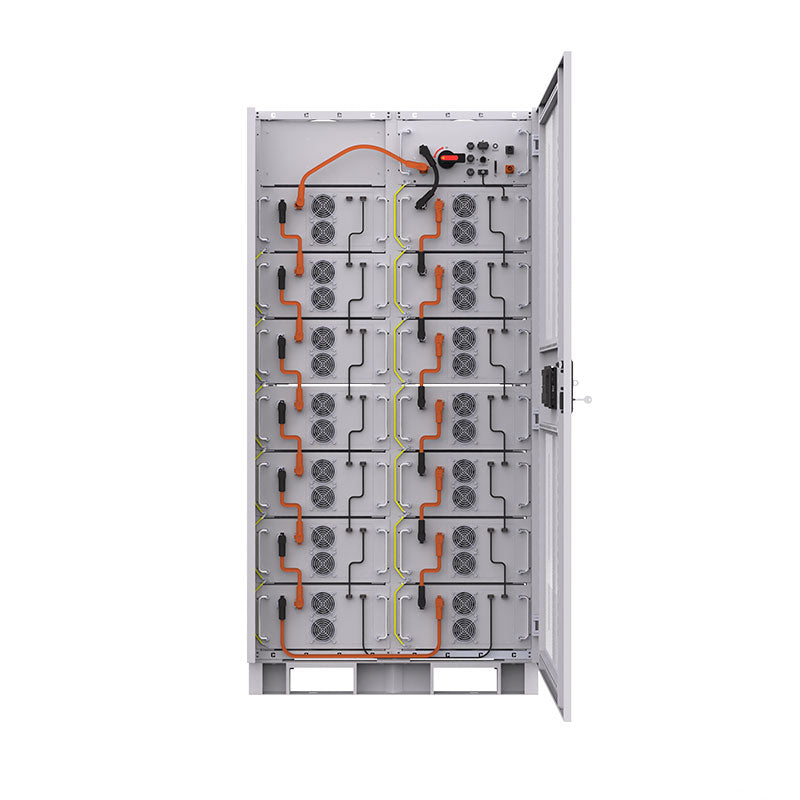

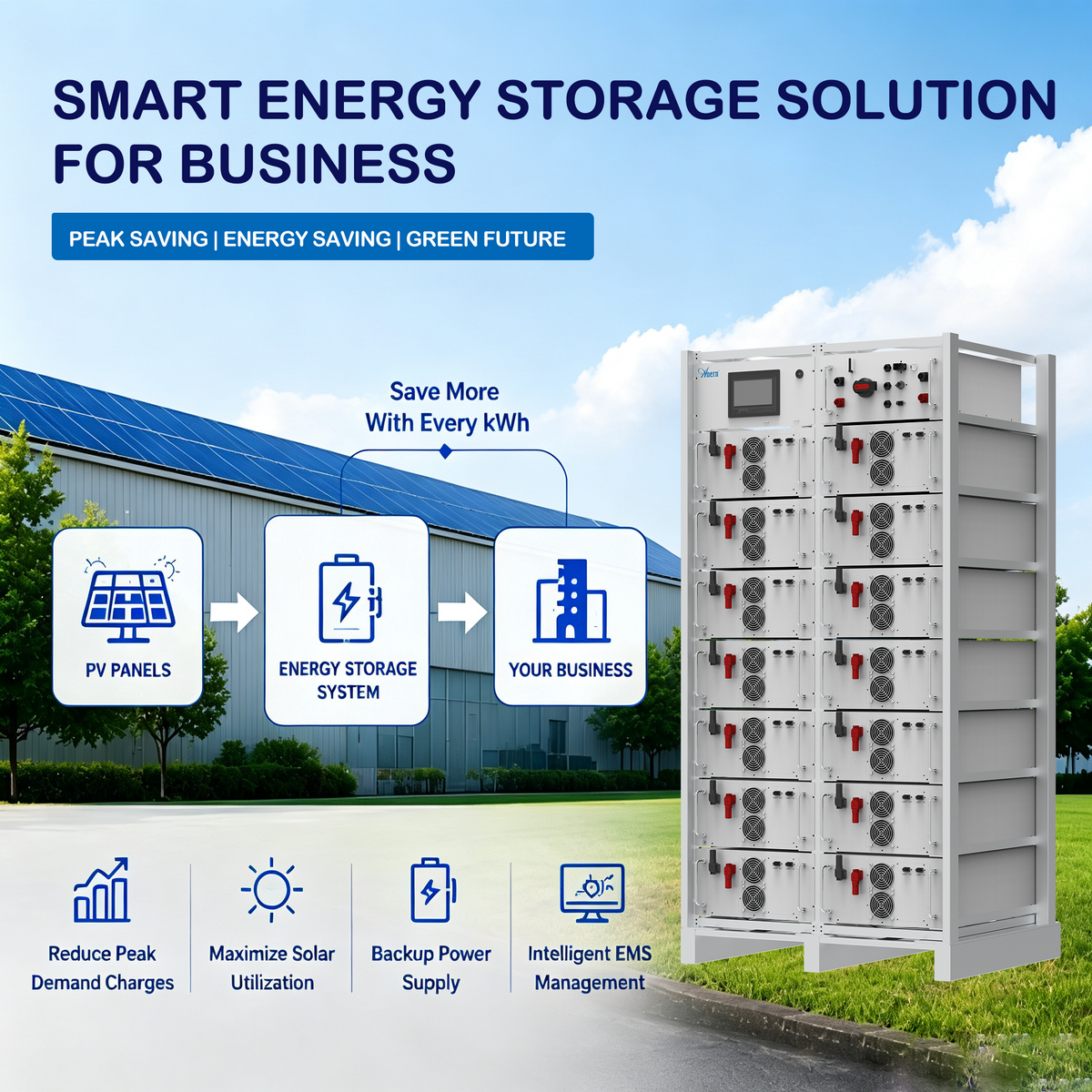

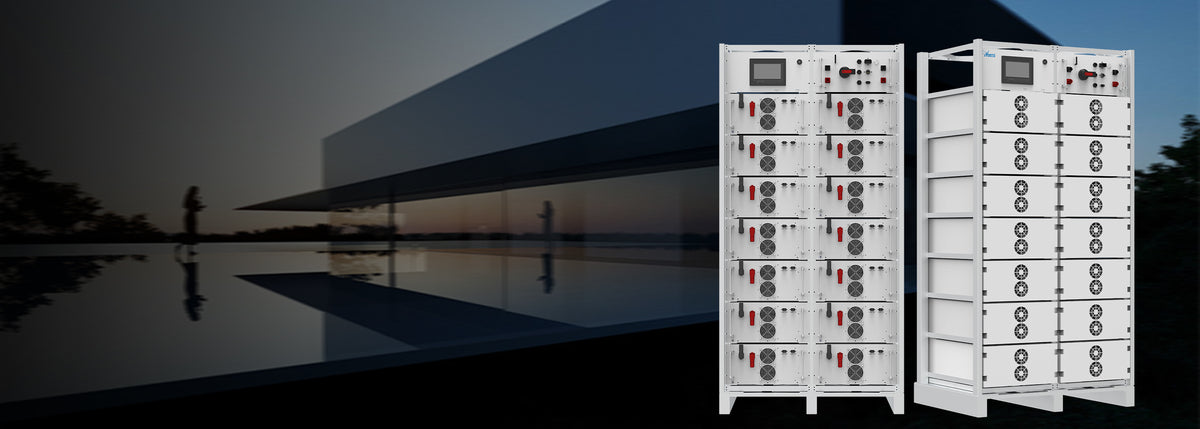

225KWH Commercial Solar Lithium Battery

The 225kWh battery system is able to supply peak shaving, emergency power, renewable energy storage and microgrid stability with dependable performance, modern performance monitoring and powerful energy management to contemporary industrial facilities.

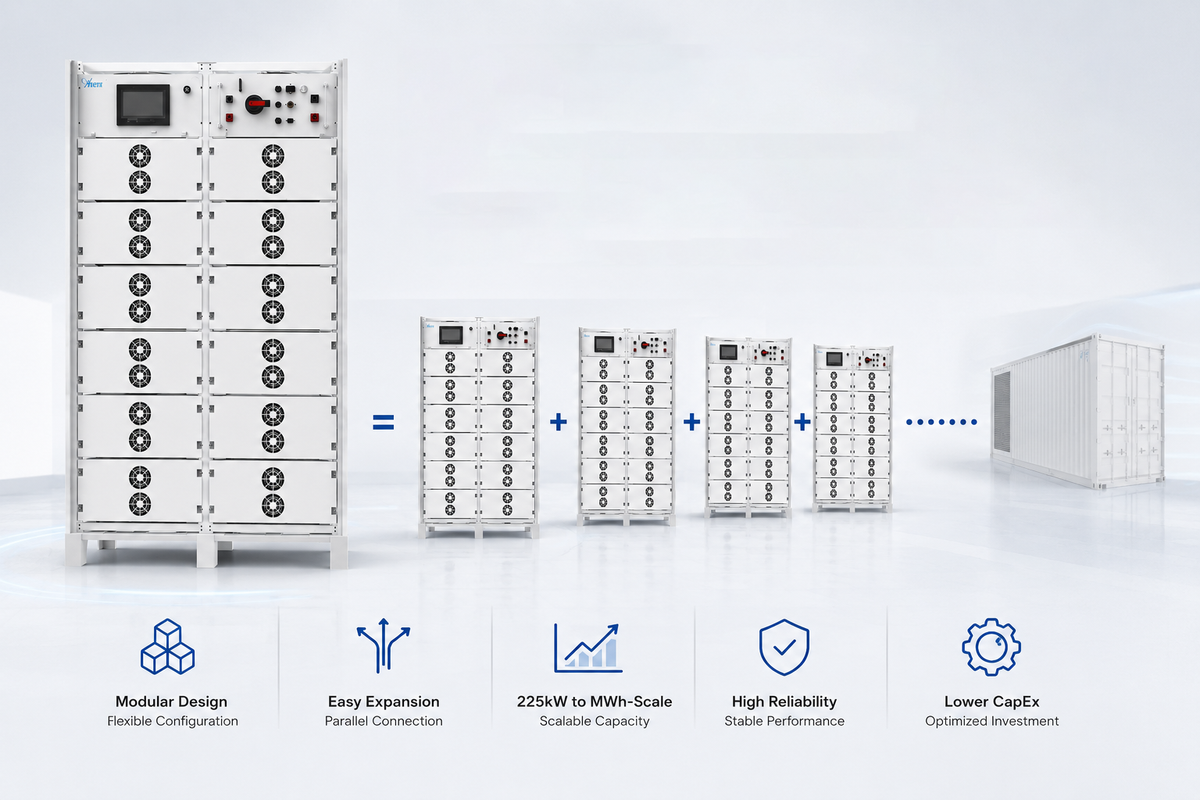

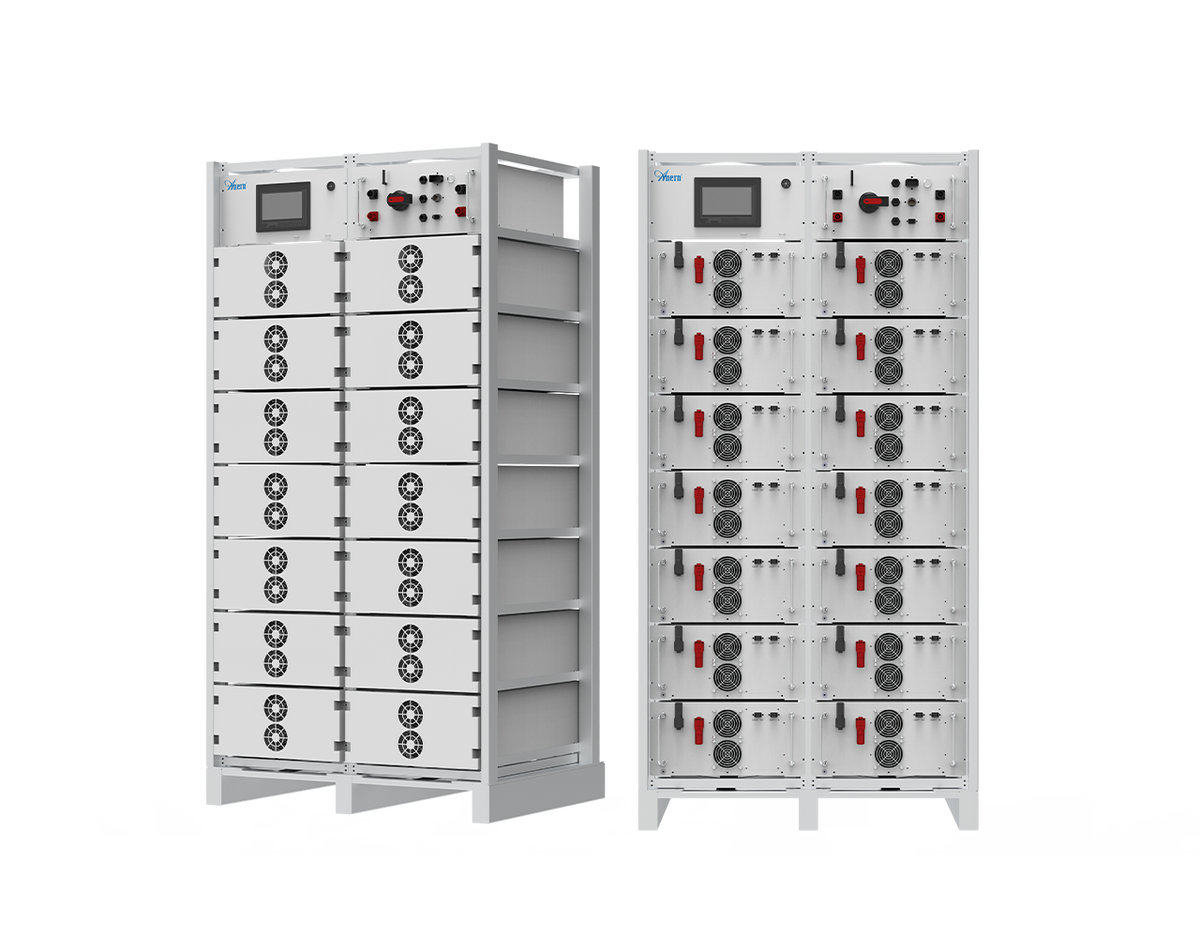

A modular rack or cabinet makes it simple to expand and maintain. You can easily scale from 225kWh to multi-megawatt-hour systems.

Battery module(Wh/V): 16.076kWh, 51.2V
Number of modules: 14
Cell technology: LFP (LiFePO4)
Battery usable energy: 225.06kWh
Nominal voltage: 716.8V
Operating voltage: 627.2-817.6V
Standard charging & discharging: 140A/0.5C
Maximum continuous charging & discharging: 140A/0.5C
Display: SOC status indication, Alarm indication, LCD display
Communication: CAN / RS485
Dimension (W*D*H)(mm): 1060(W)*820(D)*2100(H) mm
Weight Approximate (kg): 1670kg
Discharging temperature range: -30~55℃
Charging temperature range: 0～55℃
Protection rating: IP20
