How to Set Up Solar Monitoring Across Inverter and Battery

Harnessing solar energy offers a path to energy independence. To truly maximize the benefits of your solar panels and energy storage system, effective monitoring of both your inverter and battery is essential. This allows you to track performance, identify potential issues, and optimize your energy consumption patterns. You gain real-time insights into your power production and usage, ensuring your system operates efficiently and delivers long-term savings.

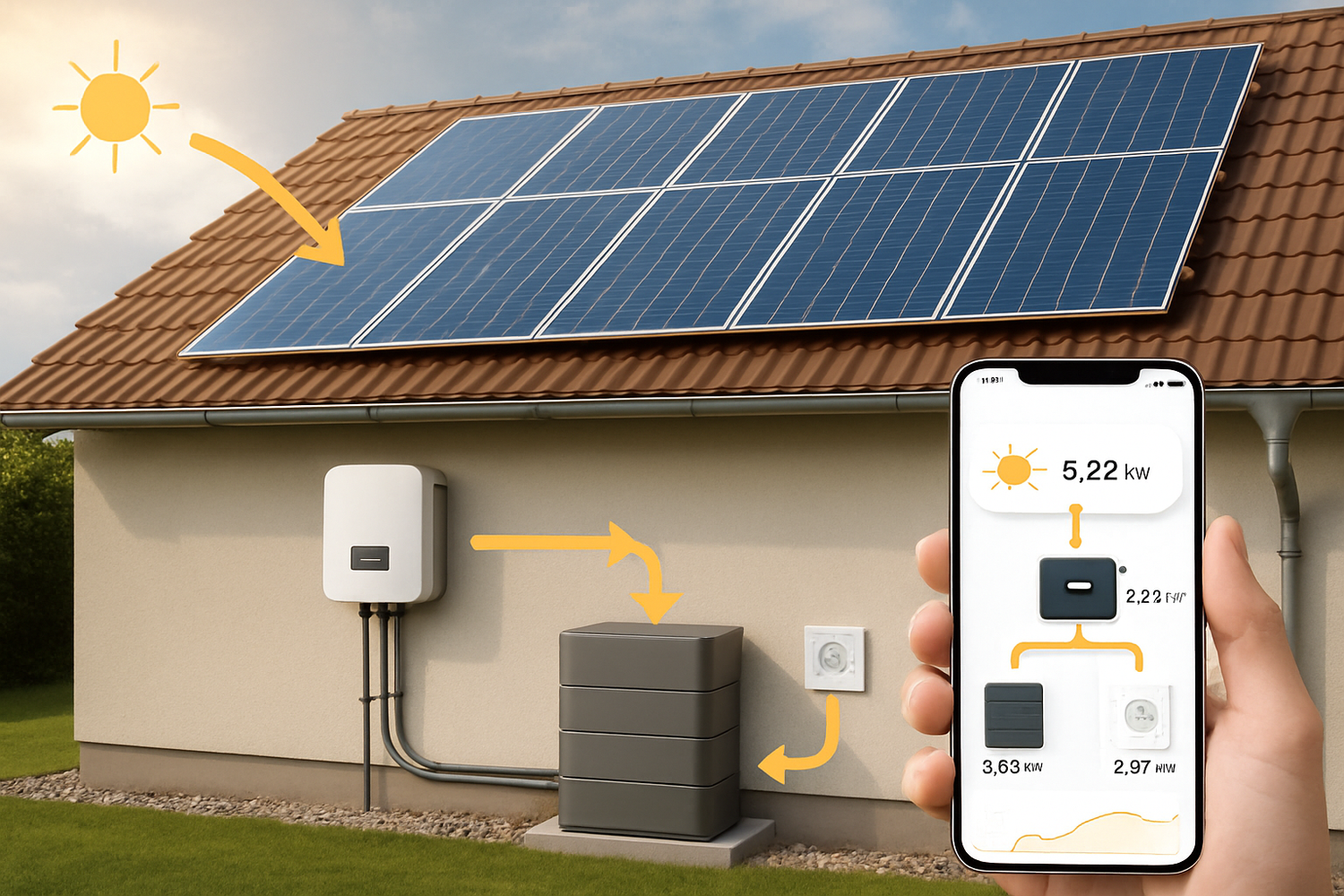

Modern solar systems are complex integrations of various components. Solar panels convert sunlight into direct current (DC) electricity. An inverter then transforms this DC power into alternating current (AC), which is suitable for powering your home or feeding into the grid. Battery storage, often utilizing advanced lithium iron phosphate (LiFePO4) technology, stores excess energy for use when solar production is low or during grid outages. Monitoring equipment, alongside inverters, transformers, and wiring, forms a crucial part of the 'balance of system' (BOS) components.

Understanding Solar Monitoring Components

Effective solar monitoring relies on several key hardware and software elements working in concert. Recognizing these components helps you establish a robust monitoring setup.

The Role of Your Solar Inverter

Your solar inverter is a central hub for data collection. Most modern inverters include built-in monitoring capabilities. They provide crucial data points related to your solar energy system's performance. These insights empower you to analyze efficiency, pinpoint issues, and ensure optimal energy production.

Inverters convert the direct current (DC) generated by your solar panels into alternating current (AC) for household use. Monitoring your inverter allows you to track power output, energy production, and system efficiency. You can often access this data through an LCD screen on the inverter itself or via a manufacturer-provided mobile application or web portal.

Integrating Battery Storage Monitoring

Battery monitoring is equally important, especially for systems designed to maximize self-consumption and provide energy resilience. Battery energy storage systems (BESS) have seen significant cost declines, with a 93% reduction from 2010 to 2024, reaching approximately USD 192 per kWh. This makes integrated storage an increasingly viable option.

When you incorporate battery storage, such as high-performance, safe, and reliable LiFePO4 batteries, you gain the ability to store excess solar energy and use it when the sun is not shining. Monitoring ensures your battery bank functions optimally. You can track the battery's state of charge (SoC), voltage, current, and temperature. Some inverters offer integrated battery monitoring, providing a combined view of solar production and battery charge/discharge. Dedicated battery monitors, often shunt-based, offer more granular data on battery health and performance.

Key Metrics for Performance Tracking

Monitoring your solar system effectively involves tracking specific metrics that provide a clear picture of its health and efficiency. Paying attention to these indicators helps you make informed decisions about your energy use.

Inverter Performance Metrics

Your inverter provides data that helps you assess how well your solar panels are performing. Key metrics include:

• Power Output: This metric shows the instantaneous electricity generated at any given time. Monitoring it helps you understand real-time production.
• Energy Production: This measures the total electricity produced over a specific period, such as daily, monthly, or annually. It helps you gauge the overall productivity of your system and compare it against expected output.
• System Efficiency: Calculating the ratio of actual energy production to potential production based on sunlight exposure indicates how effectively your system converts sunlight into usable power.
• Environmental Conditions: Data from sensors on factors like temperature and irradiance can influence solar output. Monitoring these helps explain variations in performance.

Battery Health and Usage Metrics

For battery-equipped systems, understanding battery performance is crucial for maximizing self-consumption and backup power. Metrics to monitor include:

• State of Charge (SoC): This indicates the current charge level of your battery, letting you know how much energy is available.
• Voltage and Current: These measurements are vital for understanding the electrical integrity of your battery system and identifying any deviations.
• Charging and Discharging Power: Tracking the rate at which your battery charges and discharges helps you understand energy flow and optimize usage patterns.
• Battery Health (SoH): While more complex to measure directly, consistent monitoring of other metrics over time can provide insights into your battery's long-term health and degradation.

For instance, an analysis of real-world PV/battery systems monitored data such as power, voltage, current, and battery SoC to assess performance and degradation.

Setting Up Your Monitoring System

Establishing an effective monitoring system involves several practical steps, from hardware connections to software configuration.

Connecting Inverter and Battery for Data Flow

Many modern solar inverters come with built-in monitoring capabilities. They connect to the internet via Wi-Fi, Ethernet, or cellular networks, sending data to a cloud-based platform. You can then access this data through a mobile app or web dashboard.

For battery monitoring, you have a few options. Some solar battery systems integrate monitoring directly into the inverter. This allows you to see both solar production and battery activity in one place. Alternatively, dedicated battery monitors, often shunt-based, measure current flow directly in series with the battery, providing highly accurate data on amp-hours consumed and state of charge. These dedicated monitors can often integrate with the system's inverter brand for a more cohesive view.

When setting up, ensure your inverter is configured to recognize your battery bank and its capacity. You will also want to set preferences for how the inverter utilizes battery power, such as during grid outages.

Utilizing Monitoring Software and Apps

Once your hardware is connected, the monitoring software or mobile application becomes your primary interface for data. These platforms offer user-friendly displays of collected data. They provide real-time alerts for abnormalities or maintenance needs, enabling prompt responses to potential issues.

You can customize the data you view, receive advanced insights into production and consumption, and access your system remotely from anywhere with an internet connection. This remote access is a significant advantage, allowing you to stay informed about your system's performance without needing to be physically present.

Optimizing System Performance Through Monitoring

Monitoring is not just about observing; it is about proactive management. You can leverage the data to enhance your system's efficiency and achieve greater energy independence.

Identifying and Addressing Performance Issues

Regular monitoring helps you spot performance drops, unexpected outages, or inefficiencies early. For example, if your solar production significantly decreases, you can check for common issues such as dirt or debris on panels, shading, or inverter error codes. Addressing these promptly prevents further damage and ensures your system operates efficiently.

Data analytics can reveal patterns and trends over time. For instance, a four-year study on PV/battery systems analyzed raw data to examine daily energy output and battery degradation, matching findings with existing literature. This analytical approach allows you to understand how environmental variations affect your system and to make necessary adjustments.

Maximizing Self-Consumption and Energy Independence

A primary goal for many solar owners is to maximize self-consumption—using the energy your system generates directly rather than drawing from the grid. Battery storage plays a crucial role here, shifting peak demand and addressing the variability of solar power. Integrating monitoring with your energy storage system allows you to manage energy flow effectively. You can optimize when to charge your batteries using solar power or off-peak grid electricity, and when to discharge them to power your home.

For instance, a solar-plus-battery system can deliver an 86% saving compared to grid power alone, with a net cost less than half of a solar-only scenario. The International Renewable Energy Agency (IRENA) highlights that complementary innovations like battery storage are transforming the economics of clean power. By using monitoring data, you can fine-tune your system's operation to achieve similar benefits, reducing reliance on the grid and enhancing your energy resilience.

Empowering Your Energy Future

Setting up solar monitoring for your inverter and battery system is a strategic step toward managing your energy effectively. It provides you with the insights needed to ensure your system performs optimally, from maximizing daily energy harvest to extending the lifespan of your components. You gain the ability to proactively address issues, fine-tune energy usage, and significantly increase your self-consumption.

As the solar and energy storage sectors continue to evolve, with renewables becoming the most cost-competitive source of new electricity generation, your ability to monitor and adapt your system becomes increasingly valuable. Embrace the tools available to you. You are taking control of your energy, contributing to a sustainable future, and realizing the full potential of your investment in clean power.
