Beginners Blueprint to Solar Units: From V and A to LCOE

Solar Units: Speak the Same Language

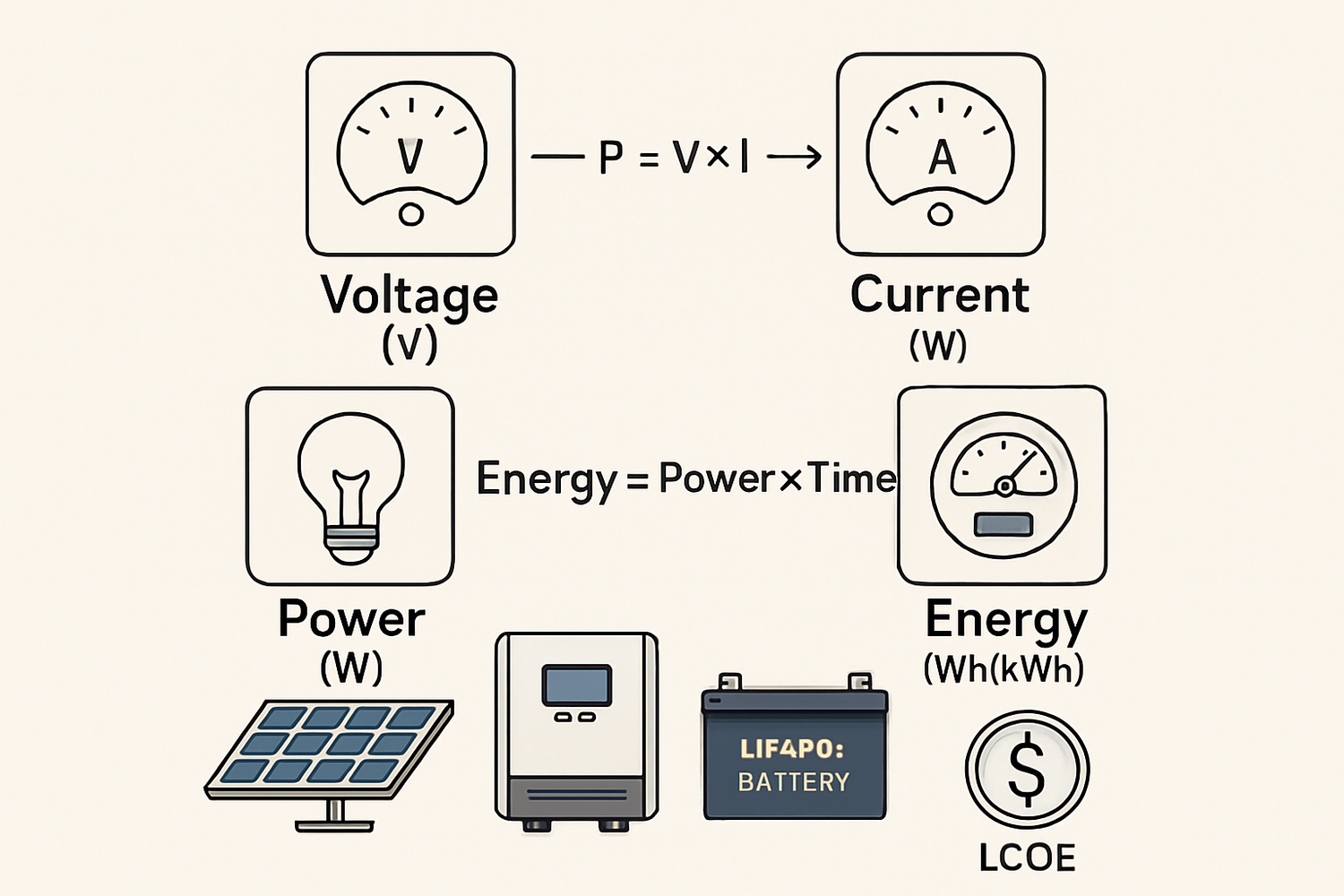

Solar power terminology can feel cryptic at first. The table below links the most used units to real design choices. It also places “Solar Units, V and A, LCOE” in a single flow from panel to bill.

Variable renewable energy (VRE) output depends on weather, so power and energy swing across the day. This is a standard feature of PV, not a flaw. See the definition of VRE and grid implications in the IEA System Integration of Renewables.

From Panel Specs to Real Output

Key panel ratings

• Voc (open‑circuit voltage): highest voltage with no load. String design must keep cold‑weather Voc below inverter max DC input.
• Isc (short‑circuit current): current with output shorted. Used to size fuses and conductors.
• Vmpp/Impp: voltage/current at maximum power point. Vmpp × Impp ≈ panel W at Standard Test Conditions (STC).
• Temperature coefficients: crystalline silicon panels typically −0.30% to −0.45%/°C for power. Expect lower power on hot roofs.

STC vs. NOCT

STC is 1000 W/m², 25°C cell temperature, AM1.5 spectrum. Normal Operating Cell Temperature (NOCT) around 800 W/m² and elevated cell temperatures leads to lower output. A 400 W panel at STC might deliver 320–360 W at NOCT on a warm day. Design margins should reflect this.

Inverters and kW vs. kVA

Inverter AC capacity is often in kW, while nameplates can also list kVA. Multiply kVA by power factor to get kW. Quality hybrid inverters support multiple MPPT channels, useful for mixed roof orientations. For definitions of kVA, kVArh and related units in power systems, see unit conventions summarized in the IEA Next‑Generation Wind and Solar Power (Full Report).

Battery and ESS Basics: Turning Ah into kWh

Most modern home storage uses LiFePO4 chemistry for safety, cycle life, and power density. Typical specs include 48 V nominal, round‑trip efficiency 92–96%, and recommended continuous discharge of 0.5C–1C.

Fast conversions and sizing

• kWh from Ah: Energy (kWh) ≈ (Voltage × Ah)/1000. Example: 48 V × 100 Ah ≈ 4.8 kWh.
• Usable energy: Usable kWh ≈ Nameplate kWh × Allowed Depth of Discharge (DoD). Many LiFePO4 packs allow 80–95% DoD.
• Days of autonomy: Required kWh ≈ Daily load × Days × 1/(Round‑trip efficiency).

For off‑grid solar or backup, pair storage with a hybrid inverter and PV. Modular ESS cabinets scale from a few kWh to tens of kWh for homes, farms, or cabins. Practical design aligns battery C‑rate with inverter power so peak loads do not exceed continuous discharge limits.

From Energy Yield to LCOE

LCOE (levelized cost of electricity) converts life‑cycle system cost and energy into a single $/kWh figure. It helps compare options across sizes and technologies. A simple form is: LCOE ≈ (CAPEX × CRF + Annual O&M) / Annual Energy, where CRF is the capital recovery factor based on discount rate and life.

Worked example (small rooftop PV + ESS)

• PV: 6 kWdc, CAPEX $1,350/kWdc → $8,100
• Inverter + BOS: $3,000
• ESS: 10 kWh LiFePO4, $500/kWh → $5,000
• Total CAPEX: $16,100; O&M: $150/yr
• Yield: 1,200 kWh/kWdc/yr → 7,200 kWh/yr (pre‑storage)
• Round‑trip storage losses: 6% on 30% of energy → net annual energy ≈ 7,200 × (1 − 0.06 × 0.3) ≈ 7,076 kWh
• Assume 4% discount rate, 20‑year life ⇒ CRF ≈ 0.0736

Annualized CAPEX ≈ $16,100 × 0.0736 ≈ $1,185. LCOE ≈ ($1,185 + $150) / 7,076 ≈ $0.19/kWh. Local sunlight, pricing, and O&M will shift this result; use your own inputs.

Context from independent data

• IEA notes rising financing costs and equipment prices lifted utility‑scale solar PV LCOE between early‑2021 and late‑2022, with partial easing in 2023; the analysis assumes a $26/MWh production tax credit effect in the United States. See the IEA Energy Investment 2023.
• Permitting and grid connection queues slow project delivery across major markets, a factor that indirectly affects costs and schedules. See market snapshots and queue metrics in the same IEA 2023 investment report.
• Community solar and process improvements can trim “soft costs” (permitting, design, customer acquisition). See the U.S. Department of Energy’s case evidence in EERE’s Solar in Your Community Challenge.

Sector references worth bookmarking: the IRENA knowledge base on cost trends and the EIA for U.S. performance statistics and capacity factors.

Real‑world Design Tips

Match strings to inverter windows

Keep cold‑day maximum string Voc below the inverter’s DC limit. Use local minimum temperature, panel Voc at STC, and manufacturer temperature coefficients to estimate worst‑case Voc.

Balance DC/AC ratio

A DC/AC ratio of 1.1–1.3 is common for rooftops to boost early/late energy. Check that clip losses remain acceptable and the inverter’s thermal design is adequate.

Battery operating window

Cycle life rises as depth of discharge and temperature fall. For daily cycling, 70–90% DoD with LiFePO4 strikes a practical balance. Target ambient 10–30°C for best longevity.

Soft‑cost shortcuts

• Use standard racking and pre‑approved equipment lists to speed permitting.
• Community programs can reduce customer acquisition costs, as highlighted by DOE case studies.

Example Conversions and Checks

• Convert a 5 kW PV system’s monthly energy at a site with 4.6 peak sun‑hours/day: Energy ≈ 5 kW × 4.6 h/day × 30 ≈ 690 kWh, minus system losses (shade, temperature, wiring).
• Size a 3 kW continuous load for 8 hours on a 48 V ESS: Energy need = 3 × 8 = 24 kWh. With 92% round‑trip efficiency and 90% DoD, battery nameplate ≈ 24/(0.92 × 0.9) ≈ 29 kWh.
• Wire rating check: If Isc per string is 12 A and three strings are paralleled, account for 1.25 safety factor → minimum combiner rating ≈ 12 × 3 × 1.25 = 45 A.

Why this matters for Beginners Blueprint Solar decisions

Clear Solar Power Terminology removes guesswork. V and A inform conductor and breaker sizing. W and kWh frame yield and bills. LCOE connects today’s spend with tomorrow’s savings. For reliable and scalable energy independence, pair appropriate PV with a safe LiFePO4 battery, a hybrid inverter sized to loads, and a right‑sized ESS. Then check policy incentives and interconnection timelines, as both shift economics materially. For deeper context on unit conventions in variable renewables, see the IEA Next‑Generation Wind and Solar Power.

Note: Financial figures here are examples, not investment or legal advice. Always verify local codes, incentives, and tariffs. (Disclaimer)
