Solar power runs on a few core building blocks. Three acronyms sit at the center: ESS, BMS, and inverter. Know what each does, how they link, and how to size them, and you reduce cost, risk, and downtime. This piece gives crisp definitions, typical values, wiring and safety tips, plus a short case to anchor choices in real numbers.

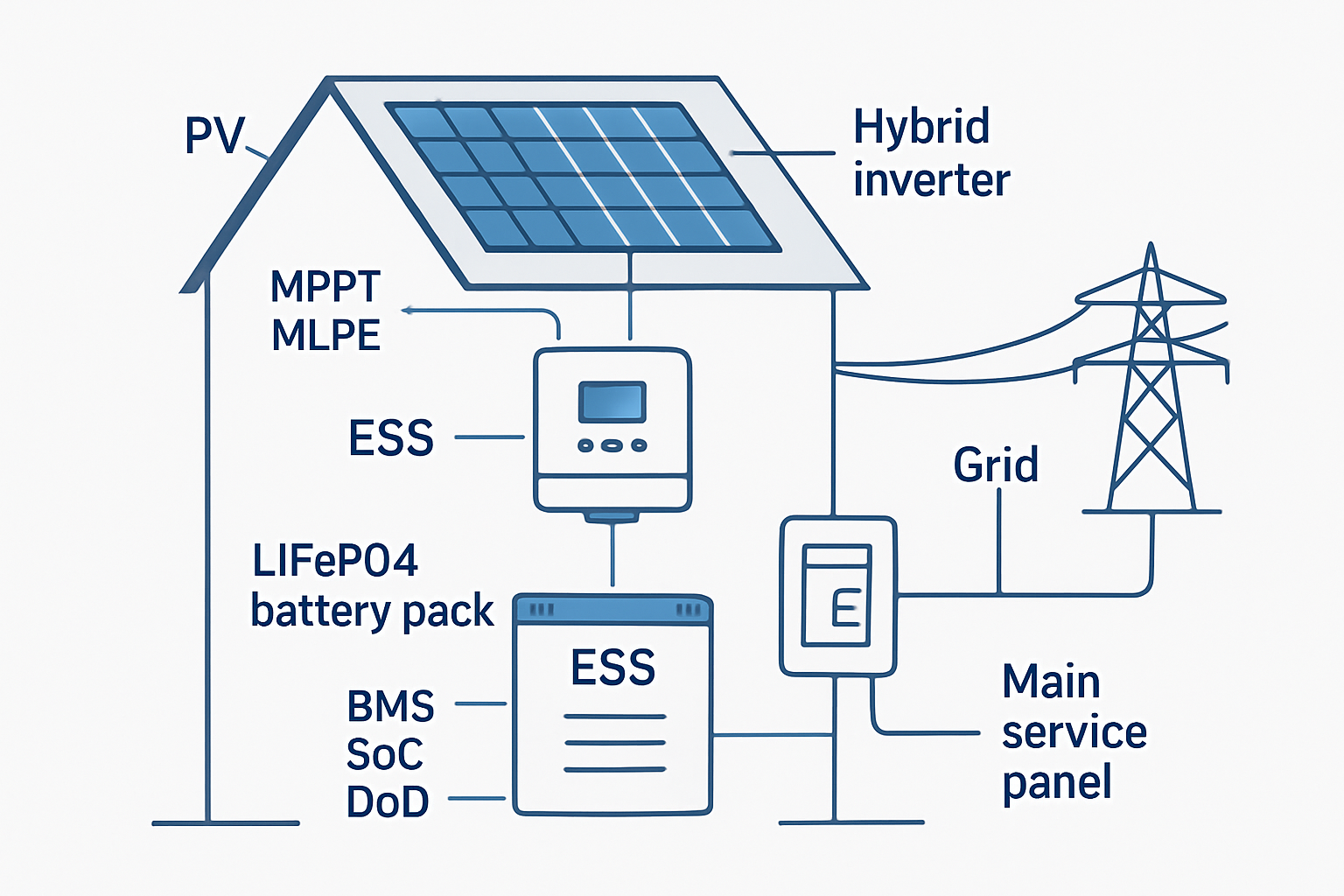

Clear definitions you can use today
ESS: Energy Storage System
An ESS in solar is the full storage package: battery modules, the BMS, power electronics, enclosures, protections, wiring, and controls. In homes, an ESS often includes a hybrid inverter that manages PV, grid, battery, and loads. In larger sites, controls may sit in a separate energy management unit. Batteries turn variable PV into steady energy and provide backup.
As noted by the International Energy Agency, PV systems convert light to DC power and need balance-of-system gear like inverters, protections, and structures to deliver usable energy (Solar Energy Perspectives). That framing puts the ESS beside the inverter in the core BOS stack.
BMS: Battery Management System
The BMS protects and manages the battery. It measures pack and cell voltages, currents, and temperatures. It opens contactors on faults. It balances cells, reports state of charge (SoC) and state of health (SoH), and speaks to the inverter or site controller. For lithium iron phosphate (LiFePO4), the BMS is not optional.
Good BMS behavior extends life. Typical actions include limiting charge in cold weather, tapering near full, and holding reserve for surge loads. It also logs events to aid service.
Inverter
The inverter converts DC to AC so your home or site can use the energy. Hybrid inverters add MPPTs for PV, battery charge control, and transfer relays for backup. Grid-tied units sync to the grid. Off-grid or backup modes can form a stable AC source for loads. In practice, inverter settings must align with BMS limits.
IEA notes that PV output is DC and most uses run on AC, so inverters are a standard part of PV installations (Solar Energy Perspectives). The latest technology reports also distinguish DC module ratings from AC delivery and place inverters outside the PV manufacturing scope (Energy Technology Perspectives 2024).

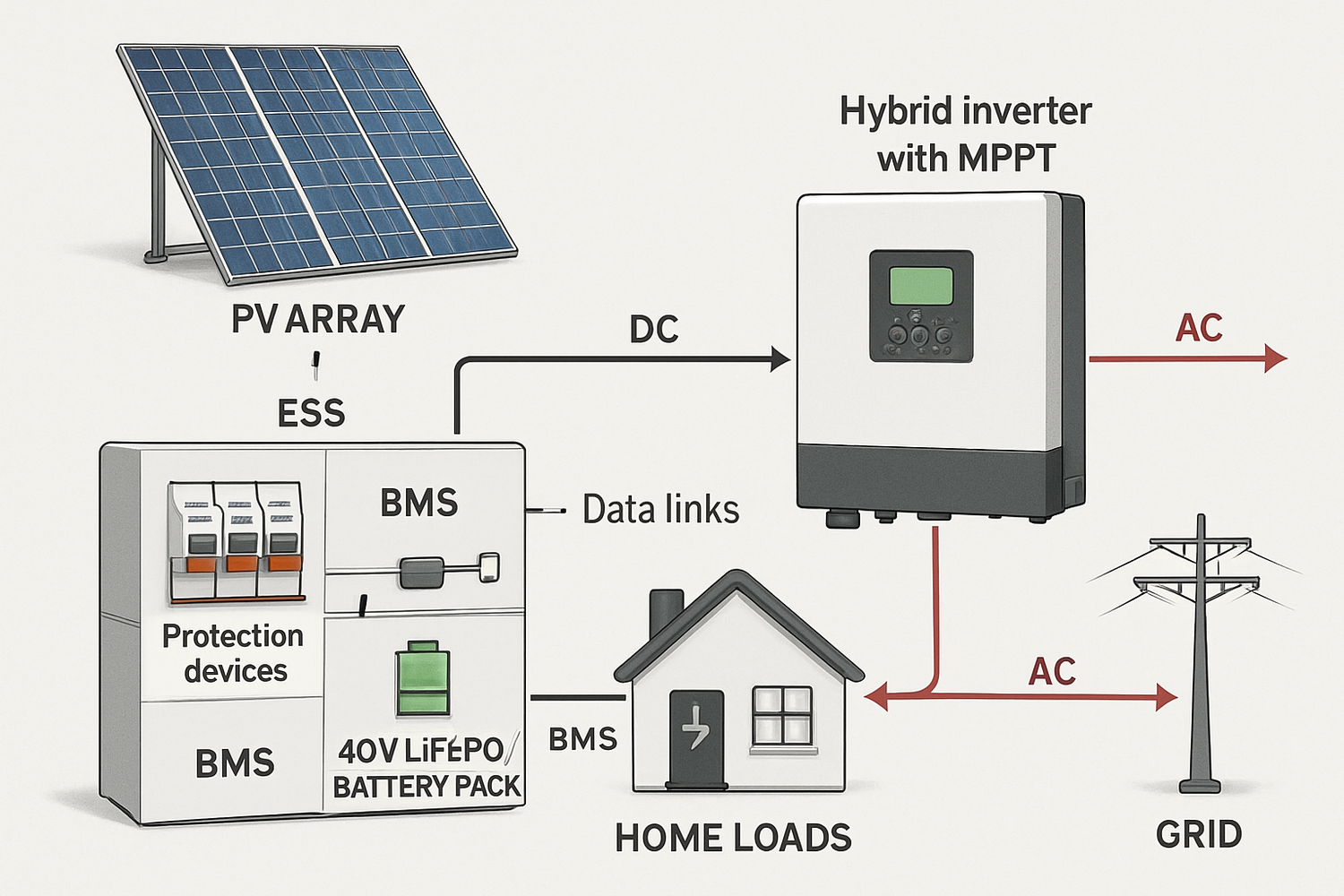

How ESS, BMS, and the inverter work together
Power path
Daytime: PV feeds the inverter’s MPPT, which charges the battery and powers loads; surplus may export to grid if allowed. Night or outage: the inverter draws from the battery to serve loads.
- DC-coupled setups: PV connects to the hybrid inverter’s MPPT; battery sits on the DC bus.
- AC-coupled setups: a PV inverter feeds AC; a battery inverter manages charge/discharge on the AC side.
Both approaches work. DC coupling tends to reduce conversion stages. AC coupling suits retrofits and larger split systems.
Data path
The BMS shares SoC, max charge current, and max discharge current with the inverter. The inverter adjusts power to stay inside limits. This prevents nuisance trips and preserves life. Many systems use CAN or RS485 with vendor-specific or open protocols.
Safety chain
- BMS trips: opens contactors on over/under-voltage, over-current, or over/under-temperature.
- Inverter protections: anti-islanding, over/under-frequency, and over-current response.
- Hardware protections: DC fuses, breakers, surge protection, and manual disconnects.
Energy.gov’s solar materials emphasize safe conversion and BOS practice (U.S. DOE Solar Energy). Following this chain reduces arc risk and equipment damage.
Key specs and typical values
The table below lists common specs for residential and small commercial LiFePO4-based solar system components. Always check your exact datasheets.
| Component | Core functions | Typical ratings/specs | Practical checks |
|---|---|---|---|
| ESS (LiFePO4) | Store energy, provide backup, shave peaks | Round-trip efficiency: 90–95%; Usable DoD: 80–90%; Cycle life: 3,000–6,000 at 80% DoD; Operating charge temp: 0–45°C; Discharge: -20–55°C | Size usable kWh = Nameplate × DoD; Keep charge below freezing disabled unless heated |
| BMS | Protect cells, balance, report SoC/SoH | Cell OV cutoff: ~3.65 V; Cell UV cutoff: ~2.5 V; Pack continuous current: ~100 A per 5 kWh module; Short surge: 1.5–2× for 5–10 s | Ensure pack current ≥ inverter DC demand at peak; Verify temp sensors on each module |
| Inverter (hybrid) | DC-AC conversion, MPPT, charge control | Continuous power: 3–10 kW (home); Surge: 2× for motor start; MPPT window: ~120–500 Vdc; Max PV input current: per MPPT; Efficiency: 95–98%; THD < 3% | Match MPPT window to coldest-string VOC; Confirm surge supports largest motor |
IEA underscores that PV module power is specified on the DC side, so your delivered AC depends on inverter efficiency and limits (Energy Technology Perspectives 2024).
Sizing rules that avoid bottlenecks
Battery current vs. inverter power
On a 48 V LiFePO4 pack, DC current rises fast with power. Use this quick check:
Battery current (A) ≈ Inverter AC power (W) ÷ (48 V × η). With η ≈ 0.94.
Example: A 6 kW load needs about 6,000 ÷ (48 × 0.94) ≈ 133 A from the battery. If your BMS allows 100 A per 5 kWh module, you need at least two modules in parallel to sustain 6 kW without tripping. Add margin for surge.
Inverter power and surge
Size to continuous loads plus motor starts. Many compressors and pumps need 2× surge for a few seconds. If the largest motor is 2 kW with 2× surge, your inverter should handle at least 4 kVA surge. Verify the battery and BMS can deliver the same surge current.
Energy balance for daily use
- Target battery: daily kWh × desired autonomy (days) ÷ usable DoD.
- PV size: daily kWh ÷ peak sun hours ÷ system derate (often 0.75–0.85).
Keep PV-to-inverter input within MPPT voltage and current limits. Use string counts that meet the coldest VOC and hottest VMP rules from the inverter manual.
IEA and DOE materials describe PV as DC sources requiring inverters and BOS for safe delivery; this underlines the need to match DC strings to inverter windows (Solar Energy Perspectives, U.S. DOE Solar Energy).
Case snapshot: clinic-scale design
Healthcare facilities in sunny regions need steady power for critical loads. A recent assessment shows typical solar system designs with clear component sizes. For instance, a “Solar as primary” clinic case lists about 26 kWp of PV, 102 kWh of batteries, and a 35 kVA inverter to cover up to 6.42 kW of max load and roughly 34.84 kWh daily usage (Electrification with renewables: Enhancing healthcare delivery in Mozambique).
What to take from this:
- Battery-to-load ratio is about 3× daily kWh, offering overnight and cloudy-day coverage with margin.
- Inverter kVA matches peak load with headroom for motor starts and lab devices.
- PV kWp is sized to recharge the battery and serve daytime loads within site sun hours.
The same logic scales to homes and farms. Map your peak kW, daily kWh, and site sun hours, then check that BMS current limits and inverter surge cover the worst 10 seconds of demand.
Installation and operation tips
Wiring and protection
- Use DC-rated breakers or fuses near the battery and PV inputs. DC arcs do not self-extinguish like AC.
- Keep battery cables short and sized for continuous current with 25–40% margin. Use busbars for 3+ parallel strings.
- Bond enclosures and follow local earthing rules. Keep clearances for ventilation and service.
Settings that match chemistry
- Set charge voltage and current to the BMS vendor’s LiFePO4 limits. Typical full-charge per cell sits near 3.45–3.55 V; many operators stop at 95–98% SoC to extend life.
- Enforce charge inhibit below 0°C unless the pack has heating. Respect BMS export/import current limits in firmware.
- Calibrate SoC after installation by a full controlled cycle if the vendor recommends it.
Monitoring and care
- Turn on event logging. Review any BMS trips to catch loose connections or weak cells early.
- Update inverter and BMS firmware on a planned schedule. Read release notes for safety fixes.
- Plan a capacity check every 12–24 months for critical sites.
For background on PV system elements and the need for safe conversion and integration, see IEA’s overview and DOE’s solar energy pages (Solar Energy Perspectives, U.S. DOE Solar Energy). For broader energy context and demand patterns that drive sizing, national data portals like the U.S. EIA provide useful trends, though your actual design remains site-specific.
Standards, scope, and terminology notes
Power on PV labels is usually DC. Delivered AC depends on inverter efficiency, clipping, and limits. Manufacturing scope in recent global technology reports treats PV modules and cells as DC products and separates inverters and racks into BOS, reinforcing the DC-to-AC distinction you design around (Energy Technology Perspectives 2024).
Safety and grid features are evolving. Grid-forming modes, ride-through, and advanced protections improve stability. Always confirm local electrical codes and interconnection rules during design and commissioning.
Key takeaways
ESS stores energy. The BMS protects the battery and shares limits. The inverter turns DC into clean AC and manages PV and backup. Match BMS currents to inverter demand. Check inverter surge against motor starts. Size PV to refill the battery and meet daytime loads. Use proper protections and settings that fit LiFePO4. Link the three with clear data and safety paths and you get reliable, scalable solar power.
Safety and compliance disclaimer: This content is for general technical information. It is not legal, code, or engineering approval. Work with qualified professionals and follow local standards.
FAQ
What is ESS in solar?
An ESS is the full energy storage setup for a PV system: the battery pack, BMS, inverter or battery inverter, protections, wiring, and controls. It stores solar energy and supplies power on demand.
Do I need a BMS for LiFePO4?
Yes. A BMS is mandatory for lithium packs. It prevents over/under-voltage and over-current, balances cells, and shares safe charge/discharge limits with the inverter.
Can I oversize the PV array vs. the inverter?
Moderate oversizing is common to boost harvest in mornings, evenings, and cloudy weather. Stay within the inverter’s PV current and voltage limits and respect the MPPT window. Expect some clipping on clear, cool days.
How long does a LiFePO4 ESS last?
Typical cycle life ranges from about 3,000 to 6,000 cycles at 80% DoD, with round-trip efficiency near 90–95%. Actual life depends on temperature, depth of discharge, and current.
What is the difference between AC-coupled and DC-coupled ESS?
DC-coupled systems tie PV to a hybrid inverter’s MPPT and charge the battery on the DC side, reducing conversions. AC-coupled systems use a separate PV inverter on AC and a battery inverter to charge/discharge on AC, which is flexible for retrofits and expansions.
